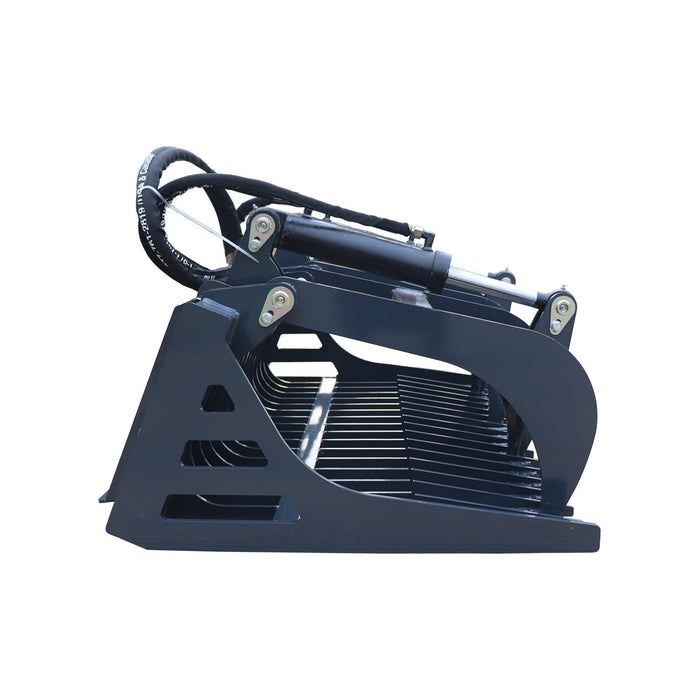

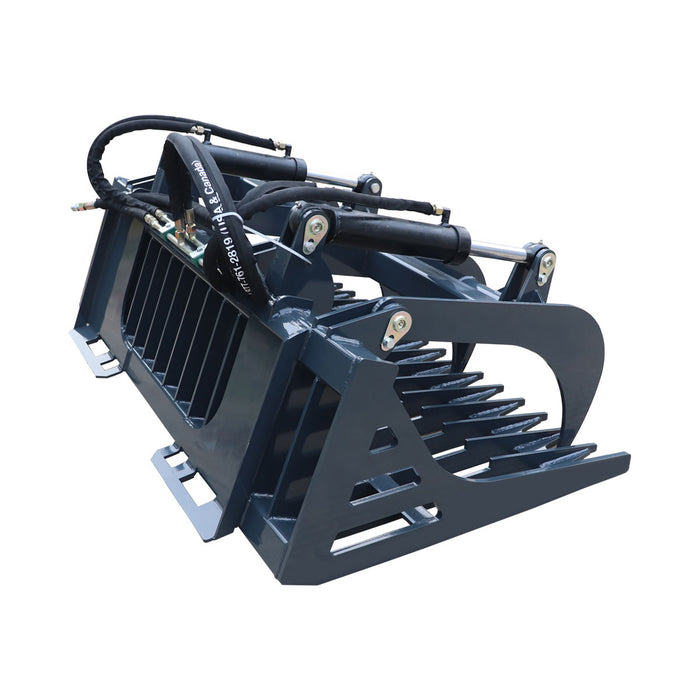

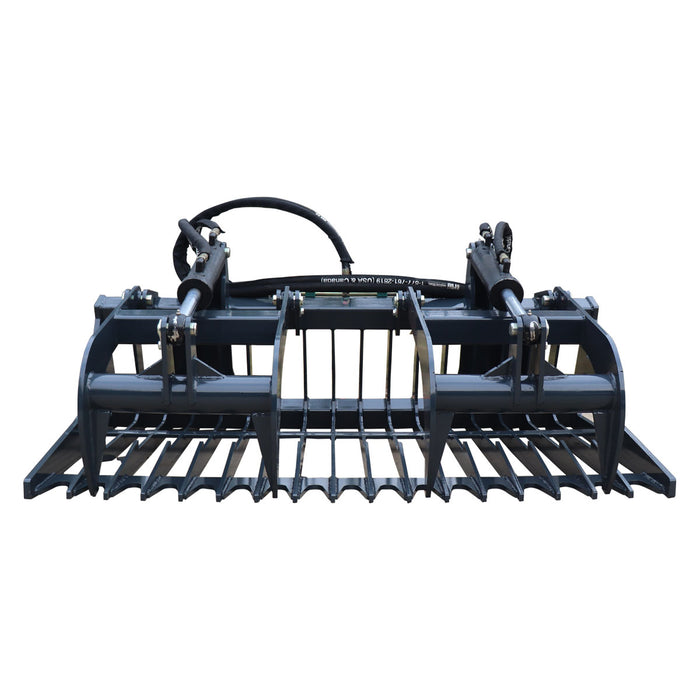

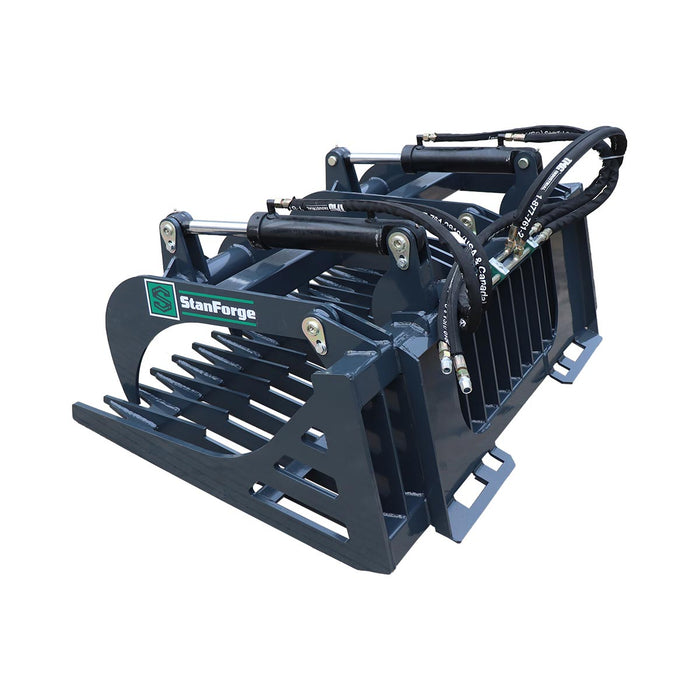

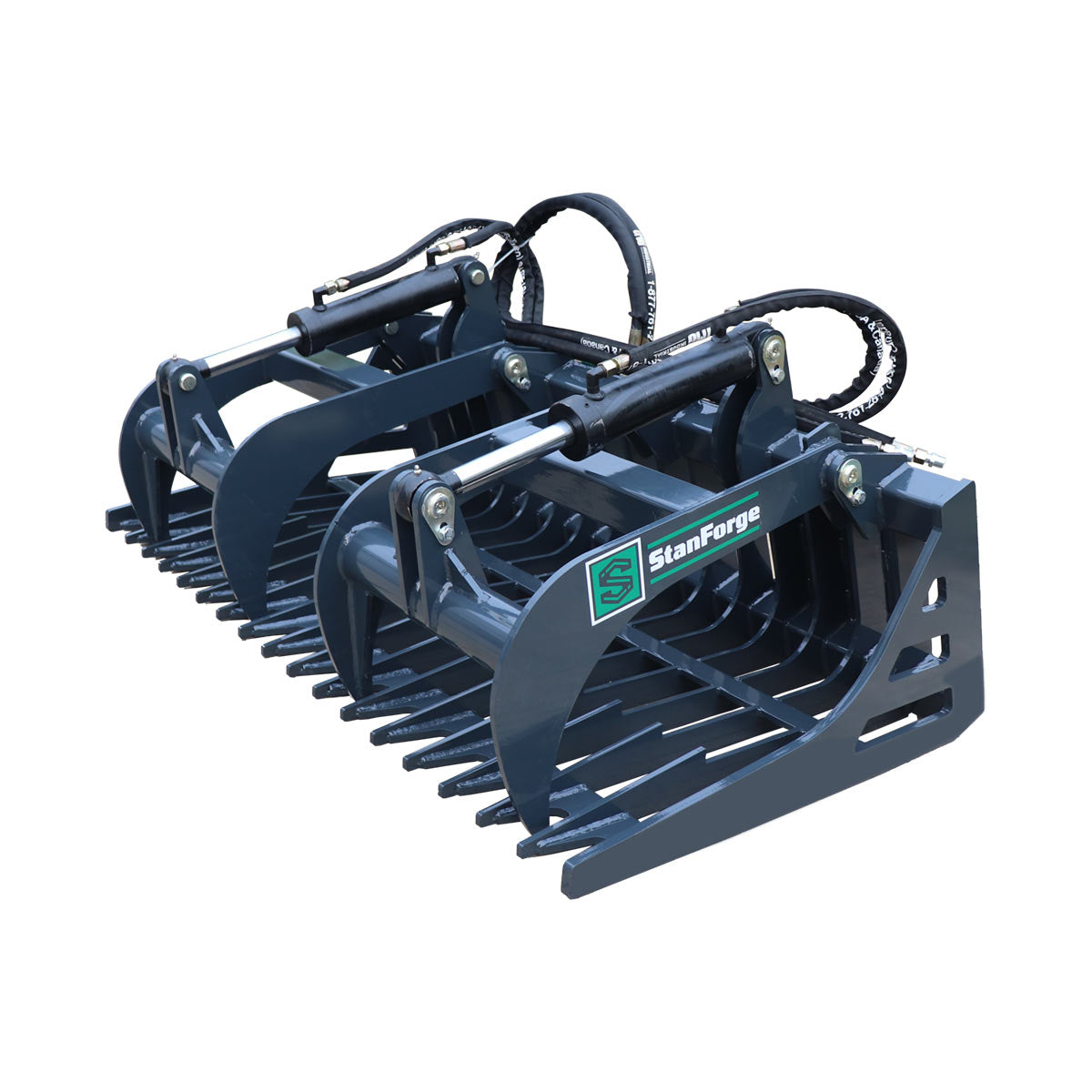

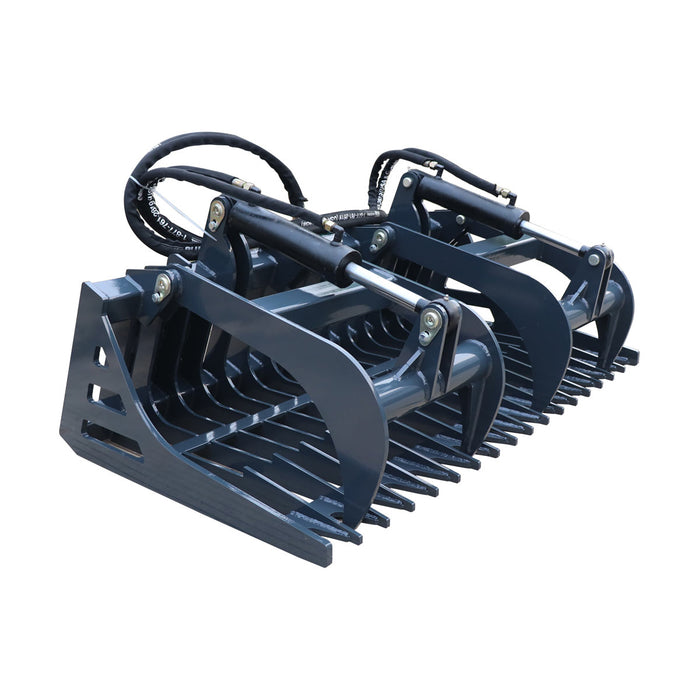

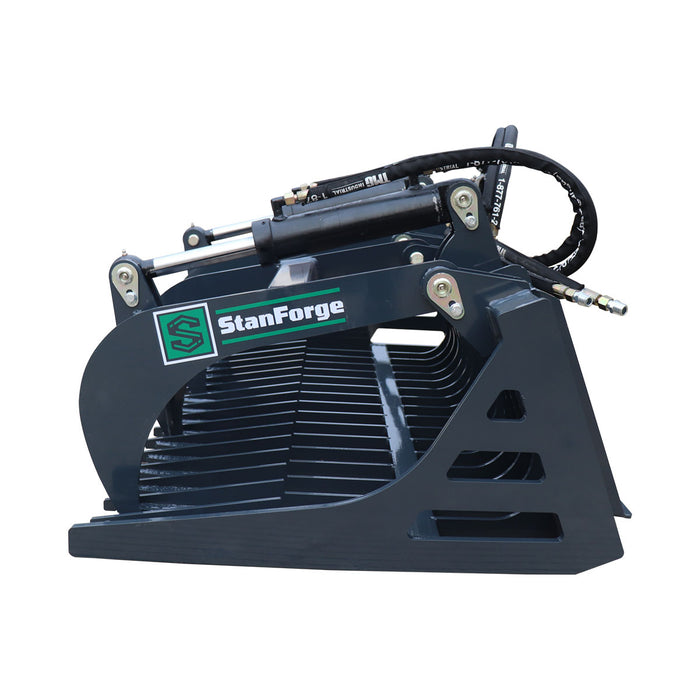

Stanforge 60" Skid Steer Skeleton Grapple Attachment, Universal Mount, SF-SSG60
FREE
shipping to most locations in
Canada
Learn More
Features
Features
- 2860 lb grappling capacity: Designed for heavy-duty material handling
- 59" working width: Skeleton tine base allows debris to sift through easily
- 34" arm opening: Handles varied brush, logs, and irregular debris

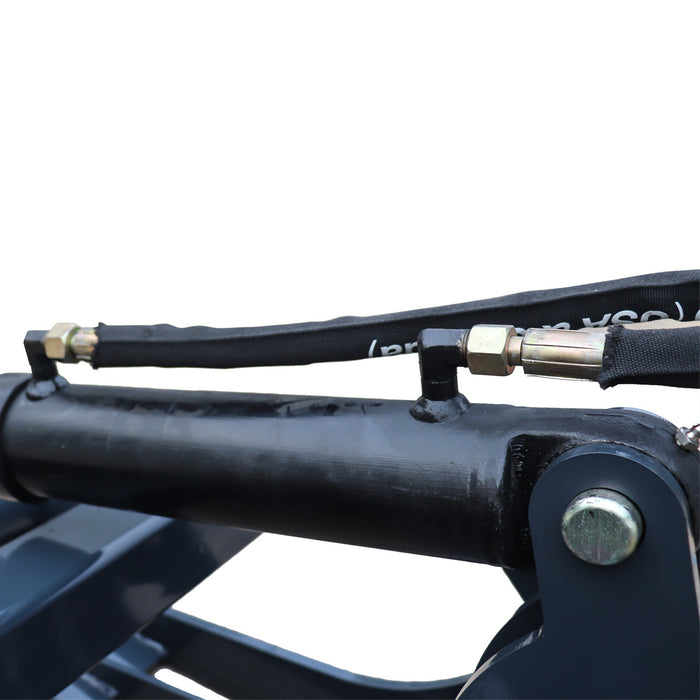

- Dual hydraulic cylinder arms: Ensure stable and secure grappling performance

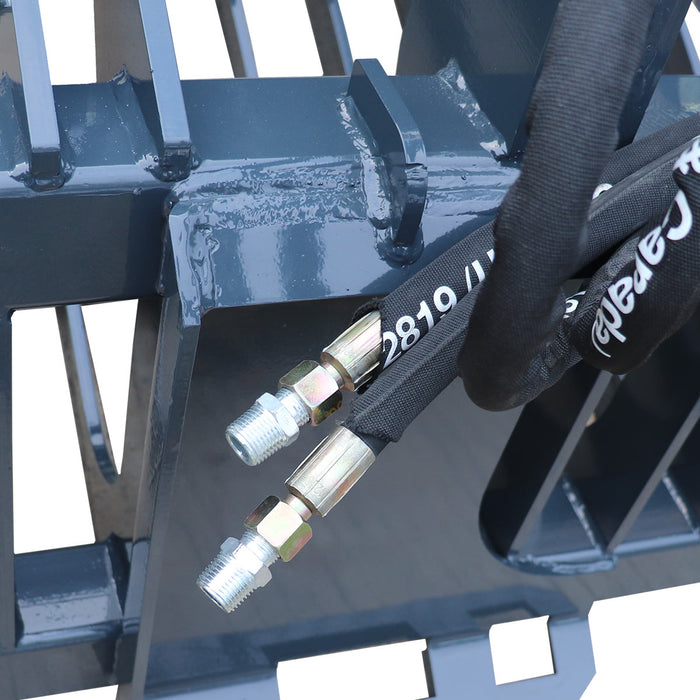

- Included hydraulic hoses and flat face couplers: Enable quick and efficient setup
- Universal mount: Provides fast, secure attachment to your skid steer
Specifications
Specifications
- Compatible with 30–60 HP skid steers
- Mount: Universal skid steer mount
- Working width: 59" (1500 mm)
- Grapple capacity: 2860 lb (1300 kg)
- Grapple arm opening: 34" (860 mm)
- Number of hydraulic hoses: 2
- Fitting: NPT 1/2" flat coupler
- Hydraulic pressure: 2300–3600 PSI
- Flow rate: 3–8 GPM
- Overall dimension: 59" x 37.4" x 23.5" (L x W x H), 1500 x 950 x 597 mm
- Product weight: 610 lb (277 kg)
Product Description
Product Description
The SF-SSG60 Skid Steer Skeleton Rock Grapple features dual hydraulic cylinder arms that can produce a grappling capacity of up to 2860 lb. A versatile attachment for your skid steer, it can be used for a variety of applications, including brush and log pick up, recycling, rock raking, scrap metal sorting, and general material handling around your acreage, farm, or job site.

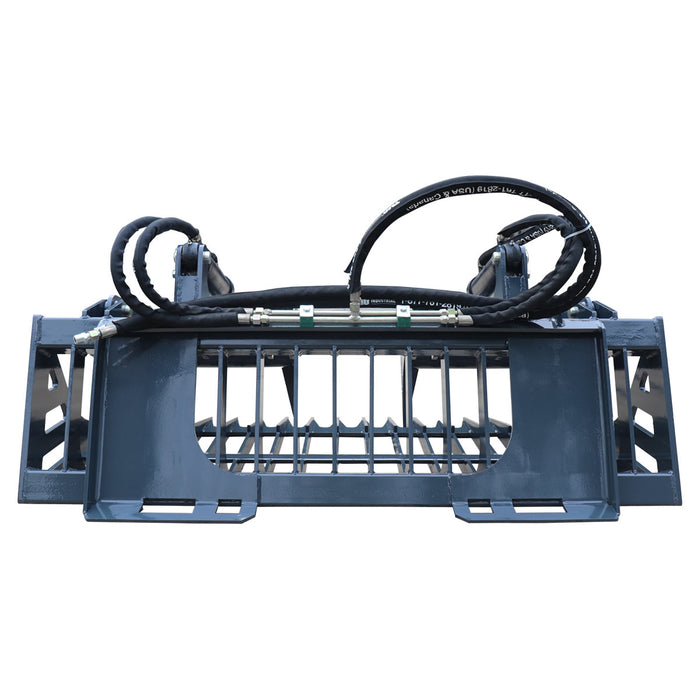

Equipped with a universal mount for easy hookup to your skid steer, this grapple enables quick and efficient workflow. A flat bottom design slides effortlessly over the ground, leaving the surface undisturbed, while reinforced frame beams provide heavy-duty construction capable of handling demanding projects.

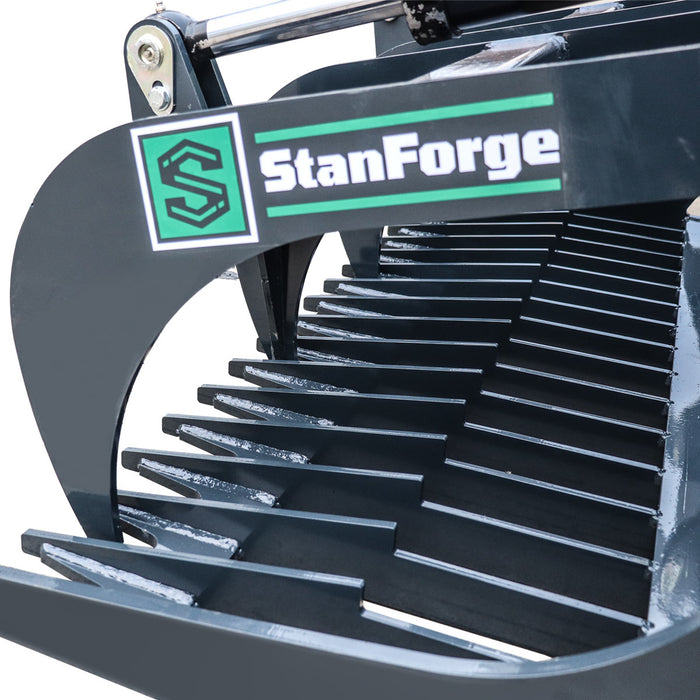

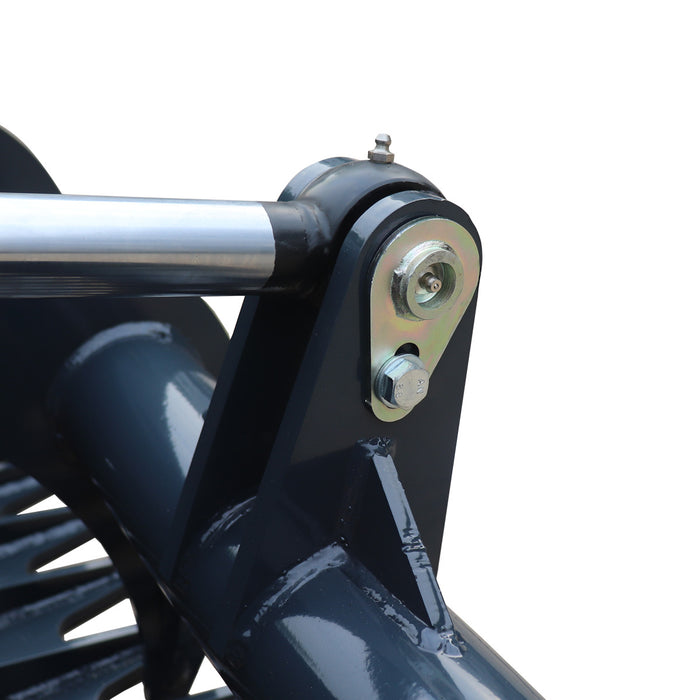

With a 60" working width, the SF-SSG60 offers broad grappling capability for farms, commercial properties, and worksites. Fine serrated cutting edges and a skeleton tine bottom design allow loose debris to sift through easily, improving efficiency when transporting bulkier materials. Built to last, it features greasable pins and bushings for routine maintenance and comes with included hydraulic hoses and quick flat couplers for fast connection.
Shipping Information
Shipping Information
- This product is packed in a steel crate shipping box
- Shipping dimensions: 65" x 41" x 28" (L x W x H), 198 x 105 x 72 cm
- Shipment weight: 700 lb (319 kg)
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
