SKU TMG-SP100

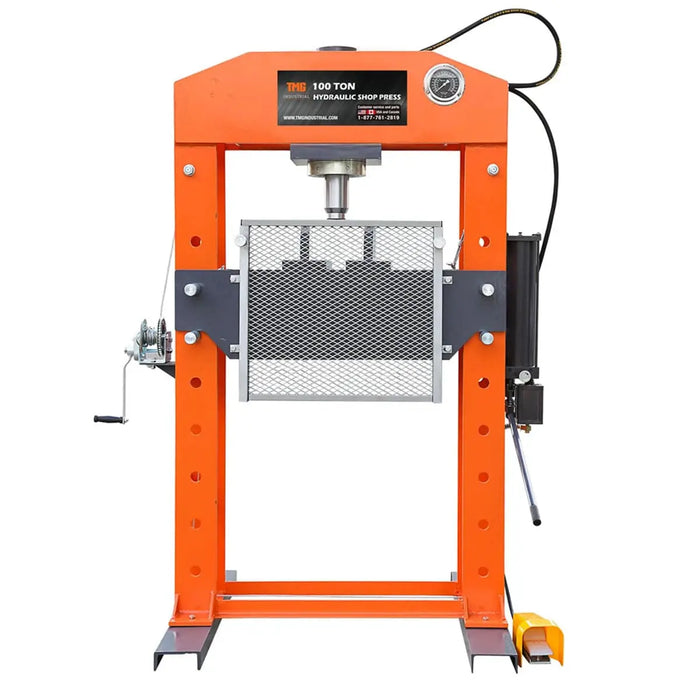

TMG Industrial 100 Ton Capacity Hydraulic Shop Press, Heavy Duty Pressing, Protective Grid Guard, Fully Welded H-Frame, Air & Manual Dual Operation, TMG-SP100

Original price $0.00 CAD - Original price $0.00 CAD
Original price $0.00 CAD
$5,799.00 CAD
$5,799.00 CAD - $5,799.00 CAD
Current price $5,799.00 CAD
CURRENTLY IN STOCK
FREE SHIPPING TO MOST LOCATIONS IN CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS

Other financial option:

1330.0 lb
77 x 45 x 24 inches
More Shipping Info
  • For all your stamp work, metal bending/flattening, gear & bush removal needs
  • 100 ton pressing capacity with a smooth, steady working action
  • Fully welded heavy-duty H-frame construction that is built to last
  • A dual operating hydraulic cylinder works pneumatically & manually
  • Steel cable crank winch for easy press bed adjustment up/down
Product Manual

Features

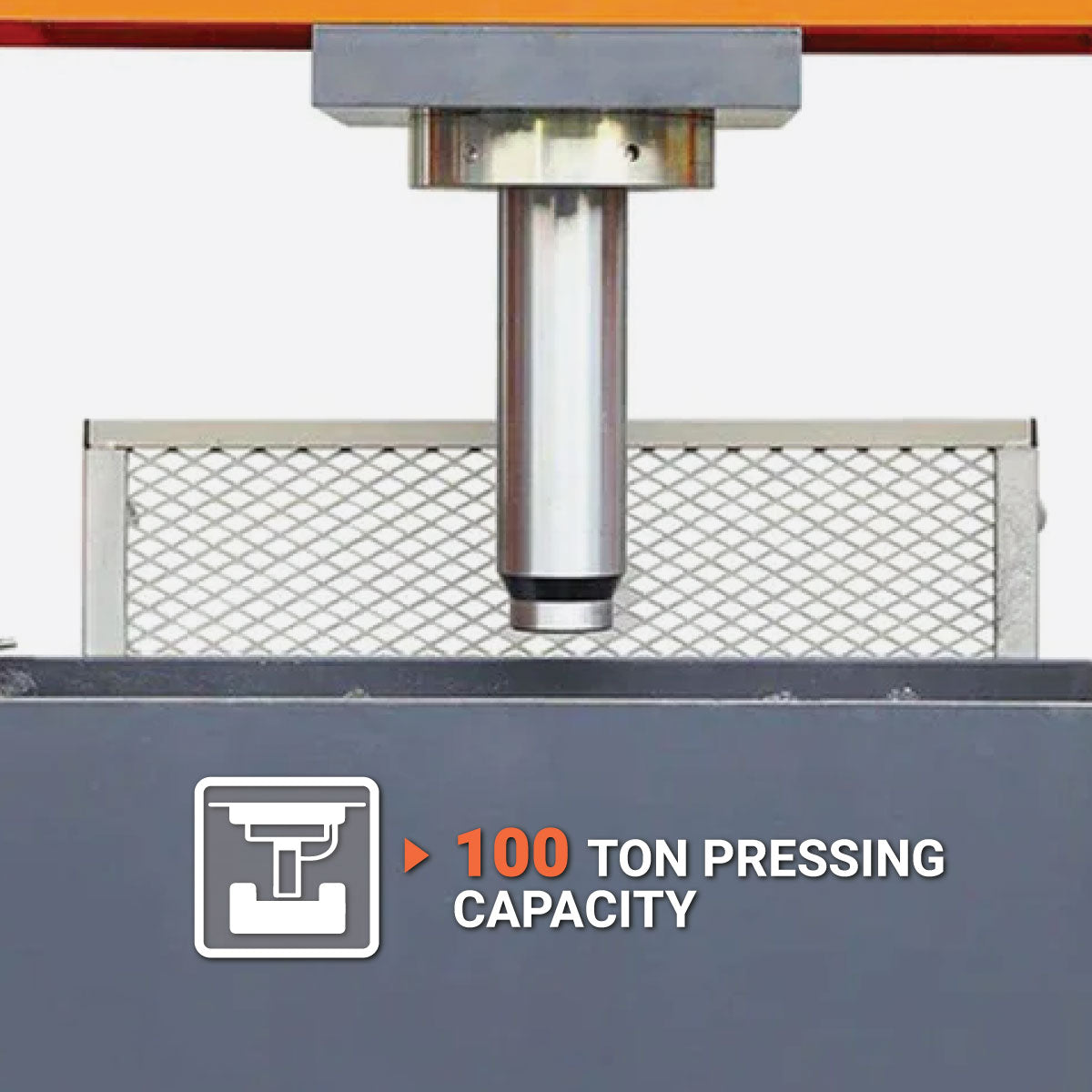

  • 100 ton pressing capacity can be used for stamp work, flattening/bending metal, removing gears/bushings/bearings and more

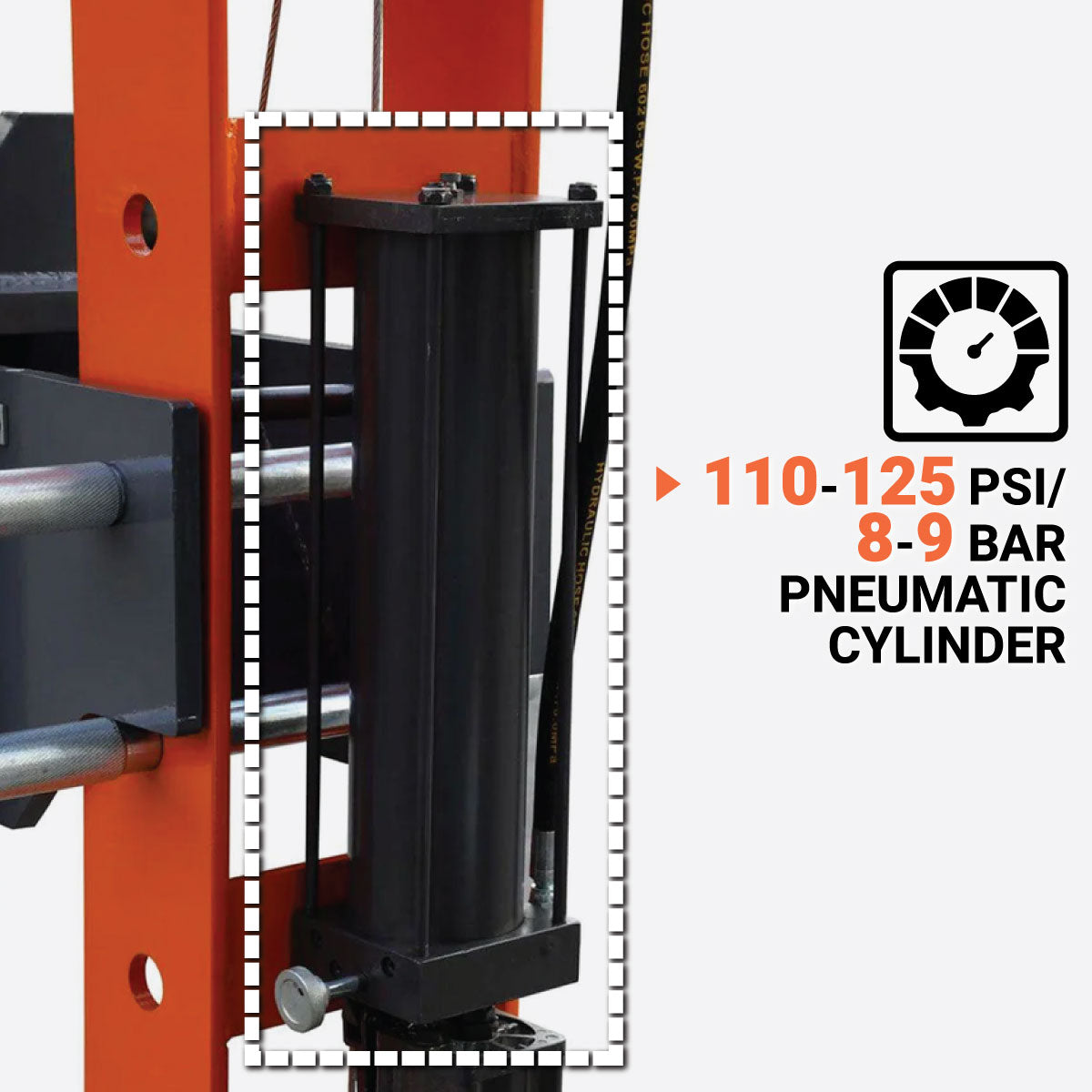

  • A dual hydraulic cylinder works pneumatically (125 PSI) and manually so you have total control, steady ram speed and smooth overall workflow

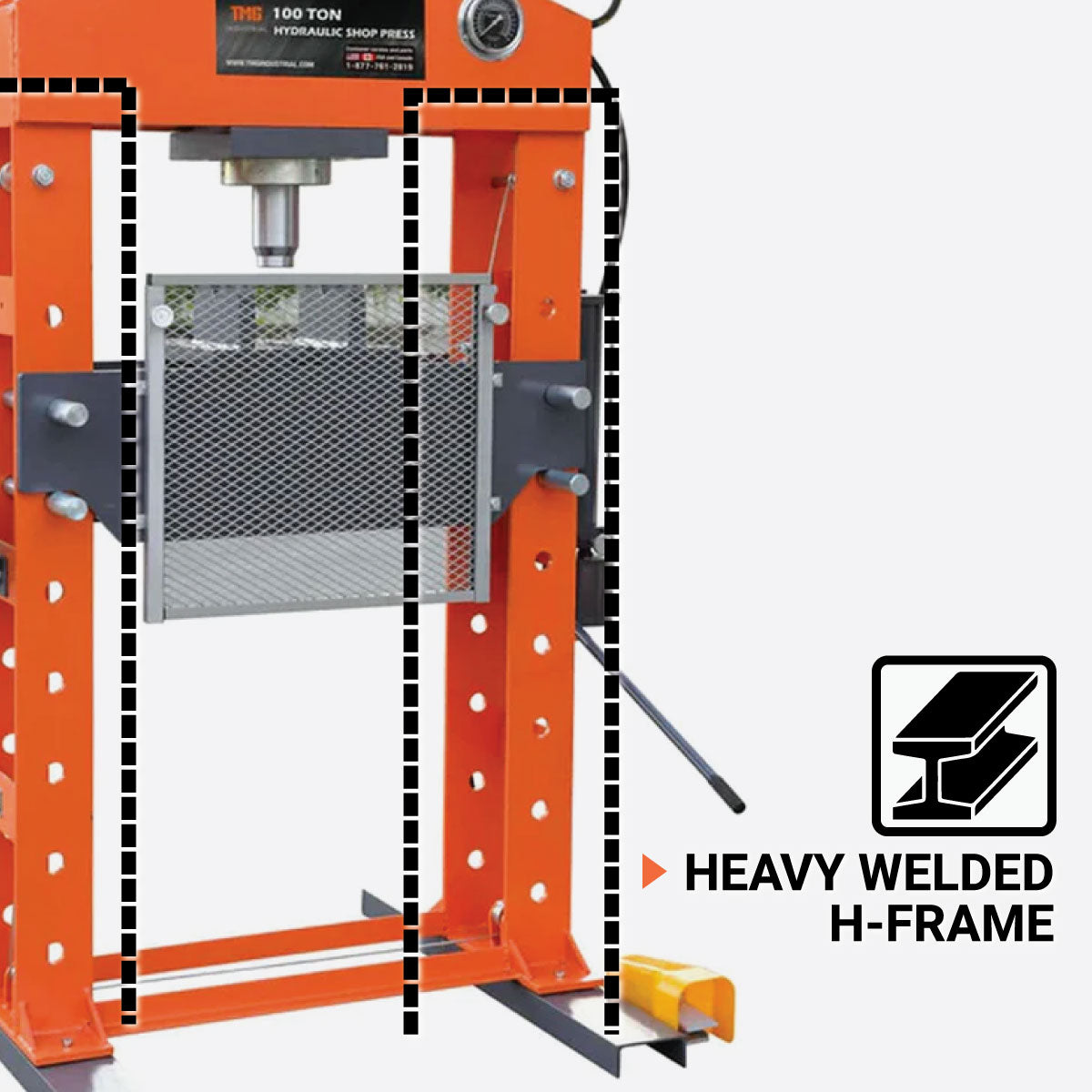

  • Heavily constructed and fully welded H-frame adds rigidity and durability for long lasting commercial use in any shop environment

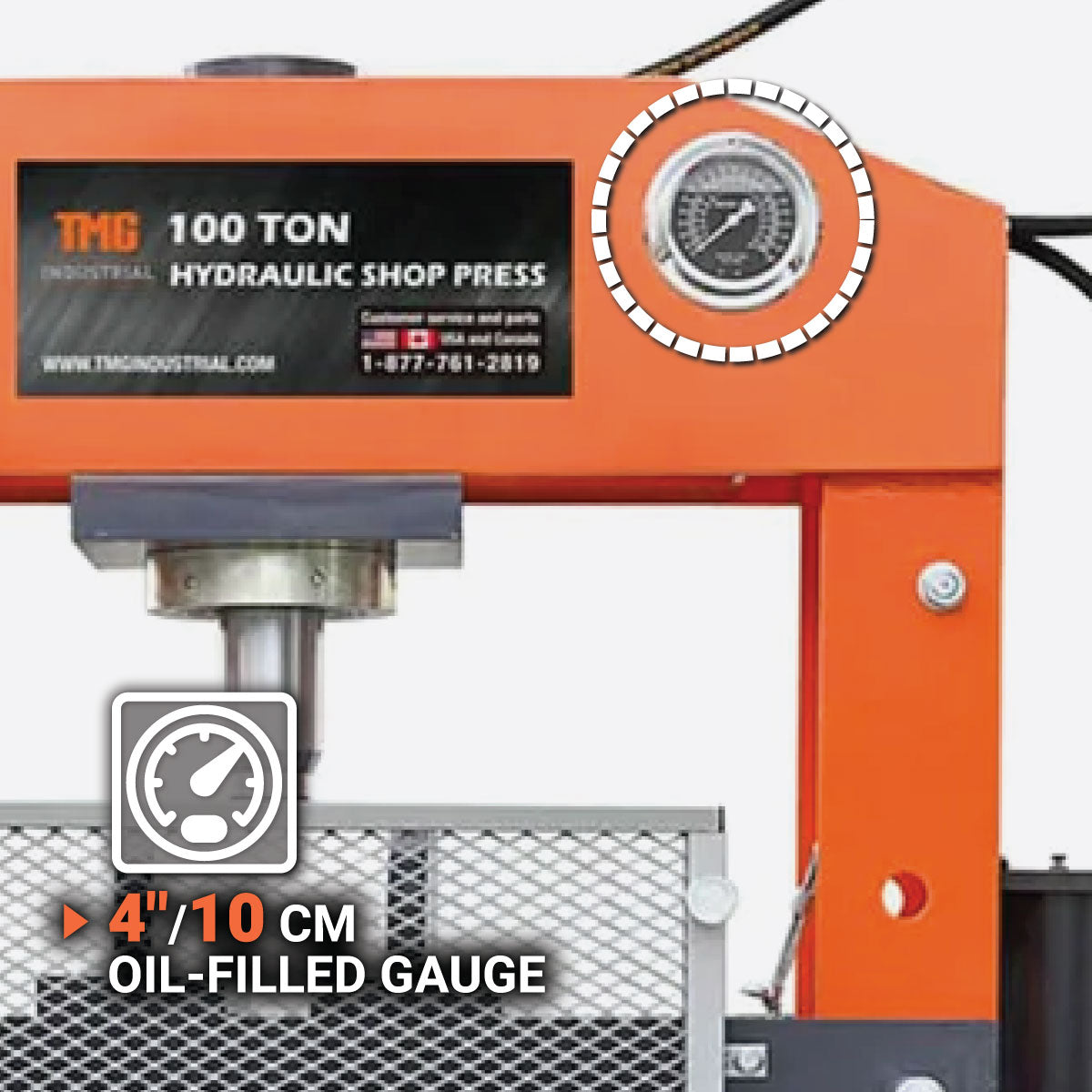

  • Oil filled gauge that is readable in US and metric tons allows you to monitor pressing force accurately and with consistency while operating

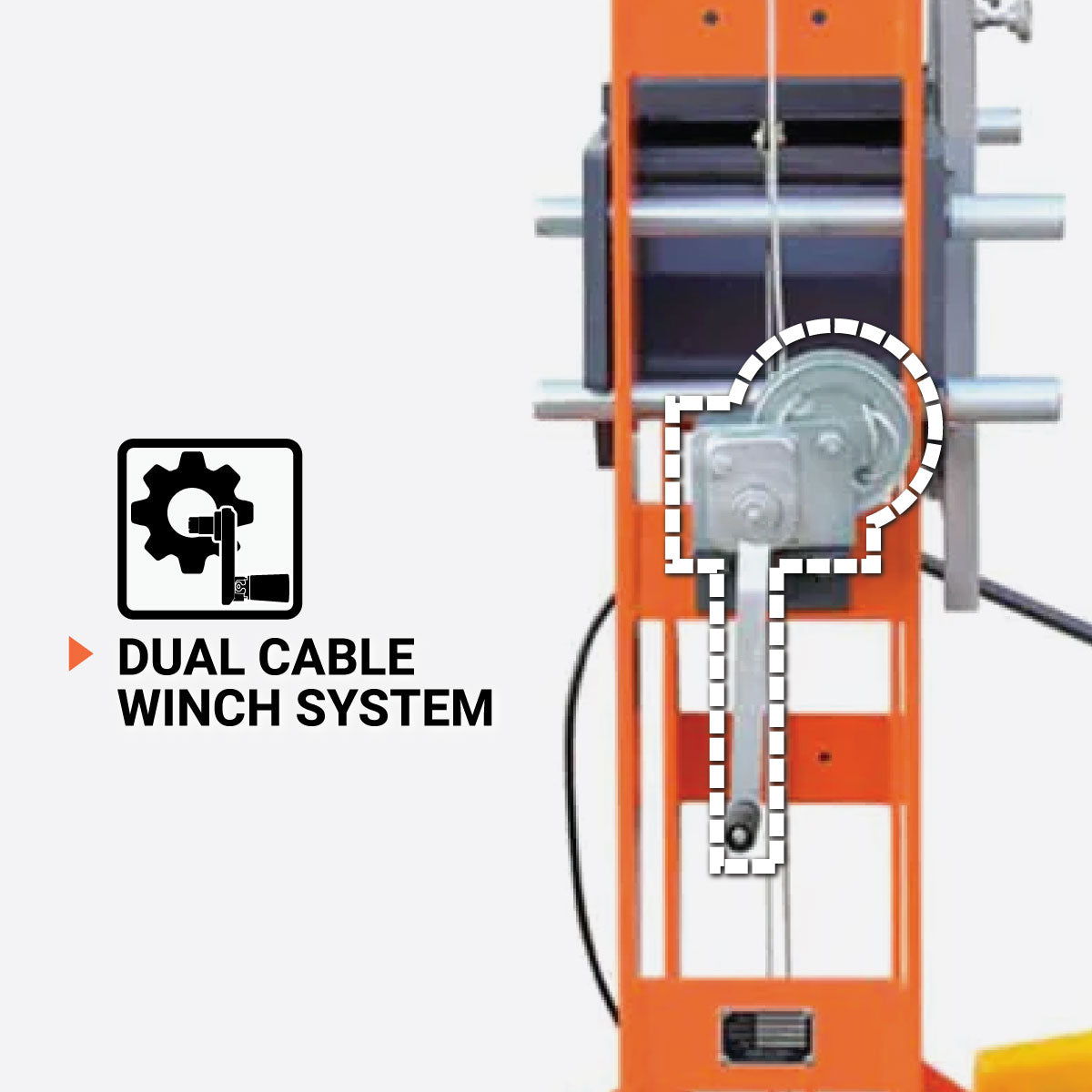

  • Steel cable crank winch with non-slip safety clutch provides ergonomic relief by eliminating excessive bending and allowing for easy up/down press bed adjustment
  • Made to handle tough jobs under high pressures; equipped with an overload press valve that prevents use beyond the machine’s capacity
  • Seven height positions provide superior workpiece adaptability to your unique needs and twin springs assist in efficient retraction of the piston rod
TMG Industrial 100 Ton Capacity Hydraulic Shop Press, Heavy Duty Pressing, Protective Grid Guard, Fully Welded H-Frame, Air & Manual Dual Operation, TMG-SP100-description-image

Specifications

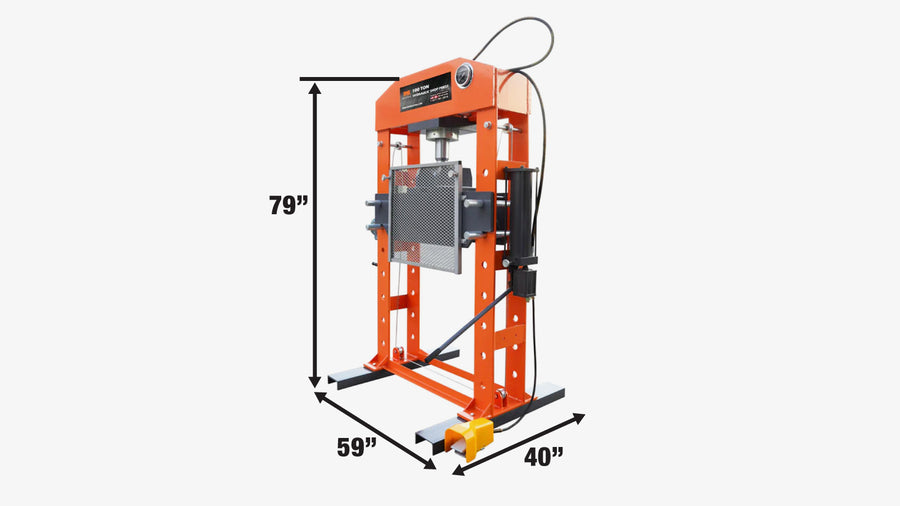

  • Assembled size: 59” (L) x 40” (W) x 79” (H)
  • Pressing force capacity: 100 ton
  • Air pressure: 110-125 PSI
  • Cylinder bore: 5”
  • Ram stroke: 11”
  • Side stroke: 9" each side
  • Bed depth: 11-¾”
  • Bed width: 32”
  • Upright opening: 43-½”
  • Oil filled pressure gauge: 4”
  • Protective grid guard
  • Pressing V-block included
TMG Industrial 100 Ton Capacity Hydraulic Shop Press, Heavy Duty Pressing, Protective Grid Guard, Fully Welded H-Frame, Air & Manual Dual Operation, TMG-SP100-specifications-image

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

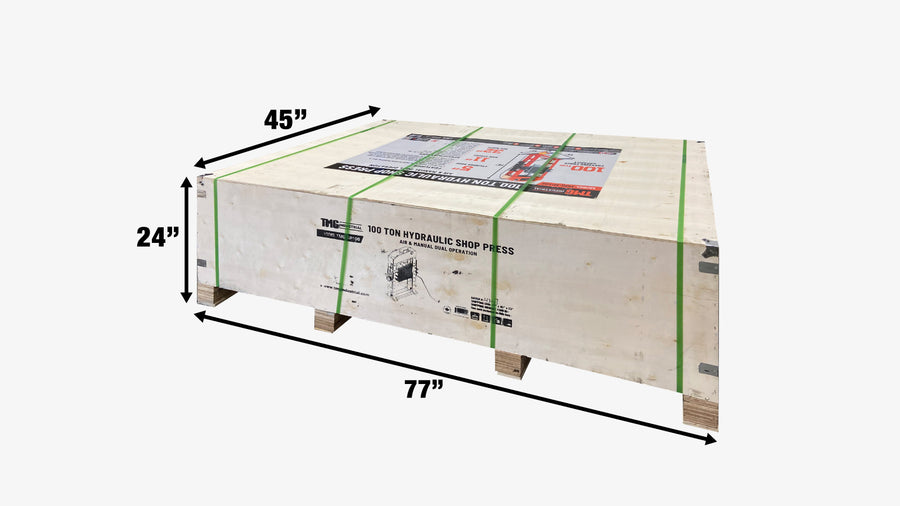

  • This product is packed in a wood crate shipping box
  • Shipping dimension: 77” x 45” x 24” (L x W x H)
  • Shipping weight: 1330 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
TMG Industrial 100 Ton Capacity Hydraulic Shop Press, Heavy Duty Pressing, Protective Grid Guard, Fully Welded H-Frame, Air & Manual Dual Operation, TMG-SP100-shipping-info-image

Product Description

The TMG-SP100 Hydraulic Shop Press is an essential piece of equipment for any type of automotive shop, machining, metalworks, fabrication or assembly operations. An incredible 100 ton pressing capacity makes pushing bearings onto shafts, stamp work, bending or flattening metal safe, efficient and easy to do. This press has a fully welded heavy-duty H-frame construction and protective grid guard that are both rigid, durable and built to last in any shop environment.

A dual operating hydraulic cylinder works pneumatically or manually for total operator control, steady ram speed and smooth overall workflow. The steel cable crank winch provides ergonomic relief, eliminating excessive bending and allowing you to easily adjust the pressing bed up and down. Seven height positions also offer superior workpiece flexibility that will adapt to your specific work setting and requirements.

Made to handle tough jobs like gear and bushing removal, with an overload valve to prevent use beyond the machine’s capacity and twin springs that help with retraction of the piston rod. The oil filled gauge can be read in US and metric tons, and allows you to accurately monitor your pressing force while operating.

We also carry the following hydraulic shop press models: TMG-SP50, TMG-SP75, TMG-SP150

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
