SKU TMG-SP150

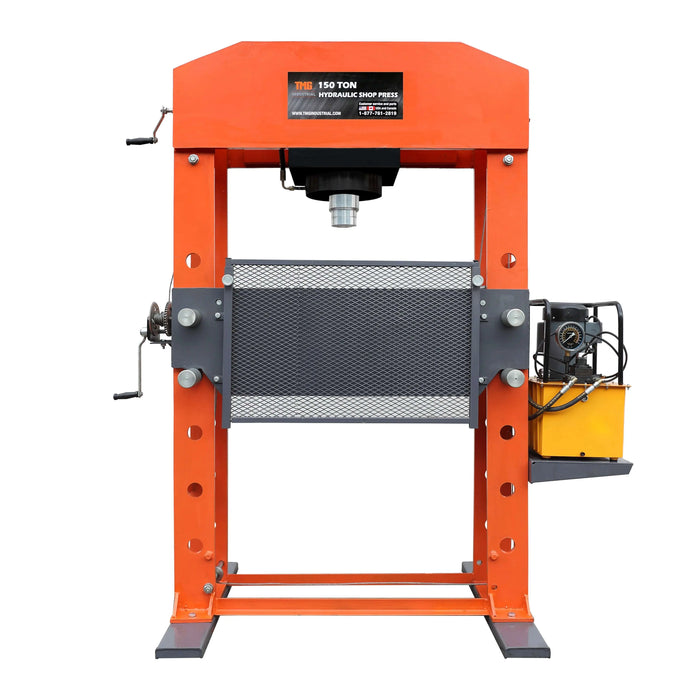

TMG Industrial 150 Ton Capacity Hydraulic Shop Press, Heavy Duty Pressing, Protective Grid Guard, Fully Welded H-Frame, Air & Manual Dual Operation, TMG-SP150

Original price $16,999.00 - Original price $16,999.00
Original price
$16,999.00
$16,999.00 - $16,999.00
Current price $16,999.00
CURRENTLY IN STOCK
FREE SHIPPING IN CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS
In-Store Pickup Price
$16,499 SAVE 500 CAD
About our Richmond retail store
Store Hours: Mon-Fri 9am-5pm PST
CALL US TO ORDER

2700.0 lb
54 x 22 x 84 inches
More Shipping Info

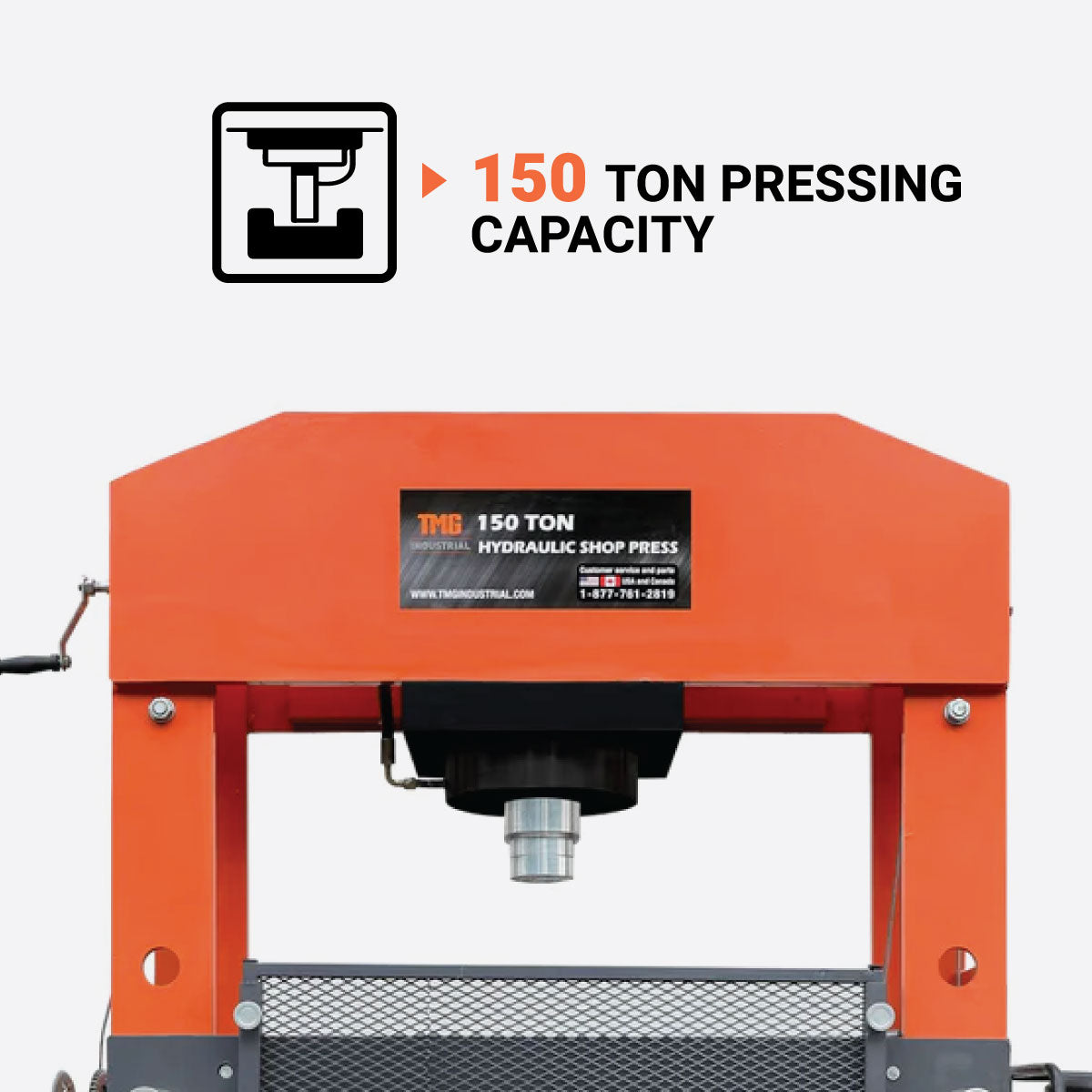

  • 150 ton pressing capacity can be used for stamp work, flattening/bending metal, removing gears/bushings/bearings and more

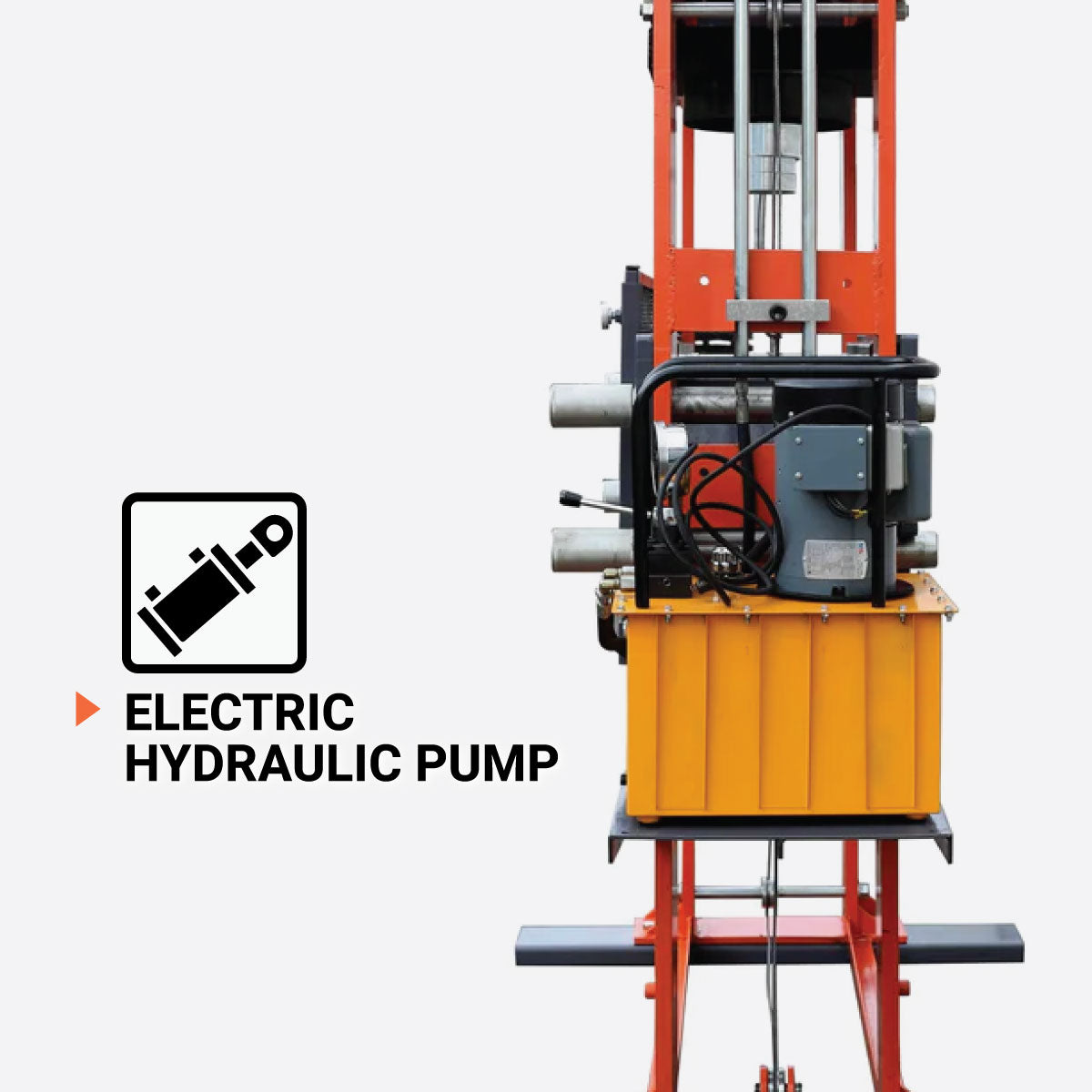

  • A dual hydraulic cylinder works pneumatically (125 PSI) and manually so you have total control, steady ram speed and smooth overall workflow

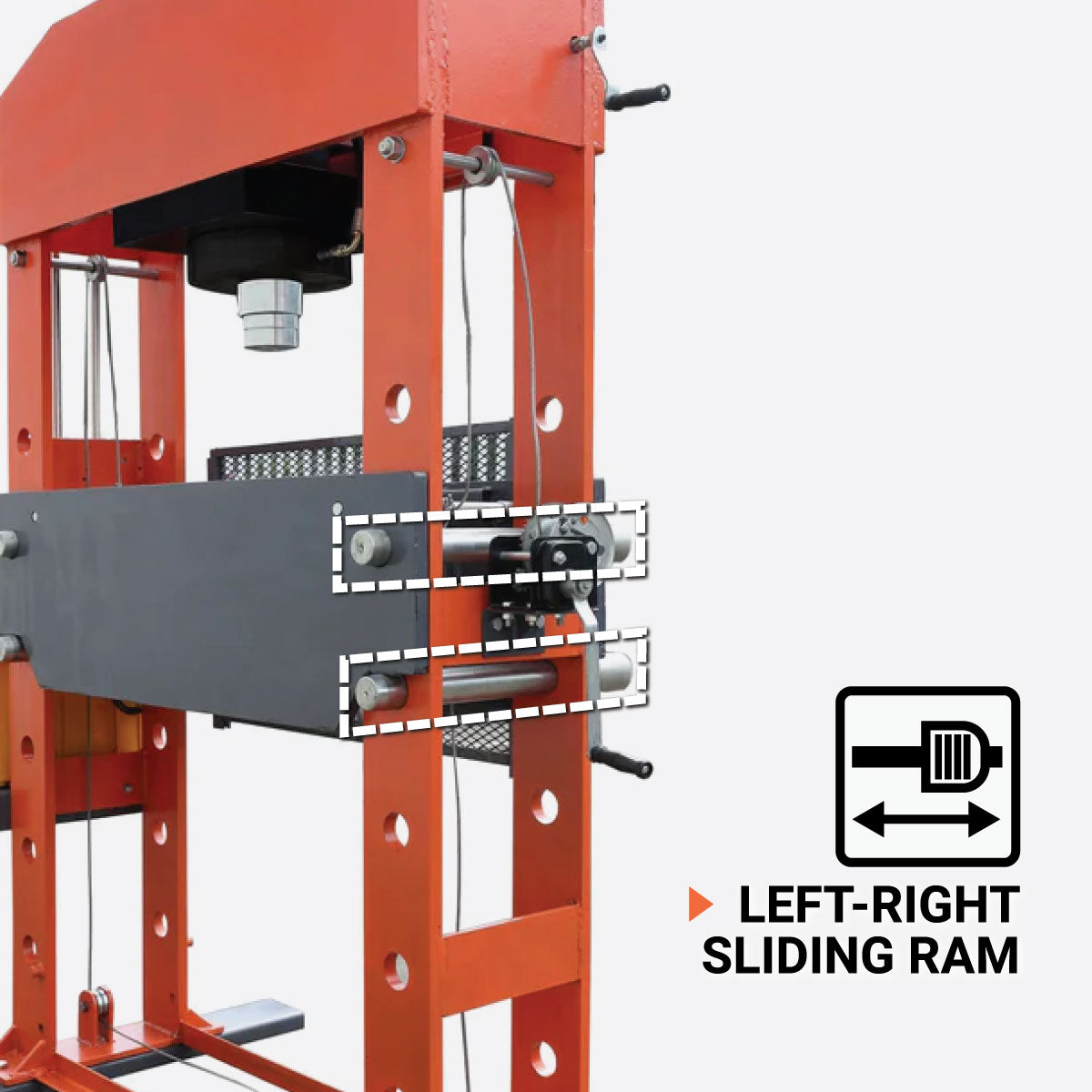

  • Left-right sliding ram movement offers multiple working positions and twin springs assist in retraction of the piston rod

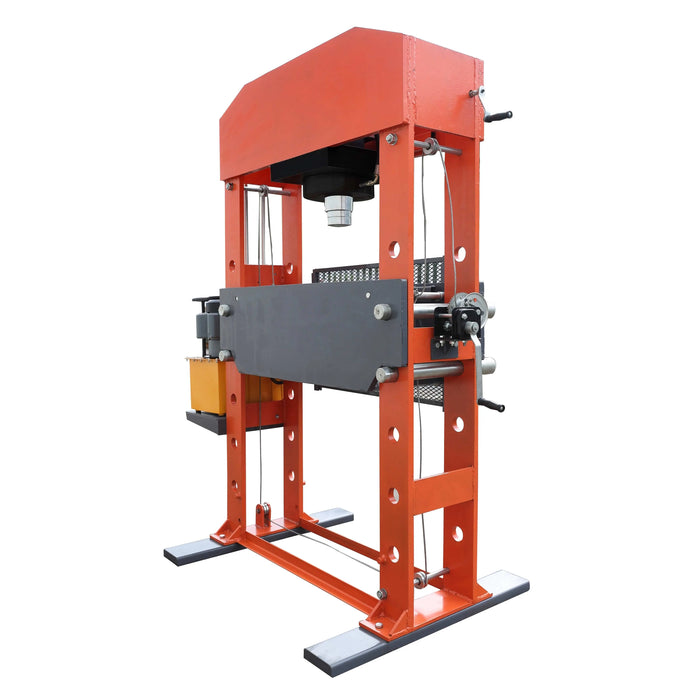

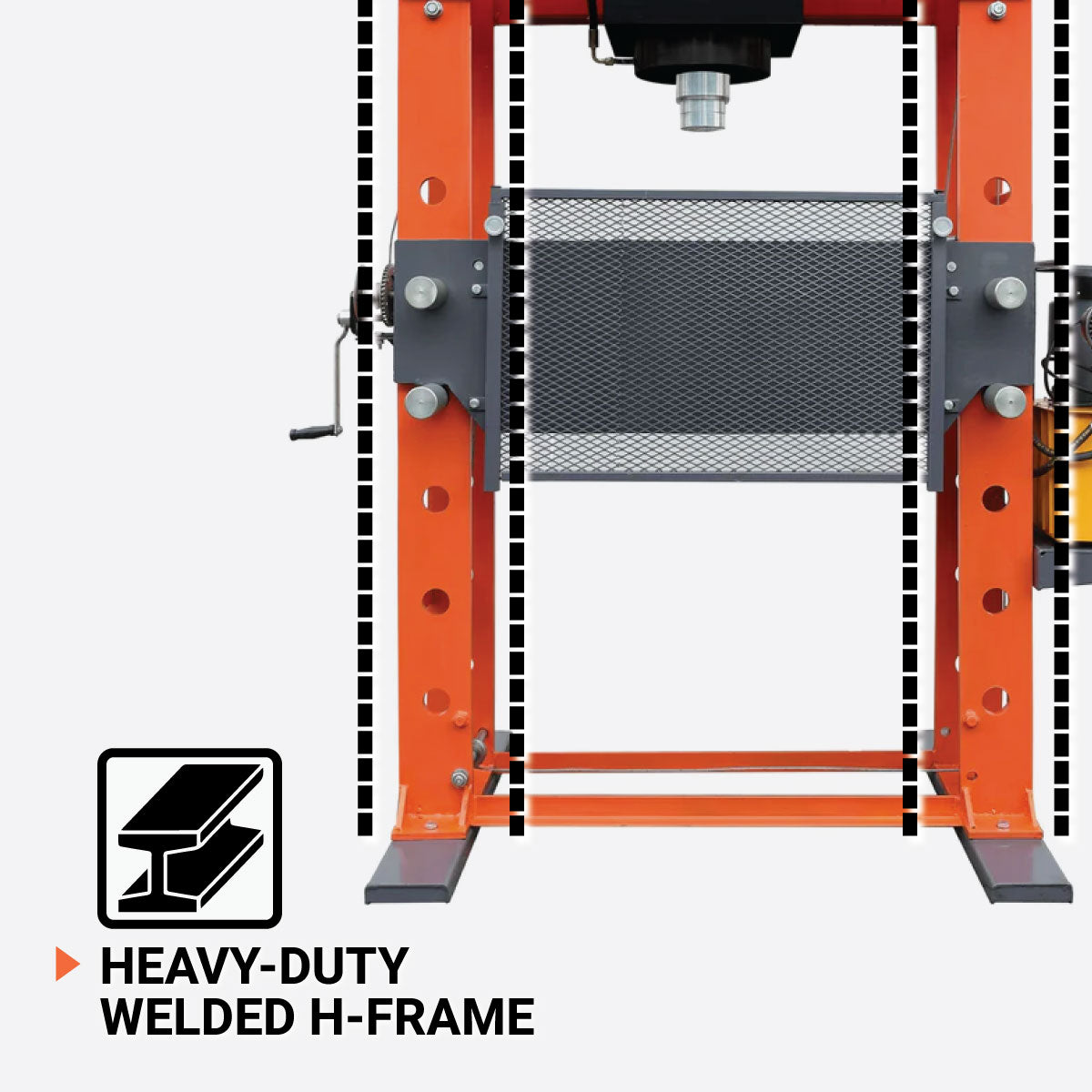

  • Heavily constructed and fully welded H-frame adds rigidity and durability for long lasting commercial use in any shop environment

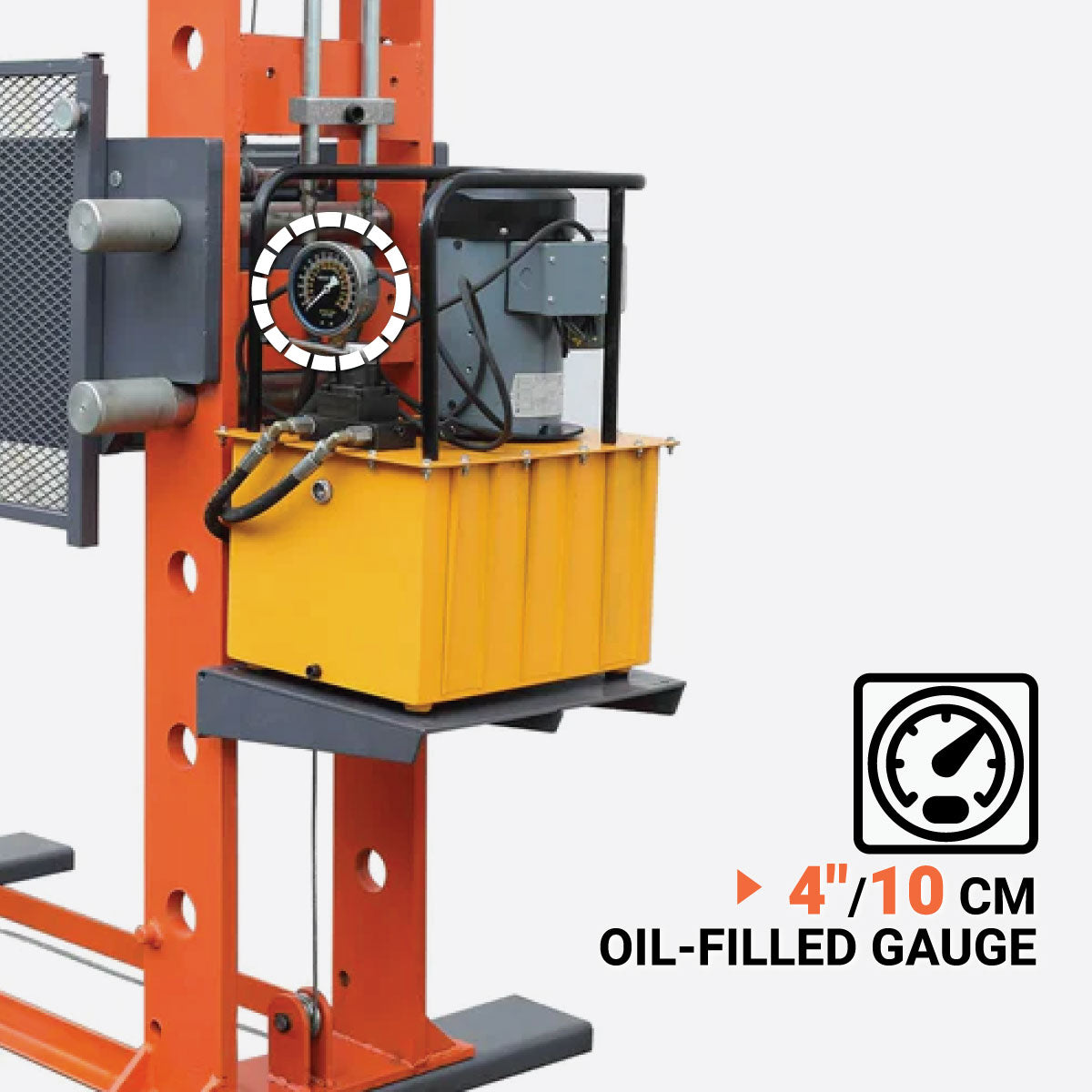

  • Oil filled gauge that is readable in US and metric tons allows you to monitor pressing force accurately and with consistency while operating

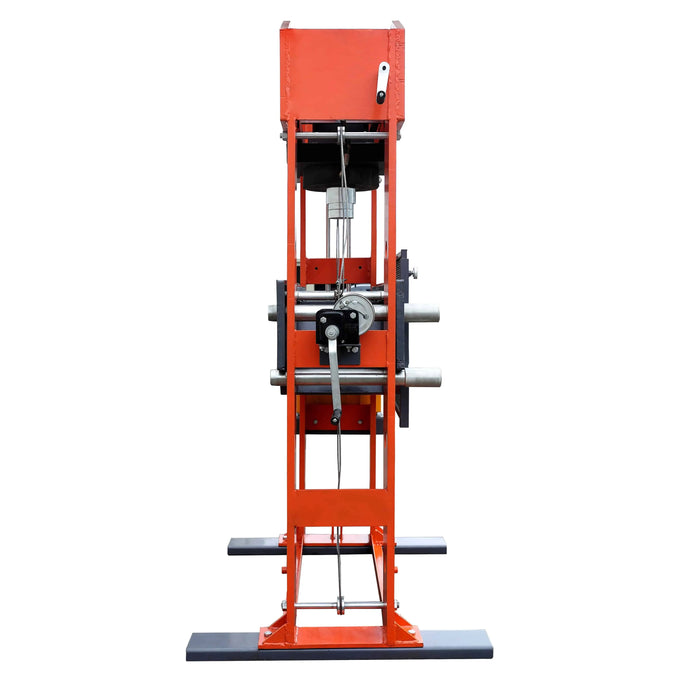

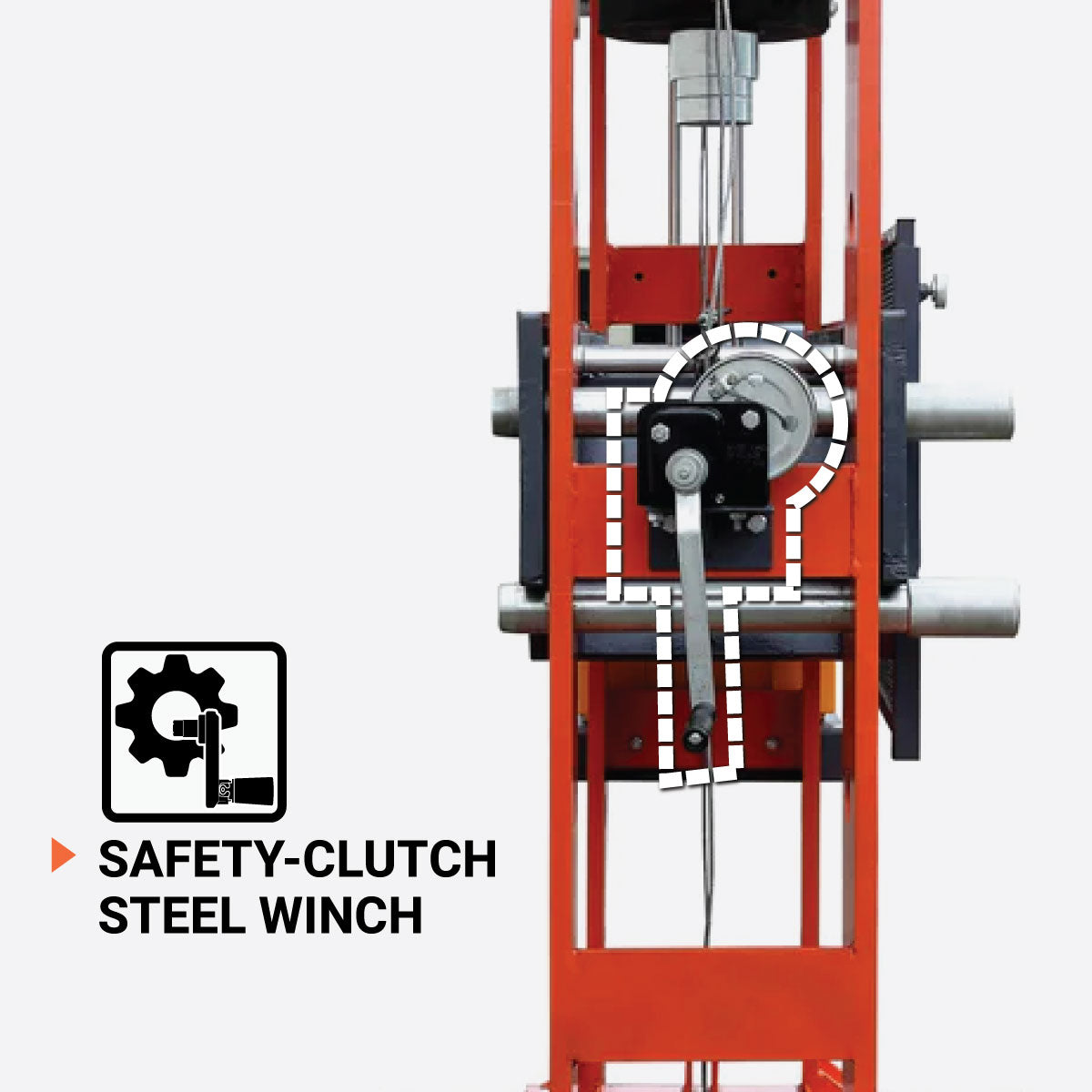

  • Steel cable crank winch with non-slip safety clutch provides ergonomic relief by eliminating excessive bending and allowing for easy up/down press bed adjustment
  • Made to handle tough jobs under high pressures; equipped with an overload press valve that prevents use beyond the machine’s capacity
Product Manual
Find the Parts

Features

  • 150 ton pressing capacity can be used for stamp work, flattening/bending metal, removing gears/bushings/bearings and more
  • A dual hydraulic cylinder works pneumatically (125 PSI) and manually so you have total control, steady ram speed and smooth overall workflow
  • Left-right sliding ram movement offers multiple working positions and twin springs assist in retraction of the piston rod
  • Heavily constructed and fully welded H-frame adds rigidity and durability for long lasting commercial use in any shop environment
  • Oil filled gauge that is readable in US and metric tons allows you to monitor pressing force accurately and with consistency while operating
  • Steel cable crank winch with non-slip safety clutch provides ergonomic relief by eliminating excessive bending and allowing for easy up/down press bed adjustment
  • Made to handle tough jobs under high pressures; equipped with an overload press valve that prevents use beyond the machine’s capacity

Specifications

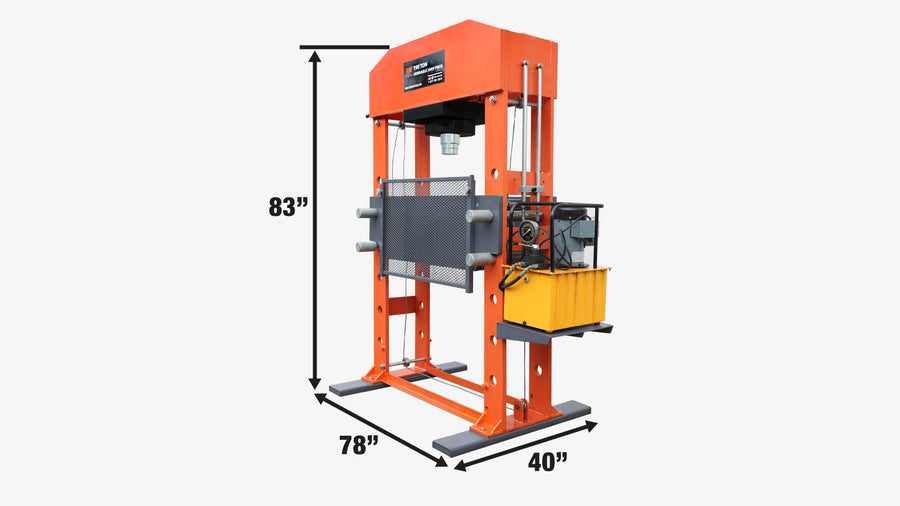

  • Overall dimension: 78” x 40” x 83” (L x W x H)
  • Frame internal width: 13-¾”
  • Frame internal length: 39-⅜”
  • Ram stroke: 13-¾”
  • Ram diameter: 4-⅝”
  • Ram left-right movement: 13”
  • Ram pressing head diameter: 3-⅞”
  • Protective grid guard: 36” x 23” (W x H)
  • Carriage bed workable opening: 34” x 16” (L x W)
  • Carriage bed pin diameter: 2-¼”
  • Discharge pressure: 105-115%
  • Max pump pressure: 8500 PSI
  • Pressure gauge accurate to +/- 2.5%
  • Maximum workpiece height allowed: 37”
  • Hydraulic fluid for motor pump not included (ISO AW32 required)
  • Pressing V-block included

Motor:

  • CSA approved electric motor: 115 V, 60 Hz, 2 HP
  • No-load speed: 1750 RPM

Shipping Information

The order will ship FREE from our main warehouse in Richmond, British Columbia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

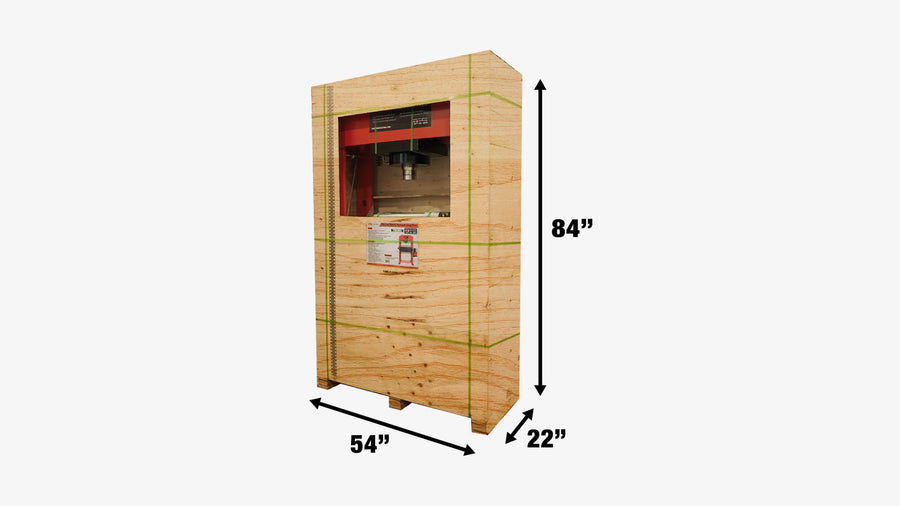

  • This product is packed in a wood crate shipping box
  • Shipping dimension: 54” x 22” x 84” (L x W x H)
  • Shipping weight: 2700 lb

***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.***
Shipping from Richmond, BC
What happens after you place
your order?

Product Description

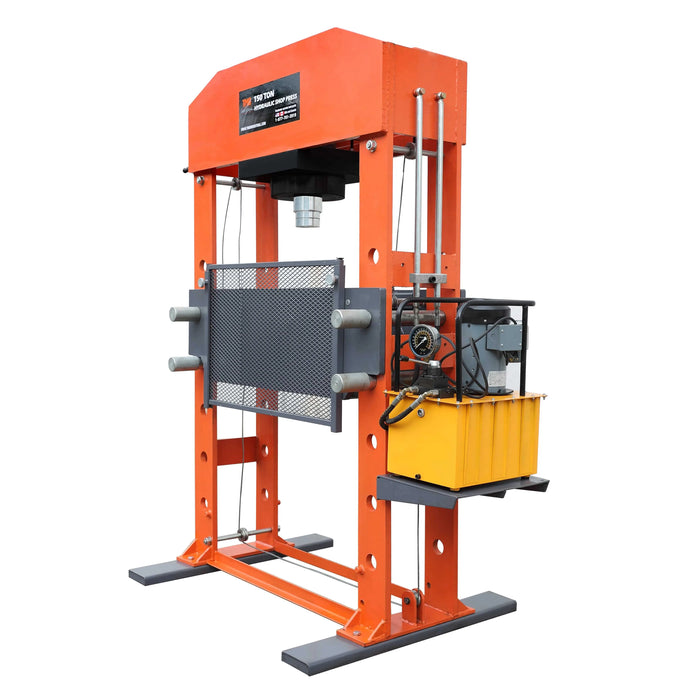

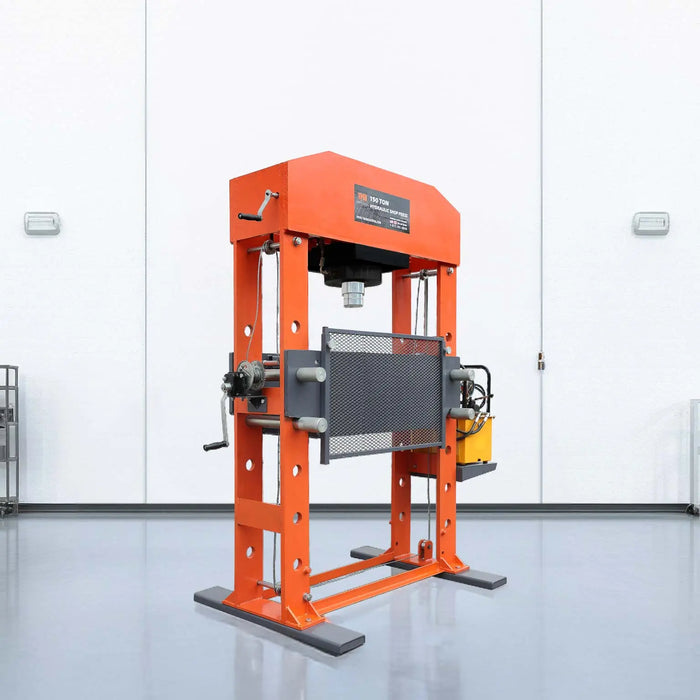

The TMG-SP150 Hydraulic Shop Press is an essential piece of equipment for any type of automotive shop, machining, metalworks, fabrication or assembly operations. An incredible 150 ton pressing capacity makes pushing bearings onto shafts, stamp work, bending or flattening metal safe, efficient and easy to do. This press has a fully welded heavy-duty H-frame construction and protective grid guard that are both rigid, durable and built to last in any shop environment.

Sliding ram pressing head offers left/right movement and superior workpiece flexibility that will adapt to your specific work setting and requirements. A dual operating hydraulic cylinder works pneumatically or manually for total operator control, steady ram speed and smooth overall workflow. The steel cable crank winch provides ergonomic relief, eliminating excessive bending and allowing you to easily adjust the pressing bed up and down.

Made to handle tough jobs like gear and bushing removal, with an overload valve to prevent use beyond the machine’s capacity and twin springs that help with retraction of the piston rod. The oil filled gauge can be read in US and metric tons, and allows you to accurately monitor your pressing force while operating.

We also carry the following hydraulic shop press models: TMG-SP50, TMG-SP75, TMG-SP100

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
