CURRENTLY OUT OF STOCK

TMG-GHR1424

Orangery Series 24' x 14' T-Shaped Gazebo-Style Greenhouse, 8.4' Height, Expandable Heavy-Duty Box Frame, Full 4mm Tempered Glass Roof and Wall Panels TMG-GHR1424

Name: Orangery Series 24' x 14' T-Shaped Gazebo-Style Greenhouse, 8.4' Height, Expandable Heavy-Duty Box Frame, Full 4mm Tempered Glass Roof and Wall Panels TMG-GHR1424
Brand: TMG Industrial CA
SKU: TMG-GHR1424
Price: 7599.0 CAD
Availability: OutOfStock

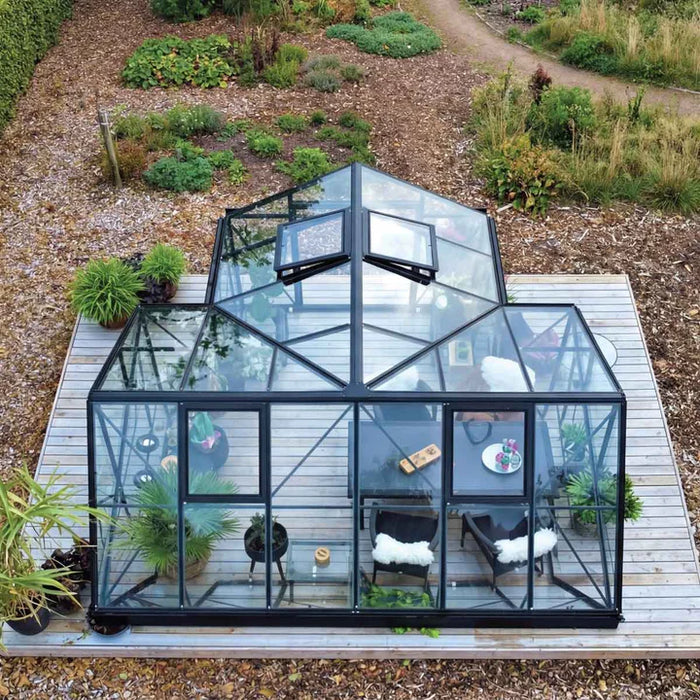

Front view of T-Shaped Gazebo-Style Greenhouse with patio seating and plants

CURRENTLY OUT OF STOCK

SKU TMG-GHR1424

$8,399.00 CAD

$8,399.00 CAD - $8,399.00 CAD

$8,399.00 CAD

$7,599.00 CAD

$7,599.00 CAD - $7,599.00 CAD

$7,599.00 CAD

$8,399.00 CAD Save $800.00 CAD

$7,599.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days

Learn More

1-877-761-2819

cs@tmgindustrial.ca

Find Parts

Orangery Series 24' x 14' T-Shaped Gazebo-Style Greenhouse, 8.4' Height, Expandable Heavy-Duty Box Frame, Full 4mm Tempered Glass Roof and Wall Panels TMG-GHR1424

Box Section Aluminum Frame: Built with exclusive ultra-heavy-duty box section aluminum profiles and a 10 mm glazing channel to help prevent panels from blowing out.
Fast Pre-Installed Assembly: All assembly nuts come pre-installed within the profiles, reducing setup time by more than 50% for hassle-free installation.
All-Weather Structural Bracing: Engineered with full horizontal structural bracing across all walls and roof sections to provide maximum stability in severe weather conditions.
Full Tempered Glass Glazing: Equipped with premium 4 mm toughened glass panels on both the walls and roof for exceptional clarity and safety.
Lockable Double Swing Doors: Features wide, lockable double swing doors that allow easy equipment access while providing excellent cross-ventilation.
Advanced Wall and Roof Ventilation: Includes eight built-in opening windows and vents as standard equipment to optimize airflow and temperature control.
Integrated Drainage Solution: Equipped with a heavy-duty integrated gutter system and aluminum downpipes to effectively direct rainwater away from the structure.

Dimensions (L x W x H): 24' x 14' x 8' 4" (721x431x255 cm)
Eave Height: 5' 5" (165 cm)
Ridge Height: 8' 4" (255 cm)
Door Size: 4' 5" x 6' 4" (135 x 194 cm)
Window / Vent Size: 1' 10" x 2' 3" (56 x 68 cm)
Number of Windows/Vents: 8
Frame: Powder-coated box section aluminum (1.0 – 2.0 mm)
Roof Material: 4 mm tempered safety glass
Wall Material: 4 mm tempered safety glass
Weather Resistance: Wind speeds up to 110 km/h and snow loads up to 90 kg/sqm

The TMG-GHR1424 Orangery Series T-Shaped Gazebo-Style Greenhouse brings elegant, timeless architectural design to your outdoor living space. Combining luxury styling with exceptional durability, this expanded structure serves as a professional-grade growing environment, outdoor sunroom, or private garden retreat. The heavy-duty frame is constructed from premium powder-coated aluminum, creating a durable structure that resists corrosion and environmental wear year after year.

This premium model features full 4 mm tempered glass glazing across both the walls and roof, providing exceptional clarity, maximum light transmission, and beautiful views of the surrounding landscape. Extensive horizontal bracing throughout the walls and roof enhances structural integrity, while the integrated gutter system with downspouts, wide lockable double swing doors, and eight ventilation windows create a well-controlled environment for both plants and relaxation.

What sets this luxury gazebo apart is its innovative, time-saving assembly system. All structural nuts come pre-installed inside the aluminum box profiles, eliminating the frustration of sliding small bolts through narrow channels. This user-friendly design ensures accurate alignment and reduces installation time by more than half.

Delivered directly to your home in protective packaging, this elegant structure is designed to provide years of enjoyment and lasting memories.

The TMG-GHR1424 configuration combines the TMG-GHR1414 T-shaped greenhouse with two TMG-GHR14X Extension Kits installed on both side ends of the T-shaped structure, extending the overall dimensions to 24 feet long by 14 feet wide. We also offer other extended Orangery Series models, including the TMG-GHR1419 and TMG-GHR1924.

Your order will be shipped from one of our warehouses in Canada. Orders are typically processed and shipped within 2 to 3 business days under normal circumstances. Delivery usually takes 10 to 15 business days, depending on location and accessibility.

This product is packed in 8 carton shipping boxes.

Shipping Dimensions (L x W x H):

Box A (Main Unit): 116" x 15" x 7"
Box B (Main Unit): 70" x 15" x 11"
Box C (Main Unit): 82" x 14" x 10"
Box D (Main Unit): 69" x 15" x 33"
Box E (Extension Kit 1): 71" x 14" x 8"
Box F (Extension Kit 1): 69" x 6" x 32"
Box G (Extension Kit 2): 71" x 14" x 8"
Box H (Extension Kit 2): 69" x 6" x 32"

Shipping Weight:

Box A (Main Unit): 86 lbs
Box B (Main Unit): 84 lbs
Box C (Main Unit): 93 lbs
Box D (Main Unit): 1,071 lbs
Box E (Extension Kit 1): 65 lbs
Box F (Extension Kit 1): 236 lbs
Box G (Extension Kit 2): 65 lbs
Box H (Extension Kit 2): 236 lbs
Total Shipping Weight: 2,136 lbs

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Dimensions and capacity
	Orangery Series 24' x 14' T-Shaped Gazebo-Style Greenhouse, 8.4' Height, Expandable Heavy-Duty Box Frame, Full 4mm Tempered Glass Roof and Wall Panels TMG-GHR1424$7,599.00 CAD	Orangery Series 14' x 14' Gazebo-Style Greenhouse, 8.3' Height, Expandable Heavy-Duty Box Frame, Full 4mm Tempered Glass Roof and Wall Panels, TMG-GHR1414$5,099.00 CAD	Orangery Series 14' x 19' T-Shaped Gazebo-Style Greenhouse, 8.4' Height, Expandable Heavy-Duty Box Frame, Full 4mm Tempered Glass Roof and Wall Panels TMG-GHR1419$6,399.00 CAD	Orangery Series 19’ x 24’ T-Shaped Gazebo-Style Greenhouse, 8.4’ Height, Expandable Heavy-Duty Box Frame, Full 4mm Tempered Glass Roof and Wall Panels TMG-GHR1924$8,899.00 CAD
Ridge Height	8'4" (2.55 m)	8'4" (2.55 m)	8'5" (2.55 m)	8'4" (2.55 m)
Dimensions	24' x 14' x 8'4" (7.32 m x 4.27 m x 2.55 m)	14.1' x 14.3' x 8'4" (4.31 m x 4.36 m x 2.55 m)	18.9' x 14.2' x 8'5" (5.75 m x 4.33 m x 2.55 m)	24' x 19' x 8'4" (7.21 m x 5.75 m x 2.55 m)
Construction and materials
Frame	Powder-coated box section aluminum 0.039-0.079" (1.0 mm-2.0 mm)	Powder-coated box-section aluminum 0.039-0.079" (1.0 mm-2.0 mm)	Powder-coated box section aluminum 0.039-0.079" (1.0 mm-2.0 mm)	Powder-coated box section aluminum 0.039-0.079" (1.0 mm-2.0 mm)
Number of Windows/Vents	8	4	6	10
Features and accessories
Shape	T-Shaped	Gazebo-Style	T-Shaped	T-Shaped
Gutter System	downspouts	four downpipes	downspouts	downspouts
Weather Resistance	Wind speeds up to 68.4 mph (110 km/h) and snow loads up to 198 lb (90 kg)/sqm	Wind speeds up to 68.4 mph (110 km/h) and snow loads up to 198 lb (90 kg)/m²	Wind speeds up to 68.4 mph (110 km/h) and snow loads up to 198 lb (90 kg)/sqm	Wind speeds up to 68.4 mph (110 km/h) and snow loads up to 198 lb (90 kg)/sqm
