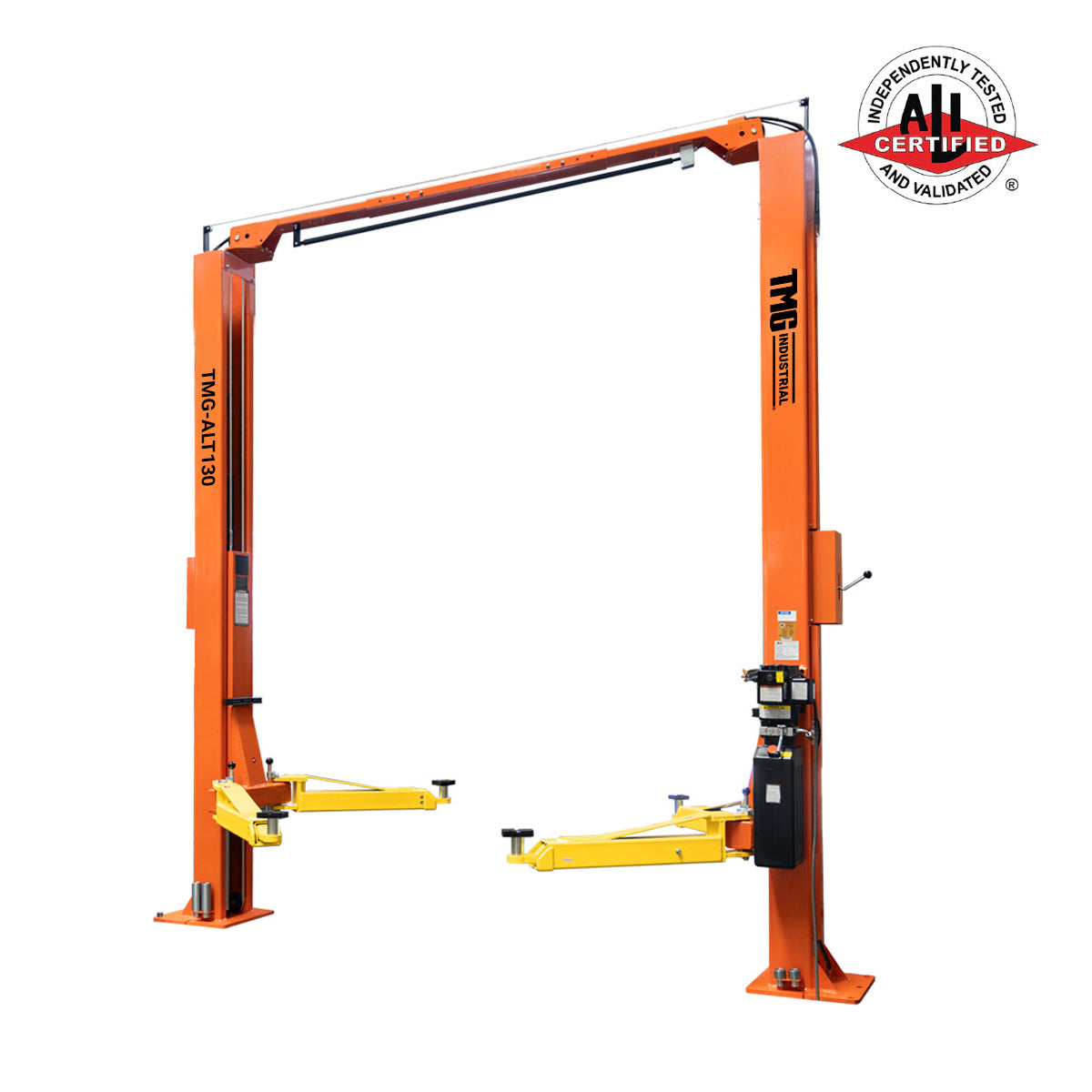

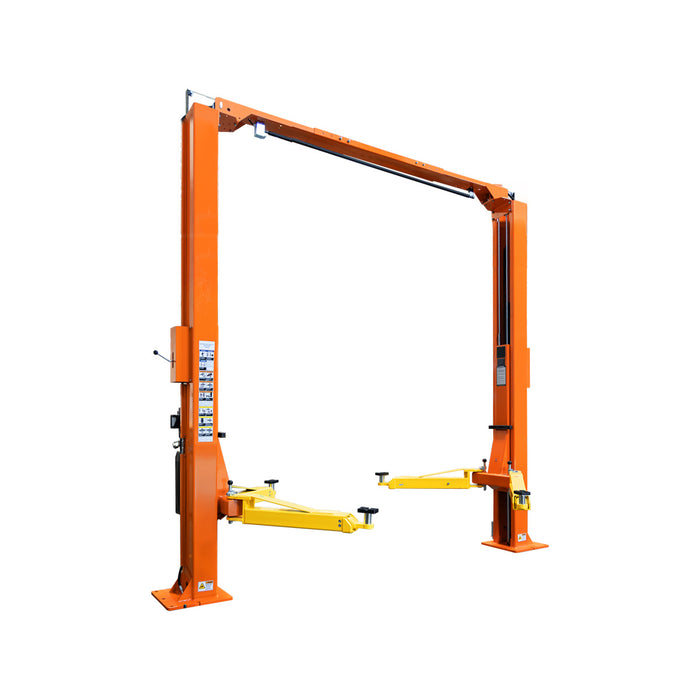

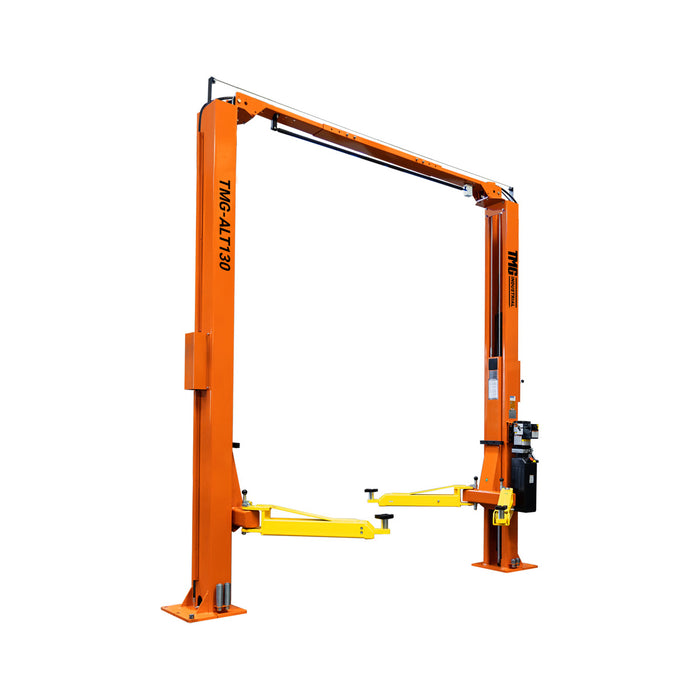

ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Symmetric Arms, 79" Lift Height, 144" Cross Beam TMG-ALT130

Click to expand Tap to zoom

CURRENTLY IN STOCK

SKU TMG-ALT130

Original price $6,699.00 CAD

Original price $6,699.00 CAD - Original price $6,699.00 CAD

Original price $6,699.00 CAD

Current price $5,699.00 CAD

$5,699.00 CAD - $5,699.00 CAD

Current price $5,699.00 CAD

| /

$6,699.00 CAD Save $1,000.00 CAD

$5,699.00 CAD

Total: $5,699.00 CAD $5,699.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days Learn More

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

Add to Cart

1-877-761-2819

cs@tmgindustrial.ca

Product Manual

Find Parts

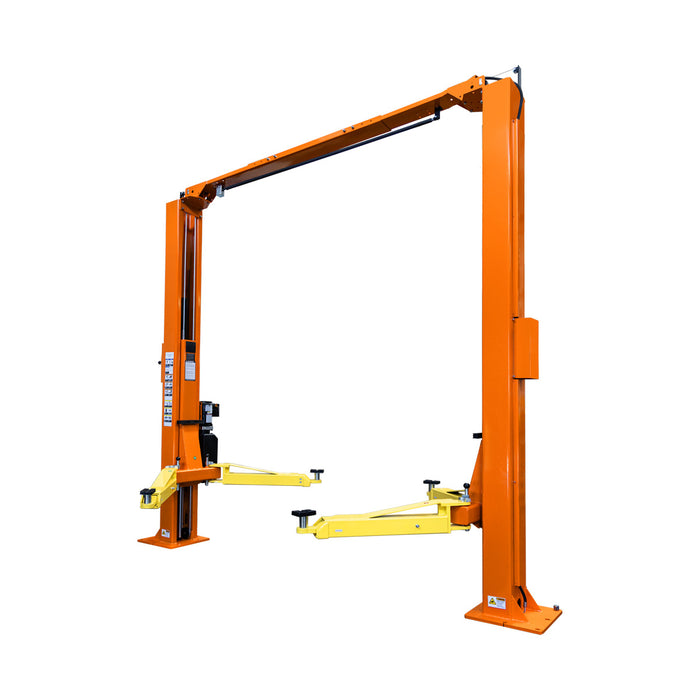

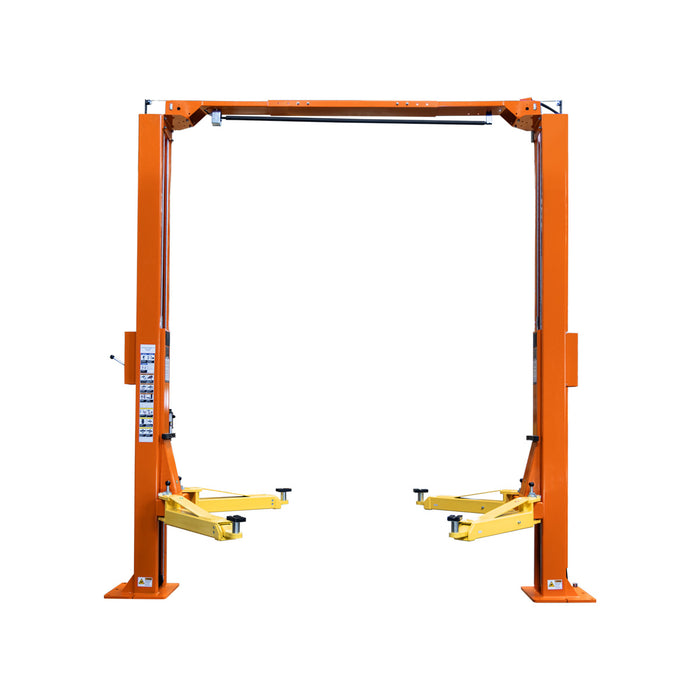

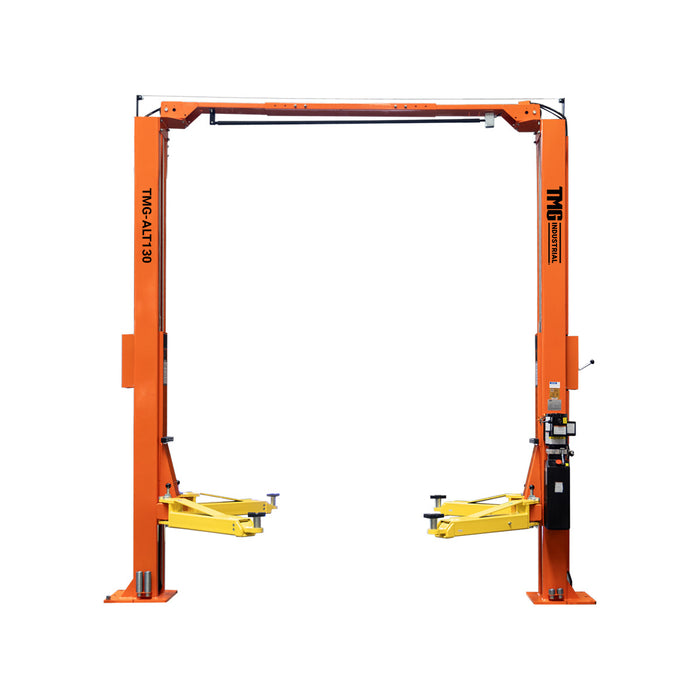

ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Symmetric Arms, 79" Lift Height, 144" Cross Beam TMG-ALT130

(Accessories Incl.)

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

Add to Cart

Features Specs Description Shipping Info Warranty Reviews

Features

← →

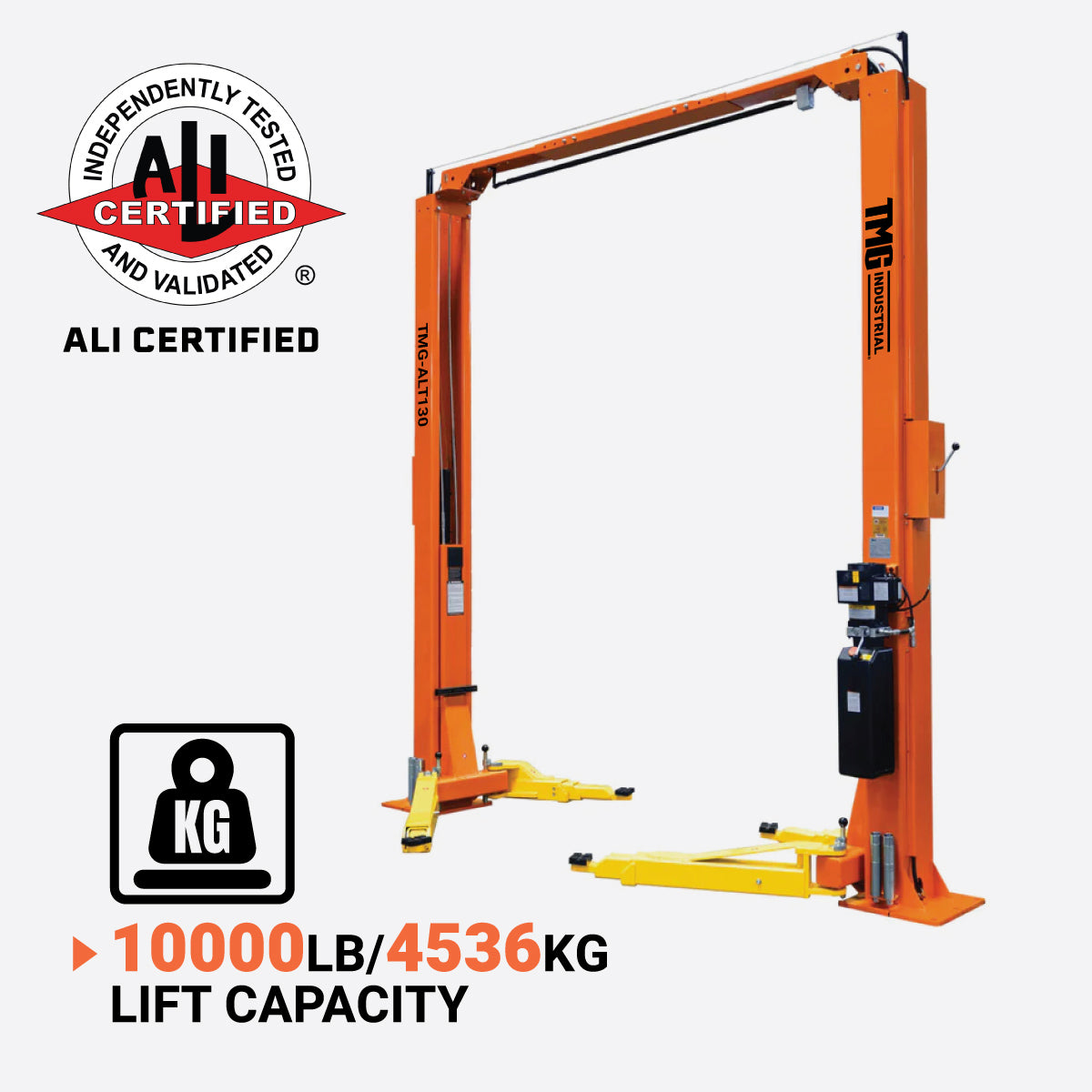

10,000 lb lift capacity compatible with most cars, trucks, and SUVs

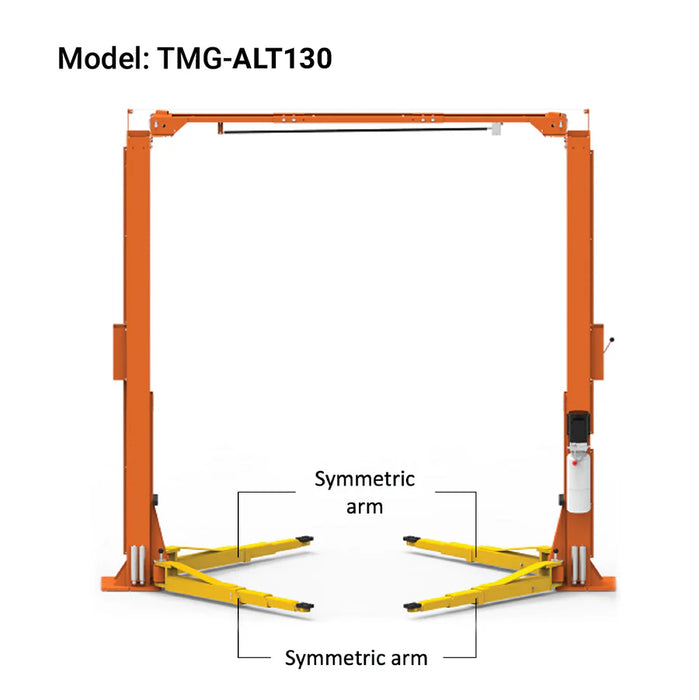

Symmetric arms provide balanced lifting support and stability

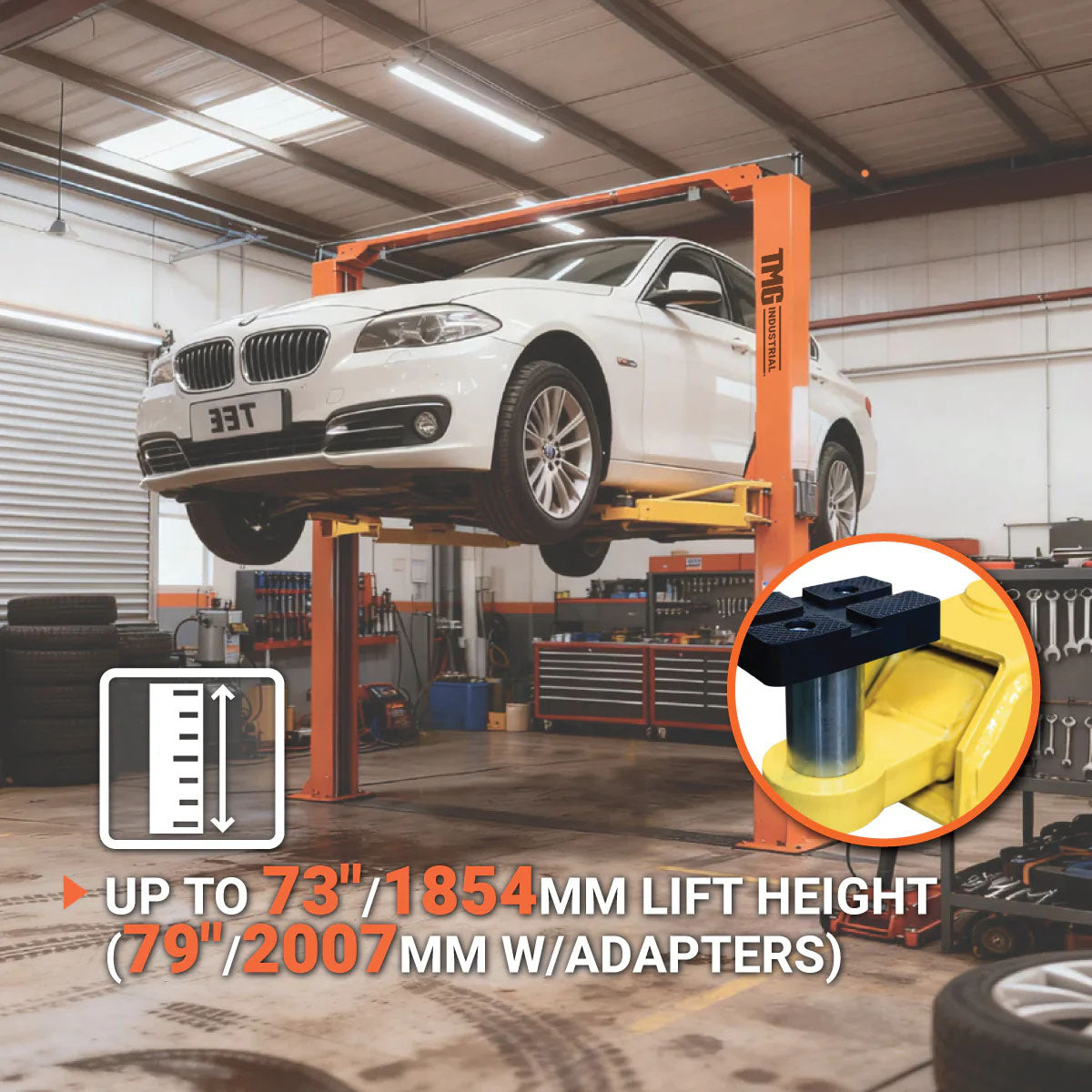

Up to 73" lift height (79" with adapters), enabling easy access for maintenance

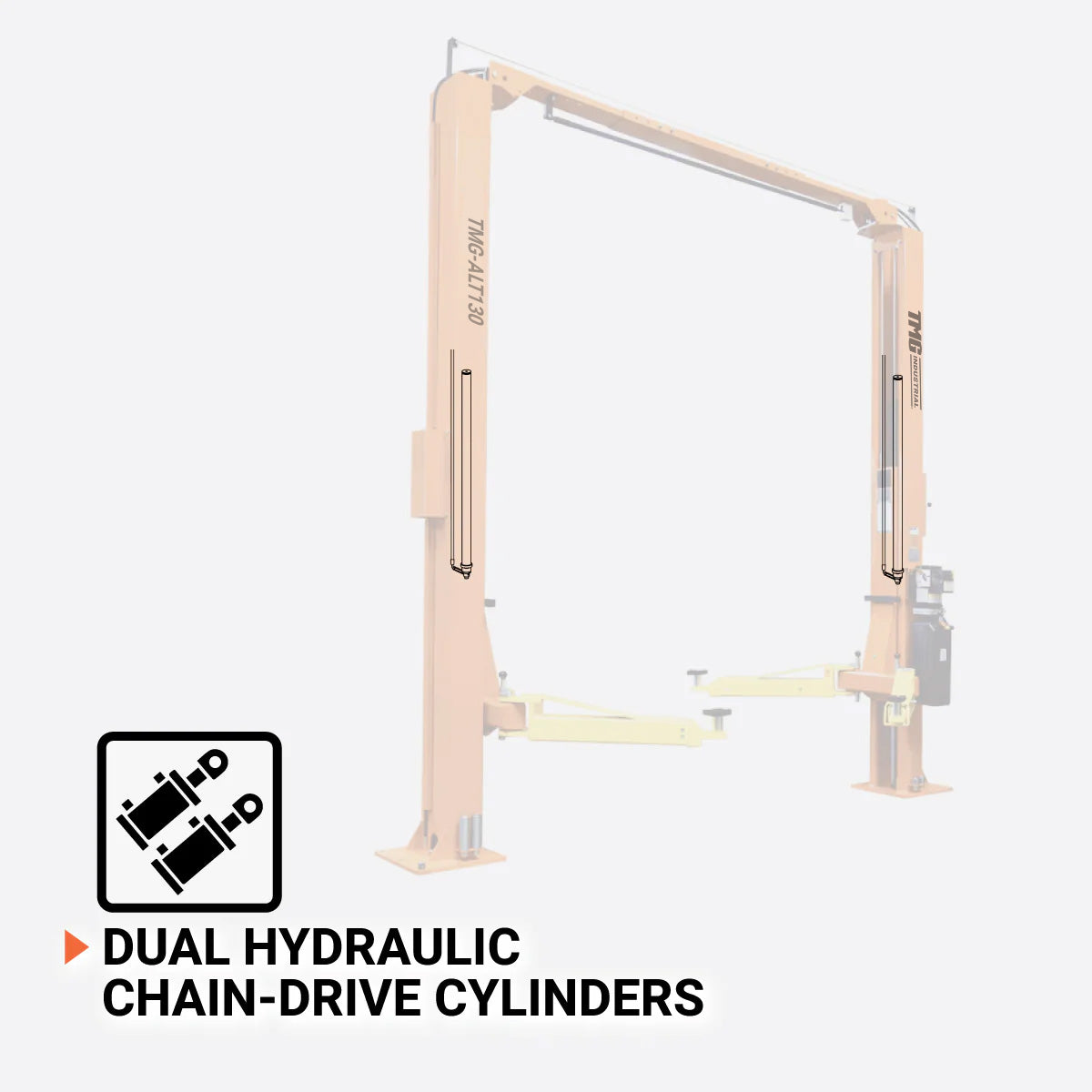

Dual hydraulic chain-drive cylinders ensure durable operations

Three column-to-column width options adapt to varying worksites

Dual lock mechanism enables secure, ergonomic operation

See less

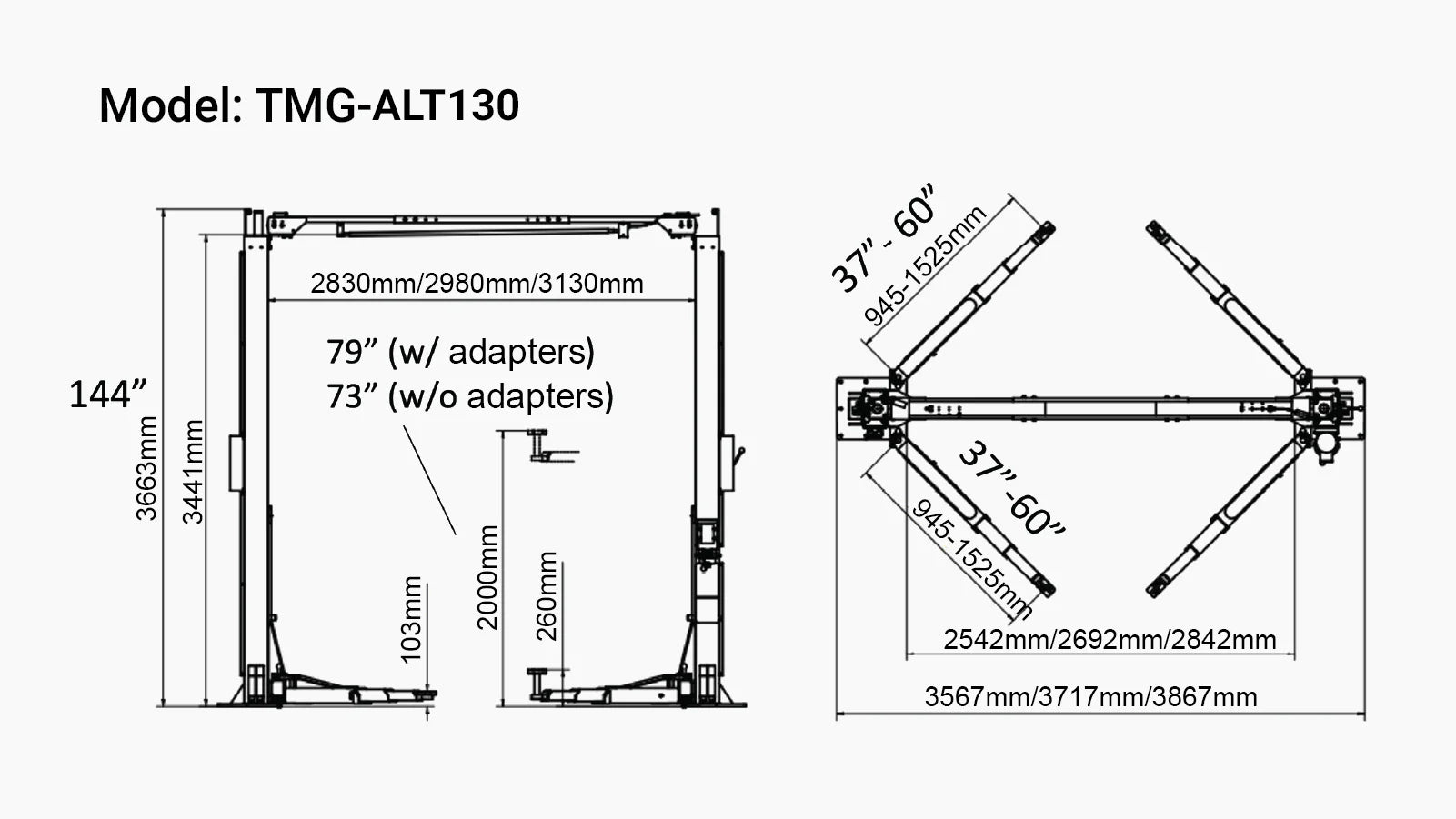

Specifications

• ALI Certified: Yes
• Load Capacity (lb): 10,000 lb
• Maximum Lift Height: 73" (Without Adapters), 79" (With 6" Adapters)
• Minimum Height from Ground: 4"
• Number of Adapter: 4 x 3 sets
• Adapter Height (inch): 1.5", 3", 6"
• Overall Height (inch): 144"
• Overall Width (inch):
  140" (Narrow Spacing), 146" (Medium Spacing), 152" (Wide Spacing)

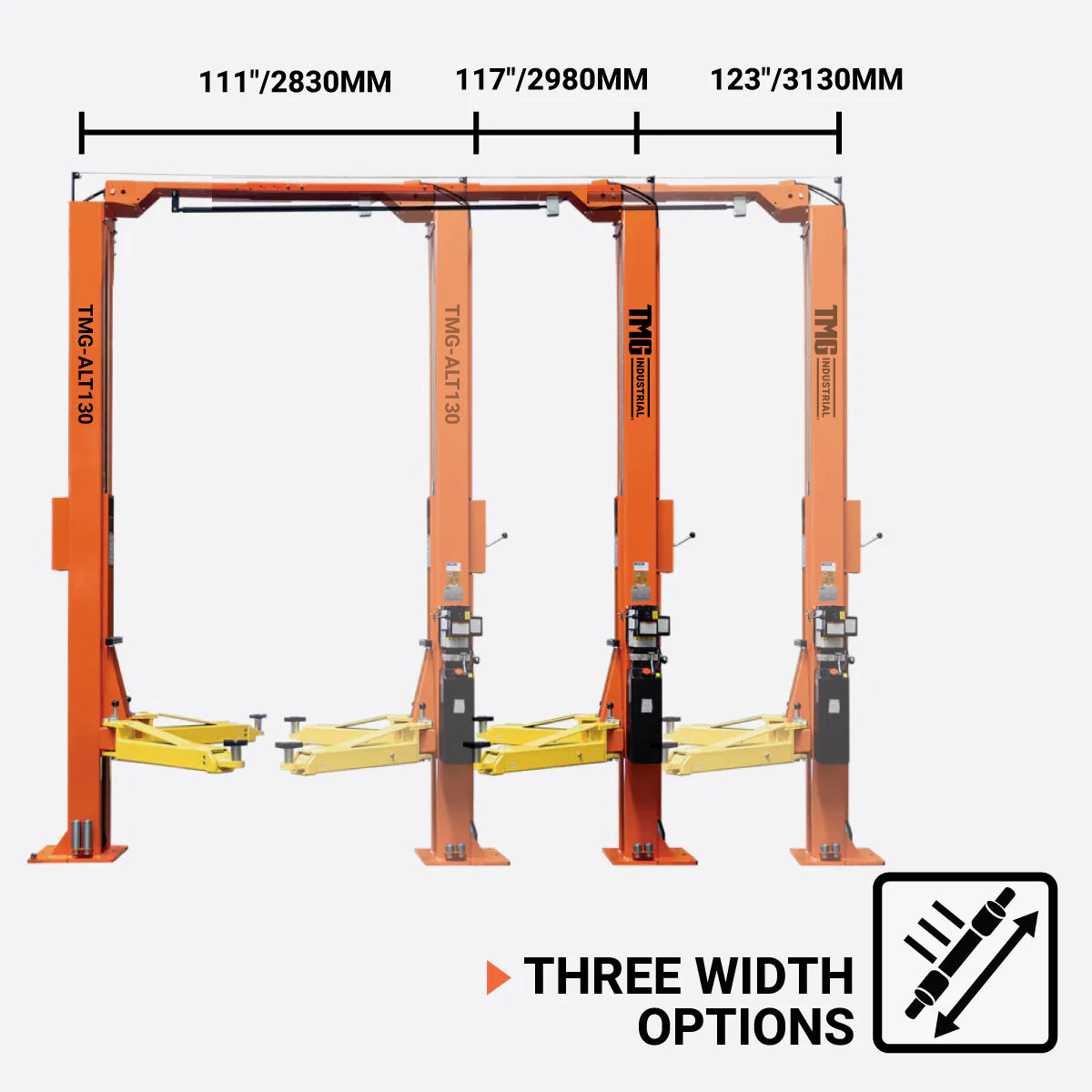

• Column to Column Width:
  111" (Narrow Spacing), 117" (Medium Spacing), 123" (Wide Spacing)
• Drive Thru Clearance:
  100" (Narrow Spacing), 106" (Medium Spacing), 112" (Wide Spacing)
• Overhead Stop Height: 135"
• Front Arm Reach: 37" - 60"
• Rear Arm Reach: 37" - 60"
• Arm Spec:
  Rear Section: 120 x 110 x 6 mm, Middle Section: 100 x 90 x 8 mm, Front Section: 80 x 70 x 8 mm
• Column Spec: 288 x 175 x 6 mm
• Column Material: Heavy-duty Carbon Steel
• Safety Cable Spec:
  10 NAT 6 x 19s + IWS 1870 (Dia. 10 mm, Steel Core Wire, Tensile Strength 1870 MPa)
• Safety Cable Length: 10.1 m
• Travel Time: Lift in 60 Sec; Lower in 45 Sec

Hydraulic Power Unit:

• Power: 208 - 240V AC, 3 HP, Single Phase
• Rated Current: 16 A
• CIPR (Cubic Inches Per Revolution): 0.1288
• Pump RPM: 2880 / 3450
• Hydraulic Pressure: 2450 PSI
• Hydraulic Port: 9/16 - 18UNF
• Tank Capacity: 3.17 Gal
• Hydraulic Oil: AW32, AW46
• CETL Certified: Yes

See less ⌃

Product Description

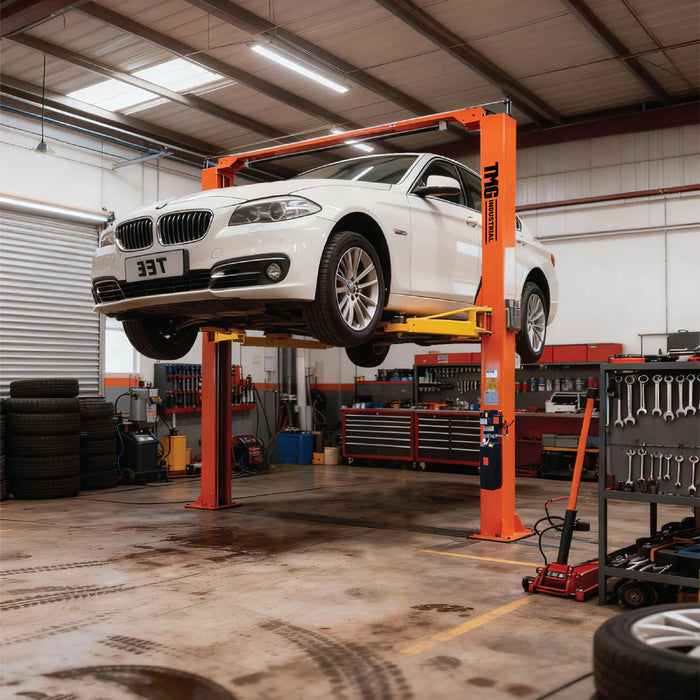

The ALI Certified TMG-ALT130 Two-Post Overhead Auto Lift with a dual-purpose convertible arm design is built for commercial shops, professional garages, and personal workshops that need a strong, versatile, and safe lifting solution. With a 10,000 lb capacity and up to 79" of lift height (with adapters), it easily handles most cars, trucks, and SUVs for a variety of maintenance and repair tasks.

This ALI-certified lift meets industry safety standards and is approved for use in most commercial automotive shops. Its overhead crossmember design keeps hydraulic, cable, and electrical lines protected while maintaining a clear workspace. The crossmember also enhances structural stability and balance between the columns for smooth, secure operation.

Heavy-duty symmetric telescoping arms with auto restraints and a dual hydraulic chain-drive system ensure precise, reliable performance. Compact, durable, and easy to operate, the TMG-ALT130 provides lasting value and dependable lifting capability for both professional and personal use.

TMG Industrial also carries other Overhead Auto Lift models with ALI certification for enhanced safety and compliance:

• TMG-ALT120: Asymmetric/Symmetric Arms, 144" Columns
• TMG-ALT128: Asymmetric/Symmetric Arms, 166" Columns

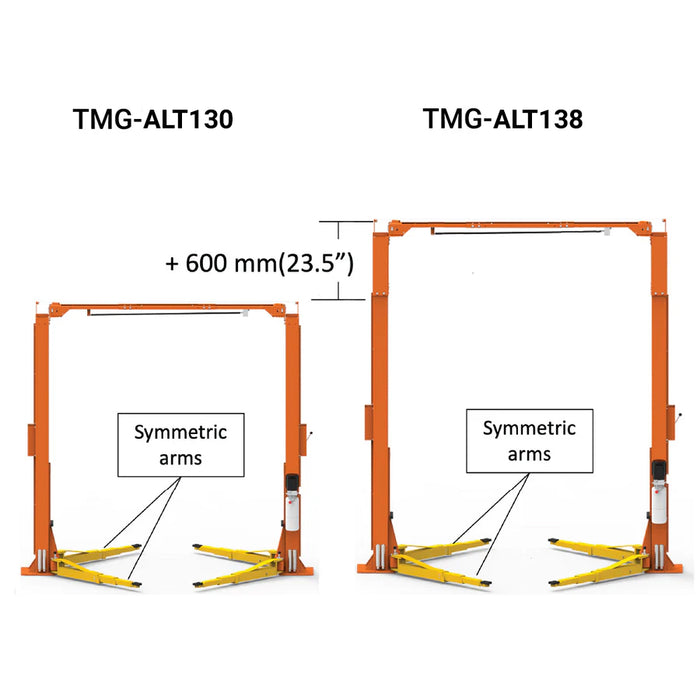

• TMG-ALT138: Symmetric Arms, 166" Columns

See less ⌃

Shipping Information

The order will ship from one of our warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you, based on where you are located and how accessible the location is.

• This product is packed in 2 shipping boxes
• Box A Shipping Dimensions: 142" × 22" × 32" (L x W x H)
• Box A Shipping weight: 1918 lb
• Box B Shipping Dimensions: 35" x 11" x 13" (L x W x H)
• Box B Shipping weight: 57 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
