ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Asymmetric/Symmetric Arms, 79" Lift Height, 144" Cross Beam, TMG-ALT120

Quantity

10,000 lb lift capacity compatible with most cars, trucks, and SUVs

Up to 73″ lift height (79″ with adapters), enabling easy access for maintenance

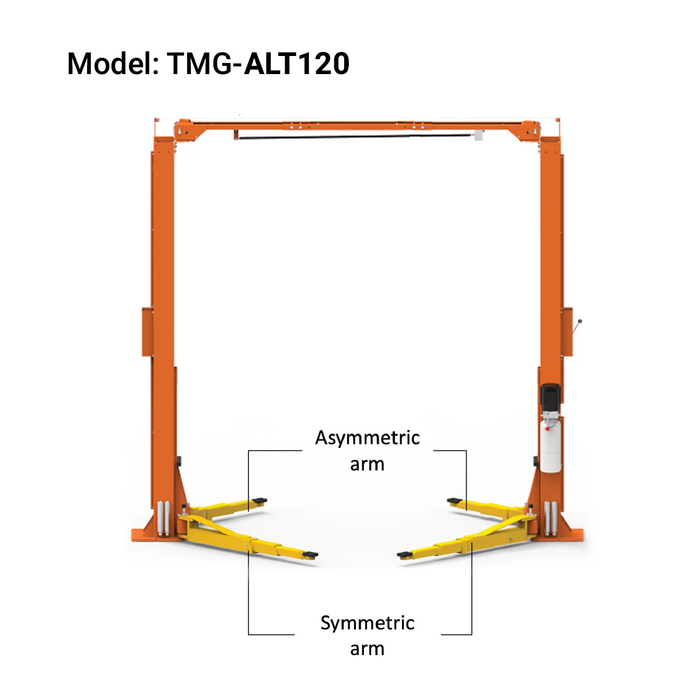

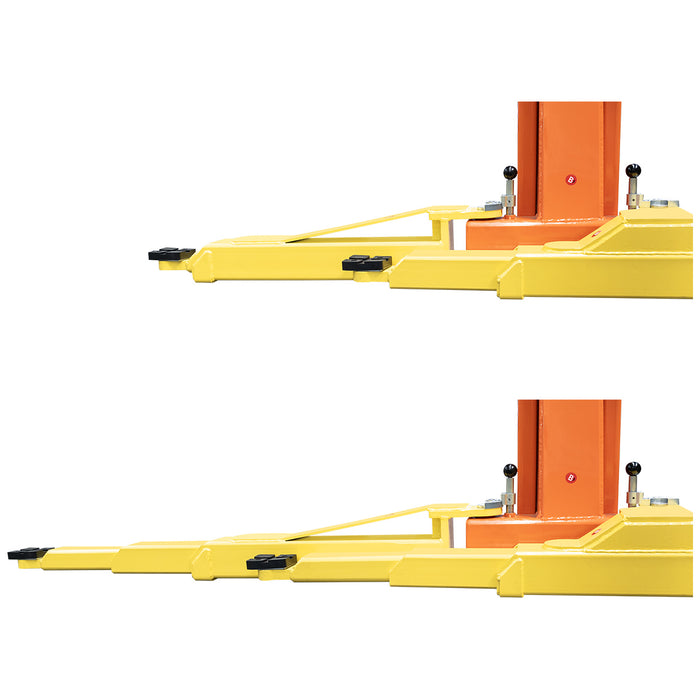

Asymmetric and symmetric arms provide versatile support positions

Dual hydraulic chain-drive cylinders ensure durable operations

Three column-to-column width options adapt to varying worksites

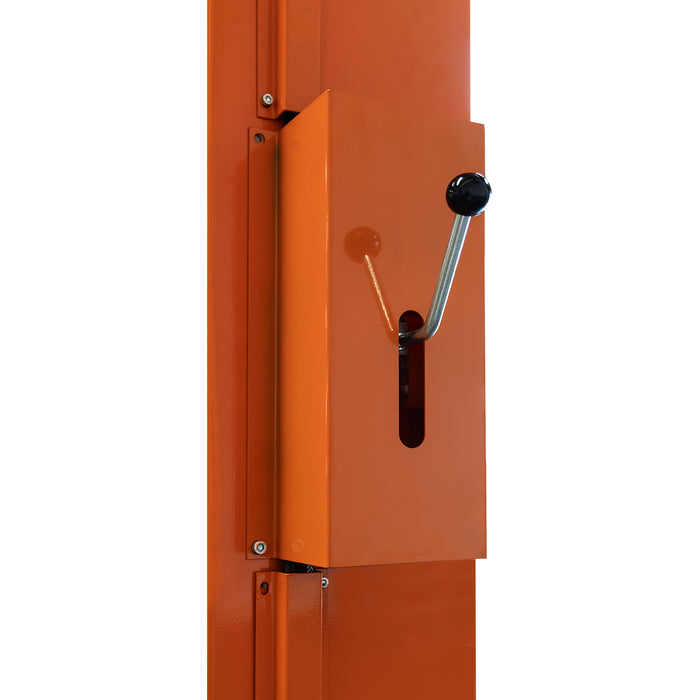

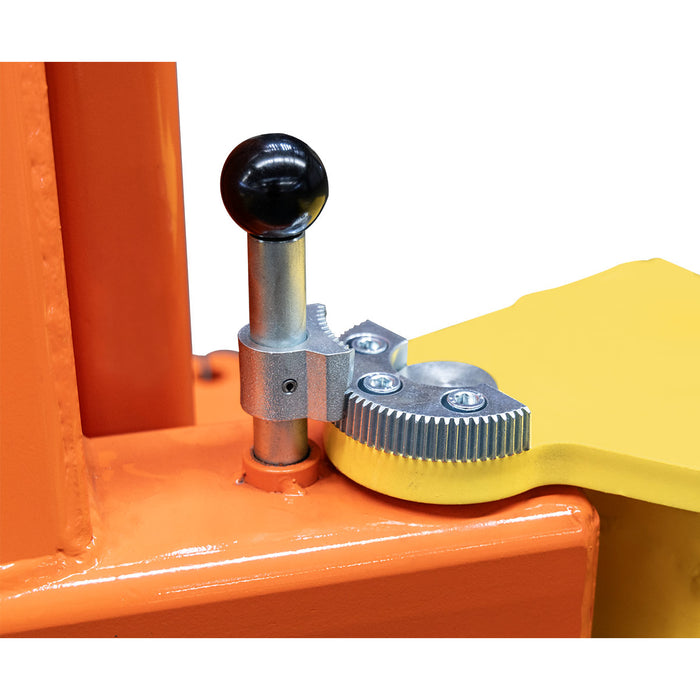

Dual lock mechanism enables secure, ergonomic operation

ALI Certified: Yes

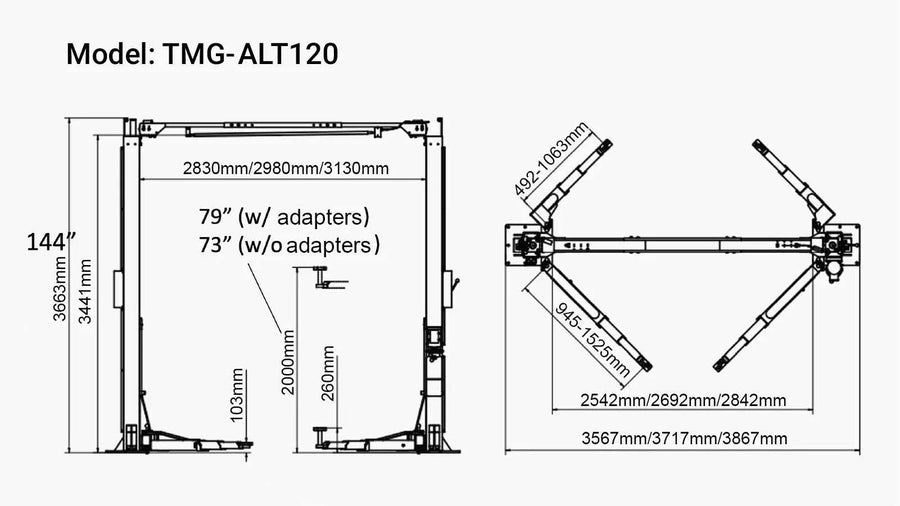

Load Capacity (lb): 10,000 lb
Maximum Lift Height: 73" (w/o adapters), 79" (w/ adapters)
Minimum Height from Ground: 4"

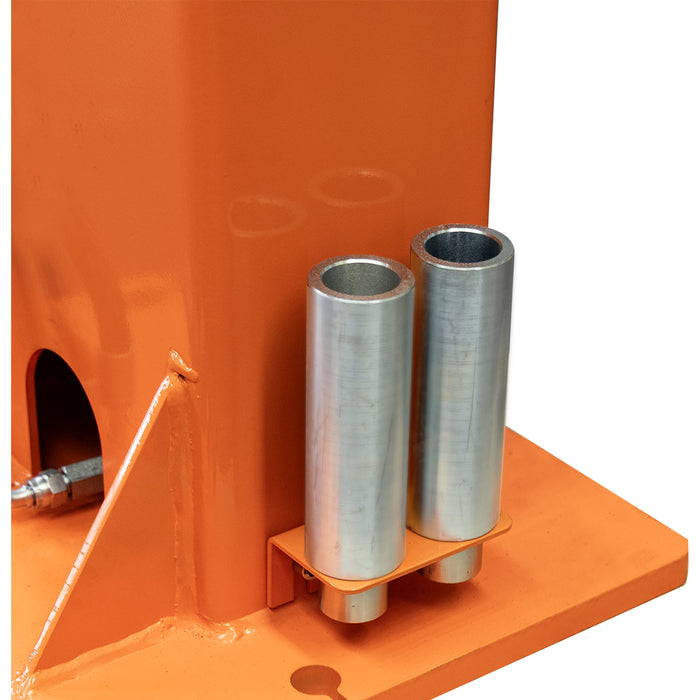

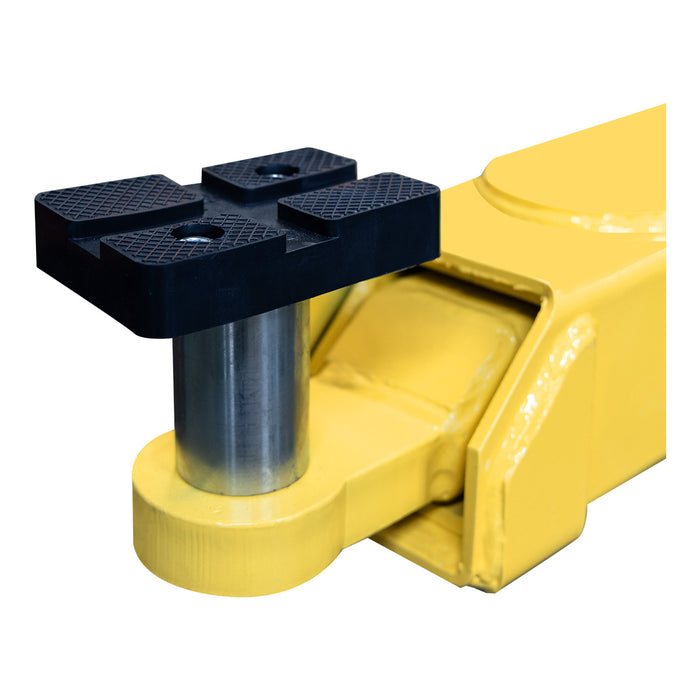

Number of Adapter: 4 x 3 sets
Adapter Height (inch): 1.5", 3", 6"
Overall Height (inch): 144"
Overall Width (inch):
140" (Narrow Spacing), 146" (Medium Spacing), 152" (Wide Spacing)
Column to Column Width:
111" (Narrow Spacing), 117" (Medium Spacing), 123" (Wide Spacing)
Drive Thru Clearance:
100" (Narrow Spacing), 106" (Medium Spacing), 112" (Wide Spacing)
Overhead Stop Height: 135"
Front Arm Reach: 19" - 42"
Rear Arm Reach: 37" - 60"
Arm Spec:
Rear Section: 120 x 110 x 6 mm, Middle Section: 100 x 90 x 8 mm, Front Section: 80 x 70 x 8 mm
Column Spec: 288 x 175 x 6 mm
Column Material: Heavy-duty Carbon Steel

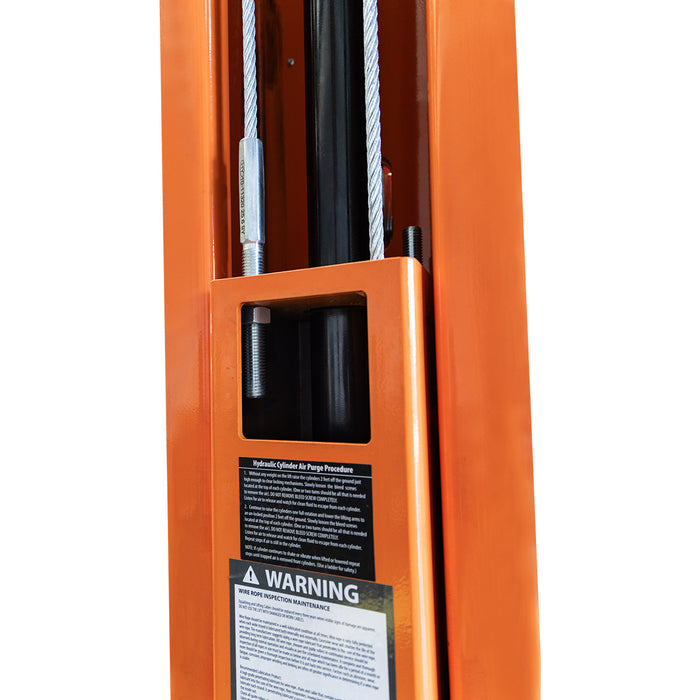

Safety Cable Spec:
10 NAT 6 x 19s + IWS 1870 (Dia. 10 mm, Steel Core Wire, Tensile Strength 1870 MPa)
Safety Cable Length: 10.1 m
Travel Time: Lift in 60 Sec; Lower in 45 Sec

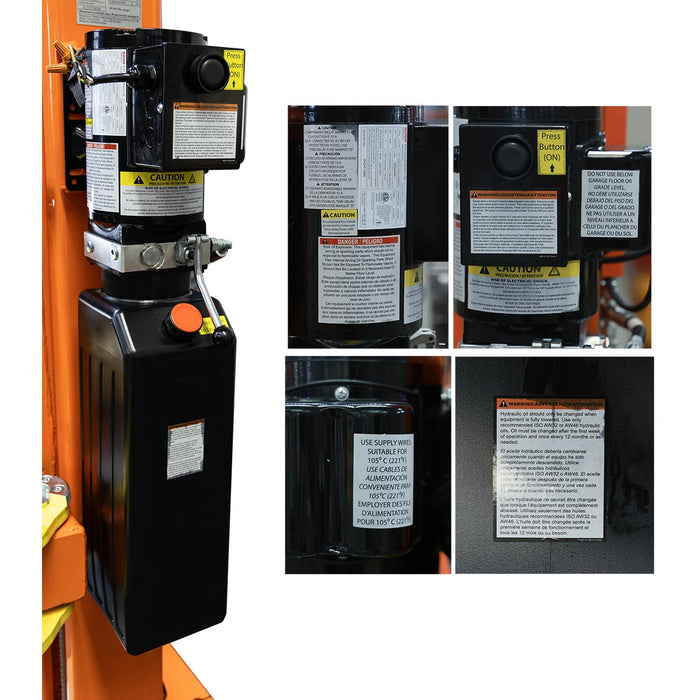

Hydraulic Power Unit:

Power: 208 - 240V AC, 3 HP, Single Phase
Rated Current: 16 A
CIPR (Cubic Inches Per Revolution): 0.1288
Pump RPM: 2880 / 3450
Hydraulic Pressure: 2450 PSI
Hydraulic Port: 9/16 - 18UNF
Tank Capacity: 3.17 Gal
Hydraulic Oil: AW32, AW46
CETL Certified: Yes

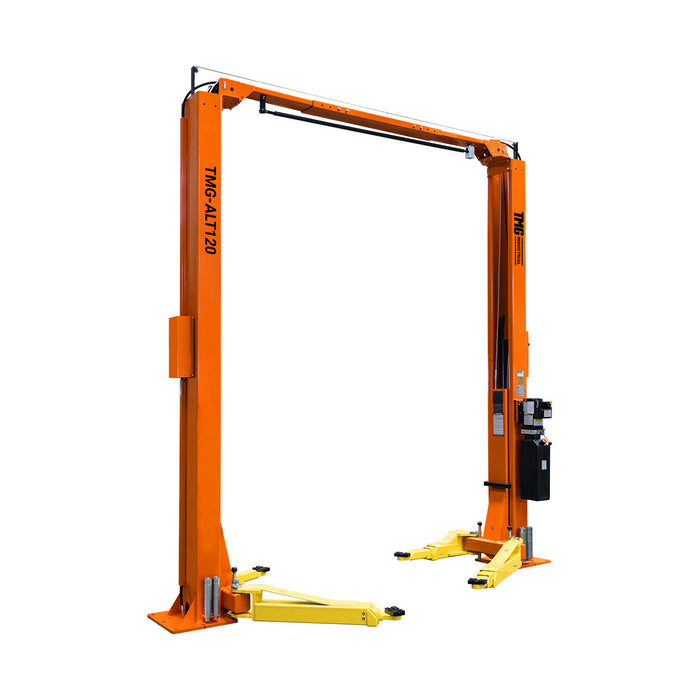

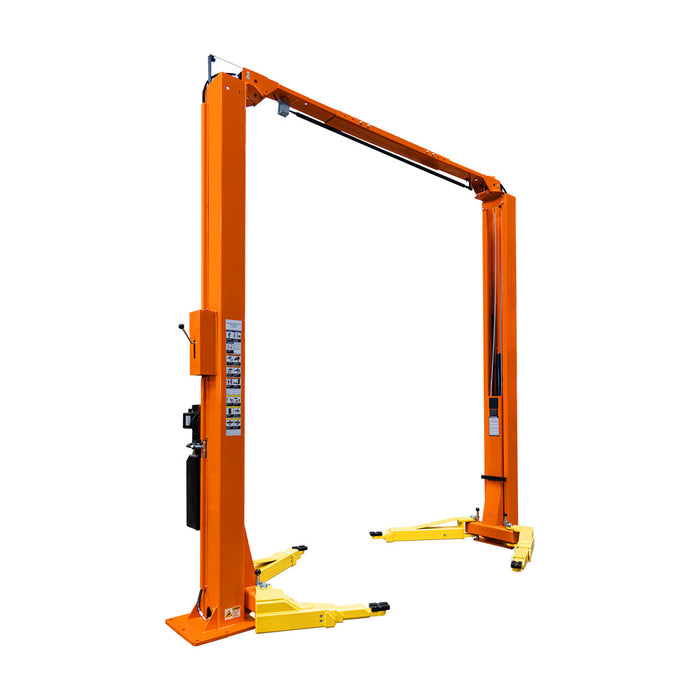

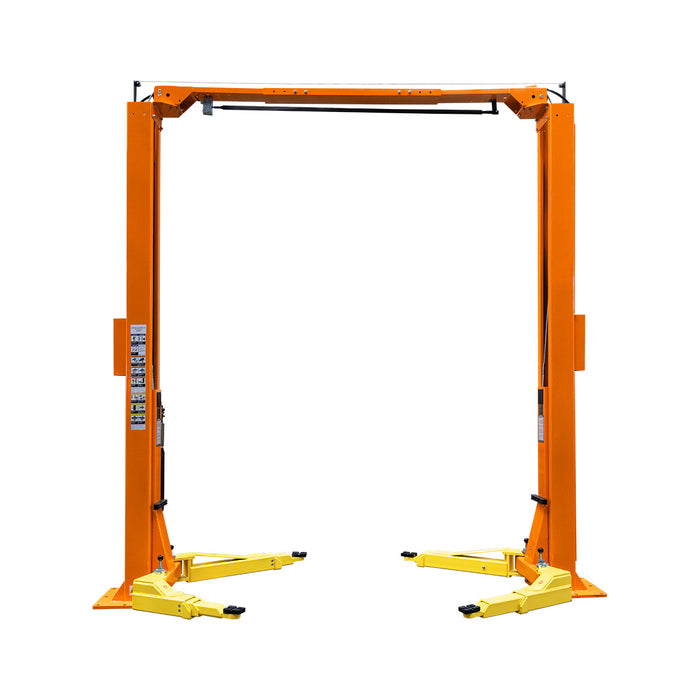

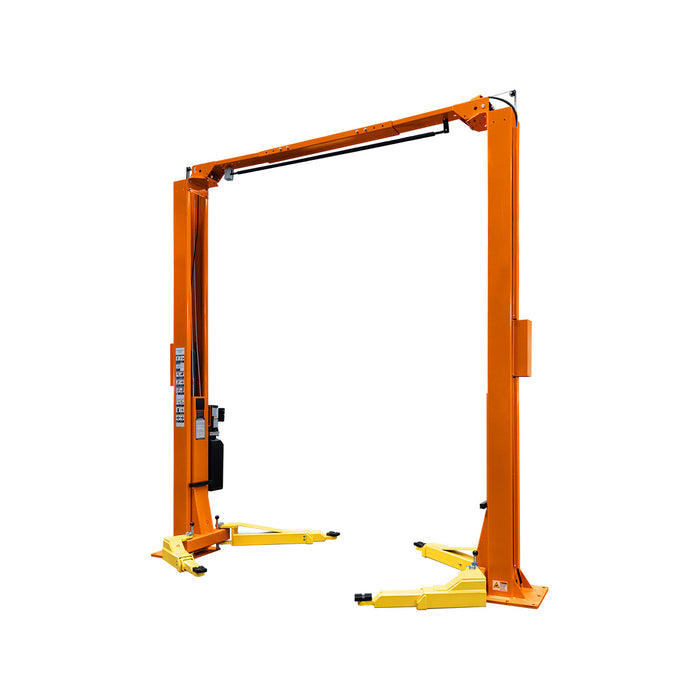

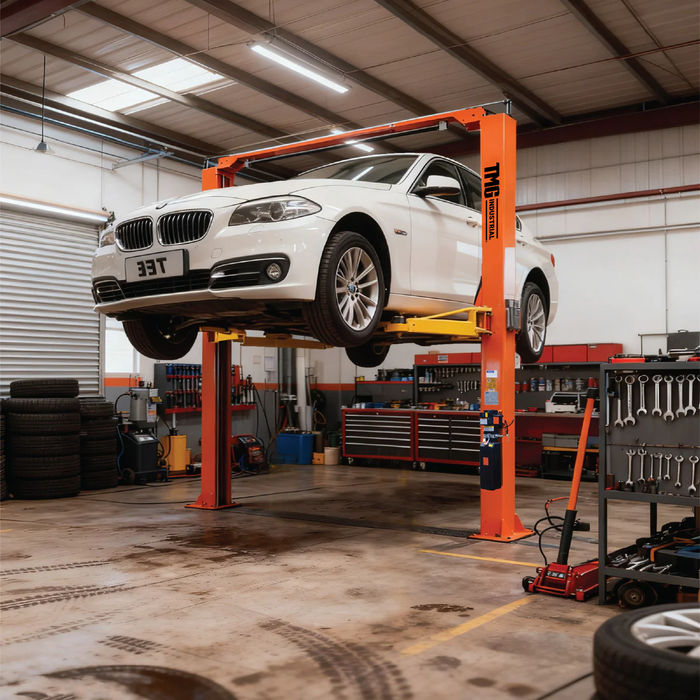

The ALI Certified TMG-ALT120 Two-Post Overhead Auto Lift with a Dual-Purpose Convertible Arm Design is built for commercial shops, professional garages, and personal workshops that need a strong, versatile, and safe lifting solution. With a 10,000 lb capacity and up to 79 inches of lift height (with adapters), it easily handles most cars, trucks, and SUVs for a variety of maintenance and repair tasks.

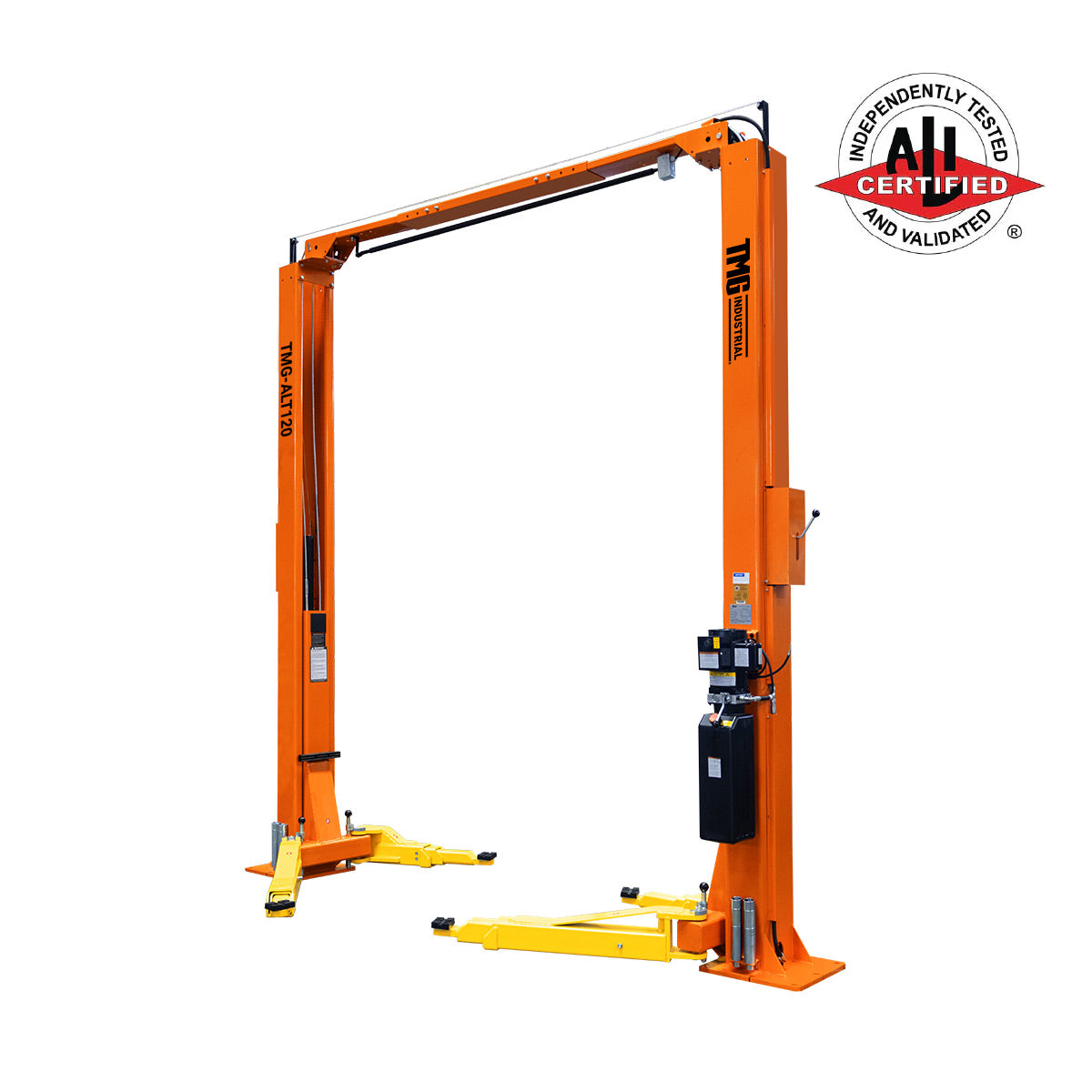

This ALI-certified lift meets industry safety standards and is approved for use in most commercial automotive shops. Its overhead crossmember design keeps hydraulic, cable, and electrical lines protected while maintaining a clear workspace. The crossmember also enhances structural stability and balance between the columns for smooth, secure operation.

Convertible asymmetric/symmetric telescoping arms with auto restraints and a dual hydraulic chain-drive system ensure precise, reliable performance. Compact, durable, and easy to operate, the TMG-ALT120 provides lasting value and dependable lifting capability for professional and personal use.

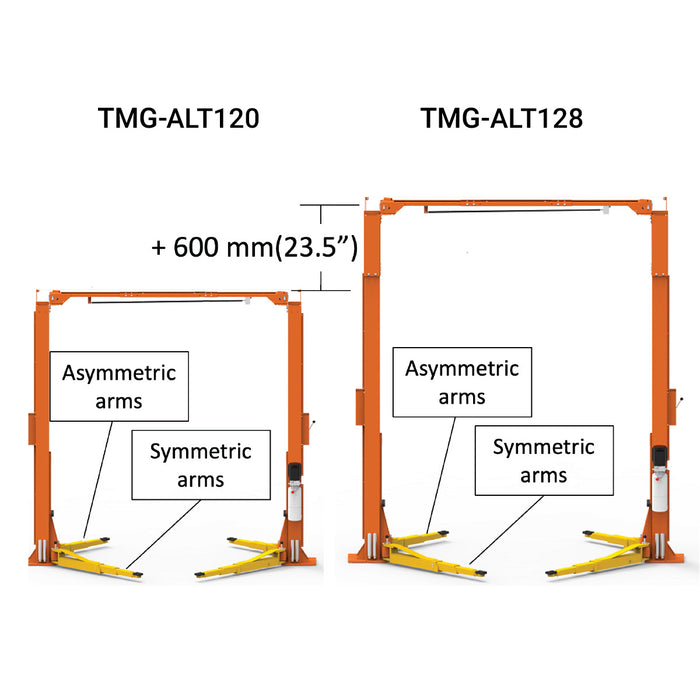

TMG Industrial also carries other Overhead Auto Lift models with ALI certification for enhanced safety and compliance.

TMG-ALT128: Asymmetric/Symmetric Arms, 166" Columns
TMG-ALT130: Symmetric Arms, 144" Columns
TMG-ALT138: Symmetric Arms, 166" Columns

The order will ship from one of our warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you, based on where you are located and how accessible the location is.

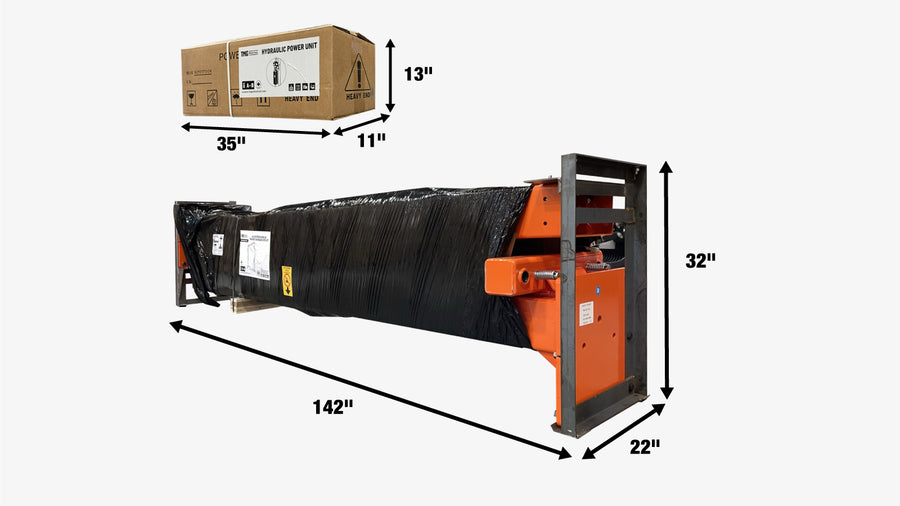

This product is packed in 2 shipping boxes
Box A Shipping Dimensions: 142" × 22" × 32" (L x W x H)
Box A Shipping weight: 1896 lb
Box B Shipping Dimensions: 35" x 11" x 13" (L x W x H)
Box B Shipping weight: 57 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Specification comparison between products ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Asymmetric/Symmetric Arms, 79" Lift Height, 144" Cross Beam, TMG-ALT120, ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Symmetric Arms, 79" Lift Height, 144" Cross Beam TMG-TO2593 (Discontinued, No Longer Available), ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Symmetric Arms, 79" Lift Height, 166" Cross Beam TMG-TO2609 (Discontinued – No Longer Available), ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Asymmetric/Symmetric Arms, 79" Lift Height, 166" Cross Beam TMG-TO2586 (Discontinued – No Longer Available)
Two-Post Overhead Auto Lift
	ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Asymmetric/Symmetric Arms, 79" Lift Height, 144" Cross Beam, TMG-ALT120$5,199.00 CAD	ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Symmetric Arms, 79" Lift Height, 144" Cross Beam TMG-TO2593 (Discontinued, No Longer Available)$5,999.00 CAD	ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Symmetric Arms, 79" Lift Height, 166" Cross Beam TMG-TO2609 (Discontinued – No Longer Available)$6,499.00 CAD	ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Asymmetric/Symmetric Arms, 79" Lift Height, 166" Cross Beam TMG-TO2586 (Discontinued – No Longer Available)$5,999.00 CAD
ALI Certificate	Yes	Yes	Yes	Yes
Load Capacity	10,000 lb	10,000 lb	10,000 lb	10,000 lb
Maximum Lift Height	73″ (Without Adapters), 79″ (With 6″ Adapters)	73″ (Without Adapters), 79″ (With 6″ Adapters)	73″ (Without Adapters), 79″ (With 6″ Adapters)	73″ (Without Adapters), 79″ (With 6″ Adapters)
Minimum Height from Ground	4″	4″	4″	4″
Number of Adapter	4 x 3 sets	4 x 3 sets	4 x 3 sets	4 x 3 sets
Adapter Height	1.5″, 3″, 6″	1.5″, 3″, 6″	1.5″, 3″, 6″	1.5″, 3″, 6″
Overall Height	144″	144″	166"	166"
Overall Width	140″ (Narrow Spacing), 146″ (Medium Spacing), 152″ (Wide Spacing)	140″ (Narrow Spacing), 146″ (Medium Spacing), 152″ (Wide Spacing)	140″ (Narrow Spacing), 146″ (Medium Spacing), 152″ (Wide Spacing)	140″ (Narrow Spacing), 146″ (Medium Spacing), 152″ (Wide Spacing)
Column to Column Width	111″ (Narrow Spacing), 117″ (Medium Spacing), 123″ (Wide Spacing)	111″ (Narrow Spacing), 117″ (Medium Spacing), 123″ (Wide Spacing)	111″ (Narrow Spacing), 117″ (Medium Spacing), 123″ (Wide Spacing)	111″ (Narrow Spacing), 117″ (Medium Spacing), 123″ (Wide Spacing)
Drive Thru Clearance	100" (Narrow Spacing), 106" (Medium Spacing), 112" (Wide Spacing)	100" (Narrow Spacing), 106" (Medium Spacing), 112" (Wide Spacing)	100" (Narrow Spacing), 106" (Medium Spacing), 112" (Wide Spacing)	100" (Narrow Spacing), 106" (Medium Spacing), 112" (Wide Spacing)
Overhead Stop Height	135"	135"	158"	158"
Front Arm Reach	19" - 42"	37 - 60"	37 - 60"	19" - 42"
Rear Arm Reach	37 - 60"	37 - 60"	37 - 60"	37 - 60"
Arm Spec	Rear Section: 120 x 110 x 6 mm, Middle Section: 100 x 90 x 8 mm, Front Section: 80 x 70 x 8 mm	Rear Section: 120 x 110 x 6 mm, Middle Section: 100 x 90 x 8 mm, Front Section: 80 x 70 x 8 mm	Rear Section: 120 x 110 x 6 mm, Middle Section: 100 x 90 x 8 mm, Front Section: 80 x 70 x 8 mm	37 - 60"
Column Spec	11.3″ × 6.9″ × 0.24″	11.3″ × 6.9″ × 0.24″	11.3″ × 6.9″ × 0.24″	11.3″ × 6.9″ × 0.24″
Column Material	Heavy-duty Carbon Steel	Heavy-duty Carbon Steel	Heavy-duty Carbon Steel	Heavy-duty Carbon Steel
Safety Cable Spec	10 NAT 6 x 19s + IWS 1870 (Dia. 10mm, Steel Core Wire, Tensile Strength 1870 MPa)	10 NAT 6 x 19s + IWS 1870 (Dia. 10mm, Steel Core Wire, Tensile Strength 1870 MPa)	10 NAT 6 x 19s + IWS 1870 (Dia. 10mm, Steel Core Wire, Tensile Strength 1870 MPa)	10 NAT 6 x 19s + IWS 1870 (Dia. 10mm, Steel Core Wire, Tensile Strength 1870 MPa)
Safety Cable Length	32.9"	32.9"	37.1"	37.1"
Travel Time	Lift in 60 Sec; Lower in 45 Sec	Lift in 60 sec; Lower in 45 sec	Lift in 60 sec; Lower in 45 sec	Lift in 60 sec; Lower in 45 sec
Power	208 - 240V AC, 3 HP, Single Phase	208 - 240V AC, 3 HP, Single Phase	208 - 240V AC, 3 HP, Single Phase	208 - 240V AC, 3 HP, Single Phase
Rated Current	16 A	16 A	16 A	16 A
CIPR (Cubic Inches Per Revolution)	0.1288	0.1288	0.1288	0.1288
Pump RPM	2880/3450	2880/3450	2880/3450	2880/3450
Hydraulic Pressure	2450 PSI	2450 PSI	2450 PSI	2450 PSI
Hydraulic Port	9/16 - 18UNF	9/16 - 18UNF	9/16 - 18UNF	9/16 - 18UNF
Tank Capacity	3.17 Gal	3.17 Gal	3.17 Gal	3.17 Gal
Hydraulic Oil	AW32, AW46	AW32, AW46	AW32, AW46	AW32, AW46
CETL Certified	Yes	Yes	Yes	Yes
