CURRENTLY IN STOCK

TMG-TPH50

51" Rotary Power Harrow with Pipe Roller, 25 – 50 HP Tractor, 3-Point Hitch, Category 1&2, TMG-TPH50

Name: 51" Rotary Power Harrow with Pipe Roller, 25 – 50 HP Tractor, 3-Point Hitch, Category 1&2, TMG-TPH50
Brand: TMG Industrial CA
SKU: TMG-TPH50
Price: 3499.0 CAD
Availability: InStock

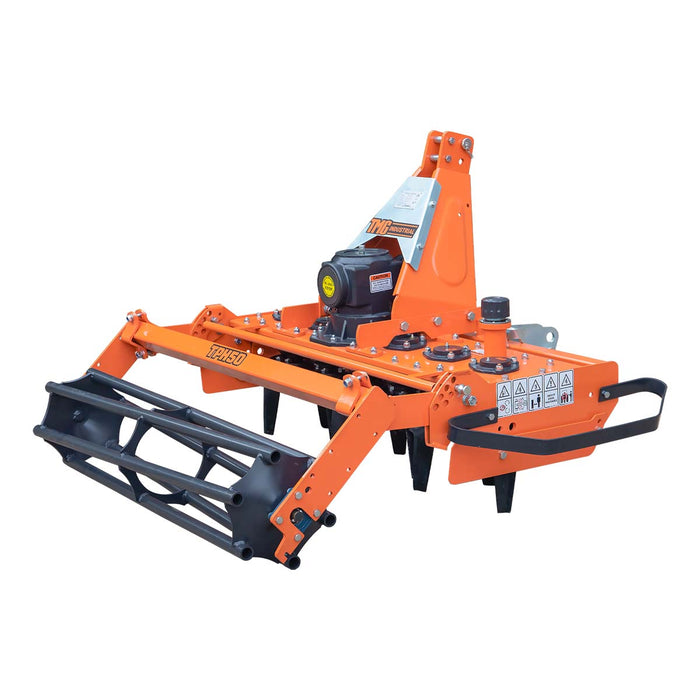

Three-quarter view showing orange 51" Rotary Power Harrow with Pipe Roller, gearbox, tines.

CURRENTLY IN STOCK

SKU TMG-TPH50

$3,499.00 CAD - $3,499.00 CAD

$3,499.00 CAD

$3,499.00 CAD - $3,499.00 CAD

$3,499.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days

Learn More

GRAB IT SOON - ONLY 1 LEFT IN STOCK

Quantity

1-877-761-2819

cs@tmgindustrial.ca

Product Manual

Find Parts

51" Rotary Power Harrow with Pipe Roller, 25 – 50 HP Tractor, 3-Point Hitch, Category 1&2, TMG-TPH50

Quantity

25-50 HP Tractor Range: Adjustable hitch points for both Category 1 and 2 compatibility and 540 RPM PTO for dependable field preparation.
51" Tillage Coverage: Prepare consistent seed beds across the full pass, reducing overlap corrections and improving efficiency.
0–8" Depth: Adjustable depth providing effective soil refinement at a controlled depth that prepares seedbeds without disturbing soil too much.
6-Rotor, 12-Blade Design: Delivers balanced soil movement and consistent finishing performance across the full harrow width.
Durable 12" Pipe Roller: Limits soil buildup during operation and performs reliably when working in stony or debris-heavy conditions.
Adjustable Stone Deflector: Reduces scattered stones and debris, keeping material closer to the work path during soil preparation field passes.
Rotor Bearing Shield: Protective shield over the rotor bearing prevents damage to the main transmission during demanding field operation.

Tractor Compatibility: 25-50 HP, 3-point Category 1 and 2 (Cat 1 pin included)
Tillage Width: 51" (1300 mm)
Working Depth Range: 0-8" (0-200 mm)
PTO Speed: 540 RPM
Number of Rotors: 6
Rotor Speed: 320 RPM
Number of Blades: 12
Blade Thickness: 3/8" (10 mm)
Pipe Roller Diameter: 12" (305 mm)
Gearbox Oil: 0.4 gal (1.5 L) SAE 90EP
Rotor Box Oil: 3.17 gal (12 L) SAE 90EP
Overall Dimensions: 61" x 48-1/2" x 36" (1550 x 1230 x 920 mm)

The TMG-TPH50 Rotary Power Harrow is designed for compact and utility tractors, helping prepare smooth, even seedbeds for planting. With a 51" tillage width and 25-50 HP tractor compatibility, it is well suited for farms, acreages, market gardens, and landscaping applications.

This power harrow uses six rotors, 12 durable blades, and a 12" pipe roller to turn, break, refine, and level soil across the full working width. The adjustable 0-8" working depth lets operators match different soil conditions, while the side stone deflector helps reduce scattered stones.

Built for reliable field preparation, the TMG-TPH50 is ideal for finishing soil after rotary tiller operation. Ball bearing-supported rotors, upper bearing protection, and Category 1 and 2 hitch compatibility make it a practical choice for improving planting readiness.

TMG also carries additional power harrow options to suit a range of tractor sizes and working widths. TMG-TPH70 TMG-TPH80

The order will ship from one of our main warehouses in Canada. Under normal circumstances, it will take 2 to 3 business days to process and ship your order. Delivery typically takes 10 to 15 business days, depending on your location and site accessibility.

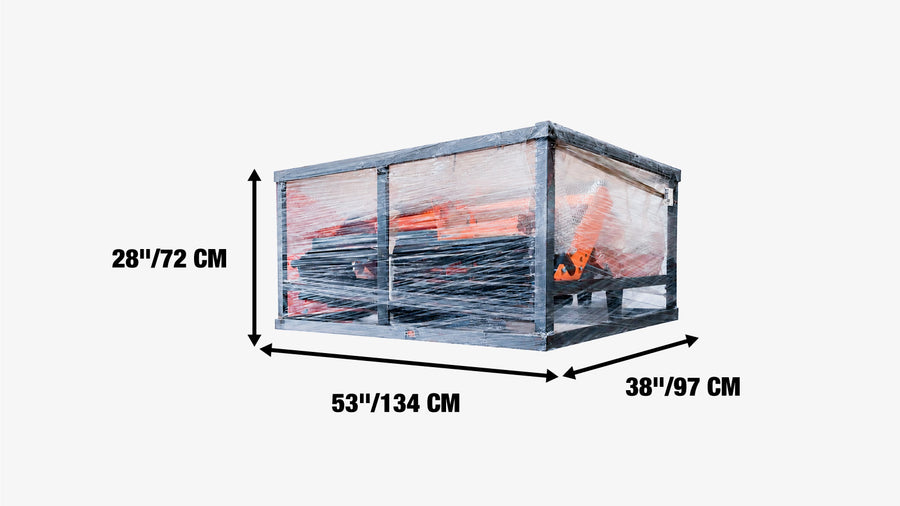

This product is packed in a steel crate shipping box
Shipping dimensions: 53" x 38" x 28"(L x W x H),134x97x72 cm
Shipping weight: 605 lb (274 kg)

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Dimensions and capacity
	51" Rotary Power Harrow with Pipe Roller, 25 – 50 HP Tractor, 3-Point Hitch, Category 1&2, TMG-TPH50$3,499.00 CAD	67" Rotary Power Harrow with Pipe roller, 40-70 HP Tractor, 3-Point Hitch, Cat 1 & 2, TMG-TPH70$3,999.00 CAD	80" Rotary Power Harrow with Pipe Roller, 55-80 HP Tractor, 3-Point Hitch, Cat 1 & 2, TMG-TPH80$4,499.00 CAD
Gearbox Oil Capacity	0.4 gal (1.5 L)	0.4 gal (1.5 L)	0.4 gal (1.5 L)
Overall Dimensions	61" x 48-1/2" x 36"	76-3/4" x 48-1/2" x 36"	92-1/2" x 48-1/2" x 36"
Rotor Box Oil Capacity	3.17 gal (12 L)	4 gal (15 L)	4.76 gal (18 L)
Tillage Width	51" (1.3 m)	67" (1.7 m)	80" (2 m)
Construction and materials
Number of Blades	12	16 pieces	20 pcs
Features and accessories
Number of Rotors	6	8	10
Tractor Compatibility	25-50 HP, 3-point Category 1 and 2 (Cat 1 pin included)	40-70 HP, 3-point Category 1 and 2 (Cat 1 pin included)	55-80 HP, 3-point Category 1 and 2 (Cat 1 pin included)
