EST. 8-12 WEEKS DELIVERY

TMG-MSE2040DS-SR35

20' x 40' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, 11'10" Large Front Door, 8'9" Double Side Roll-up Doors, 13' Peak Height, Engineering Drawing, TMG-MSE2040DS-SR35

Name: 20' x 40' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, 11'10" Large Front Door, 8'9" Double Side Roll-up Doors, 13' Peak Height, Engineering Drawing, TMG-MSE2040DS-SR35
Brand: TMG Industrial CA
SKU: TMG-MSE2040DS-SR35
Price: 22999.0 CAD
Availability: InStock

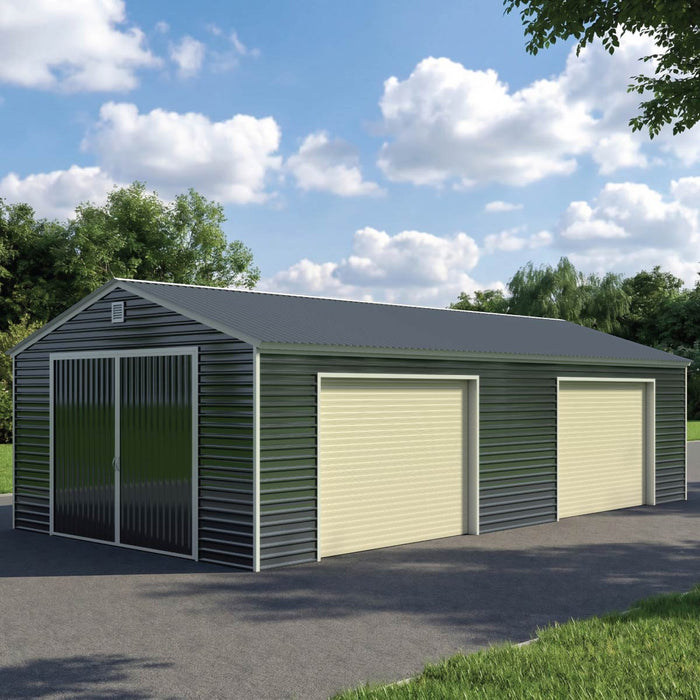

Three-quarter exterior view showing front double door and two roll-ups, Metal Garage Shed Steel Building

EST. 8-12 WEEKS DELIVERY

SKU TMG-MSE2040DS-SR35

$22,999.00 CAD - $22,999.00 CAD

$22,999.00 CAD

$22,999.00 CAD - $22,999.00 CAD

$22,999.00 CAD

FREE

shipping to most locations in

Canada

Quantity

1-877-761-2819

cs@tmgindustrial.ca

Find Parts

20' x 40' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, 11'10" Large Front Door, 8'9" Double Side Roll-up Doors, 13' Peak Height, Engineering Drawing, TMG-MSE2040DS-SR35

Quantity

800 sq ft Footprint: Offers approximately 800 sq ft of usable interior space, ideal for general storage, agricultural applications, or outdoor workshops.
3 Doors: Equipped with one large front swinging door and two side roll-up doors, providing convenient access for vehicles, equipment, and materials.
9' 4" Tall Clearance: The tall door clearance makes parking trucks, tractors, and ride-on mowers easy and convenient.
35 PSF Snow Load Rated: The pre-engineered structure is rated for a 35 PSF snow load and 100 km/h wind load, and includes stamped drawings from a licensed Canadian engineer.
2 Windows: Generously sized windows maximize natural light, brightening the interior and creating a more open and comfortable environment.
2 Louvers: Two 300 x 300 mm louvers (front and rear) provide continuous airflow to help control moisture and improve air circulation.
Robust Structure: Industrial-grade 11 GA steel structure covered with durable 27 GA metal sheets for enhanced durability and corrosion resistance.
Sloped Roof Design: The vertical gable roof design helps prevent water, snow, and debris buildup throughout the year.
Simple Assembly: Slip-fit square tubing base frame with sleeve anchor bolts allows easy installation on solid wood platforms, concrete slabs, or equivalent foundations.

Floor Footprint: 19.7' x 39.4' (W x L), 6 x 12 m
Assembled Size: 20' (W) x 40' (L) x 13' (H)
Floor Space: 800 sq ft (72 m²)
Peak Height: 13' (3.97 m)
Eave Height: 9' 4" (2.85 m)
Roof Pitch: 4/12
Steel Frame Tube: 100 x 50 x 3 mm (11 GA)
Purlin Tube: 50 x 50 x 1.8 mm (15 GA)
Metal Cover Sheet: 0.3 mm (27 GA)
Truss Spacing: 3' 11" (1200 mm)
Snow Load Rating: 1.68 kPa / 35 PSF
Wind Speed Rating: 100 km/h
Load Report and Engineering Drawings available upon request
Front Door Opening: 11' 10" x 9' 4" (W x H), 3.62 x 2.85 m
Glass Windows: 3.6' x 3' (W x H), 1.09 x 0.92 m, 2 sets
Louvers: 300 x 300 mm, 2 sets (front and rear)
Anchoring: Sleeve anchor bolts
Foundation Required: Concrete slabs, solid wood, or equivalent
Recommendation: Adding plywood lining is recommended
Colour: Charcoal Grey

Roll-Up Doors

Door Dimensions: 11' 10" x 9' 4" (W x H), 3.1 x 2.94 m
Door Opening: 8' 9" x 8' 6" (W x H), 2.91 x 2.6 m
Motor: 120V 60 Hz tubular motor, 59M-100/11
Door Material: Twin-wall aluminum alloy
Colour: Beige

The TMG-MSE2040DS-SR35 Metal Garage Shed with one large front door and two side roll-up doors is a heavy-duty steel structure designed for spacious and secure outdoor storage. Fully enclosed for year-round protection, it is ideal for storing boats, RVs, pickups, off-road vehicles, farm equipment, and other valuable assets. Specifically engineered for demanding Canadian climates, this pre-engineered structure is rated for a 35 PSF snow load and 100 km/h wind load, and includes stamped drawings from a licensed structural engineer.

One large front door and two side roll-up doors provide generous access for driving vehicles in and out or moving large equipment and materials with ease. Two large windows maximize natural light and create a brighter, more open interior, while front and rear louvers improve airflow and help control moisture buildup.

Built for durability, this metal garage features reinforced roof supports, wall bracing, and anchor points to provide dependable structural strength. Electro-galvanized steel sheets with a polyester-coated finish offer resistance against corrosion, rust, and wear for long-lasting performance.

The sloped gable roof helps shed rain and snow efficiently, while the slip-fit base frame with sleeve anchor bolts allows for quick installation on wood or concrete foundations. The open-span interior design maximizes usable storage space and provides flexible organization options.

The TMG-MS20-RD08 electric roll-up door is compatible with the TMG-MSE2040DS-SR35 metal garage shed.

TMG Industrial also offers similar models without side roll-up doors in various sizes, including the TMG-MSE2020-SR35, TMG-MSE2030-SR35, TMG-MSE2030D-SR35, TMG-MSE2040-SR35, TMG-MSE2040D-SR35, TMG-MSE3040-SR35, and TMG-MSE3050-SR35.

Your order will be shipped from one of our main warehouses in Canada. Orders are typically processed and shipped within 2 to 3 business days under normal circumstances. Delivery usually takes 10 to 15 business days, depending on location and accessibility.

Packaging: This product is packed in 3 metal shipping crates.
Shipping Box A: 87" x 39" x 28" (L x W x H), 222 x 98 x 70 cm
Shipping Box B: 87" x 39" x 28" (L x W x H), 222 x 98 x 70 cm
Shipping Box C: 146" x 39" x 24" (L x W x H), 370 x 98 x 60 cm
Total Weight: 4950 lb (2250 kg)

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Dimensions and capacity
	20' x 40' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, 11'10" Large Front Door, 8'9" Double Side Roll-up Doors, 13' Peak Height, Engineering Drawing, TMG-MSE2040DS-SR35$22,999.00 CAD	20' x 40' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, Two 8'4" Double Doors, Side Entry Door, 13' Peak Height, Engineering Drawing TMG-MSE2040-SR35$16,999.00 CAD	20' x 40' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, 11'10" Large Front Door, Side Entry, 13' Peak Height, Engineering Drawing, TMG-MSE2040D-SR35$17,999.00 CAD
Assembled Size	20' (W) x 40' (L) x 13' (H)	19'8" (W) x 40' (L) x 13' (H)	20' (W) x 40' (L) x 13' (H)
Eave Height	9'4" (2.85 m)	9.4' (2.85 m)	9.4' (2.85 m)
Front Door Size	11'10" x 9'4"	8'4" x 9'4"	11'10" x 9'4"
Truss Spacing	3'11" (1.2 m)	3'11" (1.2 m)	3'11" (1.2 m)
Construction and materials
Number of Front Doors	one	2	One
Number of Louvers / Vents	2 sets	2	2 sets
Number of Windows	Two	1	Three
Purlin Tube	50 x 50 x 1.8 mm (15 GA)	50 x 50 x 1.8 mm (15 GA) - Q235	50 x 50 x 1.8 mm (15 GA) - Q235
Steel Frame Tube	100 x 50 x 3 mm (11 GA)	100 x 50 x 3 mm (11 GA) - Q235	100 x 50 x 3 mm (11 GA) - Q235
