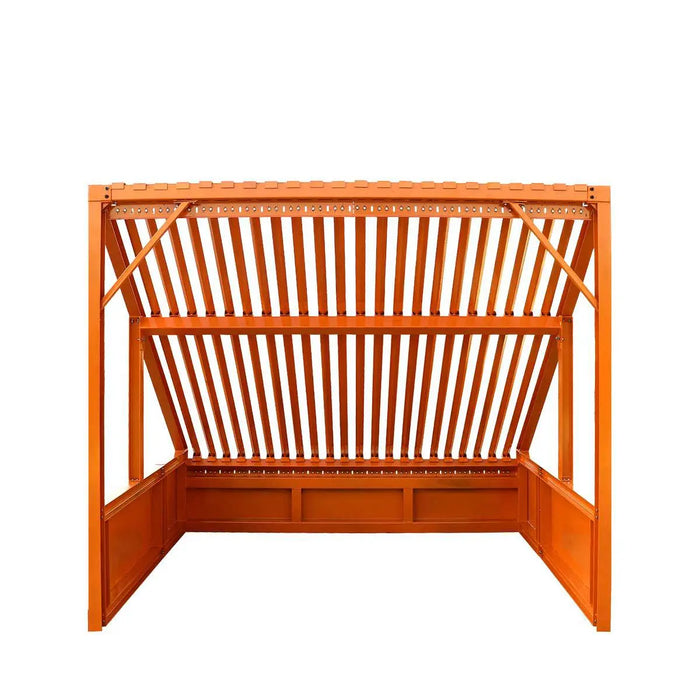

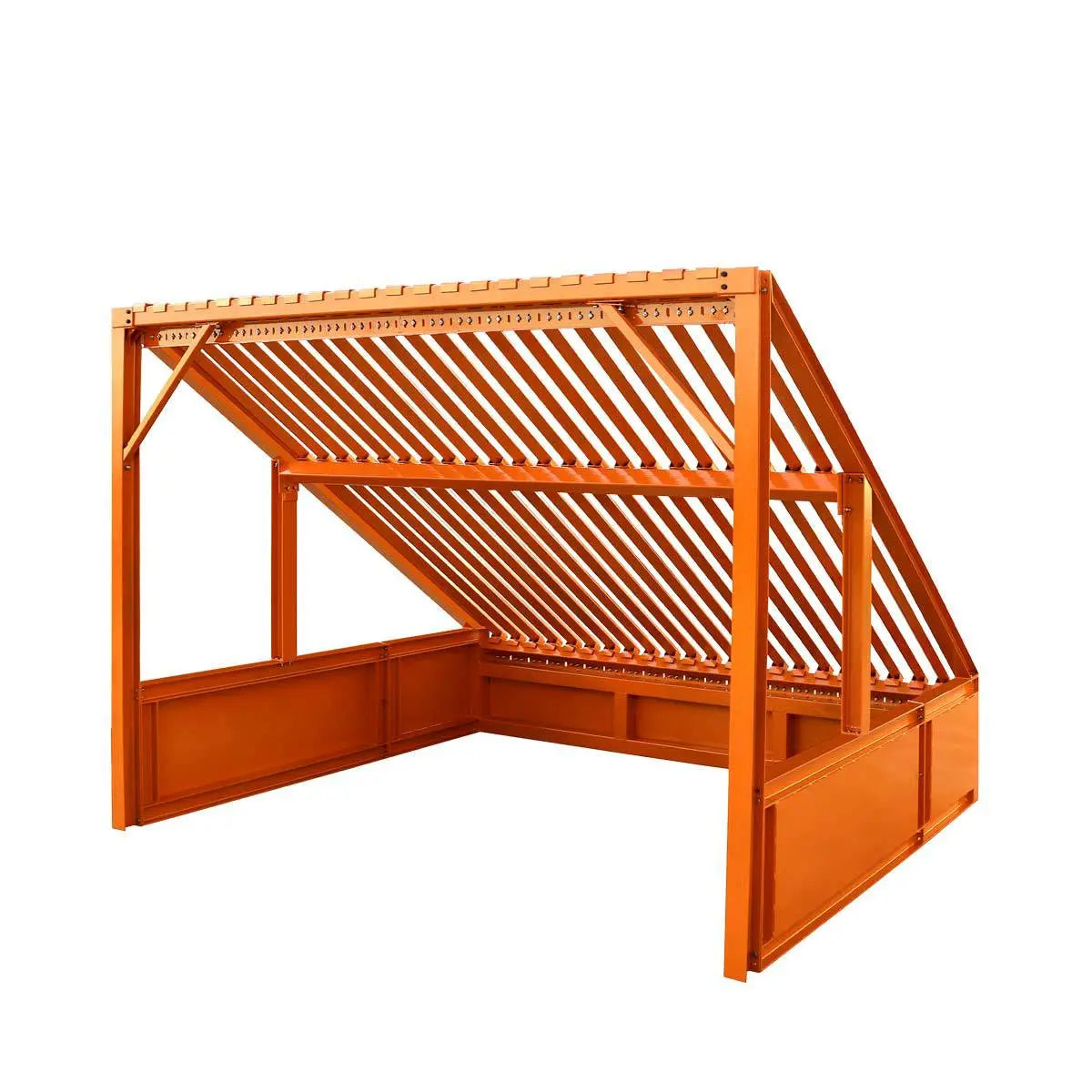

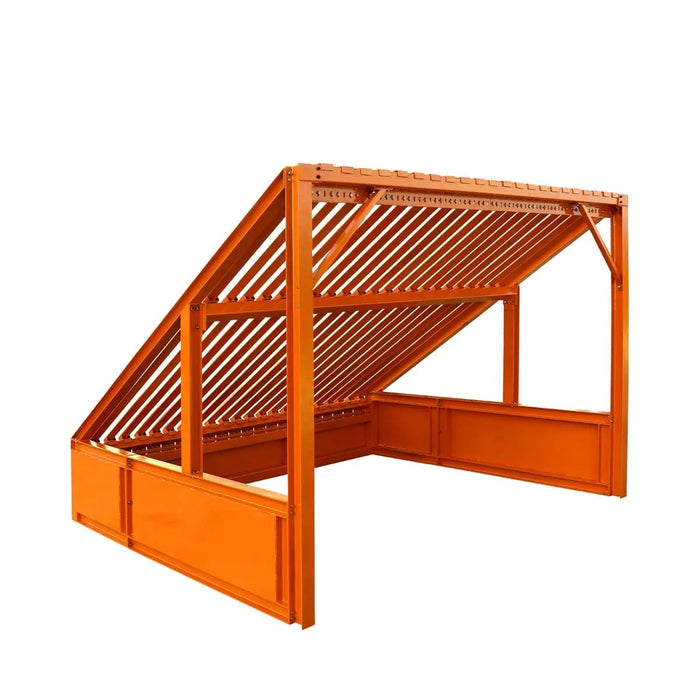

12' Heavy Duty Grizzly Rock Screen with Adjustable Deck Bars, 5000-lb Capacity TMG-RS12
FREE
shipping to most locations in
Canada
Learn More
Product Manual
Features
Features
- Ideal for a variety of industries and applications including open-pit mining, recycling, crushing, demolition and landscaping

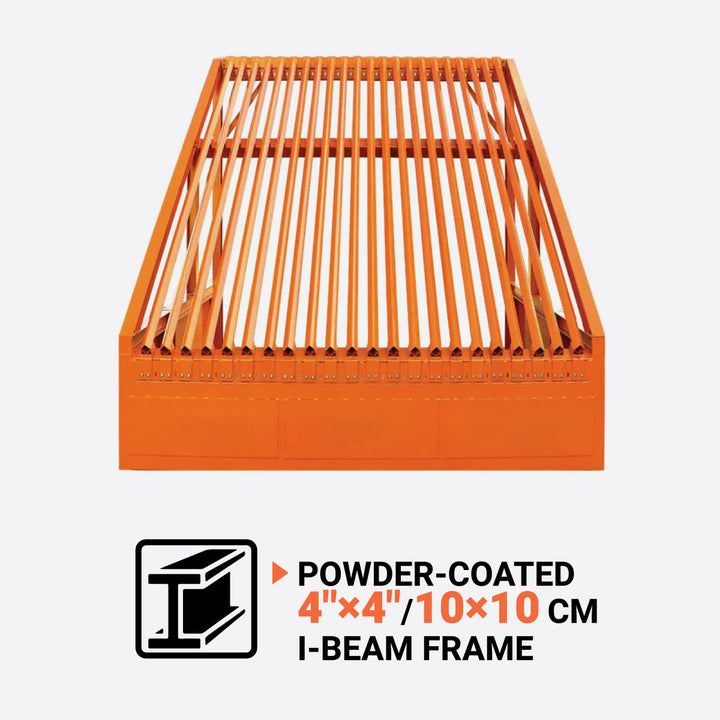

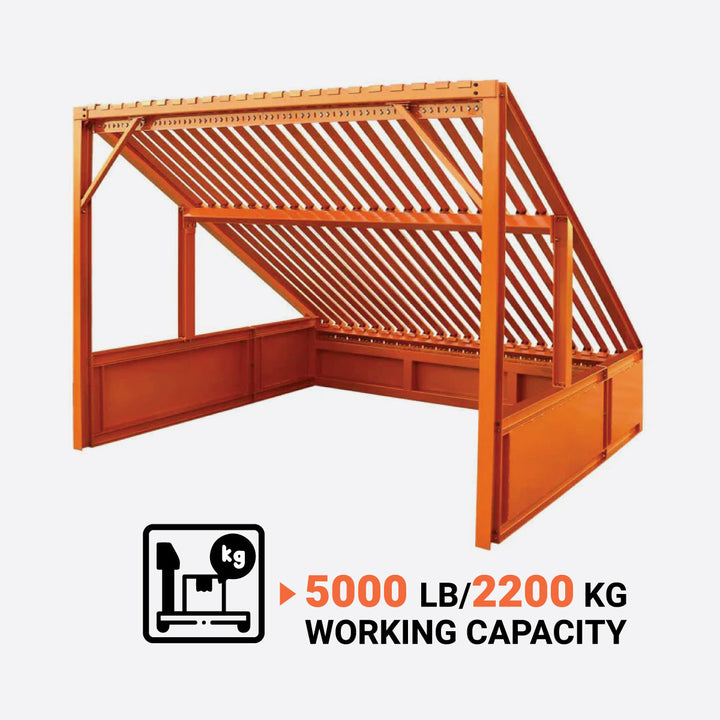

- 4” x 4” heavy gauge I-beam structural design with a 5000 lb working capacity will handle any and all extreme working conditions

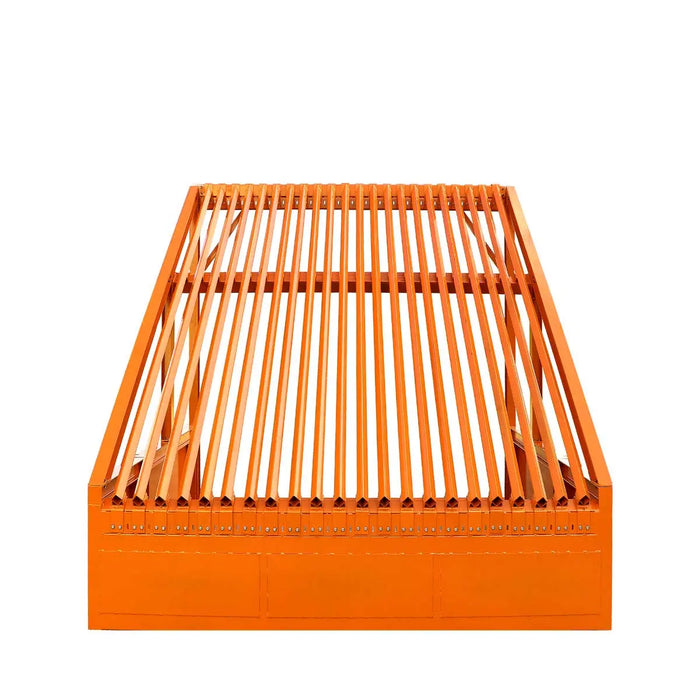

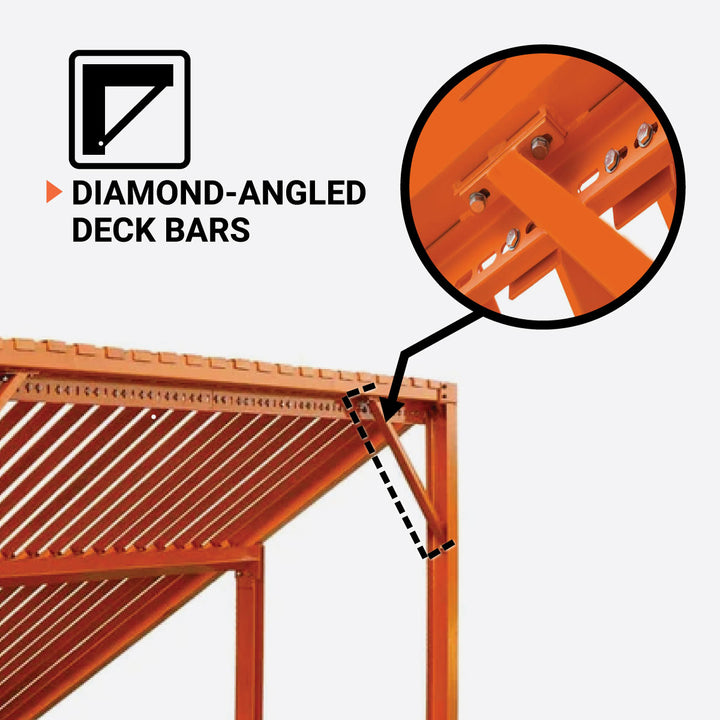

- Self-cleaning deck bars installed in a diamond shape angle with a tapered opening for long-term maintenance free screening
- Square tubing main frame is quick to assemble and can serve as a staple in your job site or work yard to be used whenever necessary

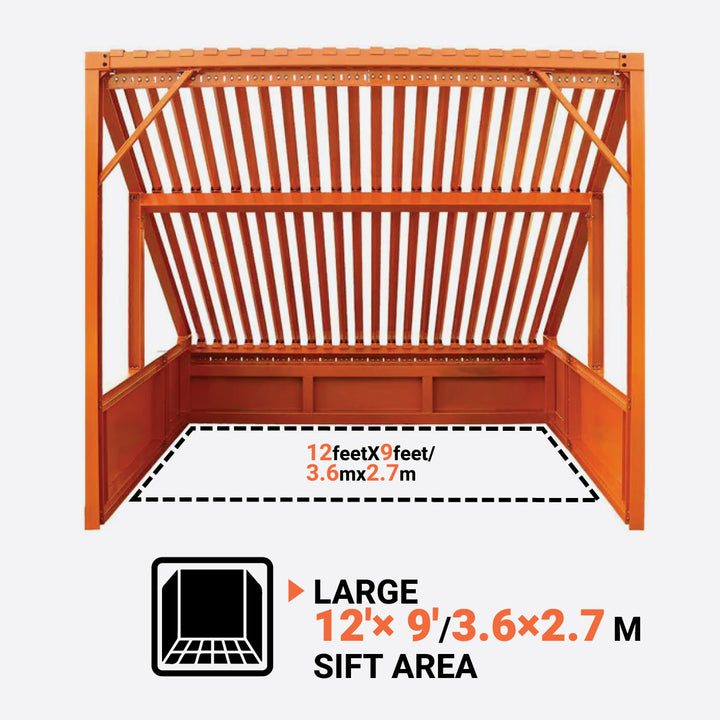

- Large 12’ x 9’ sift accepting area underneath isolates the clean product from your waste and keeps a tidy inventory of your materials

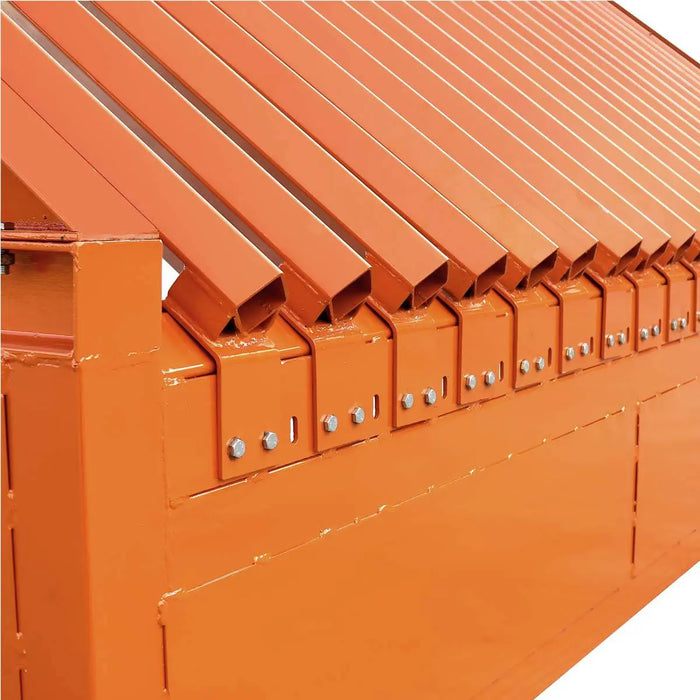

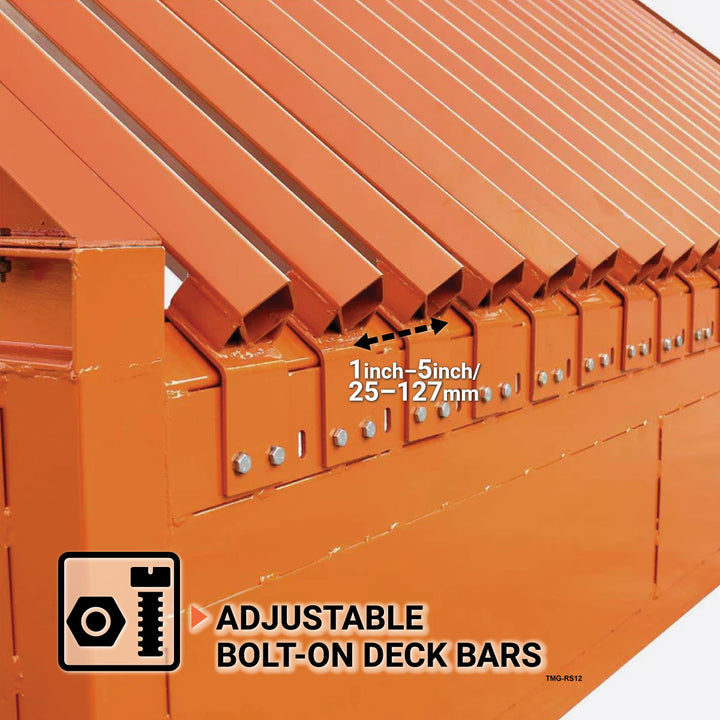

- Bolt-on adjustable deck bars have versatile minimum to maximum 1” (extra deck bars required) to 5” bar spacing options to fit your every need
- Industrial strength construction with a powdered coated finish that makes this screener resistant to rust, wear and corrosion
Specifications
Specifications

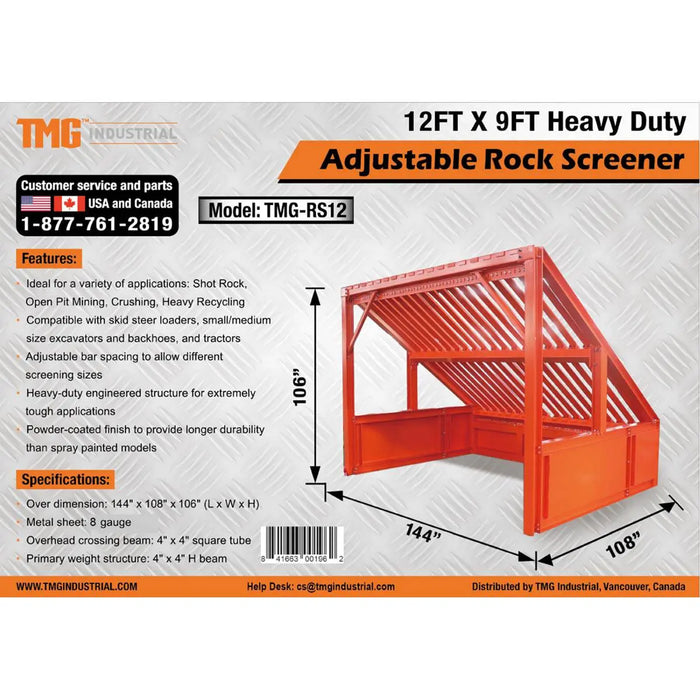

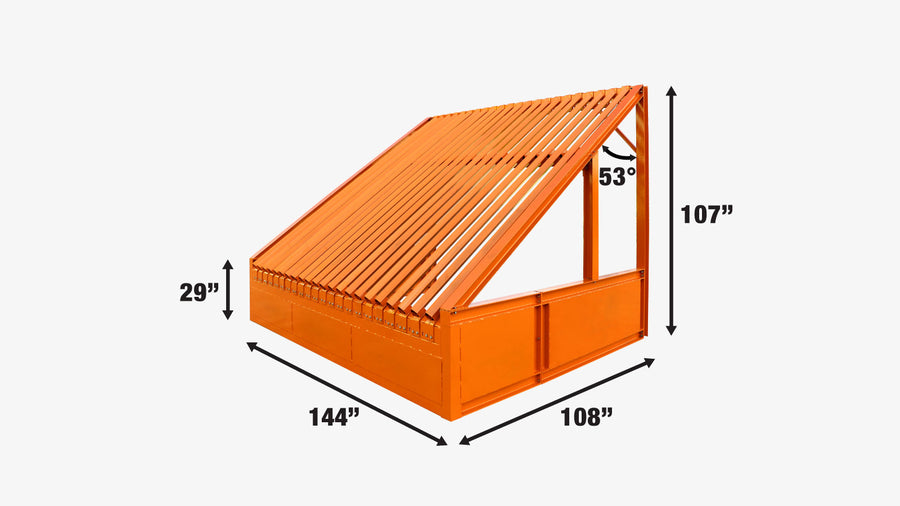

- Structure size: 12’(L) x 9’ (W) x 8.9’ (H)
- Average load capacity: 5000 lb
- Primary frame:
- 4” x 4” I-beam posts
- 4” x 4” crossing square tubing
- Sidewall and front wall steel plate: 10-gauge
- Deck bars: 1.6" x 1.6" square tubing, 11' in length, 8-gauge
- Standard bar spacing: 3"
- Standard bar quantity: 22 (3" spacing)
- Minimum bar spacing: 1" (extra deck bars required)
- Maximum bar quantity: 32 (1" spacing)
- Maximum bar spacing capacity: 5"
- First and the last deck bar opening: 2.75"

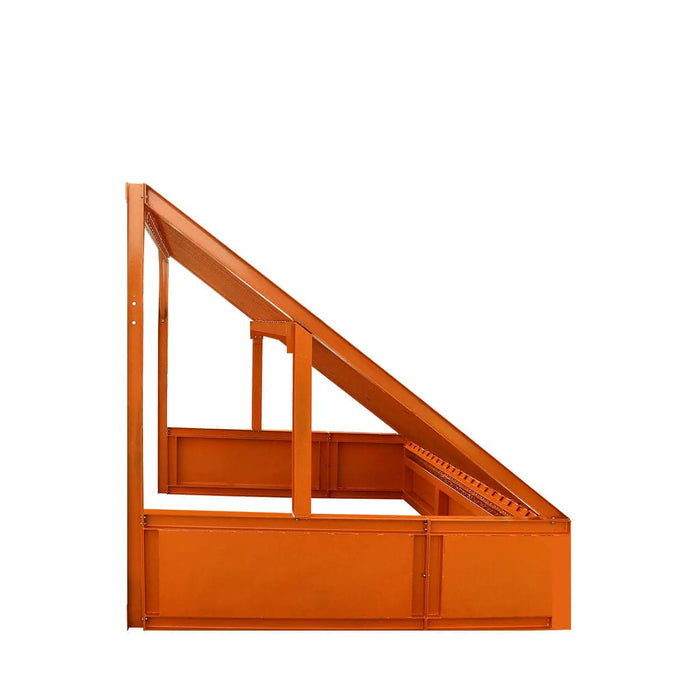

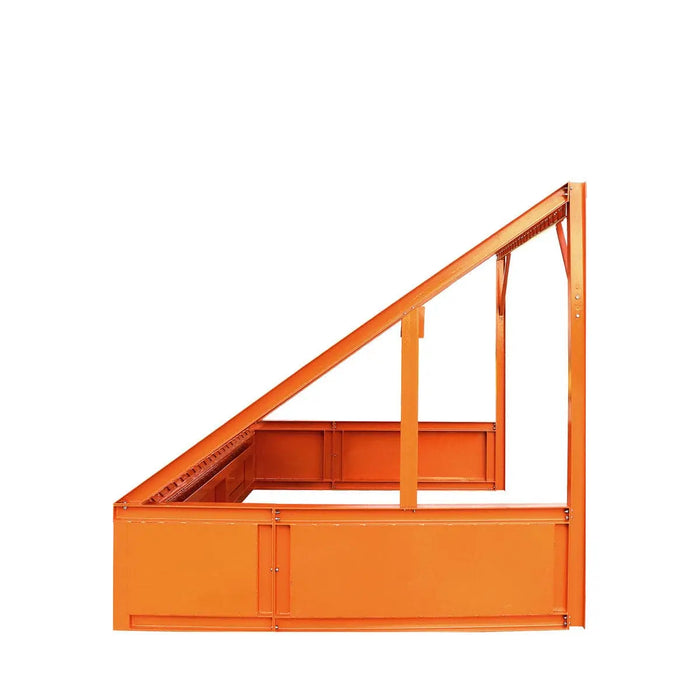

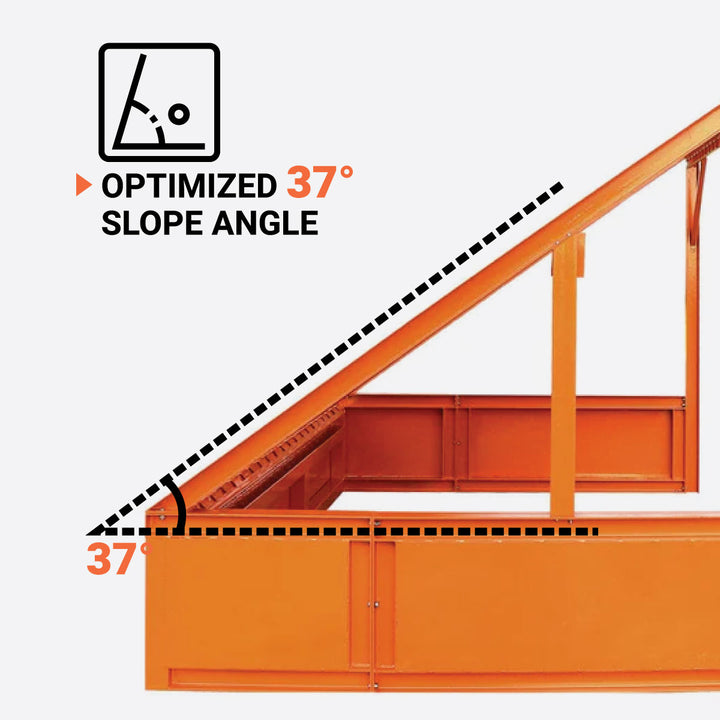

- Slope angle: 37°
- Spare deck bars sold separately
- Assembly required
- Assembly time: 2-3 hours for two handymen
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

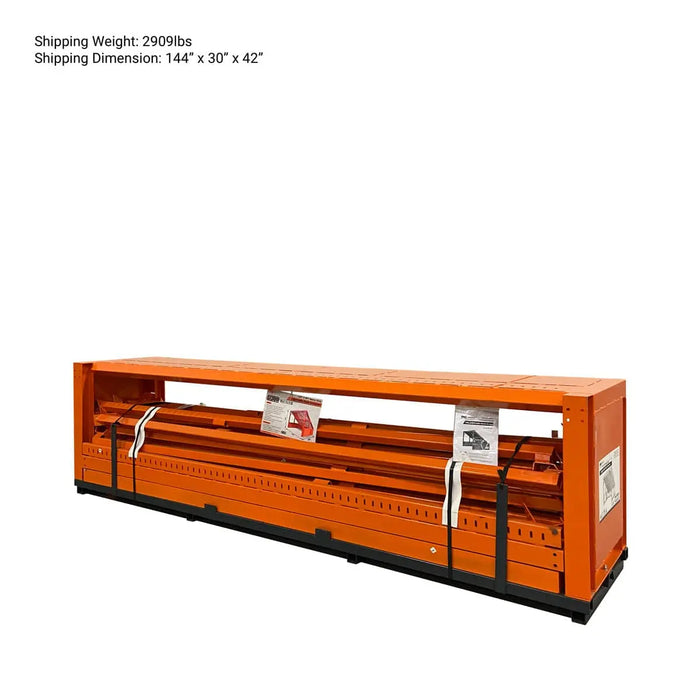

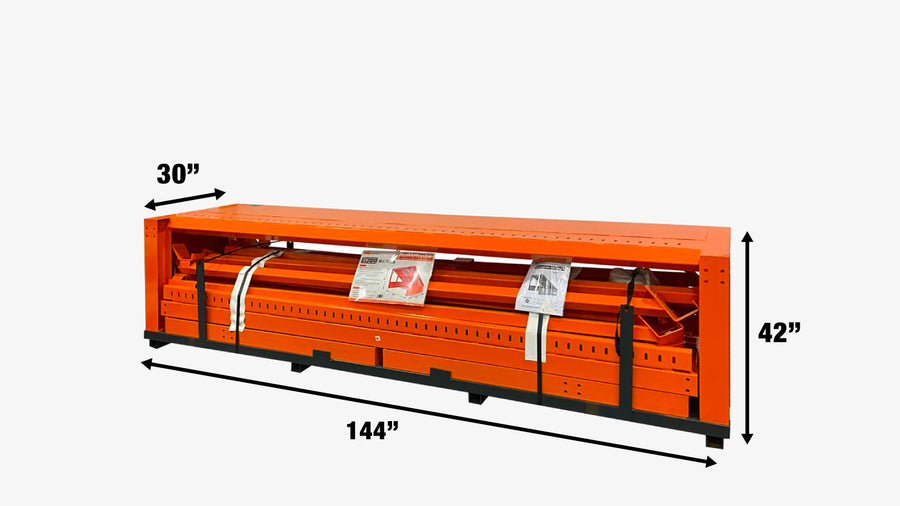

- This product is packed in a metal shipping crate
- Shipping dimension: 144” x 30” x 42” (L x W x H)
- Shipping weight: 3075 lb
This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
Product Description
Product Description
The TMG-RS12 Heavy-Duty Grizzly Static Rock Screen is designed for efficient material sorting in industries like mining, construction, aggregates, recycling, and landscaping. Featuring a robust 4"x4" I-beam frame and a powder-coated steel structure, this screen is built to last. The 12' x 9' loading area and 5000 lb load capacity are ideal for handling large, mixed loads. Adjustable bolt-on deck bars with 1” to 5” spacing provide versatility for different materials.
The diamond-shaped, self-cleaning deck bars reduce maintenance and ensure smooth material flow. The 37° slope allows debris to slide off efficiently, keeping your site clean. Quick to assemble and designed for heavy-duty use, the TMG-RS12 is perfect for pre-sorting oversized materials before crushing or further processing, saving time and improving productivity.

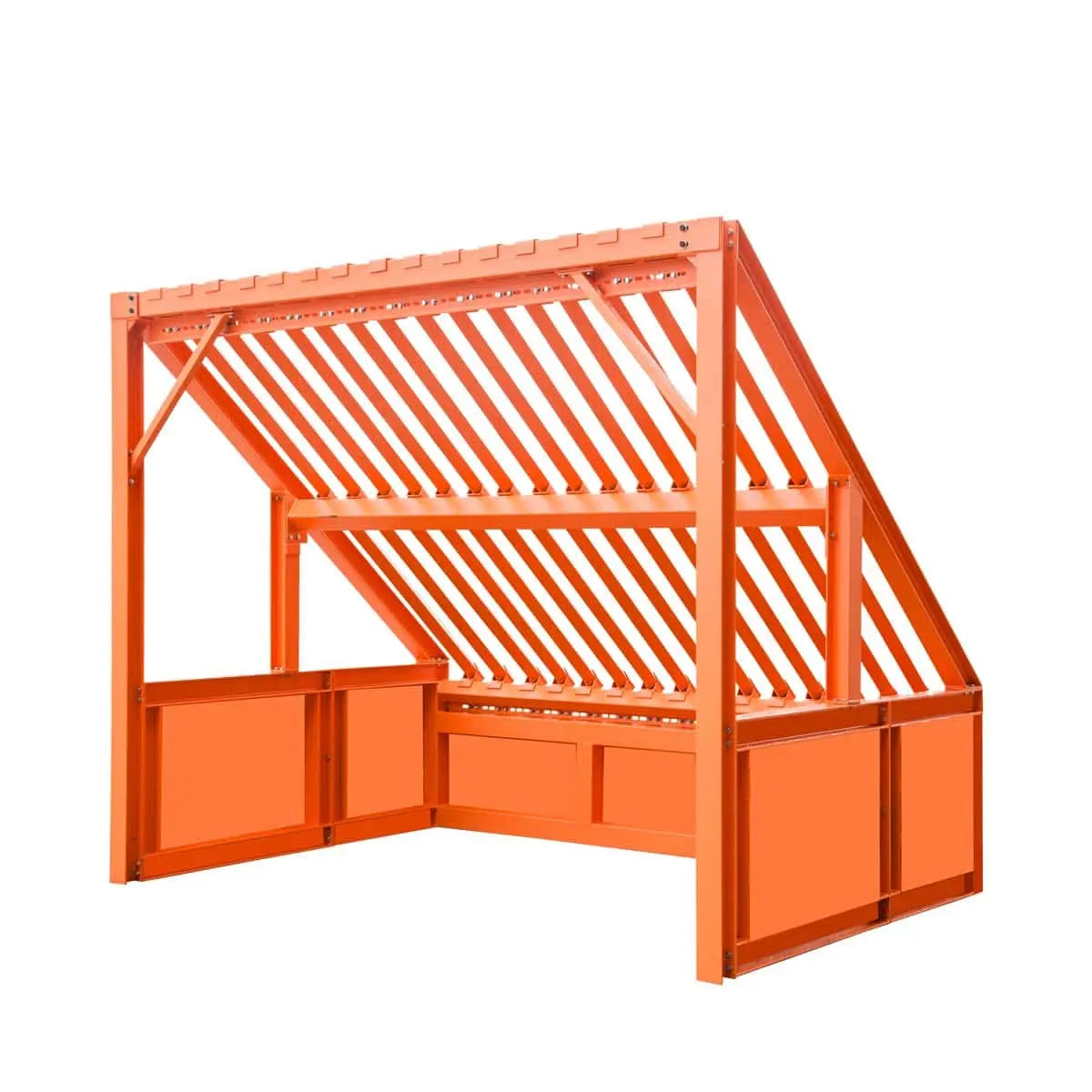

We also carry a smaller model of this screen: TMG-RS10
