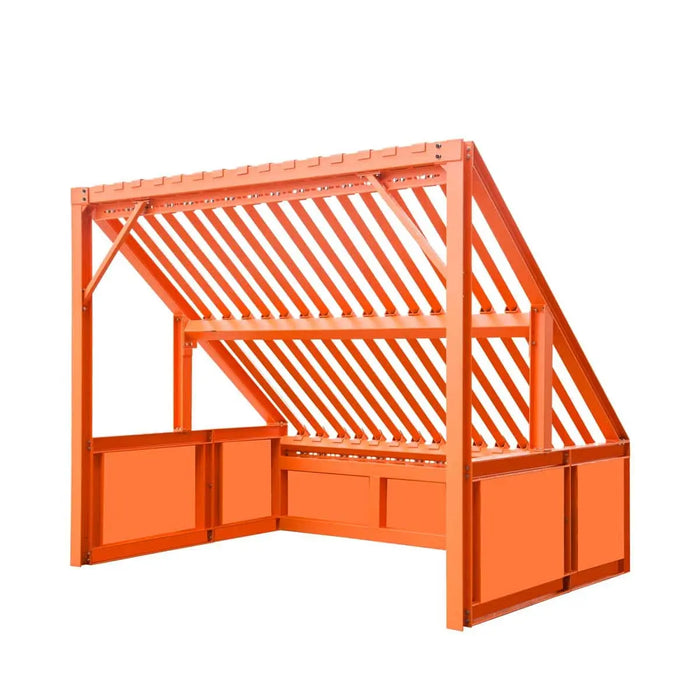

TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
SKU TMG-RS10

TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10

$7,499.00 - $7,499.00
$7,499.00
$7,499.00 - $7,499.00
$7,499.00
CURRENTLY IN STOCK
FREE SHIPPING IN CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS
In-Store Pickup Price
$7,124.05 SAVE $374.95
About our Richmond retail store
Store Hours: Mon-Fri 9am-5pm PST
CALL US TO ORDER

2403.0 lb
126 x 34 x 31 inches
More Shipping Info
1-877-761-2819
  • Used in industries like open-pit mining, demolition, landscaping topsoil & more
  • Adjustable bolt-on deck bars that can be spaced between 1” & 5” apart

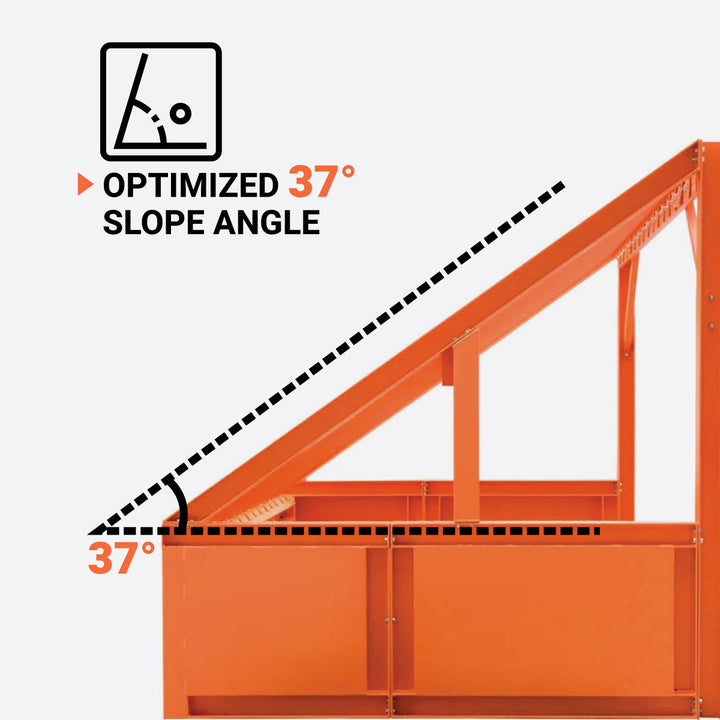

  • 37° slope allows rocks and debris to fall away from the work area
  • 4” x 4” I-beams & square tubing main frame
  • 10’ x 7’ sift accepting area isolates the final product from the waste
More Information
Product Manual
Find the Parts
Features Specs Shipping Info Description Warranty Reviews

Features

  • Ideal for a variety of industries and applications including open-pit mining, recycling, crushing, demolition and landscaping

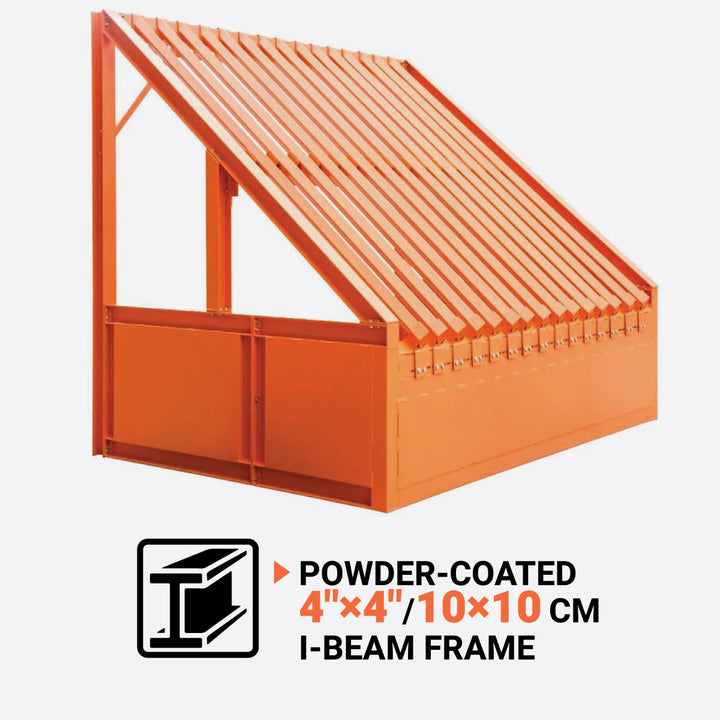

  • 4” x 4” heavy gauge I-beam structural design with a 5000 lb working capacity will handle any and all extreme working conditions

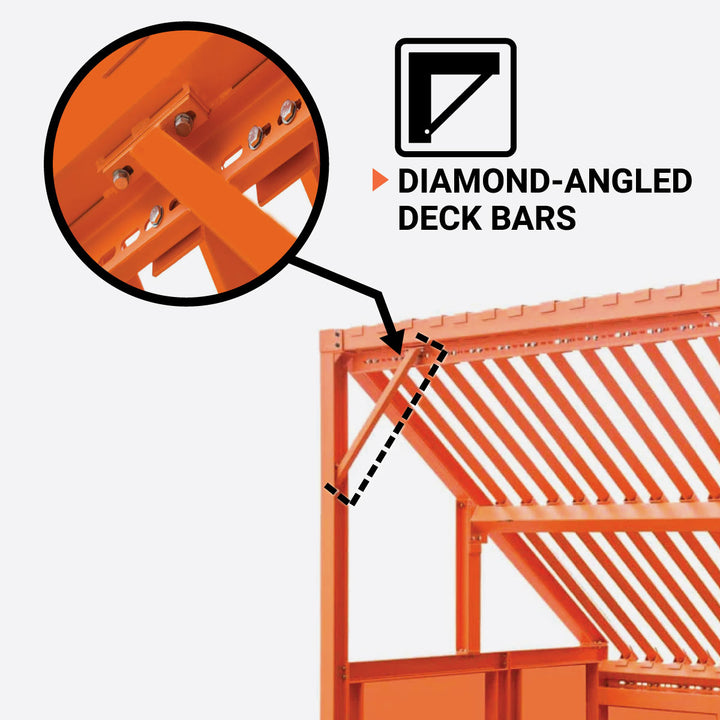

  • Self-cleaning deck bars installed in a diamond shape angle with a tapered opening for long-term maintenance free screening
  • Square tubing main frame is quick to assemble and can serve as a staple in your job site or work yard to be used whenever necessary

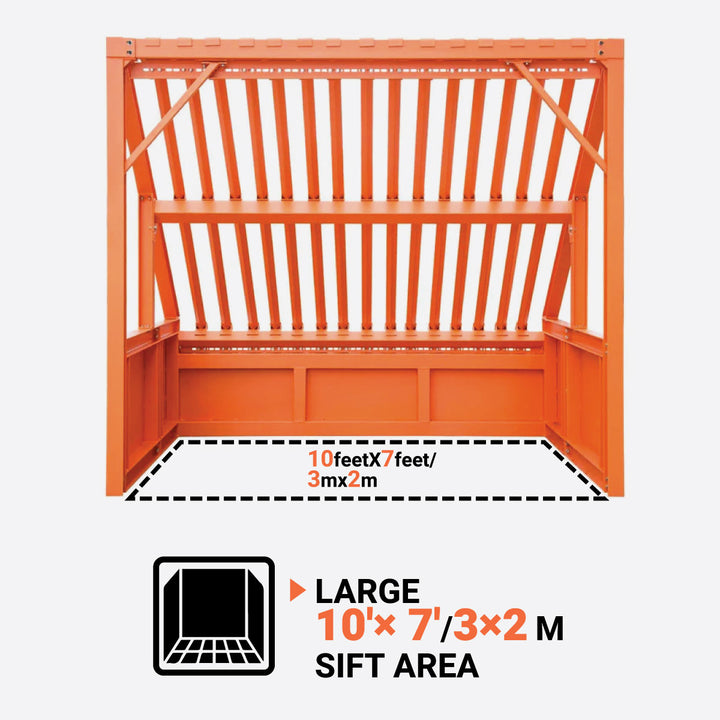

  • Large 10’ x 7’ sift accepting area underneath isolates the clean product from your waste and keeps a tidy inventory of your materials

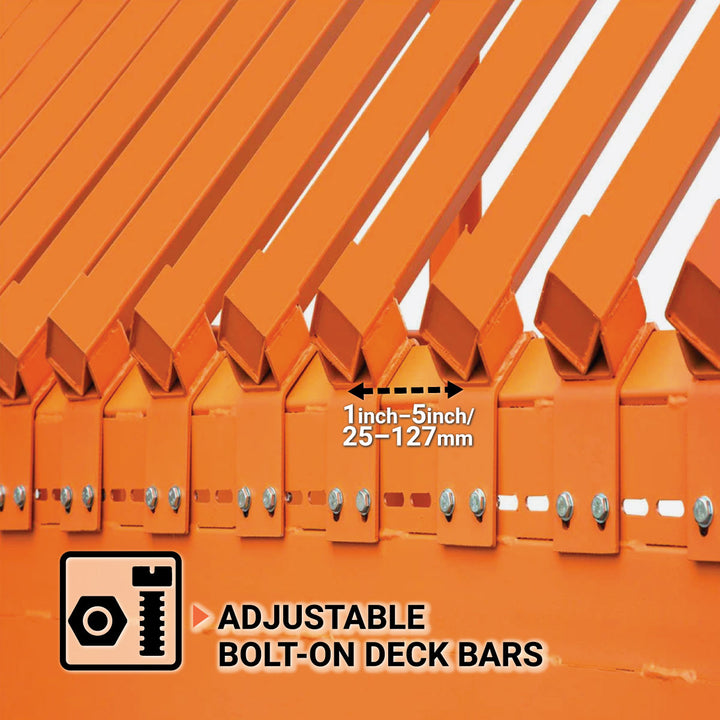

  • Bolt-on adjustable deck bars have versatile minimum to maximum 1” to 5” bar spacing options to fit your every need
  • Industrial strength construction with a powdered coated finish that makes this screener resistant to rust, wear and corrosion

Specifications

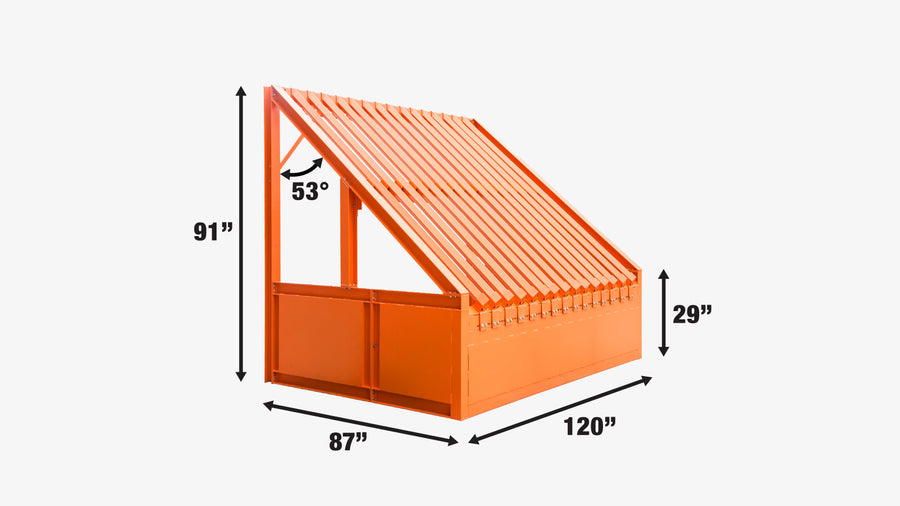

  • Structure size: 10’ (L) x 7-¼’ (W) x 7-½’ (H)

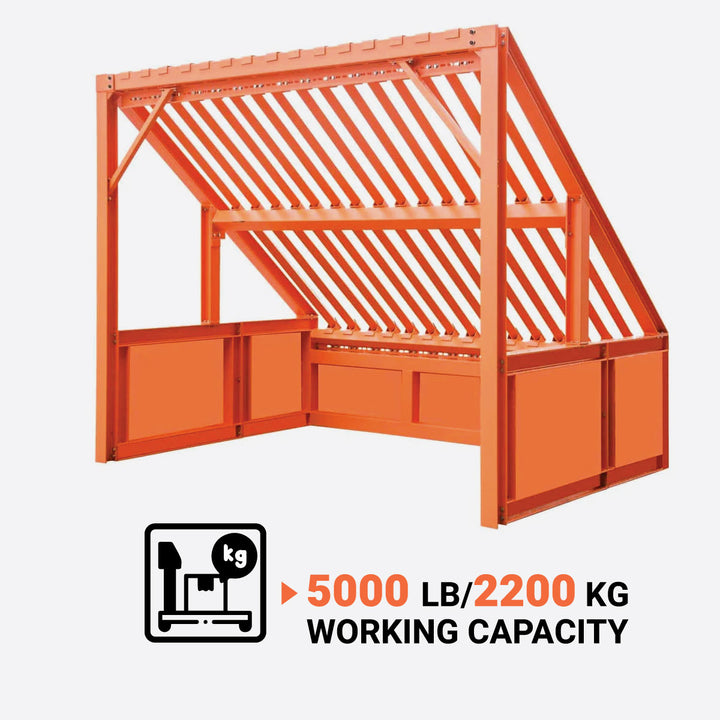

  • Average load capacity: 5000 lb
  • Primary frame:
    • 4” x 4” I-beam posts
    • 4” x 4” crossing square tubing
  • Sidewall and front wall steel plate: 10 GA
  • Deck bar: 1-¾” x 1-¾” square tubing, 9’ in length, 8 GA
  • Current bar spacing: 3”
  • Current bar quantity: 18 (3” spacing)
  • Minimum bar spacing: 1”
  • Maximum bar quantity: 26 (1” spacing)
  • Maximum bar spacing capacity: 5”
  • First and the last deck bar opening: 2-¾”
  • Slope angle: 37°
  • Spare deck bars are available to purchase separately
  • Assembly required

Shipping Information

The order will ship FREE from our main warehouse in Richmond, British Columbia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

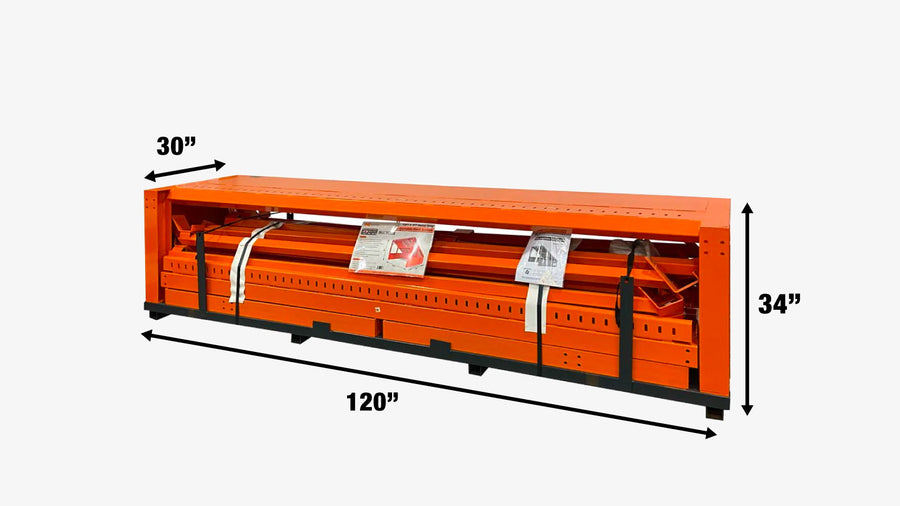

  • This product is packed in a metal shipping crate
  • Shipping dimension: 126” x 34” x 31” (L x W x H)
  • Shipping weight: 2100 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.


***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.***
Shipping from Richmond, BC
What happens after you place
your order?
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10-shipping-info-image

Product Description

The TMG-RS10 Heavy-Duty Static Grizzly Rock Screen makes the screening of bulky, mixed loads simple and efficient. Sort materials with ease by always having this screen available at your work yard or job site. Used extensively in a number of industries including open-pit mining, recycling, crushing, aggregates, site development, demolition and landscaping. This screener is built tough, made to last and will handle anything you can throw at it.

Adjustable bolt-on deck bars with minimum spacing option of 1” and maximum of 5” are adaptable to fit your needs. These bars have a diamond-shaped, self-cleaning design that requires little, if any, maintenance. Commonly used for sorting oversized material before screening or crushing, and the 37° slope allows rocks and debris to fall straight to the ground instead of cluttering your work area.

4” x 4” I-beams and square tubing main frame are powder coated and resistant to rust, wear and corrosion. Large 10’ x 7’ sift accepting area separates your profits from your waste and gets the job done faster. Quick to assemble, industrial strength construction design has a 5000 lb working capacity for your biggest, roughest jobs.

We also carry a larger model of this screen: TMG-RS12

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
