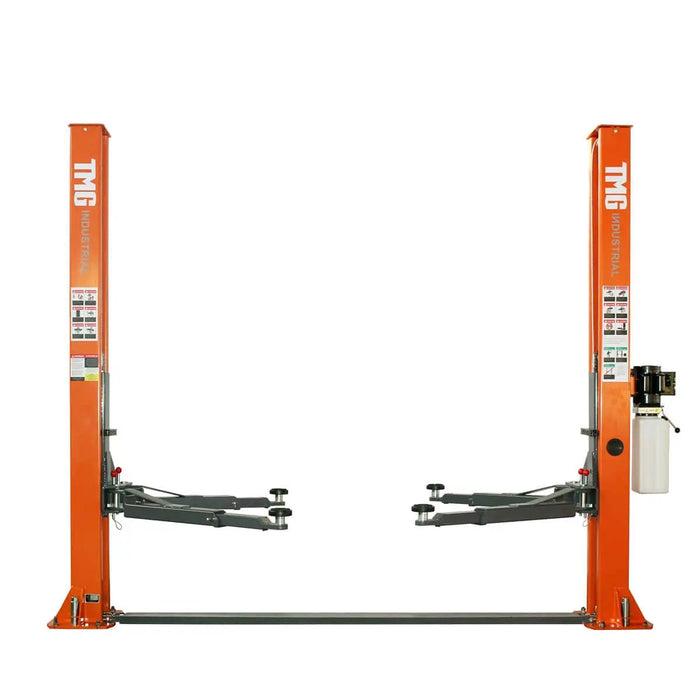

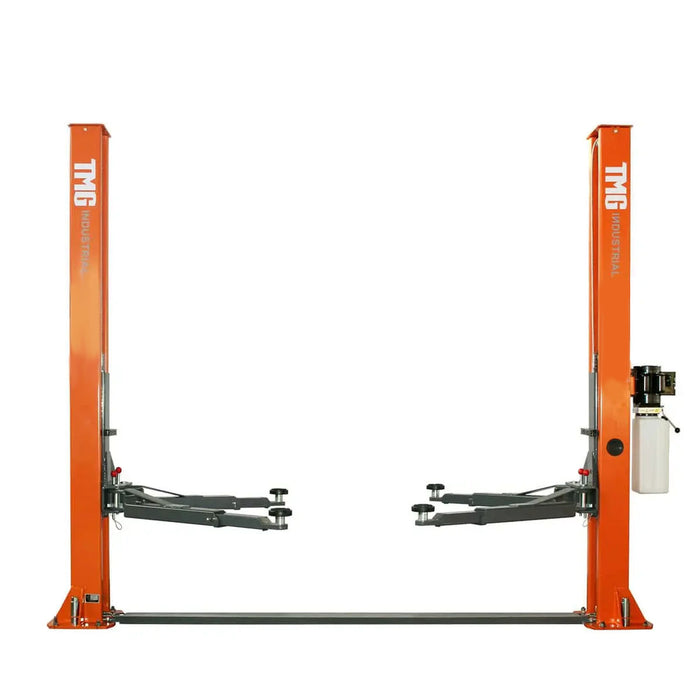

TMG Industrial 10,000-lb Two Post Floor Plate Auto Lift, Symmetric Arms, 77” Lift Height, Dual-Point Lock Release, TMG-TPL45

Original price $4,499.00 - Original price $4,499.00
Original price $4,499.00
$4,499.00 - $4,499.00
Current price $4,499.00
In-Store Pickup Price
$4,274.05 SAVE $224.95
Available at Richmond/Mississauga
Call 1-877-761-2819

1220.0 lb
110 x 22 x 32 inches
More Shipping Info

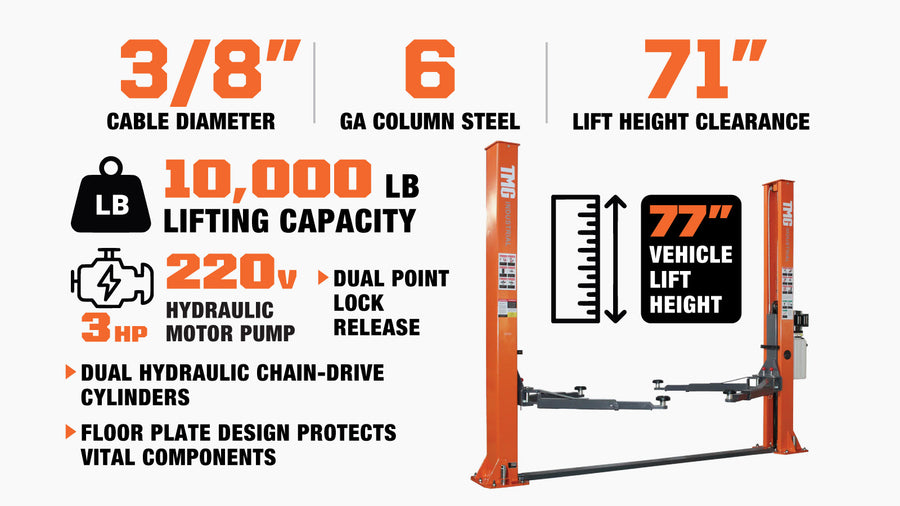

  • Ideal for personal garages, commercial shops & automotive service departments
  • Floor plate design protects vital components & maximizes space overhead
  • 10,000 lb lift capacity & 77” vehicle lift height
  • Dual hydraulic chain-drive cylinders & dual point lock release
  • Symmetric telescopic reach arms for versatile support positions
Product Manual


  • Ideal for repairs, fluid changes, body work and more in commercial shops, personal garages and general automotive service departments
  • 10,000 lb lifting capacity and 77” lift height can accommodate most trucks, cars, SUVs and classic/sport models with ease
  • Floor plate design protects cables, hydraulic lines and electrical wires while keeping the top open for maximum vehicle clearance overhead

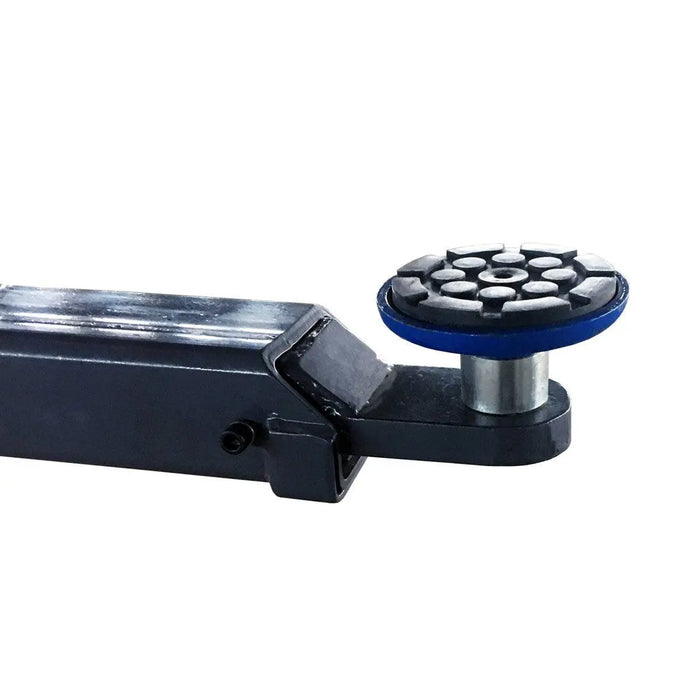

  • Symmetric telescopic reach arms on either side feature automatic arm restraints and offer a diverse array of support positions
  • Dual hydraulic chain-drive cylinders power heavy-duty ⅜” steel cables and generate more than enough force for a smooth lifting operation
  • Two post floor plate design is only limited by ceiling height; it has a small footprint and is easy to install in a variety of locations around your shop or garage
  • Reliable, solid, industrial construction with a reinforced base is optimized for safety and high-traffic commercial or personal work

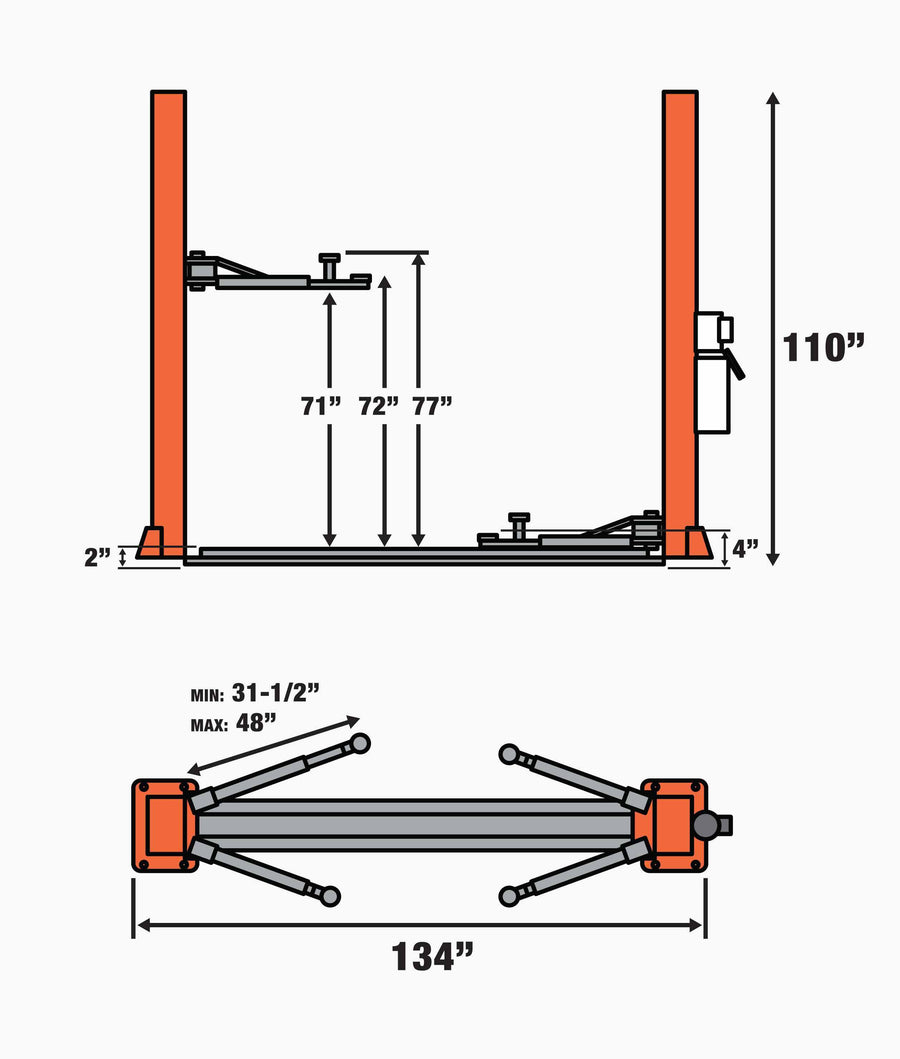

  • Lift capacity: 10,000 lb
  • Overall height: 110”

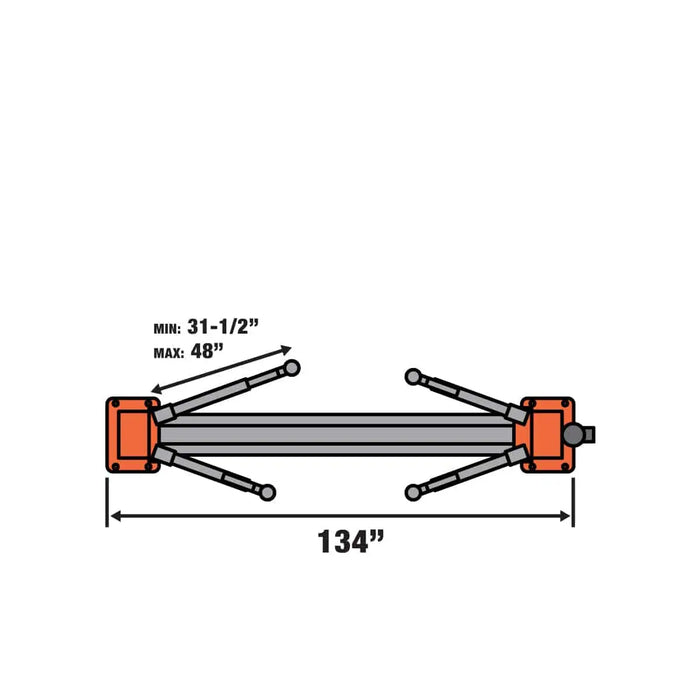

  • Overall width: 134”
  • Outside column width: 124”
  • Inside column width: 110”
  • Crossing floor plate height: 1-¼”
  • Column size: 10-1/2” x 7”
  • Column base: 20” x 15”
  • Column steel: 6 GA
  • Carriage steel: 4 GA
  • Cable diameter: ⅜”

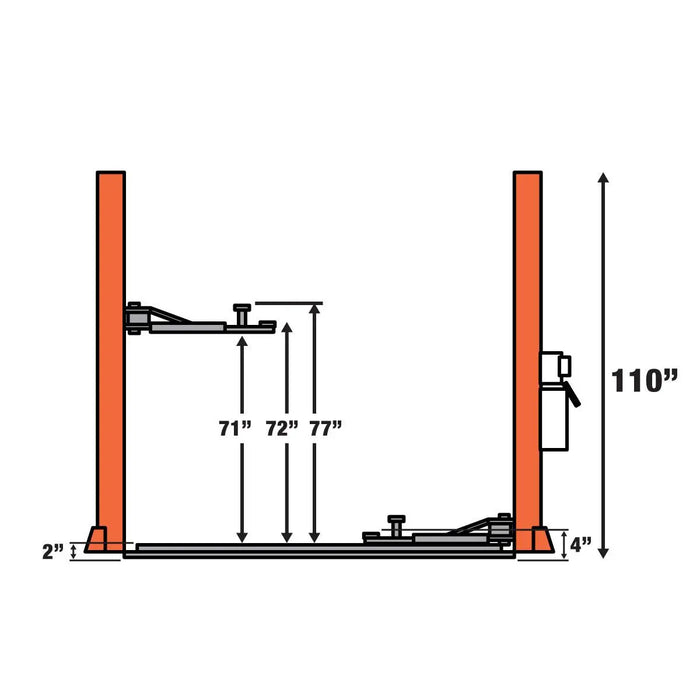

  • Lift height (pad only): 72”

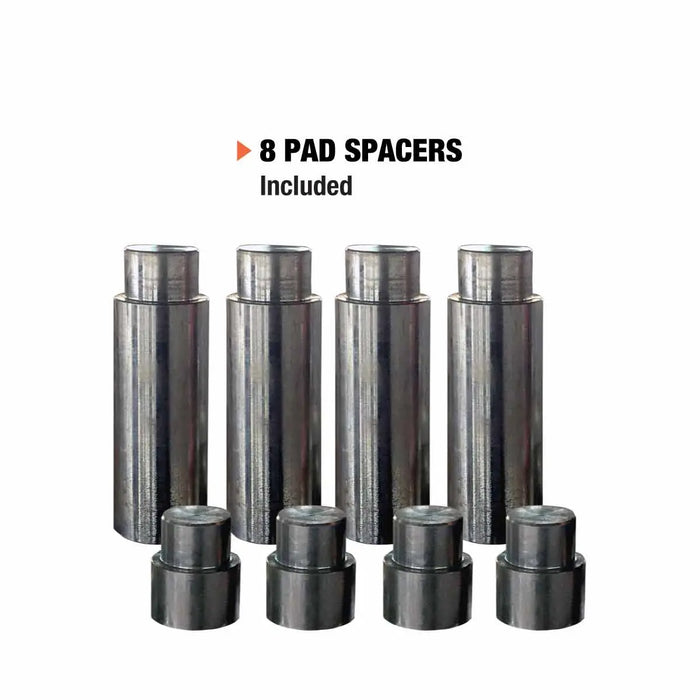

  • Lift height (with 5” adapter): 77”
  • Lift height clearance: 71"
  • Minimum height from the ground: 4-½”
  • Drive through clearance: 100”
  • Retractable front arm: 31-1/2” - 48”
  • Retractable rear arm: 31-1/2" to 48"
  • Travel speed:
    • Rise up at 90% load: 45 to 50 sec.
    • Lower down: 30 to 35 sec.
  • Max. load capacity per arm: 2,250 lb
  • Installation concrete slab required (minimum): 4-½” with 3000 PSI cured
  • Automatic arm restraints

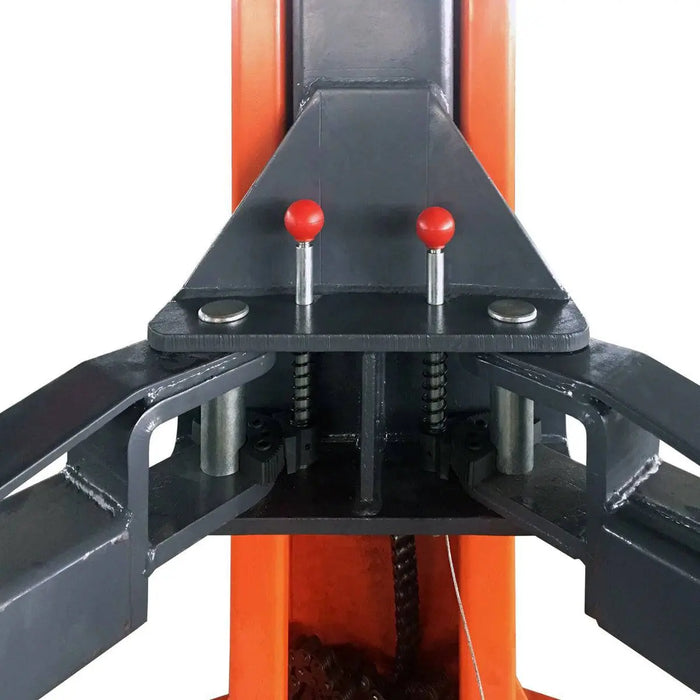

  • Dual point lock release
  • Mounting hardware included

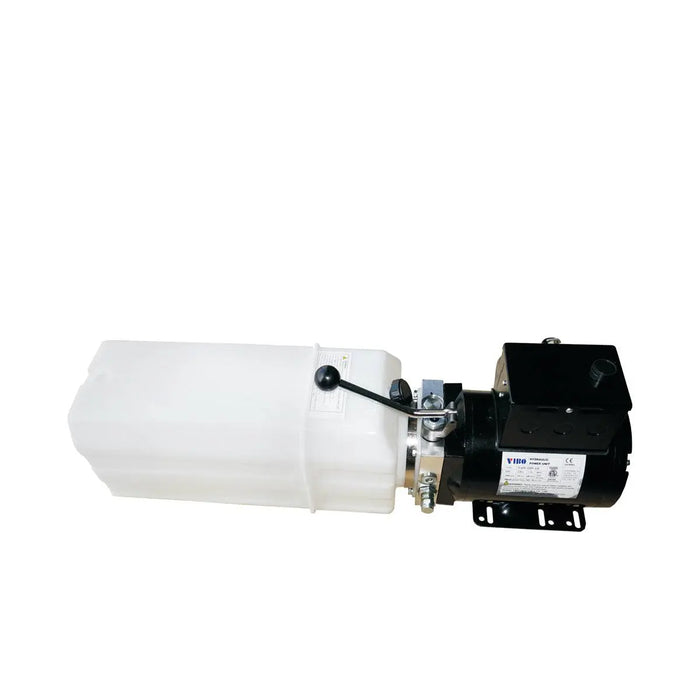

Hydraulic Motor Pump Power Unit:

  • 220 VAC, 3 HP, single phase
  • No-load speed: 3360 RPM
  • Working pressure: 2600 PSI
  • Tank capacity: 2.5 US gal
  • Pump oil required: AW32/AW46
  • CETL certified
TMG Industrial 10,000-lb Two Post Floor Plate Auto Lift, Symmetric Arms, 77” Lift Height, Dual-Point Lock Release, TMG-TPL45-specifications-image

Shipping Information

The order will ship FREE from our main warehouse in Richmond, BC or Mississauga, ON. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is. In-store pickup is also available.

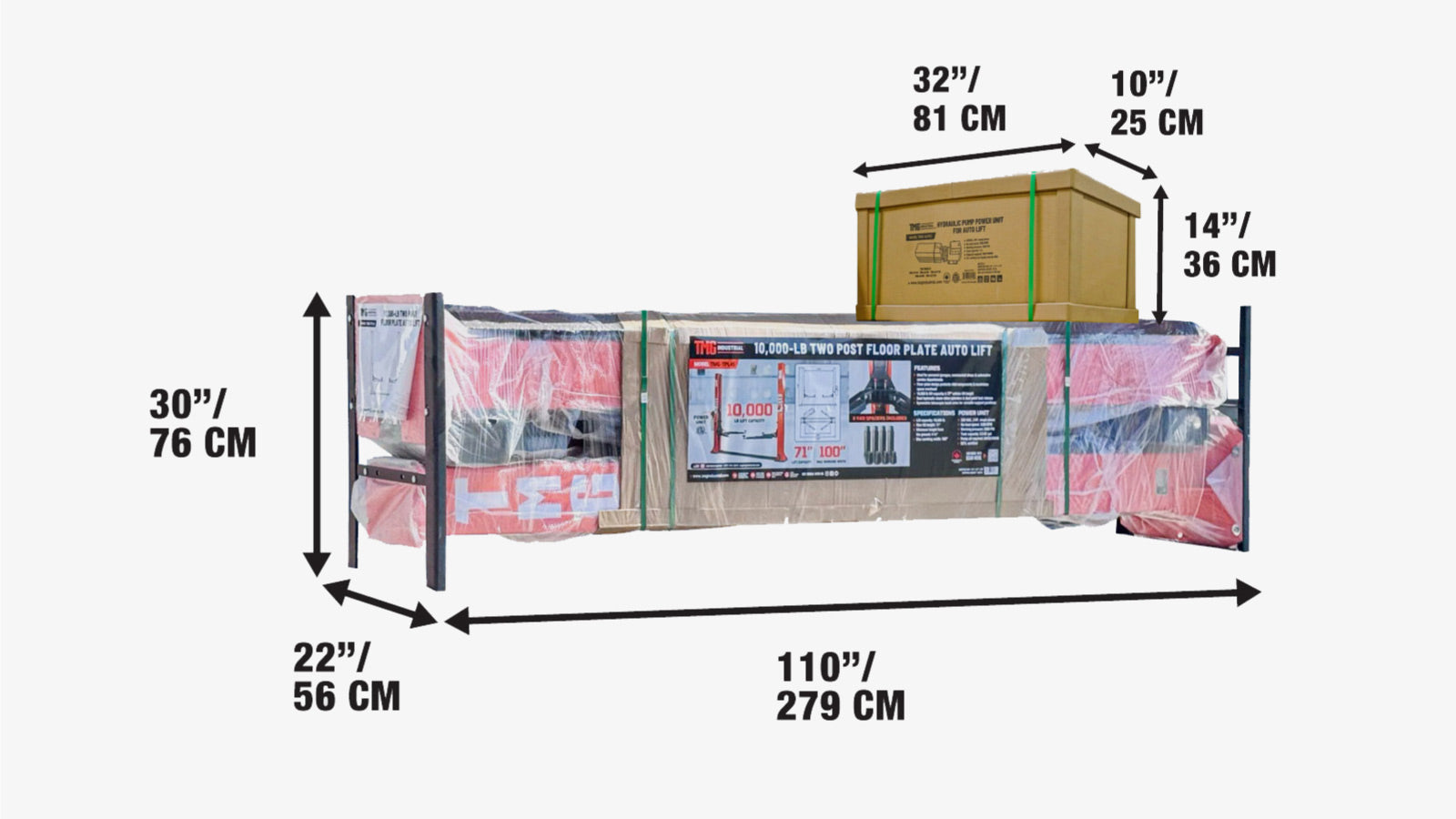

  • This product is packed in two crate shipping boxes
  • Box A: 110” x 22” x 30” (L x W x H)
  • Box B: 32” x 10” x 14” (L x W x H) (ALP03)
  • Shipping weight: 1285 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.***
Shipping from Richmond BC or Mississauga ON
In-store pickup is available
What happens after you place your order?

Product Description

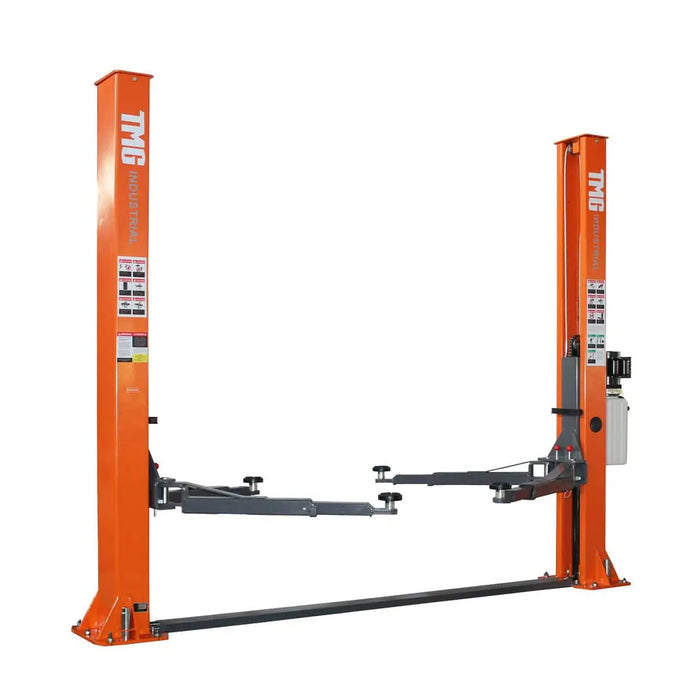

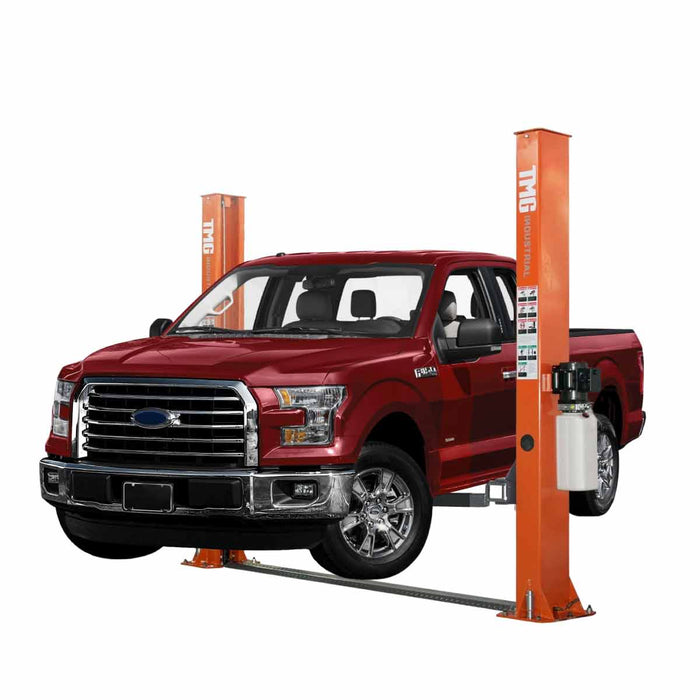

The TMG-TPL45 Two-Post Auto Lift is an excellent choice for personal garages, small shops or general automotive service departments. With a 10,000 lb lifting capacity and 77” lift height you can easily lift most cars, trucks and SUVs for mechanical work of any kind. A floor plate design keeps all hydraulic, steel cable and electrical lines protected while opening up the overhead for maximum vehicle clearance.

Symmetric telescopic reach arms on each side provide versatile support positions to accommodate all the unique makes and models you may be working on. Self-lubricated carriage sliders along the columns and automatic arm restraints reduce wear on the lift and will give you long lasting performance with lower operating costs and maintenance expenses.

Dual hydraulic chain-drive cylinders power ⅜” industrially strengthened steel cables that are fed through the columns and floor plate to give you the force needed for smooth, efficient lift operation. This lift features a heavy-duty structural bottom with reinforced base to increase stability and safety for a reliable automotive work solution that is solid and built to last.


We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
