Compresseur d'air électrique stationnaire TMG Industrial 60 gallons 5 HP, temps de remplissage 5 min, moteur à induction 230 V, réservoir vertical ASME, TMG-ACE60

Original price $0.00 CAD - Original price $0.00 CAD
Original price $0.00 CAD
$2,499.00 CAD
$2,499.00 CAD - $2,499.00 CAD
Current price $2,499.00 CAD

Other financial option:

395.0 lb
38 x 22 x 78 inches
More Shipping Info
  • For powering sprayers, nail guns, sanders & more
  • Equipped w/a 60 gallon ASME air tank & finned tube intercooler
  • Powered by a heavy-duty 230V induction motor that runs at 3450 RPM
  • Double cast iron oil-lubricated pump & finned tube intercooler
  • ¼” & ½” quick connectors w/air outlet port for rust protective draining


  • Excellent piece of equipment to power hoses and tools like sanders, sprayers, nail guns and more around an automotive garage, warehouse or machine shop
  • Equipped with a 60 gallon ASME air tank that is filled by a single phase heavy-duty 230V induction motor that has a top operating speed of 3450 RPM
  • CSA approved, 5 HP, double cast iron, oil-lubricated motor that has a one-piece cast iron crankcase and full body cast iron cylinder body
  • ¼” and ½” NPT quick connectors for simultaneous multiple tool use and air output port for manual draining to protect against rust and corrosion
  • Designed with a finned tube intercooler that provides maximum cooling, eliminates carbon buildup and prolongs valve life


  • Electric motor: AC230V/60hz, single phase, 5HP
  • Induction motor speed: 3450 RPM
  • Maximum working pressure: 145 PSI
    • 14.4 CFM at 40 PSI
    • 12.4 CFM at 90 PSI
  • Air tank size: 60 gal ASME certified vertical tank
  • Tank fill time: <5 minutes
  • Noise level: 80 dB
  • (1) ¼” NPT quick connector
  • (1) ½” NPT valve
  • CSA approved
Compresseur d'air électrique stationnaire TMG Industrial 60 gallons 5 HP, temps de remplissage 5 min, moteur à induction 230 V, réservoir vertical ASME, TMG-ACE60-specifications-image

Shipping Information

The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

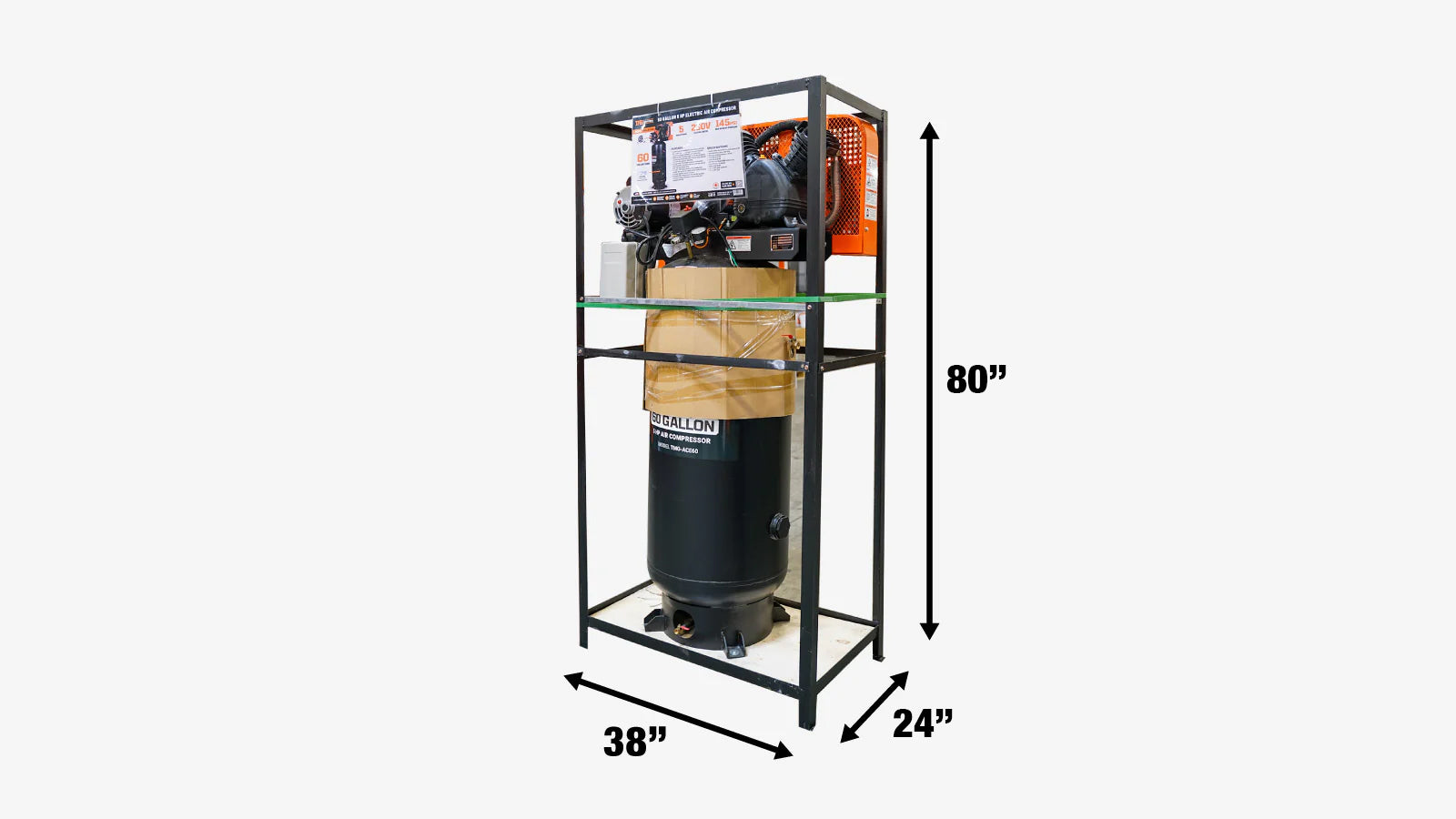

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 38” x 22” x 78” (L x W x H)
  • Shipping weight: 395 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
Compresseur d'air électrique stationnaire TMG Industrial 60 gallons 5 HP, temps de remplissage 5 min, moteur à induction 230 V, réservoir vertical ASME, TMG-ACE60-shipping-info-image

Product Description

Le compresseur d'air électrique stationnaire TMG-ACE60 5 HP est équipé d'un réservoir d'air de 60 gallons et fonctionne par un moteur double en fonte lubrifié approuvé CSA qui abrite un carter en fonte monobloc et plein corps de cylindre en fonte. Excellente pièce d'équipement pour alimenter les tuyaux et les outils autour d'un atelier automobile, d'un entrepôt de fabrication ou d'un garage de réparation.

Les connecteurs rapides ¼" et ½" permettent aux opérateurs d'utiliser deux outils en même temps, avec un orifice de sortie d'air pour une vidange simple et antirouille. Ce compresseur est alimenté par un moteur à induction monophasé de 230 V à usage intensif avec une vitesse de fonctionnement maximale de 3 450 tr/min pour que vous ne subissiez jamais de baisse de puissance.

Conçu avec un refroidisseur intermédiaire à tube à ailettes qui offre une action de refroidissement maximale pour prolonger la durée de vie de la vanne, éliminer l'accumulation de carbone et contribuer à une meilleure sortie et performance globale. Conçu pour durer dans des environnements industriels difficiles à long terme.

TMG Industrial propose également d'autres compresseurs d'air : TMG-ACE10, TMG-ACE25, TMG-ACE80


We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
