SKU TMG-PC150K

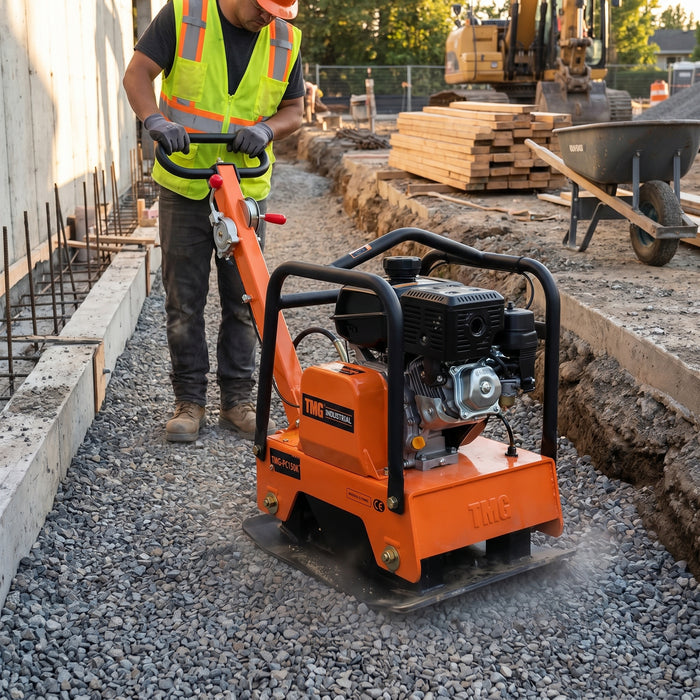

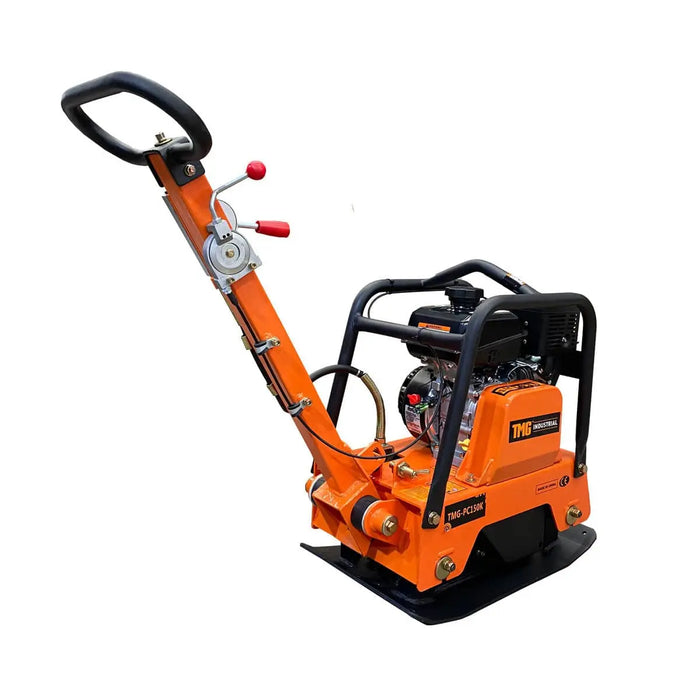

Compacteur à plaque vibrante réversible TMG Industrial 5600 lb, moteur Kohler Command Pro 6 HP, TMG-PC150K

Prix d'origine $2,499.00 CAD - Prix d'origine $2,499.00 CAD
Prix d'origine
$2,499.00 CAD
$2,499.00 CAD - $2,499.00 CAD
Prix actuel $2,499.00 CAD
CURRENTLY IN STOCK
FREE SHIPPING TO MOST LOCATIONS IN CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS

Other financial option:

310.0 lb
28 x 17 x 43 inches
More Shipping Info
  • Medium duty model ideal for working in confined areas on commercial and residential job sites, available at a price that makes the investment better than renting a similar machine
  • Powered by a Command Pro Series CH260 6 HP Kohler gasoline engine; best in class, high quality engine with a reputation for being reliable and having long-lasting durability
  • Rapid forward and reverse plate travel speeds that are controlled by hydraulics allow dynamic workflow easily maneuvered by the operator
  • Can travel up to 65 ft/min while compacting with a force of 5600 lbs at 4300 VPM, creating a total work capacity of up to 3900 square feet per hour
  • Belt driven exciter, sealed belt cover and centrifugal clutch assembly create a safe, durable and economical transmission of power from the engine to the compactor
  • Self-cleaning, tapered bottom edge, 25" x 16" base plate design minimizes dirt and rock build-up
  • Rubber shock absorbers attached to the vibrating plate allow for increased accuracy around concrete forms, footings, gas lines and sewer pipes, as well as minimal wear and tear and sustained comfort for long-term, all-day use
  • Protective frame/cage surrounds engine and keeps the compactor safe and shielded from falling debris or other tools on the job site
  • Simple on/off switch and throttle lever controls are easy to use and can shut off the machine quickly in the case of an emergency
  • The vibratory motion provides a self propelling action allowing the operator to relax and simply guide the machine and truly let it do all the work
  • Able to compact all types of granular soils, crushed aggregate, sand, asphalt, paving stones, bricks and other materials up to 12” in depth
  • Environmentally friendly; meets EPA III and CARB III emission standards
Product Manual

Features

  • Medium duty model ideal for working in confined areas on commercial and residential job sites, available at a price that makes the investment better than renting a similar machine
  • Powered by a Command Pro Series CH260 6 HP Kohler gasoline engine; best in class, high quality engine with a reputation for being reliable and having long-lasting durability
  • Rapid forward and reverse plate travel speeds that are controlled by hydraulics allow dynamic workflow easily maneuvered by the operator
  • Can travel up to 65 ft/min while compacting with a force of 5600 lbs at 4300 VPM, creating a total work capacity of up to 3900 square feet per hour
  • Belt driven exciter, sealed belt cover and centrifugal clutch assembly create a safe, durable and economical transmission of power from the engine to the compactor
  • Self-cleaning, tapered bottom edge, 25" x 16" base plate design minimizes dirt and rock build-up
  • Rubber shock absorbers attached to the vibrating plate allow for increased accuracy around concrete forms, footings, gas lines and sewer pipes, as well as minimal wear and tear and sustained comfort for long-term, all-day use
  • Protective frame/cage surrounds engine and keeps the compactor safe and shielded from falling debris or other tools on the job site
  • Simple on/off switch and throttle lever controls are easy to use and can shut off the machine quickly in the case of an emergency
  • The vibratory motion provides a self propelling action allowing the operator to relax and simply guide the machine and truly let it do all the work
  • Able to compact all types of granular soils, crushed aggregate, sand, asphalt, paving stones, bricks and other materials up to 12” in depth
  • Environmentally friendly; meets EPA III and CARB III emission standards

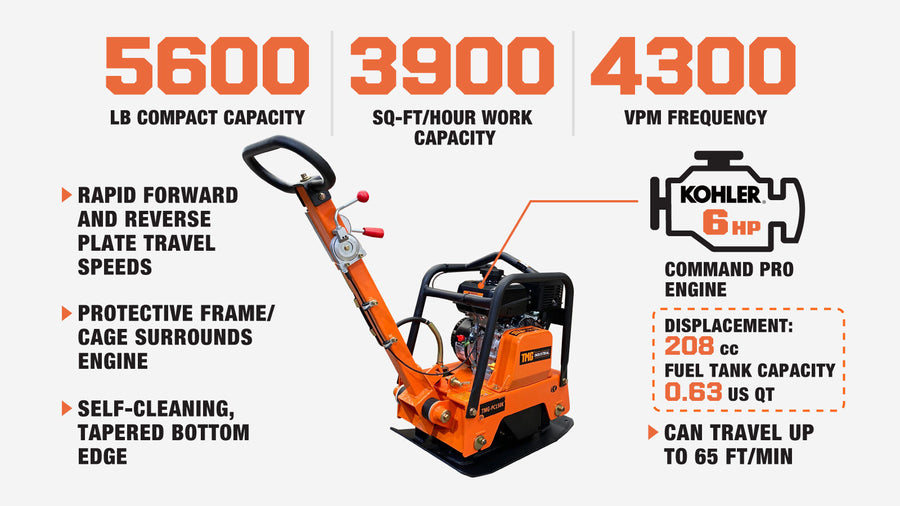

Compacteur à plaque vibrante réversible TMG Industrial 5600 lb, moteur Kohler Command Pro 6 HP, TMG-PC150K-description-image

Specifications

  • Compaction force: 5600 lbs
  • Work capacity: 3900 sq-ft/hour
  • Frequency: 4300 VPM
  • Compaction depth: 12”
  • Travel speed: 65 ft/min
  • Max. inclination angle: 15º

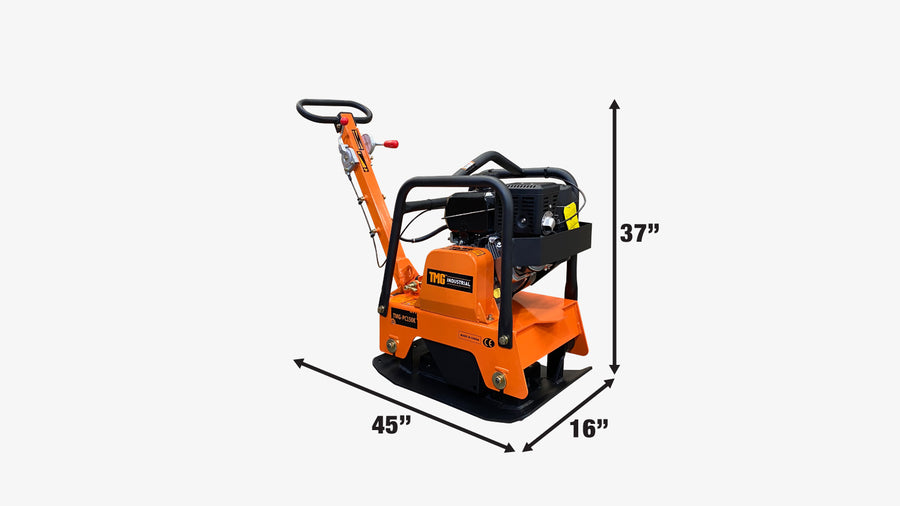

  • Compaction plate size: 25” x 16”
  • Operating weight: 270 lbs

Engine Specifications:

  • 6 HP CH260 Kohler Command series
  • Engine type: 4-cycle, gasoline, OHV, cast iron cylinder liner, aluminum block
  • Forged steel crankshaft
  • Cast-iron cylinder liner
  • Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
  • Large-capacity fuel tank
  • Displacement: 208 cc
  • Gross Torque: 10.42 lb/feet
  • Oil Capacity: 0.63 US qt
  • Emissions compliance: EPA Phase III and CARB III
Compacteur à plaque vibrante réversible TMG Industrial 5600 lb, moteur Kohler Command Pro 6 HP, TMG-PC150K-specifications-image

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

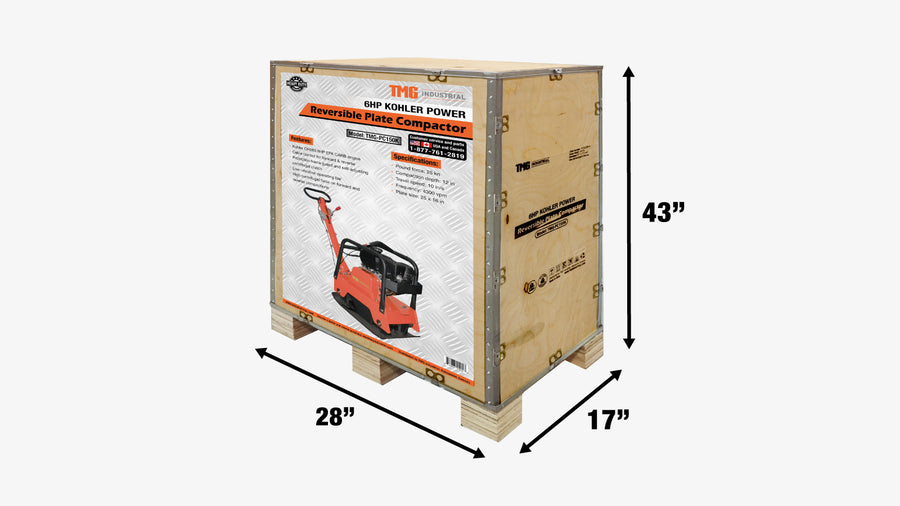

  • The product is packed in a wood crate shipping box
  • Dimension: 28" x 17" x 44" (L x W x H)
  • Shipping weight: 310 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
Compacteur à plaque vibrante réversible TMG Industrial 5600 lb, moteur Kohler Command Pro 6 HP, TMG-PC150K-shipping-info-image

Product Description

Le Compacteur à plaque réversible TMG-PC150K est une centrale électrique capable de compacter les sols, les graviers et le sable pour les projets nécessitant des terrains étroits et solides sur lesquels travailler et construire. Toutes sortes de matériaux bitumineux ou granulaires ne sont tout simplement pas à la hauteur des plus de 5600 lb de force produites par cette machine. En tant que modèle à usage moyen, c'est la solution idéale pour manœuvrer facilement autour des semelles, des coffrages, de la construction de bâtiments, des conduites de gaz, des égouts, des fossés de drainage et de toute autre zone confinée. Avoir ce produit à portée de main garantit que vous n'aurez plus jamais à louer et que vous serez toujours prêt sur votre chantier résidentiel ou commercial.

Ce compacteur est propulsé par un moteur à essence Command Pro Series CH260 6 HP Kohler. Cette série est la référence pour les moteurs standard de l'industrie, de haute qualité et fiables. Koehler a une garantie du fabricant de 3 ans à l'échelle de l'Amérique du Nord sur ce moteur, vous donnant la confiance d'une performance de haut niveau malgré le travail difficile que vous exigerez de cette machine. Capable de compactage sur place ainsi que des vitesses de déplacement rapides des plaques avant et arrière jusqu'à 65 pieds par minute. La plaque vibrante de 25" x 16" a des amortisseurs en caoutchouc intégrés pour une précision et un confort soutenu. Le TMG-PC150K travaille dur comme vous et n'abandonnera pas tant que le travail n'est pas terminé.

Pour les artisans et les ouvriers qualifiés, le démarreur à tirette, le levier d'accélérateur, l'interrupteur marche/arrêt et le régulateur centrifuge rendent ce compacteur efficace, facile à apprendre, à utiliser, à transporter et à ranger. Une cage de protection entoure tous les composants vitaux du compacteur, et sa conception industrielle robuste globale est solide et durable. Il est respectueux de l'environnement et répond aux normes d'émission EPA et CARB, vous pouvez donc être sûr que vous recevez un produit moderne et économique qui utilise moins d'énergie pour faire plus de travail.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
