585cc UTV / Side-by-Side with On-Demand 4WD, EPS, CVTech Transmission, 2 Seats with Headrests, Locking Differentials, and Trailer Hitch TMG-ATU765
FREE
shipping to most locations in
Canada
Features
Features
- Powerful Big Bore Engine: Torquey power delivery from the 585cc EFI gasoline engine.
- On - Demand 4WD Drivetrain: Selectable 4WD with front and rear locking differentials help you tackle any terrain.
- High Performance Canadian CVTech Transmission: Power is sent through the Canadian manufactured CVTech-IBC CVT.
- Electric Power Steering: Electric power steering helps you drive all day long without fatigue.
- Comfortable Cab: Stay comfortable with bolstered seats and an adjustable steering column.
- Protection From the Elements: Standard Roof and Windshield help keep you protected from the mud.
- Tilting Cargo Bed: The tilting cargo bed helps you move tools and dump material with ease.
- Standard Trailer Hitch: Standard 2" trailer hitch lets you tow trailers and equipment to get work done.
- Heavy Duty 3000 lb Winch: The heavy duty 3000 lb winch helps pull anything you need.
- LED Matrix Headlights: The bright LED Matrix headlights help you see the darkest trails.
- All Terrain Tires: 27" All Terrain tires on lightweight alloy wheels keep you confident in all conditions.
Specifications
Specifications
| TMG-ATU455 | TMG-ATU565 | TMG-ATU765 | |
|---|---|---|---|
| Max Speed (km/h) | 62 km/h | 70 km/h | 88 km/h |
| Max Speed (mph) | 39 mph | 43 mph | 55 mph |
| Ground Clearance (inch) | 11" | 11.2" | 11.2" |
| Ground Clearance (mm) | 280 mm | 285 mm | 285 mm |
| 4WD System | On Demand, Front Locking Differential | On Demand, Front Locking Differential | On Demand with Front & Rear Locking Differential |
| Transmission | CVT with L-H-N-R | CVT with L-H-N-R | CVTech CVT with L-H-N-R-P |
| Seating | Bench Seat with Headrests | 2 Seats with Headrests | 2 Seats with Headrests |
| Electric Power Steering (EPS) | - | Yes | Yes |
| Wheels | Alloy | Alloy | Alloy |
| Tires | F: AT25x8-12 R: AT25x10-12 | F: AT25x8-12 R: AT25x10-12 | F: AT27x9-14 R: AT27x11-14 |
| Trailer Hitch with 2" Ball Mount | Yes | Yes | Yes |
| Winch Capacity (lb) | 3000 lb | 3000 lb | 3000 lb |
| Winch Capacity (kg) | 1460 kg | 1460 kg | 1460 kg |
| Towing Capacity (lb) | 441 lb | 441 lb | 441 lb |
| Towing Capacity (kg) | 200 kg | 200 kg | 200 kg |
| Headlights | LED | LED | LED |
| Windshield | Yes | Yes | Yes |
| Safety Net | Yes | Yes | Yes |
| ABS Half Doors | Available for Purchase | Available for Purchase | Available for Purchase |
| Adjustable Steering Column | Yes | Yes | Yes |
| Roof | Yes | Yes | Yes |
| Dry Weight (lb) | 1114 lb | 1158 lb | 1257 lb |
| Dry Weight (kg) | 505 kg | 525 kg | 570 kg |
| Dimensions (L x W x H) (inch) | 108"x57"x73" | 110"x58"x76" | 110"x58"x76" |
| Dimensions (L x W x H) (mm) | 275x146x186 cm | 279x147x192 cm | 279x147x192 cm |
Engine Specifications:
| TMG-ATU455 | TMG-ATU565 | TMG-ATU765 | |
|---|---|---|---|
| Engine Model | LH180MQ-3B | LH188MR-A | LH191MS-C |
| Engine Description | Single Cylinder, 4 Stroke, Water Cooled | Single Cylinder, 4 Stroke, Water Cooled | Single Cylinder, 4 Stroke, Water Cooled |
| Horsepower | 26 HP | 33 HP | 44 HP |
| Engine Displacement | 352 cc | 493 cc | 585 cc |
| Engine Certification | EPA | EPA | EPA |
| Engine Start Type | Electric Start | Electric Start | Electric Start |
| Fuel Tank Capacity (L) | 26 L | 26 L | 26 L |
| Fuel Tank Capacity (gal) | 6.9 gal | 6.9 gal | 6.9 gal |
| Fuel Delivery | Delphi EFI | Delphi EFI | Delphi EFI |
Product Description
Product Description

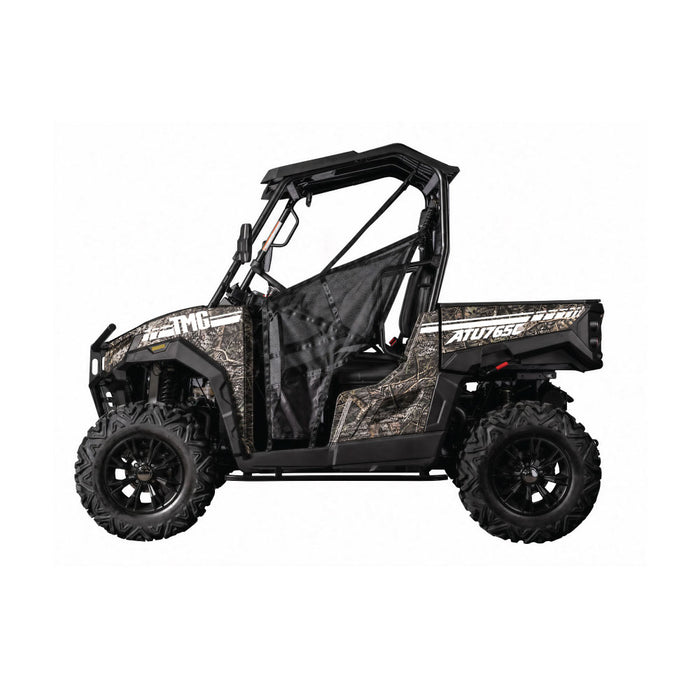

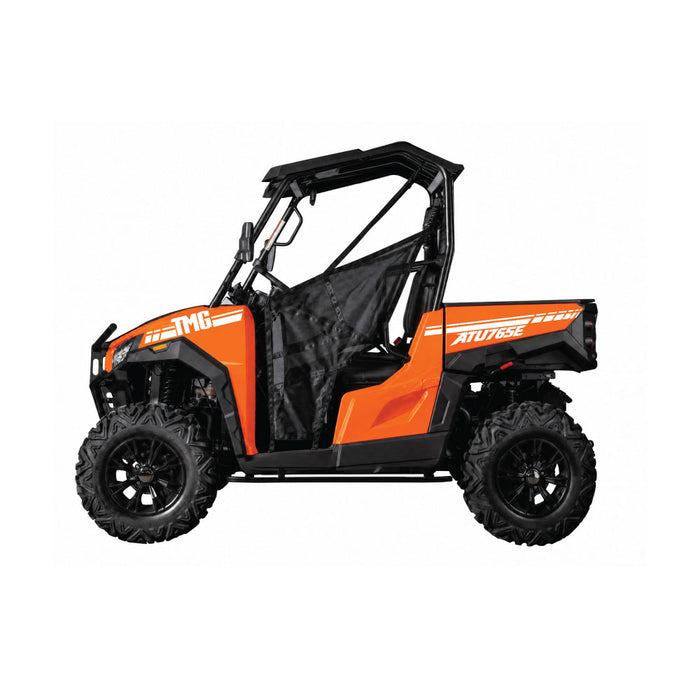

The TMG-ATU765 is an off-road UTV (Utility Terrain Vehicle) that can be used to explore, work, and play. The ATU765 is powered by a big bore 585cc gasoline engine. Power is sent through a high performance Canadian manufactured CVTech-IBC CVT transmission with Reverse, Park, High, and Low range gearing that enables capable riding all day long. The On-Demand 4WD system with front and rear locking differentials can be controlled by a dash mounted switch and allows you to explore trails you've never seen before.
The ATU765 comes with comfortable bolstered seating, headrests, and enough room to take a passenger along for the adventure. The standard 2" trailer hitch and tow ball along with the practical tilting cargo bed allow you to move tools, equipment, and material around with ease. The ATU765 also features oversized rugged all terrain tires on lightweight alloy wheels, a heavy duty 3000 lb winch, side mirrors, and a protective roof and windshield. Optional TMG-ATU765565-HD ABS Half Doors can be purchased to further seal off the cabin. The ATU765 is ready for trails, jobsites, or just ripping up dirt.
Explore the rest of the TMG UTV lineup like the TMG-ATU455 or TMG-ATU565.
* The TMG-ATU765 is for Off Road Use Only *
Shipping Information
Shipping Information
Your order will be shipped from one of our main warehouses in Canada. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.
- This product is packaged in a metal frame with a fabric covering
- Shipping dimensions: 91" x 58" x 48" (L x W x H)
- Shipping weight: 1400 lb
