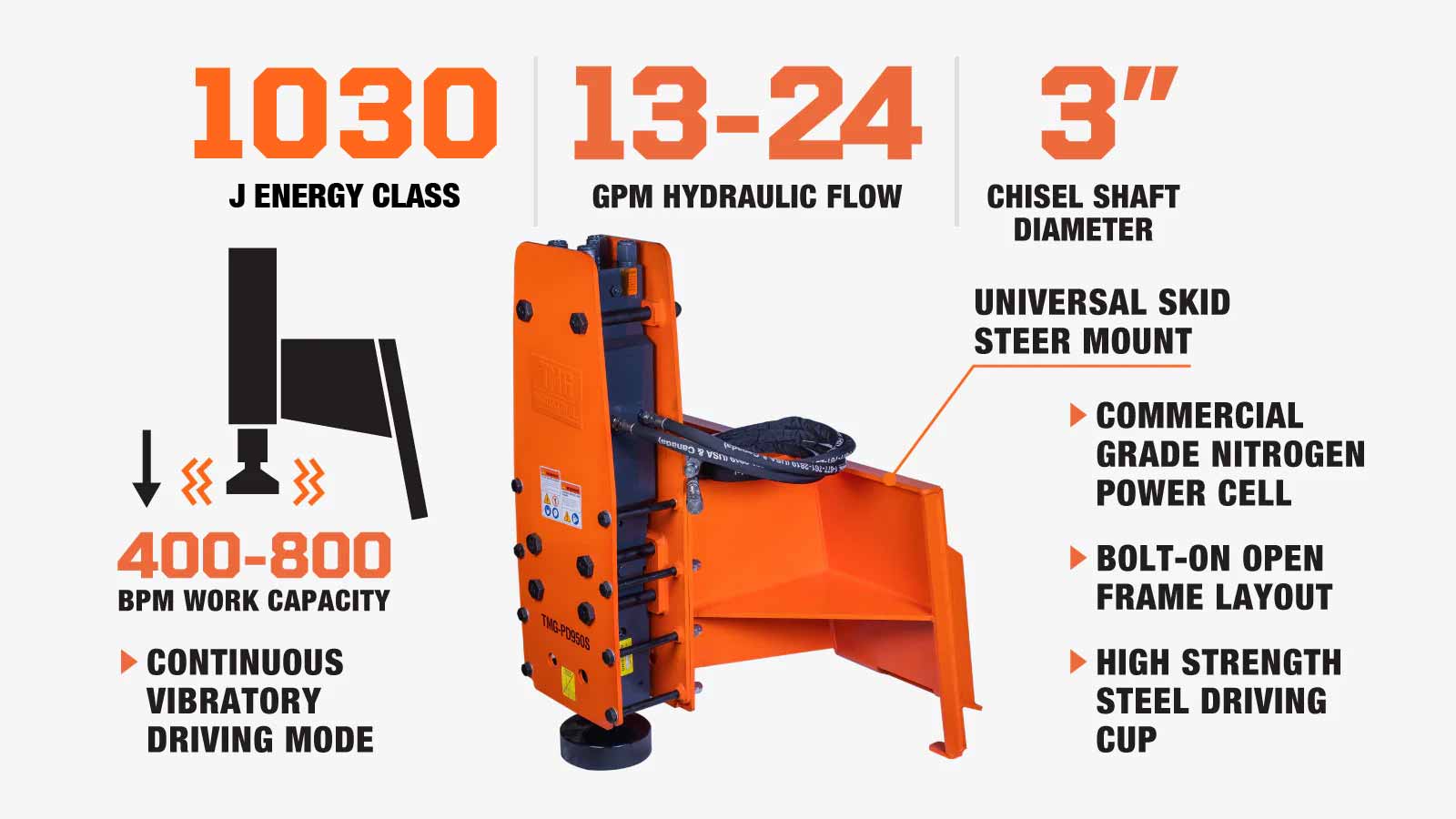

Skid Steer Post Pounder, Post Driver, 10" Post Diameter, 1030 J Energy, 400-800 BPM, TMG-PD950S
FREE
shipping to most locations in
Canada
Learn More
Product Manual
Features
Features
Specifications
Specifications
- Operating weight: 1200 lb
- Energy class: 1030 J
- Skid steer lifting capacity required: 1750 lb
- Skid steer power recommended: 50-100 HP
- Hydraulic flow: 13-24 GPM

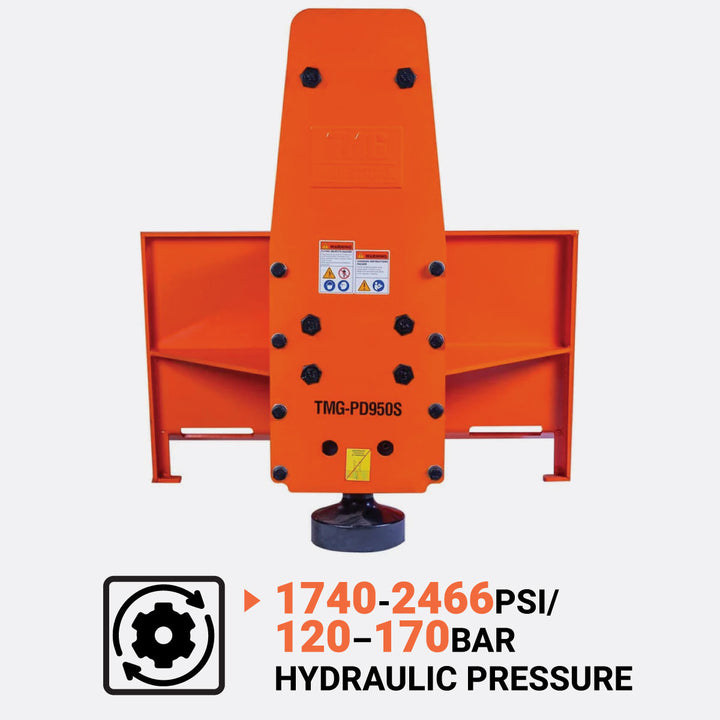

- Working pressure: 1750-2500 PSI
- Chisel shaft diameter: 3”
- Pounding rate: 400-800 BPM

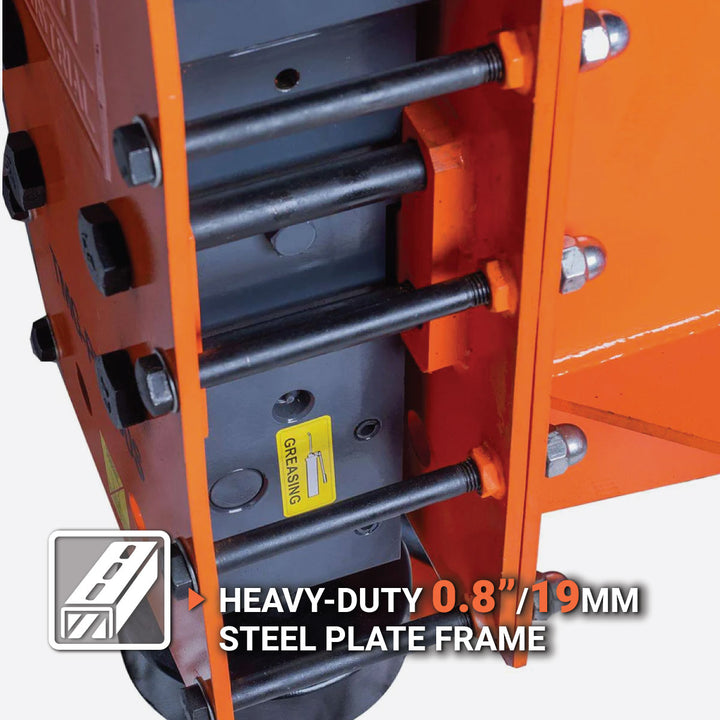

- Steel plate frame: ¾”
- Driving cup inside size: 10” diameter
- Hydraulic hose: ½” diameter

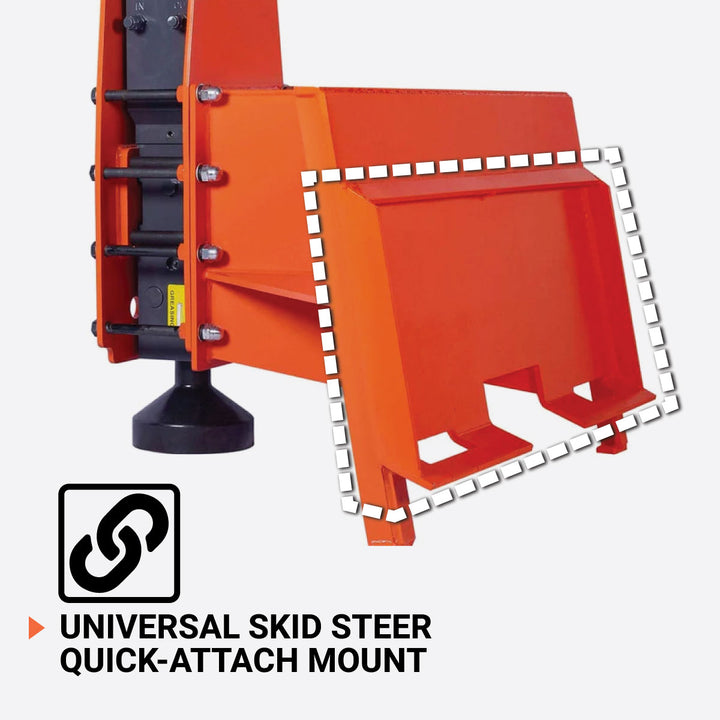

- Universal skid steer quick attach mount
Accessories:
- (1) Service toolbox kit

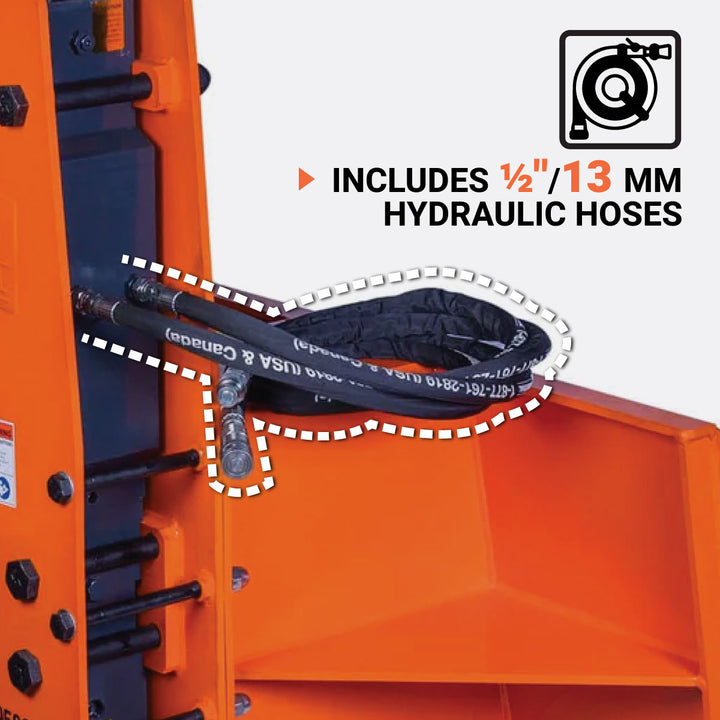

- (2) ½” Hydraulic hoses and flat face couplers included
- (1) Nitrogen charge kit with CGA580 cylinder adaptor
- *Nitrogen does not come charged due to shipping protocols
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

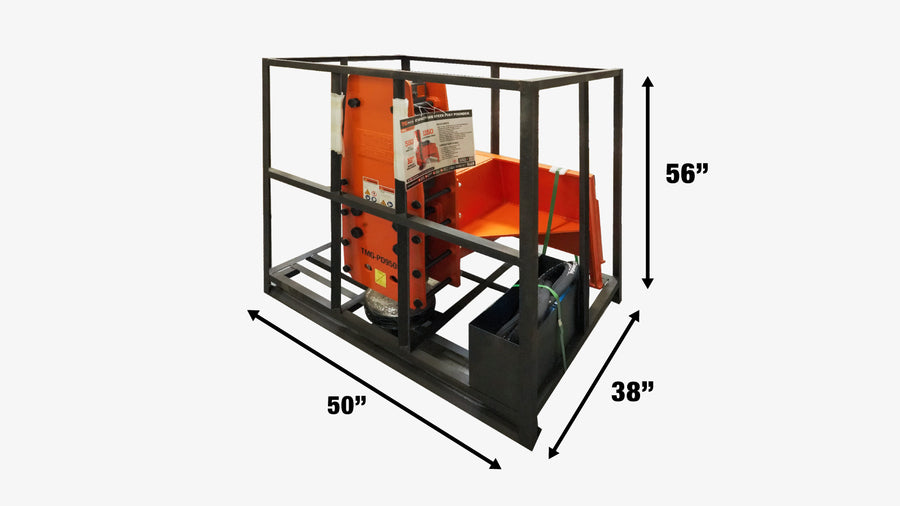

- This product is packed in a metal crate shipping box
- Shipping dimension: 50” x 38” x 56” (L x W x H)
- Shipping weight: 1300 lb
Product Description
Product Description

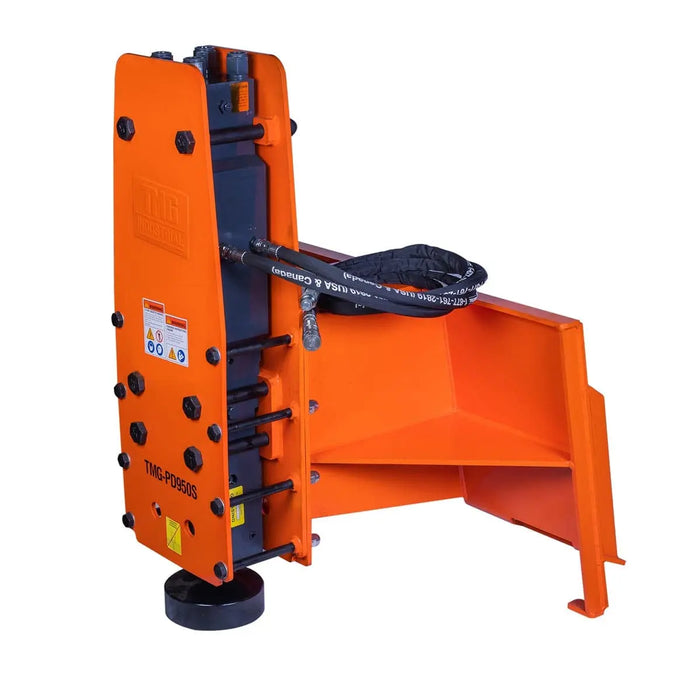

The TMG-PD950S Skid Steer Post Pounder is trusted by contractors, farmers and acreage homeowners across North America to install their fence posts and piping. Simple to attach hydraulic lines and a bolt-on, open frame mounting plate made of heavy gauge steel allow for a smooth and secure hook up to your machine. Easily set up a property perimeter, stand signs or put in agricultural fencing with this powerful post driver hammer.

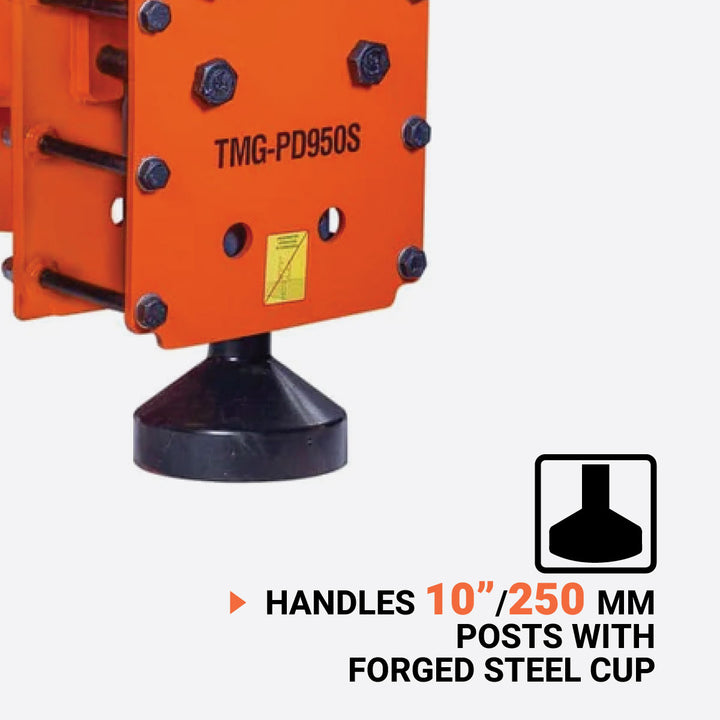

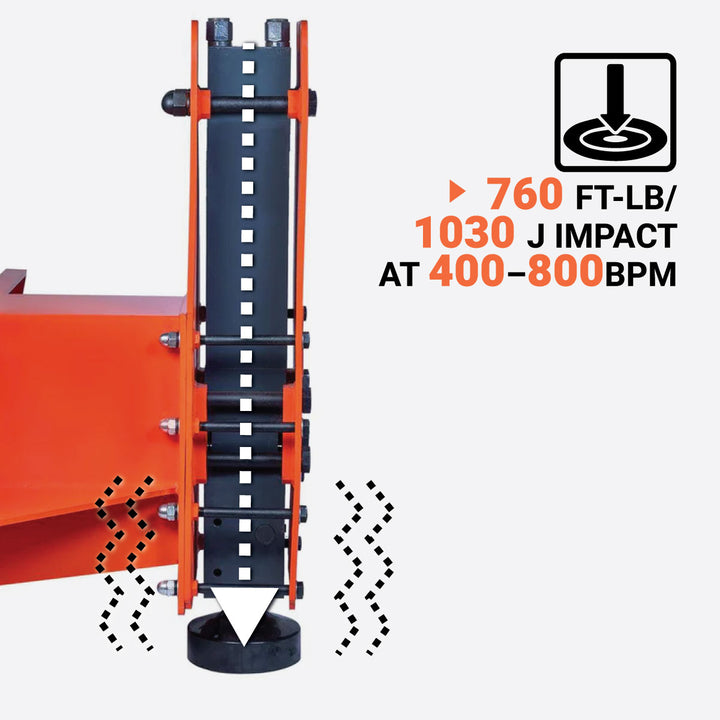

Will accommodate posts up to 10" in diameter with a solid steel driving cup that efficiently transfers power from the piston to the object being struck. Four through bolts tightly affix the front/back head and cylinder of the post pounder for a durable construction that can handle its 1030 J energy and 400-800 BPM work capacity.
Located in the back head of the hammer is a cushion chamber charged with nitrogen (N2) gas that compresses during upward strokes of the piston. This serves to provide maximum absorption of piston recoil, efficiently storing this energy for the next blow. Continuous vibratory drive motion means posts will be in the ground in no time at all. Allows you to work smarter and protect your body from unnecessary labour.
We also carry a smaller model of this post pounder: TMG-PD700S.
