CURRENTLY IN STOCK
TMG-MVE18

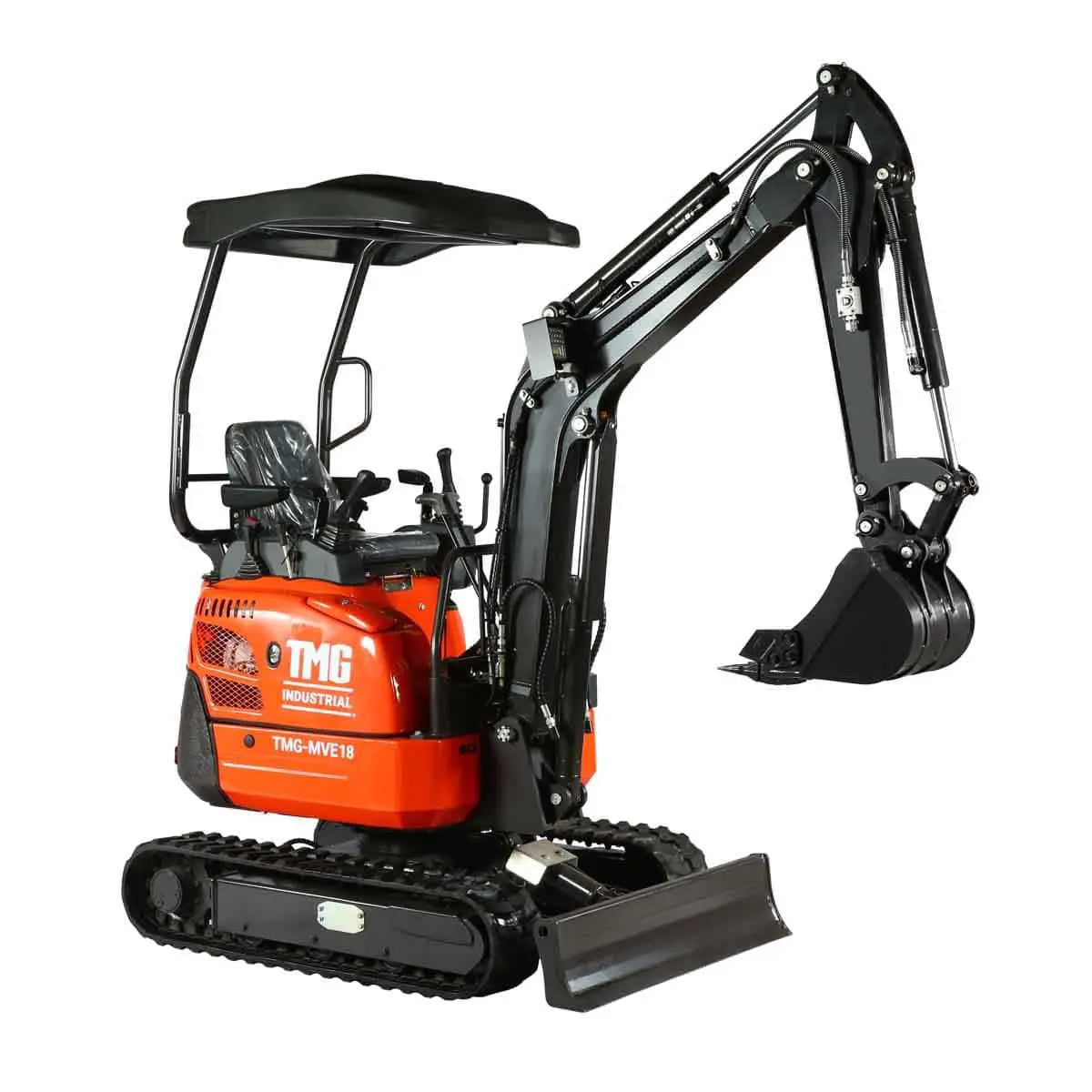

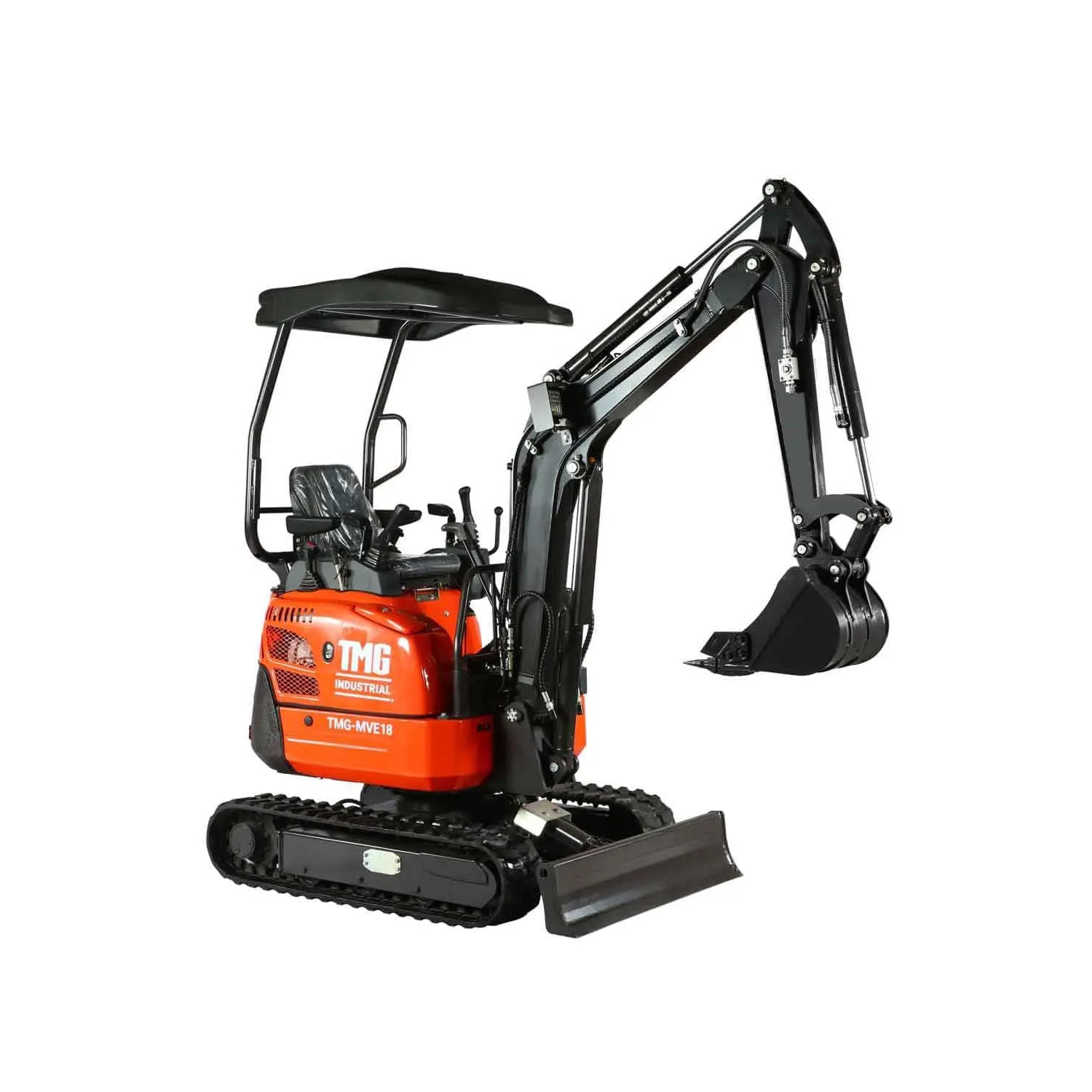

1800 KG Compact Mini Excavator, 16 HP Kubota Diesel, KDK Pump, Eaton Motor, 86" Digging Depth TMG-MVE18

1800 KG Compact Mini Excavator, 16 HP Kubota Diesel, KDK Pump, Eaton Motor, 86" Digging Depth TMG-MVE18
CURRENTLY IN STOCK
SKU TMG-MVE18
$30,199.00 CAD
$30,199.00 CAD - $30,199.00 CAD
$30,199.00 CAD
$27,999.00 CAD
$27,999.00 CAD - $27,999.00 CAD
$27,999.00 CAD
$30,199.00 CAD Save $2,200.00 CAD
$27,999.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 3 LEFT IN STOCK
1-877-761-2819
Find Parts

Features

  • 16 HP Kubota 3-Cylinder water-cooled diesel engine, ensures a potent combination of reliable performance and fuel efficiency
  • KDK hydraulic main pump and Eaton motor work together to ensure smooth and precise operation, minimizing downtime and maximizing productivity
  • With unmatched adaptability, this excavator offers unparalleled maneuverability in confined spaces, allowing operators to navigate tight job sites with ease
  • A joystick control design offers ergonomic advantages by allowing operators to manipulate controls without having to reach too far or strain their posture
  • Standard auxiliary hydraulics open up a world of possibilities, empowering users to easily attach a variety of tools and attachments for different uses
  • Two travel speed options: 1.7/2.2 km/h, maximum digging depth of 86”, and a maximum unloading height of 91” to accommodate a wide variety of tasks
  • The unmatched adaptability also offers a high level of protection against jobsite obstacles, providing safety to both operator and machine
1800 KG Compact Mini Excavator, 16 HP Kubota Diesel, KDK Pump, Eaton Motor, 86" Digging Depth TMG-MVE18

Specifications

  • Operating weight: 4200 lb
  • Standard bucket capacity: 1.6 cu-ft
  • Working device form: Backhoe
  • Two travel speed options: 1.7/2.2 km/h
  • Swing speed: 11 RPM
  • Max. gradeability: 30°
  • Track ground pressure: 40 kpa
  • Hydraulic oil tank capacity: 15 L
  • Fuel tank capacity: 19 L
  • Max. tractive force: 13.5 kN
  • TMG-MVE18 Mini Excavator — Technical Specs (PDF)

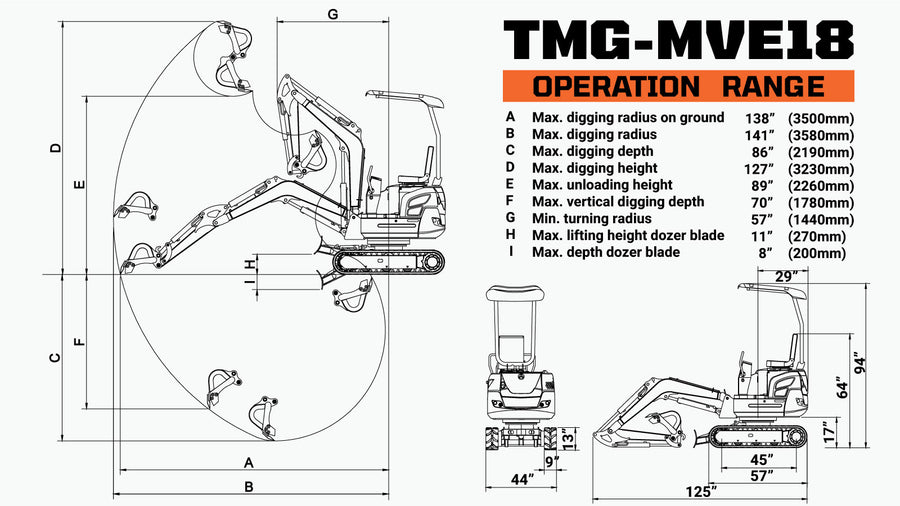

    • Operating Range

  • Max. digging depth: 86”
  • Overall operating height (fully raised): 127”
  • Max. digging radius: 141”
  • Max. unloading height: 91”
  • Max. vertical digging depth: 70”
  • Min. turning radius: 57”
  • Max. lifting height dozer blade: 11”
  • Max. depth dozer blade: 8”
  • Boom swing-left: 50°
  • Boom swing-right: 55°
  • Dipper boom digging force 6.5 kN
  • Bucket digging force 10.5 kN

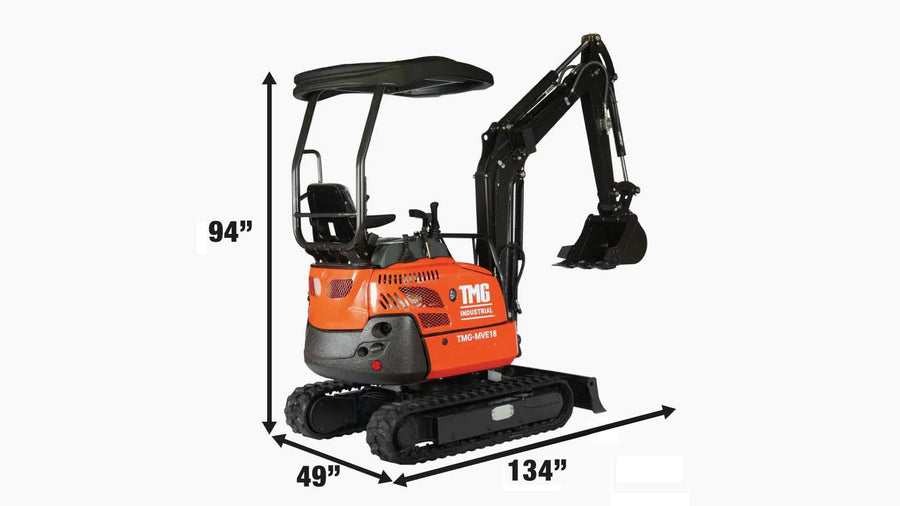

    • Main Dimensions

  • Track length: 63”
  • Upper chassis ground clearance: 19”
  • Counterweight turning radius: 31”
  • Chassis width: 49”
  • Track width: 9”
  • Track height: 14”
  • Transportation length: 134”
  • Height of seat to ground: 65”
  • Overall height: 94”

    • Engine

  • Powerful 16 HP Kubota 3-Cylinder water-cooled diesel engine
  • Displacement: 0.898 L
  • Start type: Electric start w/battery included (12V/20A)
  • Rated power: 16 HP/2300 RPM
  • Max. torque: 51.3N.m
  • Engine oil capacity: 15.3 L
1800 KG Compact Mini Excavator, 16 HP Kubota Diesel, KDK Pump, Eaton Motor, 86" Digging Depth TMG-MVE18

Product Description

The TMG-MVE18 1800 KG Heavy-Duty Mini Compact Excavator is a robust and reliable powerhouse machine designed for efficient excavation in tight spaces. Equipped with an industry-proven 16 HP vertical 3-Cylinder water-cooled Kubota diesel engine, this mini excavator offers optimal performance while meeting EPA standards. The KDK hydraulic main pump and Eaton motor contribute to its smooth operation and precise control.

With unmatched adaptability, the TMG-MVE18 offers unparalleled flexibility in navigating job sites while providing maximum protection against obstacles. The spacious operator area is thoughtfully laid out for comfort and ease of operation, ensuring productivity throughout the workday. Standard auxiliary hydraulics empower the use of various attachments, enhancing the machine's versatility.

This mini excavator has a max travel speed of 2.2 km/h, a digging depth of 86", and a maximum unloading height of 91", making it ideal for a wide range of excavation tasks and work environments. With a compact design and dimensions tailored for maneuverability, this excavator is the go-to solution for precision projects on your farm or commercial job site.

Shipping Information

The order will ship from one of our main warehouses in North America. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • Shipping dimension: 134” x 49” x 94” (L x W x H)
  • Shipping weight: 4260 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
1800 KG Compact Mini Excavator, 16 HP Kubota Diesel, KDK Pump, Eaton Motor, 86" Digging Depth TMG-MVE18

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
