CURRENTLY OUT OF STOCK
TMG-FSP30

30 Ton Portable Axle Pad Scale, 15 Ton / 3300 lb Maximum Capacity Per Weighing Pad, Digital Display and Printer, TMG-FSP30

30 Ton Portable Axle Pad Scale, 15 Ton / 3300 lb Maximum Capacity Per Weighing Pad, Digital Display and Printer, TMG-FSP30
CURRENTLY OUT OF STOCK
SKU TMG-FSP30
$9,999.00 CAD - $9,999.00 CAD
$9,999.00 CAD
$9,999.00 CAD - $9,999.00 CAD
$9,999.00 CAD
$9,999.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days Learn More
1-877-761-2819
Product Manual
Find Parts

Features

  • High-Strength Aluminum Construction: Engineered with high-intensity aluminum alloy for a lightweight, easily portable structure built to endure demanding environments.
  • IP66 Waterproof & Sealed Protection: Designed with IP66-rated waterproofing and full environmental sealing to withstand operations in heavy rain or snow.
  • High-Accuracy Load Cells: Integrated with 6 precision load cells providing exceptional accuracy for both static axle weighing and in-motion measurement.
  • 120% Overload Protection: Built-in overload detector protects the system against structural and electronic damage from unexpected, excessive axle loads.
  • Anti-Electromagnetic Interference: Integrated shielding prevents external signals and electromagnetic noise from distorting weighing accuracy or altering recorded measurements.
  • Smart Touch Screen Indicator: Features an 8-inch true color IPS touchscreen with built-in thermal printing, user permission controls, and multi-language support.

Specifications

Weighing & Load Cell System

  • Maximum Axle Capacity (2 Pads): ≤30 tons / 6,600 lbs
  • Weighing Capacity per Pad: 15 tons / 3,300 lbs
  • Number of Load Cells: 6 per pad
  • Dynamic Accuracy: ≤±2.5%
  • Static Accuracy (2-Pad Axle): ≤±0.3%
  • In-Motion Speed Requirement: ≤8 km/h
  • Overload Protection: 120%
  • Wireless Distance: ≤30 m
  • Operating Temperature: -10°C to +65°C (14°F to 140°F)
  • Each Pad Size: 800 x 450 x 42 mm (31.5" x 17.7" x 1.7")
  • Each Ramp Size: 800 x 350 mm (31.5" x 13.8")
  • Overall Size (Pad + Ramps Assembly): 800 x 1060 x 42 mm (31.5" x 41.7" x 1.7")

Smart Touch Screen Indicator

  • Screen Display: 8" IPS Touchscreen with True Color display
  • Enclosure Material: Heavy-duty ABS
  • Channels: 2 channels standard (expandable up to 16 channels)
  • Units of Measurement: kg, ton, lb, kilo lb
  • Power Supply: AC Adapter 110-240V (50/60Hz); Rechargeable Battery 6V/4000mAh
  • Communication Interfaces:
    • Wired Edition: USB 2.0 and RS232 default
    • Wireless Edition: USB 2.0 and Bluetooth default (Optional Wi-Fi / LTE/5G)
  • Printer: Built-in Thermo-Sensitive Dot Matrix Printer (uses 57.5 mm thermo-sensitive paper)
  • Supported Languages: English, Spanish, French, Japanese and Chinese.
  • System Capabilities: Auto-compensation system for double/triple joint axles, multipoint linear correction, multi-user permission management, and cloud support for remote updates

Product Description

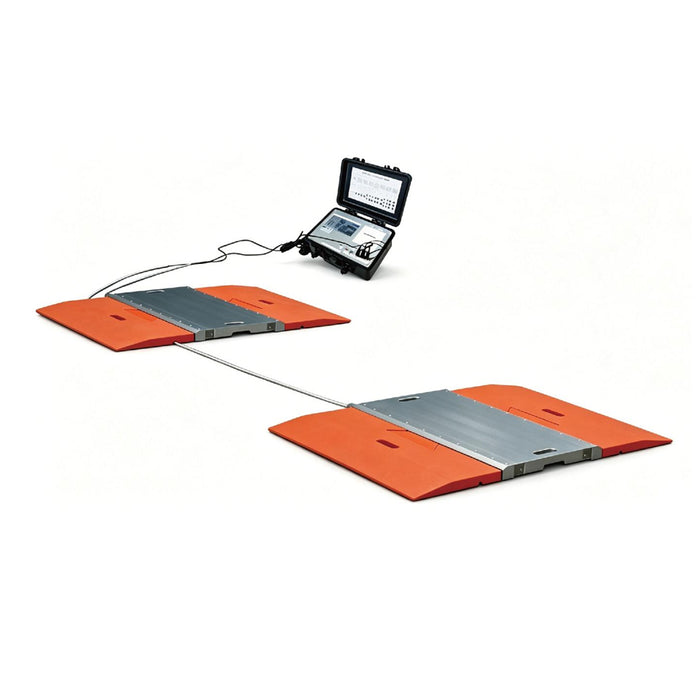

The TMG-FSP30 30 Ton Portable Axle Weighing Scale offers a heavy-duty, versatile, and fully mobile weighing solution tailored for highway inspection, construction sites, agriculture, and fleet management. Crafted from high-intensity aluminum alloy, the scale pads are lightweight enough for effortless transport between job sites while offering a robust ≤30-ton double-pad axle capacity. Built to operate reliably under rugged outdoor conditions, the scale features an IP66 waterproof rating, integrated seal protection, and an anti-electromagnetic interference system that ensures reliable, stable readings on standard concrete, flat dirt, or temporary construction grounds.

Engineered for flexibility, the TMG-FSP30 supports both in-motion (dynamic) and static weighing operations. Vehicles can drive across the pads at speeds up to 8 km/h for rapid, automated dynamic axle load calculations, or come to a full stop for high-precision static measurements. The system includes built-in auto-compensation algorithms to correct weighing errors on double- and triple-jointed axles, alongside a 120% load cell overload detector to ensure long-term durability and equipment safety.

The complete scale system is controlled via a smart 8-inch IPS touchscreen indicator wrapped in a protective hardshell case. Operating on a rechargeable battery or AC power, the indicator processes multi-channel inputs and features a built-in thermal printer to generate detailed weighing reports on-demand—including date, time, vehicle license number, individual axle weights, and overall total weight. With options for wired or wireless connectivity, cloud update integration, and customizable user permissions, the TMG-FSP30 delivers commercial-grade weighing efficiency wherever your fleet operates.

TMG also carries other models of floor scales: TMG-FS03, TMG-FS05, and TMG-FS10.

Shipping Information

The order will ship from one of our warehouses in Canada. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in five aluminum and carton shipping boxes.
  • Shipping Dimensions (L x W x H):
    Box A (Aluminum Pad Box 1): 50" x 35" x 8"
    Box B (Aluminum Pad Box 2): 50" x 35" x 8"
    Box C (Ramp Carton 1): 40" x 20" x 5"
    Box D (Ramp Carton 2): 40" x 20" x 5"
    Box E (Indicator Carton): 20" x 15" x 10"
  • Shipping Weight:
    Box A: 110 lbs (48 kg)
    Box B: 110 lbs (48 kg)
    Box C: 50 lbs (22 kg)
    Box D: 50 lbs (22 kg)
    Box E: 20 lbs (8 kg)
    Total Weight: 330 lbs (148 kg)
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
