Reversible Vibratory Plate Compactor, 6800-lb Compaction Capacity, 9.5 HP CH395 Kohler Command Pro Engine, TMG-PC160K
SKU TMG-PC160K

Reversible Vibratory Plate Compactor, 6800-lb Compaction Capacity, 9.5 HP CH395 Kohler Command Pro Engine, TMG-PC160K

$2,999.00 - $2,999.00
$2,999.00
$2,999.00 - $2,999.00
$2,999.00
CURRENTLY IN STOCK
FREE SHIPPING IN CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS
In-Store Pickup Price
$2,849.05 SAVE $149.95
About our Richmond retail store
Store Hours: Mon-Fri 9am-5pm PST
CALL US TO ORDER

295.0 lb
31 x 19 x 44 inches
More Shipping Info
1-877-761-2819
  • Medium to heavy duty model ideal for working in confined or large areas on commercial and residential job sites, available at a price that makes the investment better than renting a similar machine
  • Powered by a Command Pro Series CH395 9.5 HP Kohler gasoline engine; best in class, high quality engine with a reputation for being reliable and having long-lasting durability
  • Rapid forward and reverse plate travel speeds that are controlled by hydraulics allow dynamic workflow easily maneuvered by the operator
  • Can travel up to 65 ft/min while compacting with a force of 6800 lbs at 4000 VPM, creating a total work capacity of up to 3900 square feet per hour
  • Belt driven exciter, sealed belt cover and centrifugal clutch assembly create a safe, durable and economical transmission of power from the engine to the compactor
  • Self-cleaning, tapered bottom edge, 28" x 18" base plate design minimizes dirt and rock build-up
  • Rubber shock absorbers attached to the vibrating plate allow for increased accuracy around concrete forms, footings, gas lines and sewer pipes, as well as minimal wear and tear and sustained comfort for long-term, all-day use
  • Protective frame/cage surrounds engine and keeps the compactor safe and shielded from falling debris or other tools on the job site
  • Simple on/off switch and throttle lever controls are easy to use and can shut off the machine quickly in the case of an emergency
  • The vibratory motion provides a self propelling action allowing the operator to relax and simply guide the machine and truly let it do all the work
  • Able to compact all types of granular soils, crushed aggregate, sand, asphalt, paving stones, bricks and other materials up to 19” in depth
  • Environmentally friendly; meets EPA III and CARB III emission standards
More Information
Product Manual
Find the Parts
Features Specs Shipping Info Description Warranty Reviews

Features

  • Medium to heavy duty model ideal for working in confined or large areas on commercial and residential job sites, available at a price that makes the investment better than renting a similar machine
  • Powered by a Command Pro Series CH395 9.5 HP Kohler gasoline engine; best in class, high quality engine with a reputation for being reliable and having long-lasting durability
  • Rapid forward and reverse plate travel speeds that are controlled by hydraulics allow dynamic workflow easily maneuvered by the operator
  • Can travel up to 65 ft/min while compacting with a force of 6800 lbs at 4000 VPM, creating a total work capacity of up to 3900 square feet per hour
  • Belt driven exciter, sealed belt cover and centrifugal clutch assembly create a safe, durable and economical transmission of power from the engine to the compactor
  • Self-cleaning, tapered bottom edge, 28" x 18" base plate design minimizes dirt and rock build-up
  • Rubber shock absorbers attached to the vibrating plate allow for increased accuracy around concrete forms, footings, gas lines and sewer pipes, as well as minimal wear and tear and sustained comfort for long-term, all-day use
  • Protective frame/cage surrounds engine and keeps the compactor safe and shielded from falling debris or other tools on the job site
  • Simple on/off switch and throttle lever controls are easy to use and can shut off the machine quickly in the case of an emergency
  • The vibratory motion provides a self propelling action allowing the operator to relax and simply guide the machine and truly let it do all the work
  • Able to compact all types of granular soils, crushed aggregate, sand, asphalt, paving stones, bricks and other materials up to 19” in depth
  • Environmentally friendly; meets EPA III and CARB III emission standards

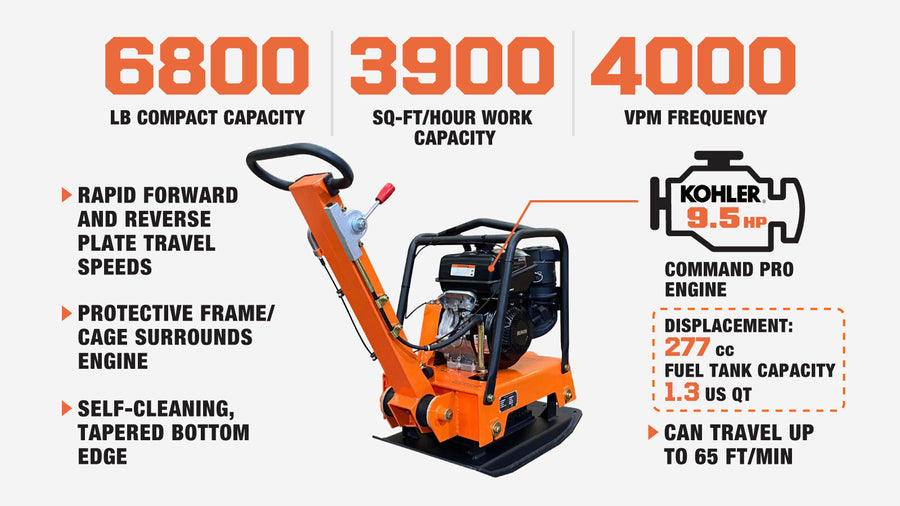

Specifications

  • Compaction force: 6800 lbs
  • Work capacity: 3900 sq-ft/hour
  • Frequency: 4000 VPM
  • Compaction depth: 19”
  • Travel speed: 65 ft/min
  • Max. inclination angle: 15º
  • Compaction plate size: 28” x 18”
  • Operating weight: 270 lbs

Engine Specifications:

  • 9.5 HP CH395 Kohler Command Pro Series engine
  • Engine type: 4-cycle, gasoline, OHV, cast iron cylinder liner, aluminum block
  • Forged steel crankshaft
  • Cast-iron cylinder liner
  • Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
  • Large-capacity fuel tank
  • Displacement: 277 cc
  • Gross Torque: 18.8 lb/feet
  • Oil Capacity: 1.3 US qt
  • Emissions compliance: EPA Phase III and CARB III

Shipping Information

The order will ship FREE from our main warehouse in Richmond, British Columbia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

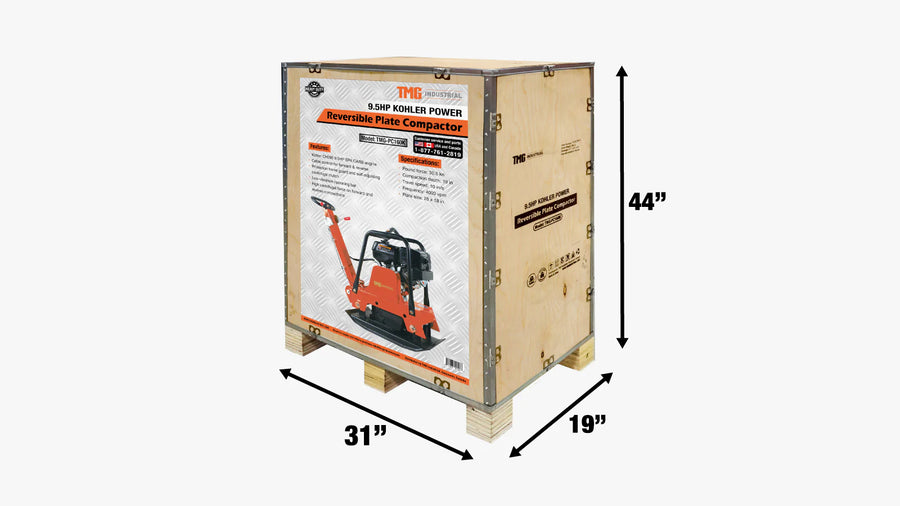

  • The product is packed in a wood crate shipping box
  • Dimension: 31" x 19" x 44" (L x W x H)
  • Shipping weight: 380 lbs
Shipping from Richmond, BC
What happens after you place
your order?
Reversible Vibratory Plate Compactor, 6800-lb Compaction Capacity, 9.5 HP CH395 Kohler Command Pro Engine, TMG-PC160K-shipping-info-image

Product Description

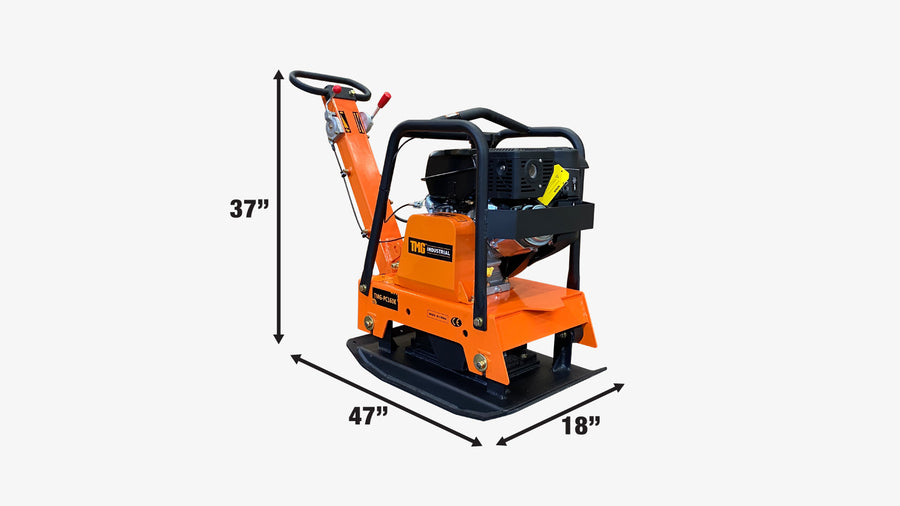

The TMG-PC160K Reversible Plate Compactor is a powerhouse capable of compacting soils, gravels and sands for projects needing tight, solid grounds to work and build on. Any sort of bituminous or granular materials are simply no match for the over 6800 lbs of force produced by this machine. As a medium to heavy duty model, it’s small enough to work around delicate fixtures, but big and strong enough to handle a heavy duty commercial job. Able to maneuver around footings, forms, building construction, gas lines, sewer works, drainage ditches and any other confined or large areas with ease. Having this product on hand ensures you never have to rent again and that you’ll always be prepared at your residential or commercial job site.

This compactor is powered by a Command Pro Series CH395 9.5 HP Kohler gasoline engine. This series is the benchmark for industry standard, high quality and reliable engines. Koehler has a North America wide, 3-year manufacturer warranty on this engine giving you the confidence of top-tier performance despite the tough work that you’ll demand out of this machine. Capable of on the spot compaction as well as rapid forward and reverse plate travel speeds up to 65 feet per minute. The 28” x 18” vibrating plate has built in rubber shock absorbers for accuracy and sustained comfort. The TMG-PC160K is hardworking like you and won’t quit until the job is done.

 

For skilled tradesmen and labourers alike, the pull starter, throttle lever, on/off switch and centrifugal governor make this compactor efficient, easy to learn, use, transport and store. A protective cage surrounds all the vital components of the compactor, and its overall rugged industrial design is strong and durable. It’s environmentally friendly and meets both EPA and CARB emission standards, so you can be sure you’re receiving a modern, economical product that uses less energy to do more work. 

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
