SKU TMG-PC330K

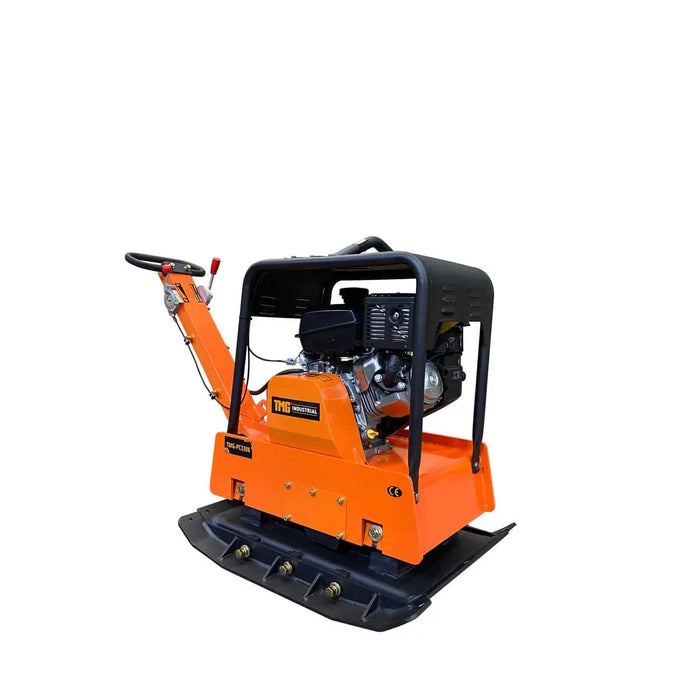

TMG Industrial Reversible Plate Compactor, 8500-lb Compact Capacity, 14 HP CH440 Kohler Command Pro Series Engine, 34” Compaction Depth, TMG-PC330K

Original price $3,999.00 - Original price $3,999.00
Original price
$3,999.00
$3,999.00 - $3,999.00
Current price $3,999.00
CURRENTLY IN STOCK
FREE SHIPPING IN CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS
In-Store Pickup Price
$3,799.05 SAVE $199.95
About our Richmond retail store
Store Hours: Mon-Fri 9am-5pm PST
CALL US TO ORDER

620.0 lb
36 x 20 x 45 inches
More Shipping Info
  • Heavy duty model ideal for working in confined or large areas on commercial and residential job sites, available at a price that makes the investment better than renting a similar machine
  • Powered by a Command Pro Series CH440 14 HP Kohler gasoline engine; best in class, high quality engine with a reputation for being reliable and having long-lasting durability
  • Rapid forward and reverse plate travel speeds that are controlled by hydraulics allow dynamic workflow easily maneuvered by the operator
  • Can travel up to 70 ft/min while compacting with a force of 8500 lbs at 3750 VPM, creating a total work capacity of up to 4200 square feet per hour
  • Belt driven exciter, sealed belt cover and centrifugal clutch assembly create a safe, durable and economical transmission of power from the engine to the compactor
  • Self-cleaning, tapered bottom edge, 32" x 19" base plate design minimizes dirt and rock build-up
  • Included are two 32” x 3” plate extenders to increase overall plate size to 32” x 25”, meaning you can get bigger jobs done quicker and with more efficiency
  • Rubber shock absorbers attached to the vibrating plate allow for increased accuracy around concrete forms, footings, gas lines and sewer pipes, as well as minimal wear and tear and sustained comfort for long-term, all-day use
  • Protective frame/cage surrounds engine and keeps the compactor safe and shielded from falling debris or other tools on the job site
  • Simple on/off switch and throttle lever controls are easy to use and can shut off the machine quickly in the case of an emergency
  • The vibratory motion provides a self propelling action allowing the operator to relax and simply guide the machine and truly let it do all the work
  • Able to compact all types of granular soils, crushed aggregate, sand, asphalt, paving stones, bricks and other materials
  • Environmentally friendly; meets EPA III and CARB emission standards
Product Manual
Find Parts

Features

  • Heavy duty model ideal for working in confined or large areas on commercial and residential job sites, available at a price that makes the investment better than renting a similar machine
  • Powered by a Command Pro Series CH440 14 HP Kohler gasoline engine; best in class, high quality engine with a reputation for being reliable and having long-lasting durability
  • Rapid forward and reverse plate travel speeds that are controlled by hydraulics allow dynamic workflow easily maneuvered by the operator
  • Can travel up to 70 ft/min while compacting with a force of 8500 lbs at 3750 VPM, creating a total work capacity of up to 4200 square feet per hour
  • Belt driven exciter, sealed belt cover and centrifugal clutch assembly create a safe, durable and economical transmission of power from the engine to the compactor
  • Self-cleaning, tapered bottom edge, 32" x 19" base plate design minimizes dirt and rock build-up
  • Included are two 32” x 3” plate extenders to increase overall plate size to 32” x 25”, meaning you can get bigger jobs done quicker and with more efficiency
  • Rubber shock absorbers attached to the vibrating plate allow for increased accuracy around concrete forms, footings, gas lines and sewer pipes, as well as minimal wear and tear and sustained comfort for long-term, all-day use
  • Protective frame/cage surrounds engine and keeps the compactor safe and shielded from falling debris or other tools on the job site
  • Simple on/off switch and throttle lever controls are easy to use and can shut off the machine quickly in the case of an emergency
  • The vibratory motion provides a self propelling action allowing the operator to relax and simply guide the machine and truly let it do all the work
  • Able to compact all types of granular soils, crushed aggregate, sand, asphalt, paving stones, bricks and other materials
  • Environmentally friendly; meets EPA III and CARB emission standards

Specifications

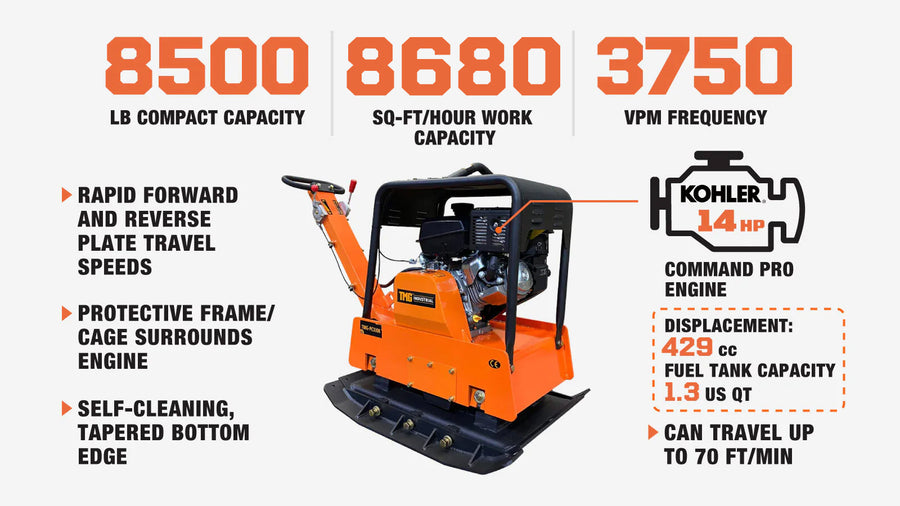

  • Compaction force: 8500 lbs
  • Work capacity: 4200 sq-ft/hour
  • Frequency: 3750 VPM
  • Compaction depth: 34”
  • Travel speed: 70 ft/min
  • Max. inclination angle: 15º
  • Compaction plate size: 32” x 19”
  • (2) Compaction plate extenders: 32” x 3”
  • Operating weight: 595 lbs

Engine Specifications:

  • 14 HP Kohler CH440 Command Pro series engine
  • Engine type: 4-cycle, gasoline, OHV, cast iron cylinder liner, aluminum block
  • Forged steel crankshaft
  • Cast-iron cylinder liner
  • Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
  • Large-capacity fuel tank
  • Displacement: 429 cc
  • Gross Torque: 30.8 lb/feet
  • Oil Capacity: 1.3 US qt
  • Emissions compliance: EPA Phase III, CARB Phase III

Shipping Information

The order will ship FREE from our main warehouse in Richmond, British Columbia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

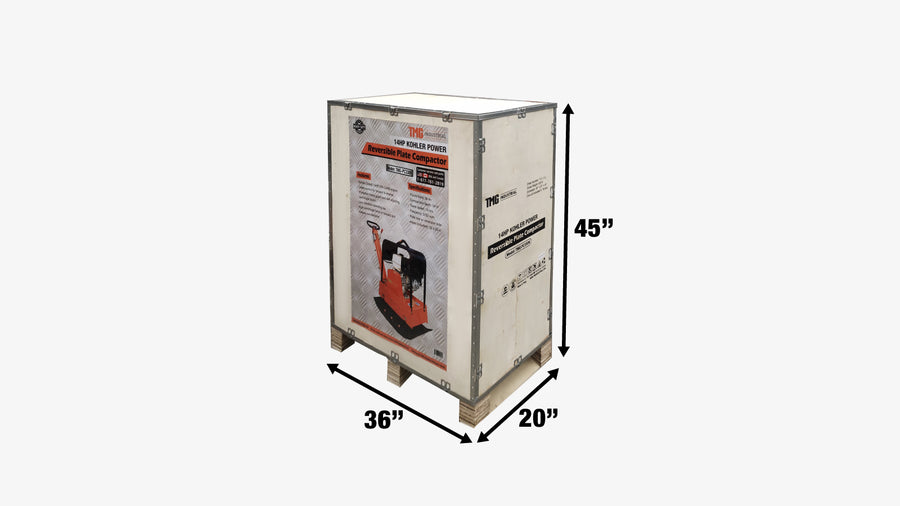

  • The product is packed in a metal crate shipping box
  • Dimension: 36” x 20” x 45” (L x W x H)
  • Shipping weight: 620 lbs
Shipping from Richmond, BC
What happens after you place
your order?
TMG Industrial Reversible Plate Compactor, 8500-lb Compact Capacity, 14 HP CH440 Kohler Command Pro Series Engine, 34” Compaction Depth, TMG-PC330K-shipping-info-image

Product Description

The TMG-PC330K Reversible Plate Compactor is a powerhouse capable of compacting soils, gravels and sands for projects needing tight, solid grounds to work and build on.

Any sort of bituminous or granular materials are simply no match for the over 8500 lbs of force produced by this machine. This is our heavy-duty model and is ideal for tackling large, commercial jobs. Able to maneuver around footings, forms, building construction, gas lines, sewer works, drainage ditches and any other confined or sizable areas with ease. Having this product on hand ensures you never have to rent again and that you’ll always be prepared at your shop or commercial job site.

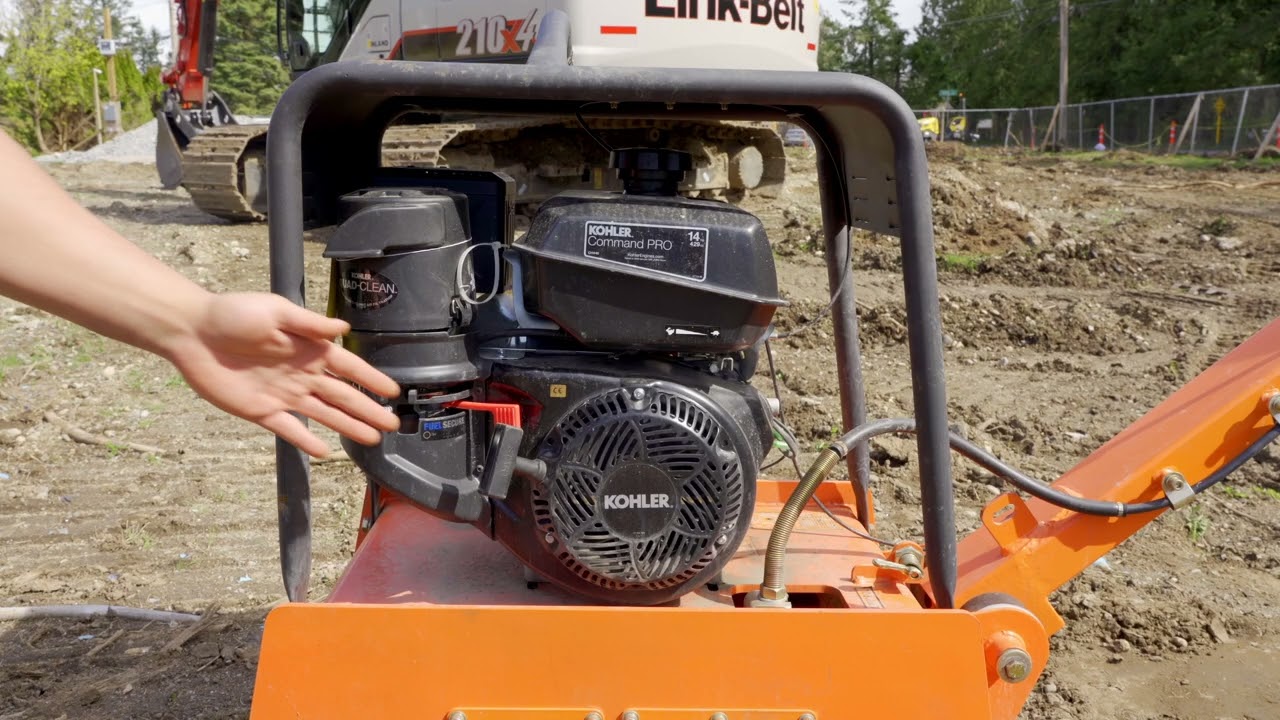

This compactor is powered by a Command Pro Series CH440 14 HP Kohler gasoline engine. This series is the benchmark for industry standard, high quality and reliable engines. Koehler has a North America wide, 3-year manufacturer warranty on this engine giving you the confidence of top-tier performance despite the tough work that you’ll demand out of this machine.

Capable of on the spot compaction as well as rapid forward and reverse plate travel speeds up to 70 feet per minute. The 32” x 19” vibrating plate has built in rubber shock absorbers for accuracy and sustained comfort; also included are two plate extenders that increase the plate size to 32” x 25” which will allow you to get large areas done even quicker. The TMG-PC330K is hardworking like you and won’t quit until the job is done. 

For skilled tradesmen and labourers alike, the pull starter, throttle lever, on/off switch, wheel kit and centrifugal governor make this compactor efficient, easy to learn, use, transport and store. A protective cage surrounds all the vital components of the compactor, and its overall rugged industrial design is strong and durable. It’s environmentally friendly and meets both EPA and CARB emission standards, so you can be sure you’re receiving a modern, economical product that uses less energy to do more work. 

We also carry three lighter duty models of this plate compactor: TMG-PC90, TMG-PC150K, TMG-PC160K

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
