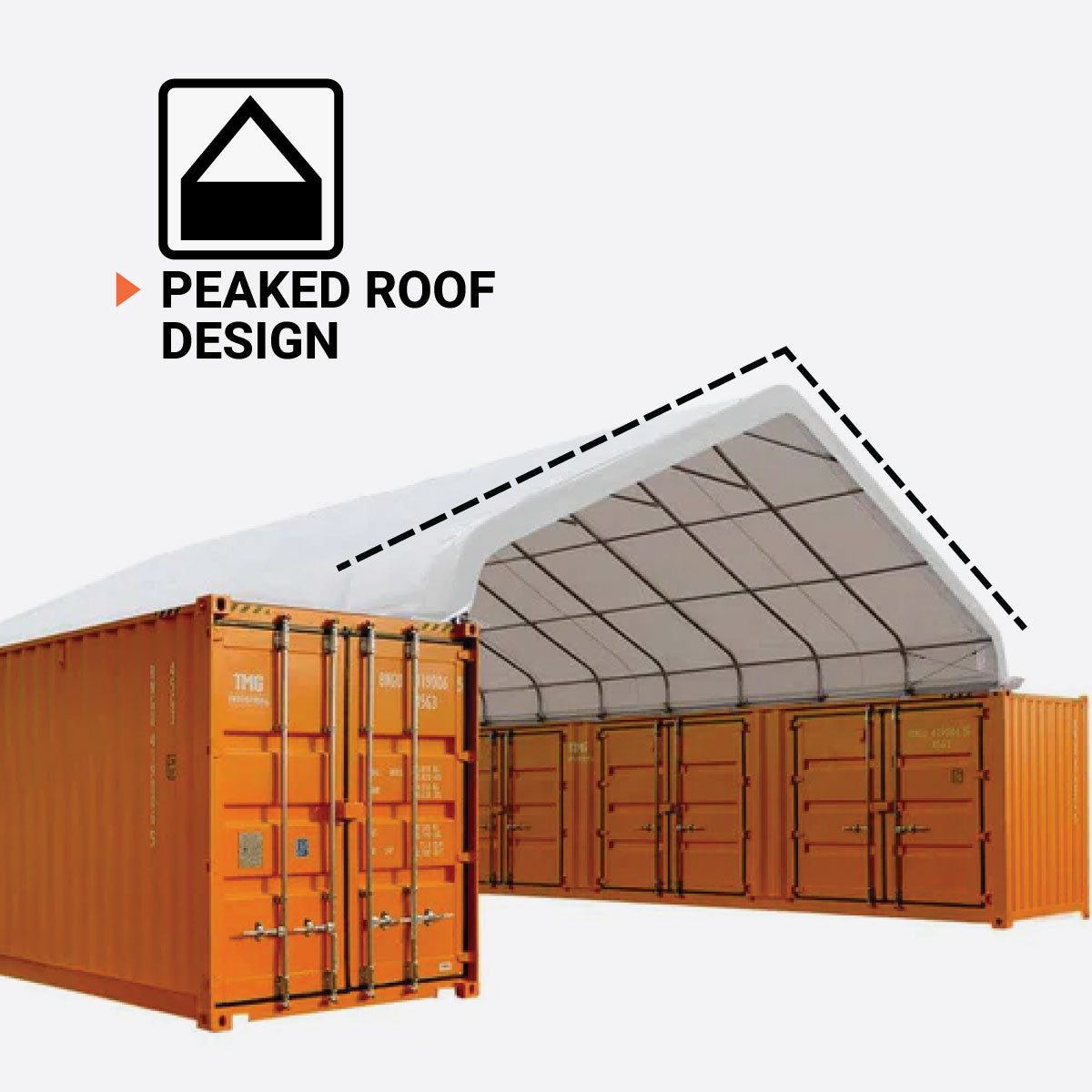

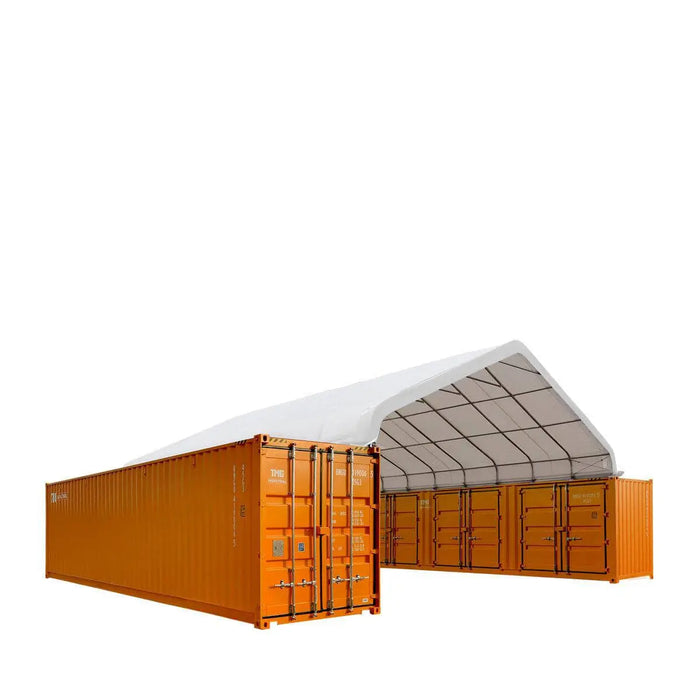

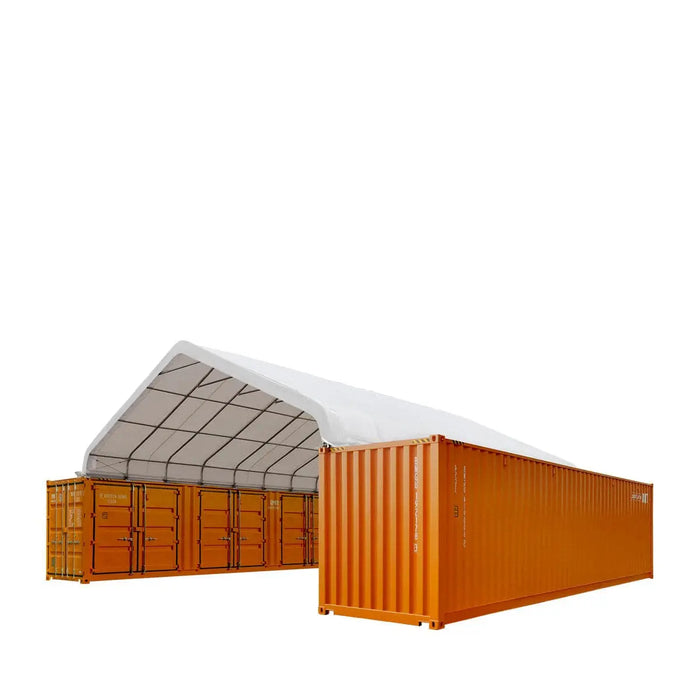

30' x 40' PVC Fabric Container Peak Roof Shelter Pro Series, Fire Retardant, UV Protected, TMG-ST3042CV (Previously ST3041CV)

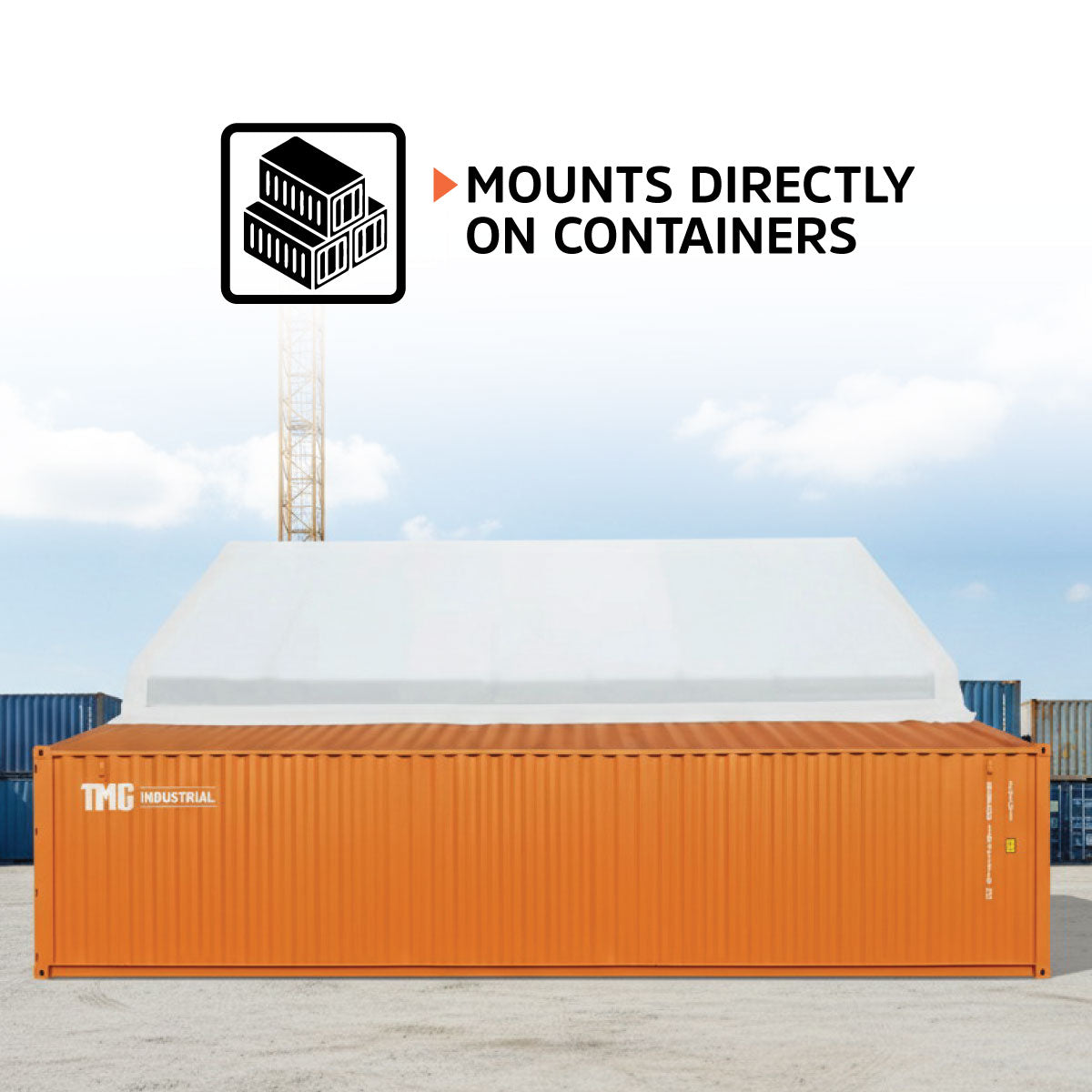

Elevated Clearance

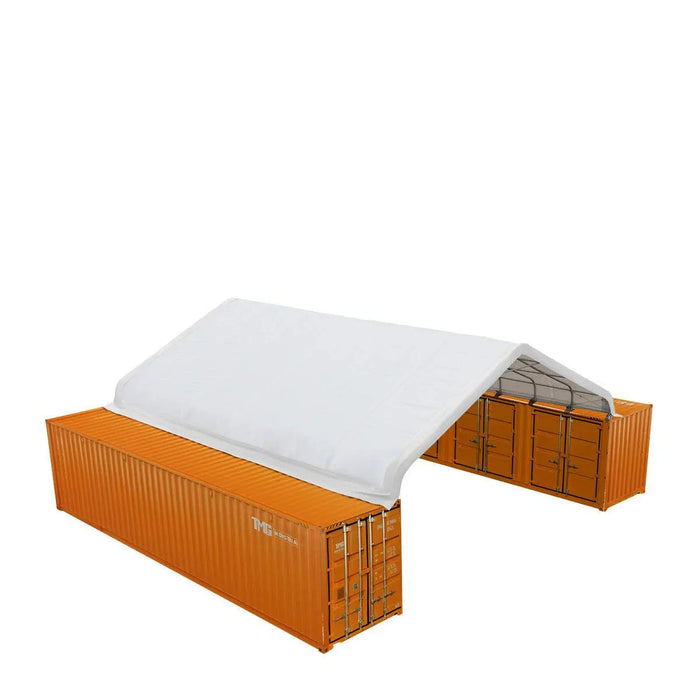

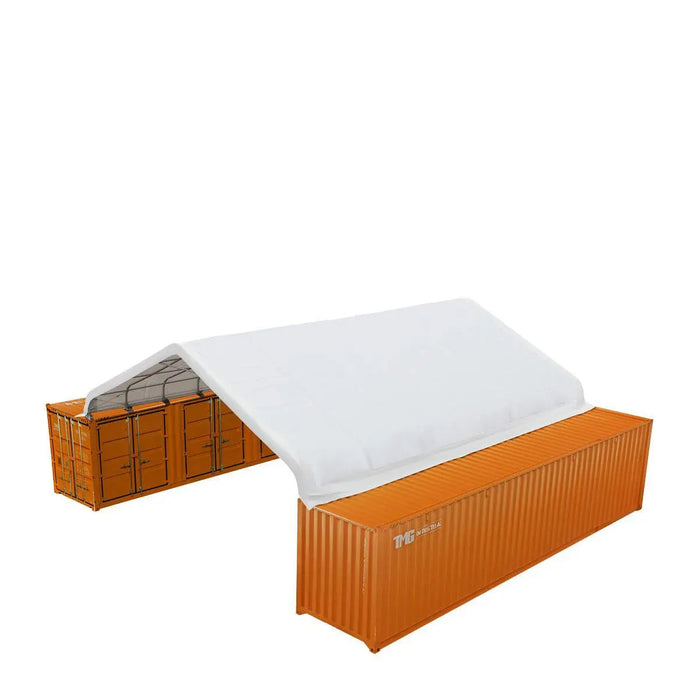

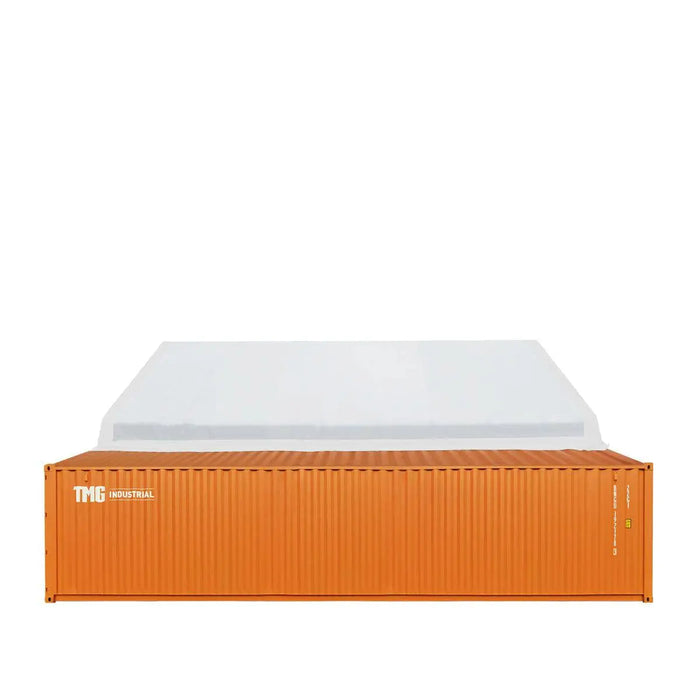

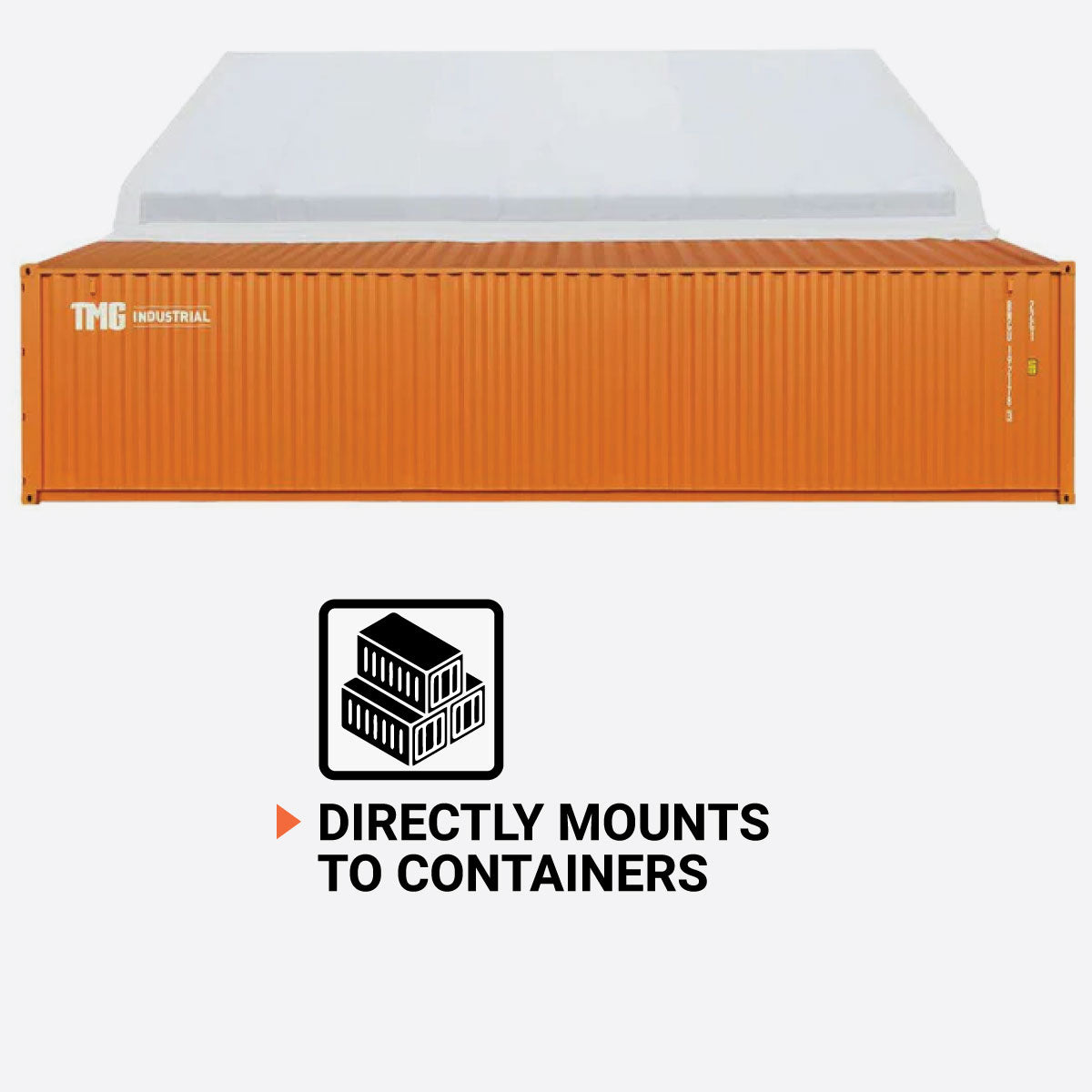

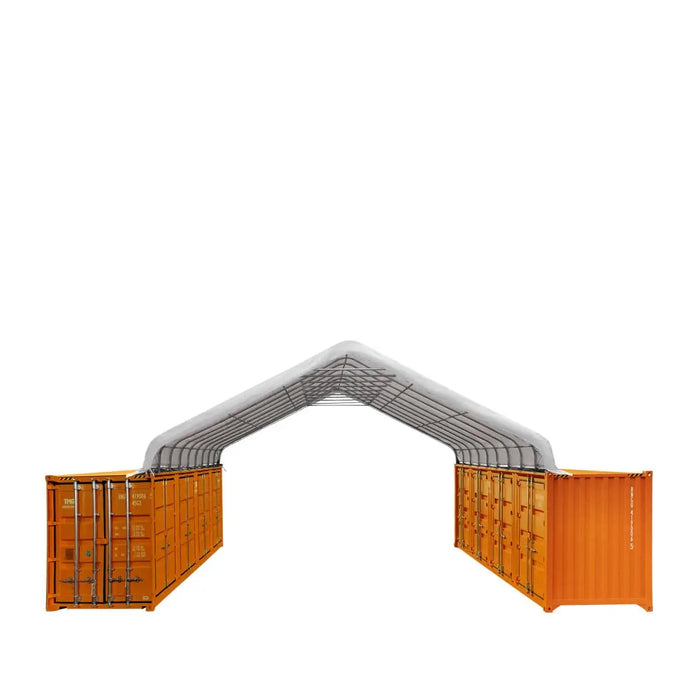

Mounted on containers or pony walls for maximum height, versatility and usability so that it can accommodate most job sites.

Reinforced Structure

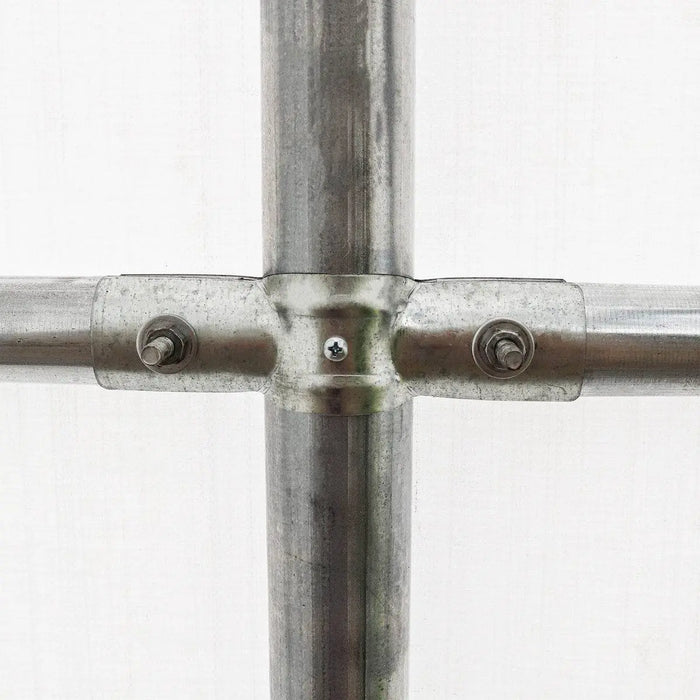

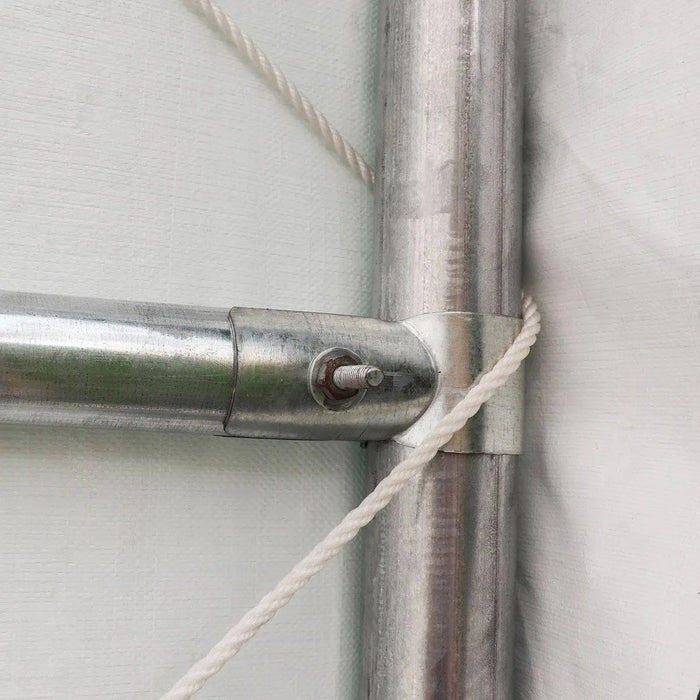

Single truss frame and solid bolted connection on all trusses help reinforce the structure by increasing support strength and rigidity.

All-Season Protection

Fully enclosed design provides year-round, all-weather protection for your machinery, tools, materials, and other sensitive cargo.

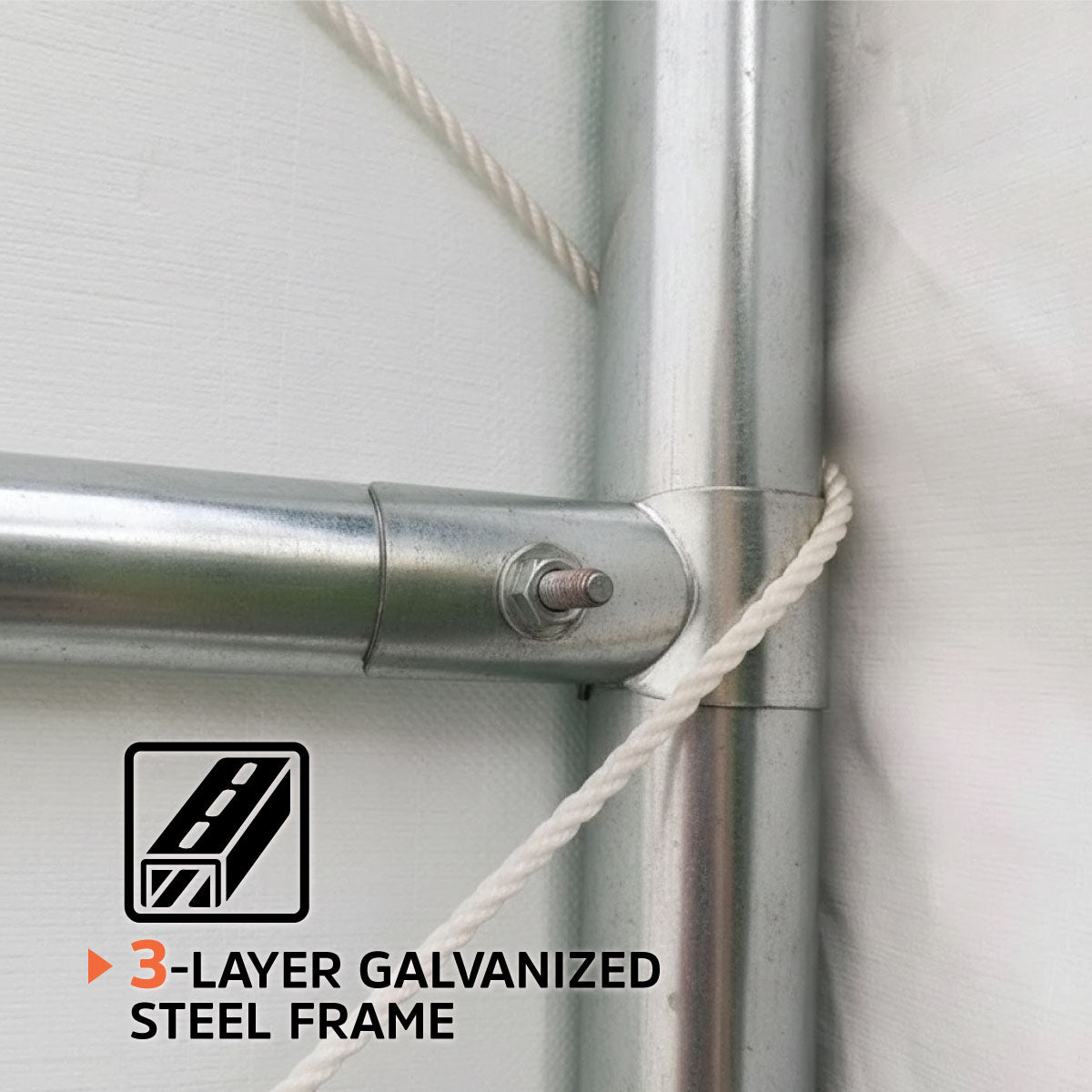

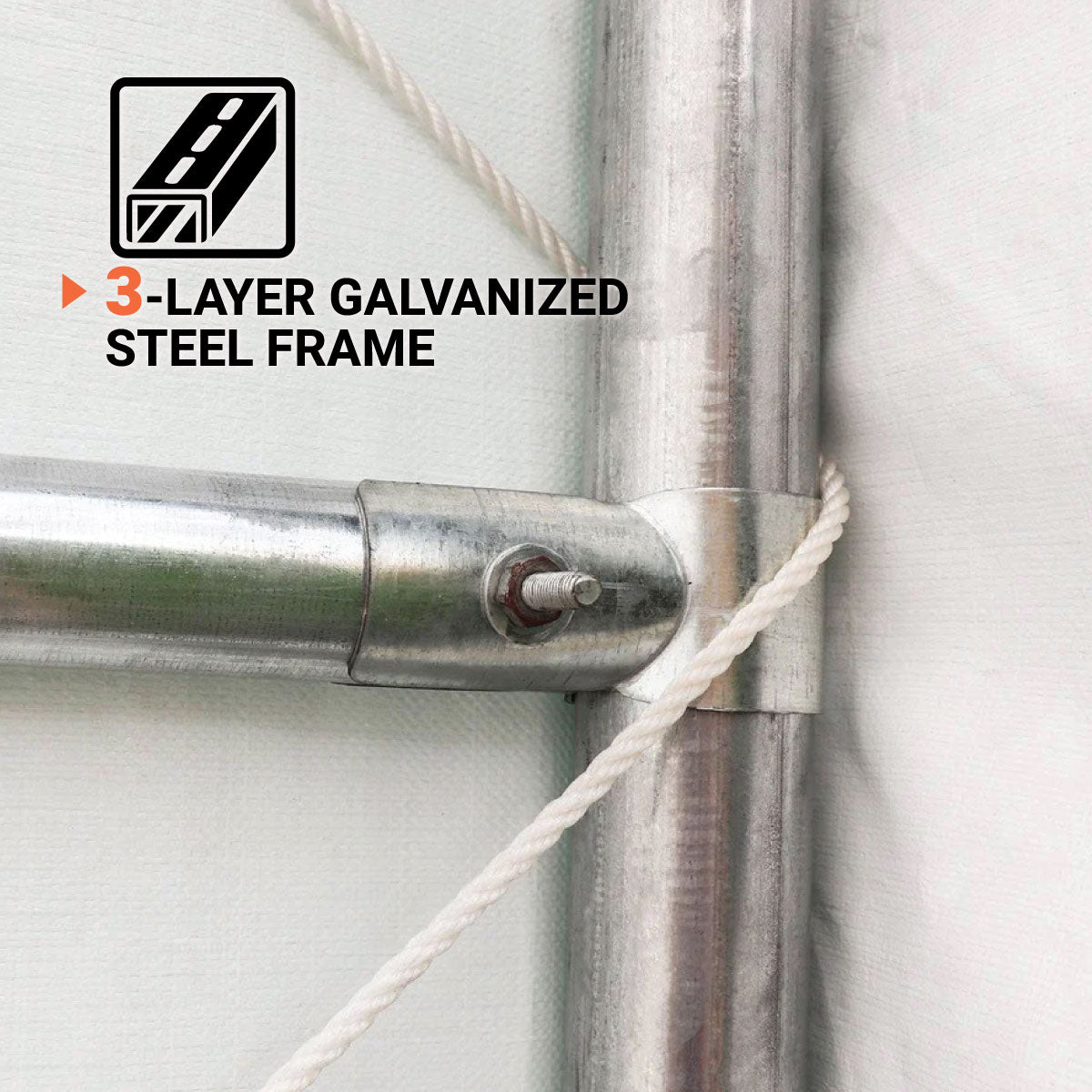

Galvanized Frame

Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable, and resistant to rust, wear, and corrosion.

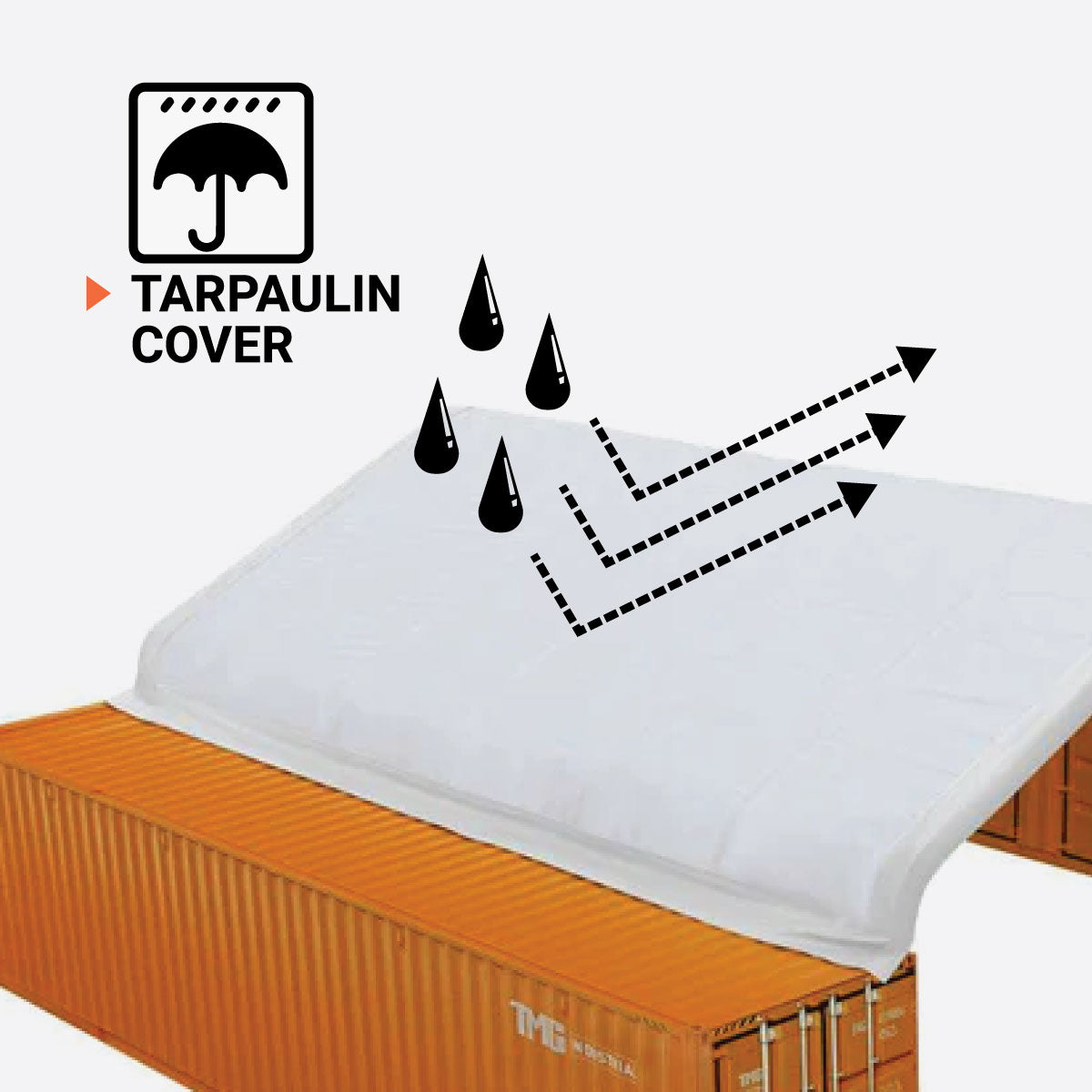

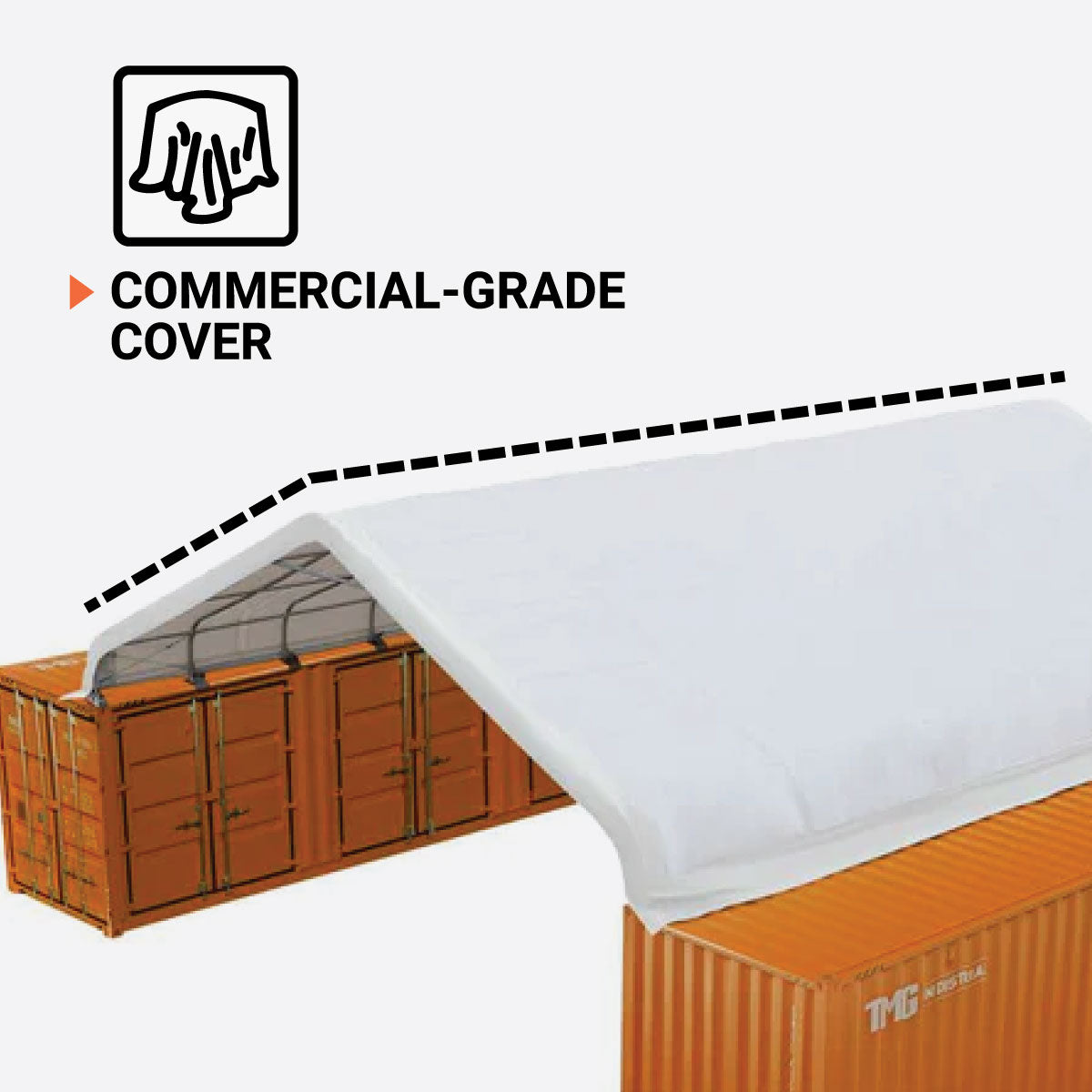

Premium PVC Cover

Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover. Stands strong against tearing, leaking; flame retardant; resistant to chemicals and oil; UV protected and waterproof.

Fabric colour: White

Stability Engineered

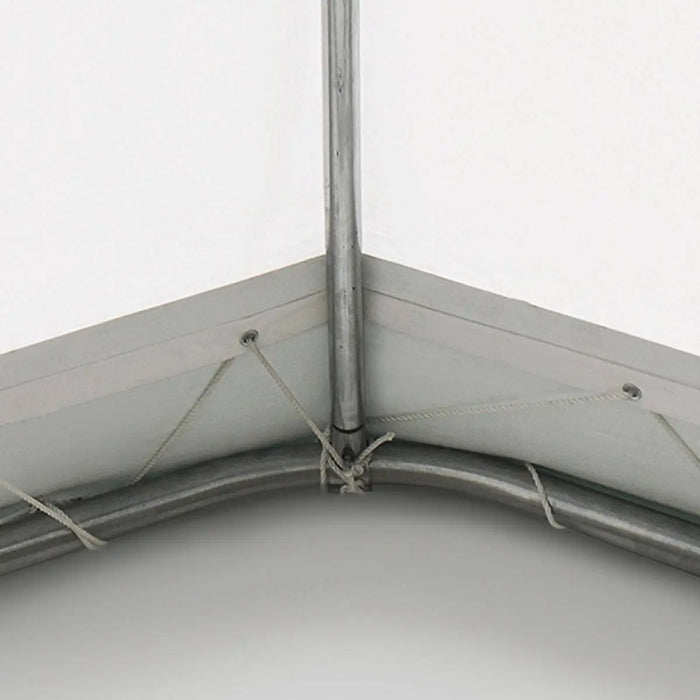

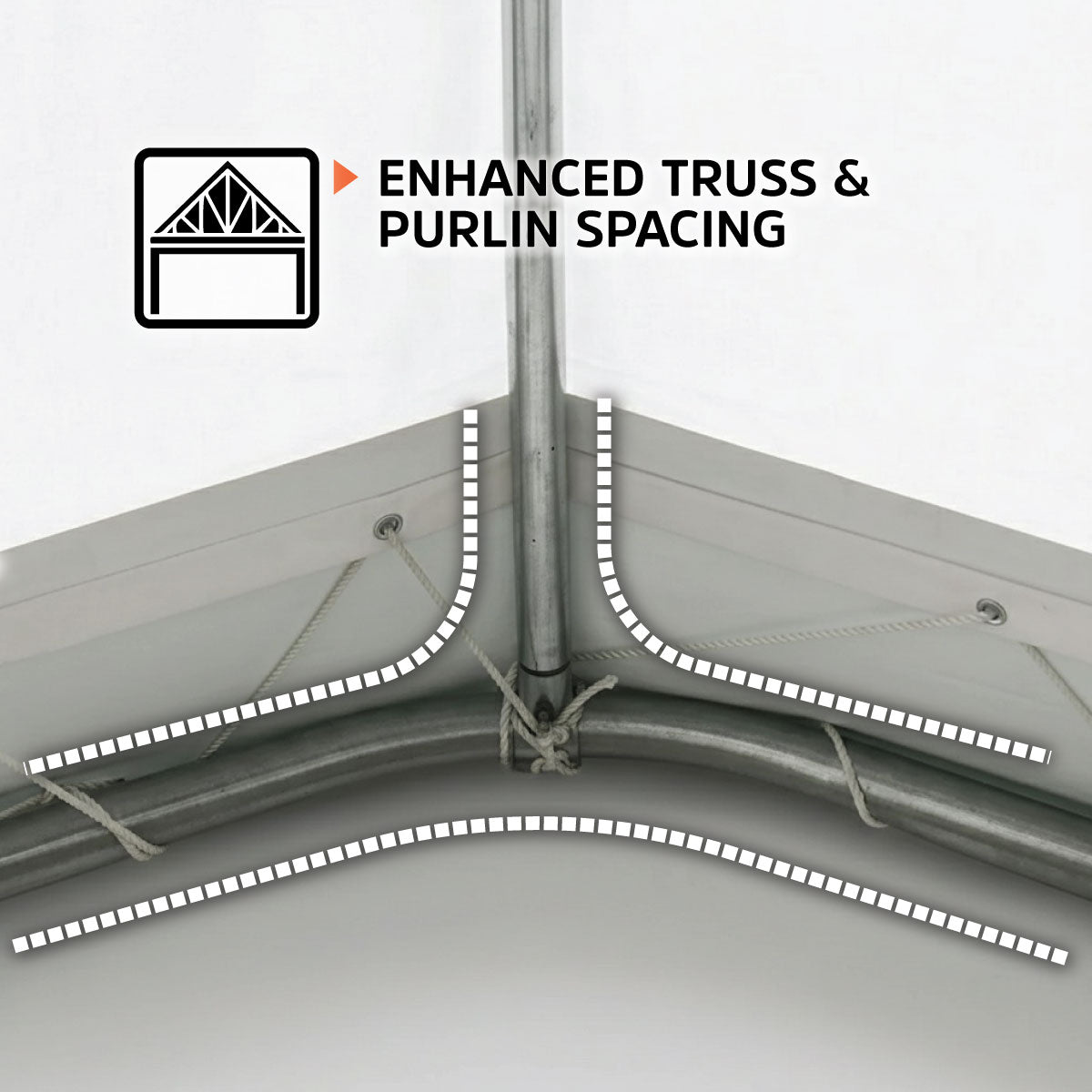

Designed with 52" (1.33 m) truss spacing, steel tubing, and a quad tension cable system for maximum stability and reliability on your worksite.

Wide Access

Wide open front wall winch roll-up door allows for easy parking, machine operation, and dynamic workflow throughout the shelter.

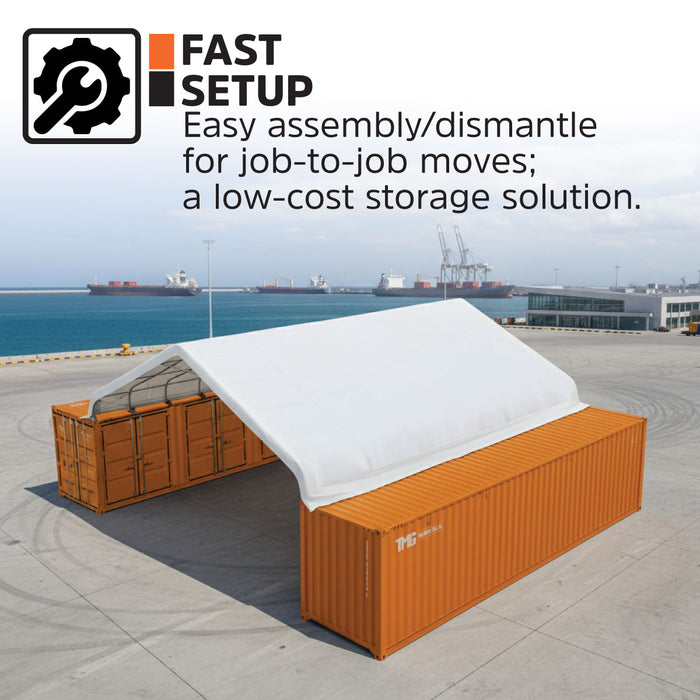

Fast Setup

Easy to assemble and dismantle for efficient setup or teardown when moving from one job to another; a low-cost storage solution overall.

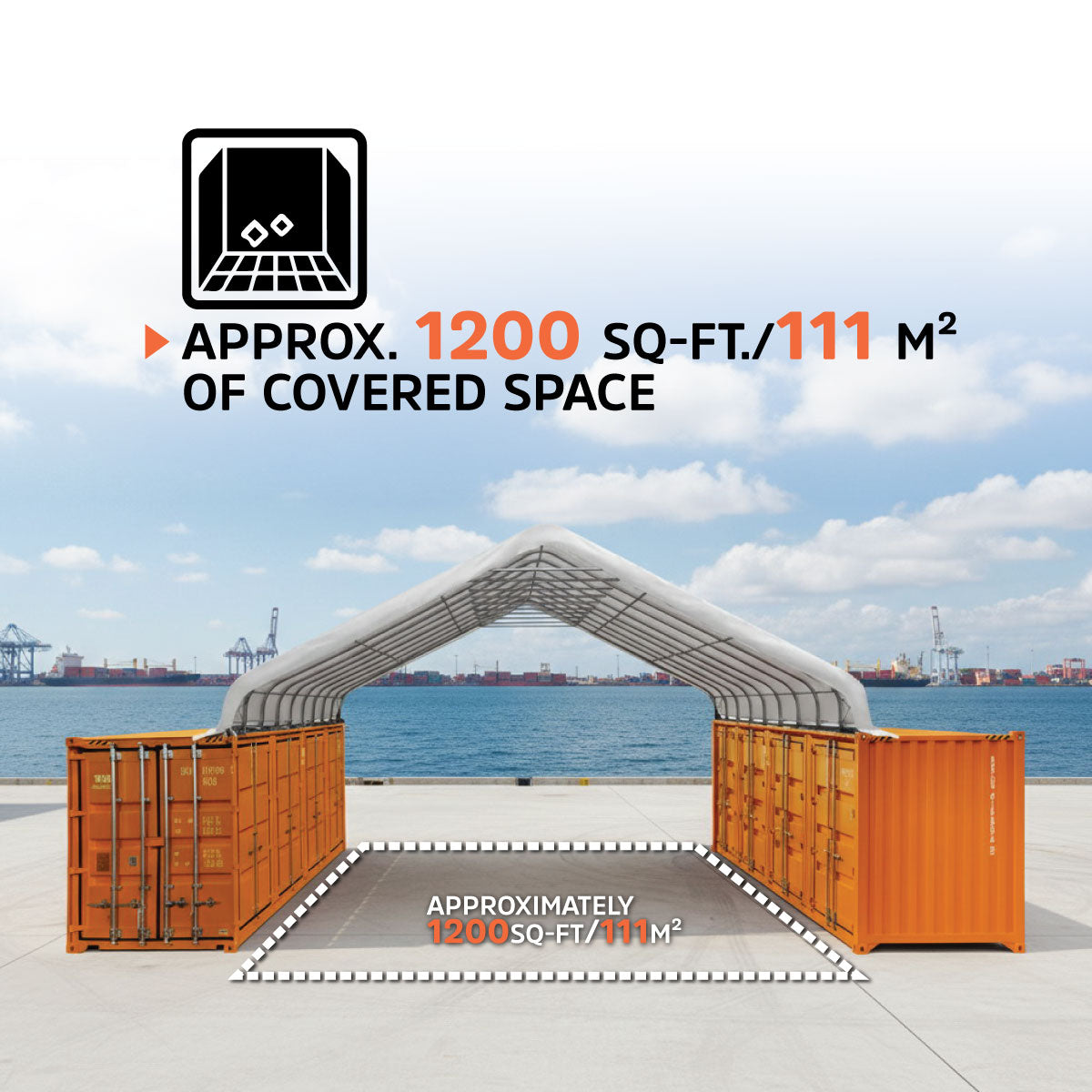

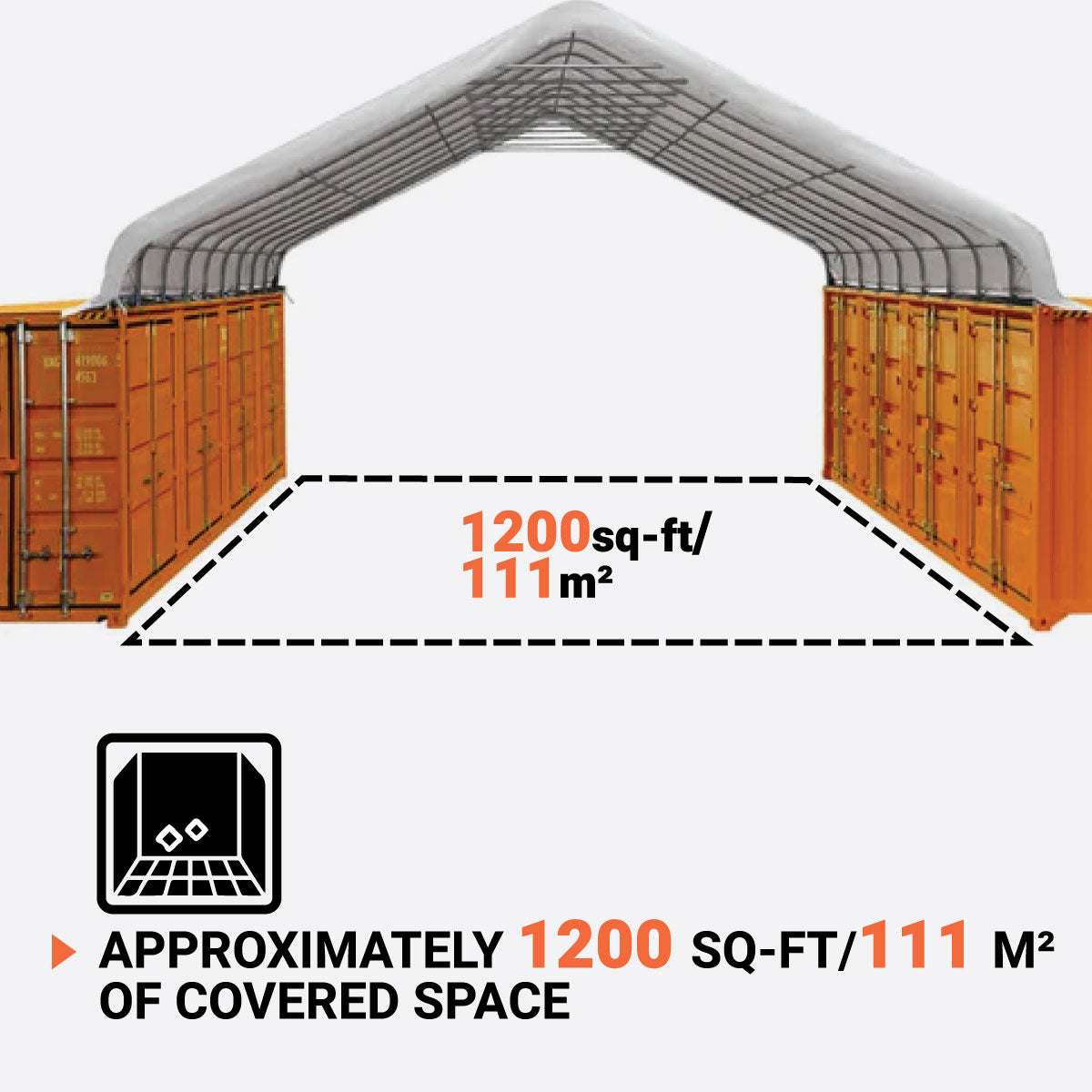

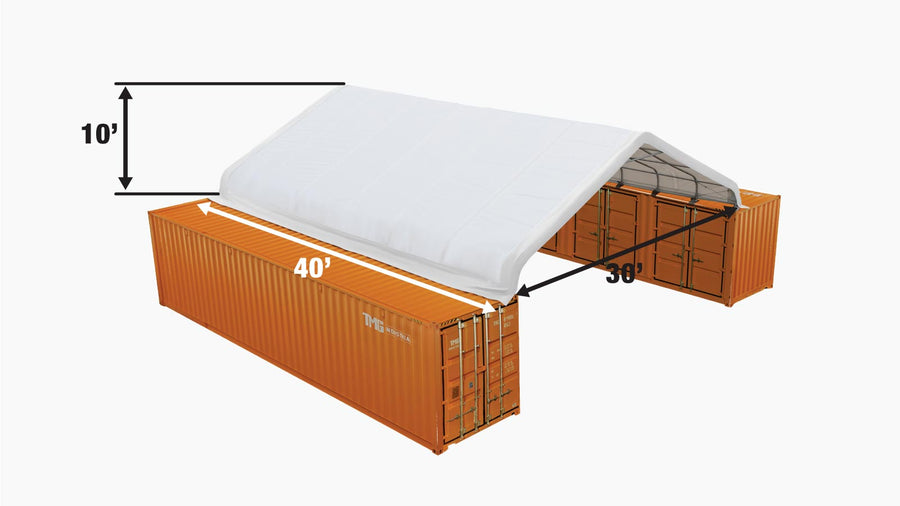

• Exact floor footprint (W x L): 30' x 39'4" (9.15 x 11.97 m)
• Truss spacing: 52" (1.33 m)
• Number of truss groups: 10
• Truss tubes: 2.3" x 14 GA (∅58 x 1.9 mm)
• Purlin tubes: 1.65" x 16 GA (∅42 x 1.3 mm)

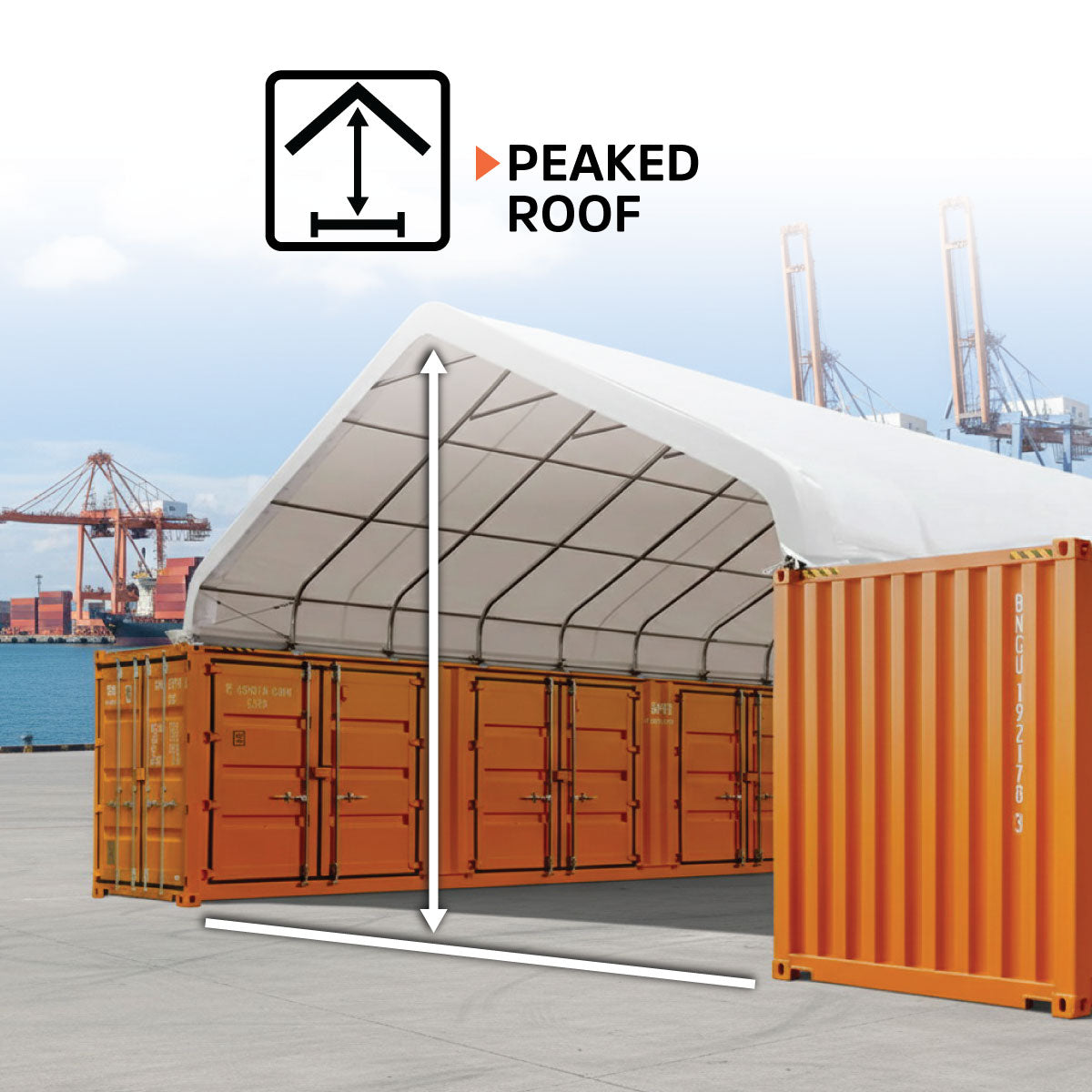

• Peak ceiling height from the ground: 19'6" (5.9 m), with 40' HC container
• Peak ceiling height from the top of the container: 10' (3 m)

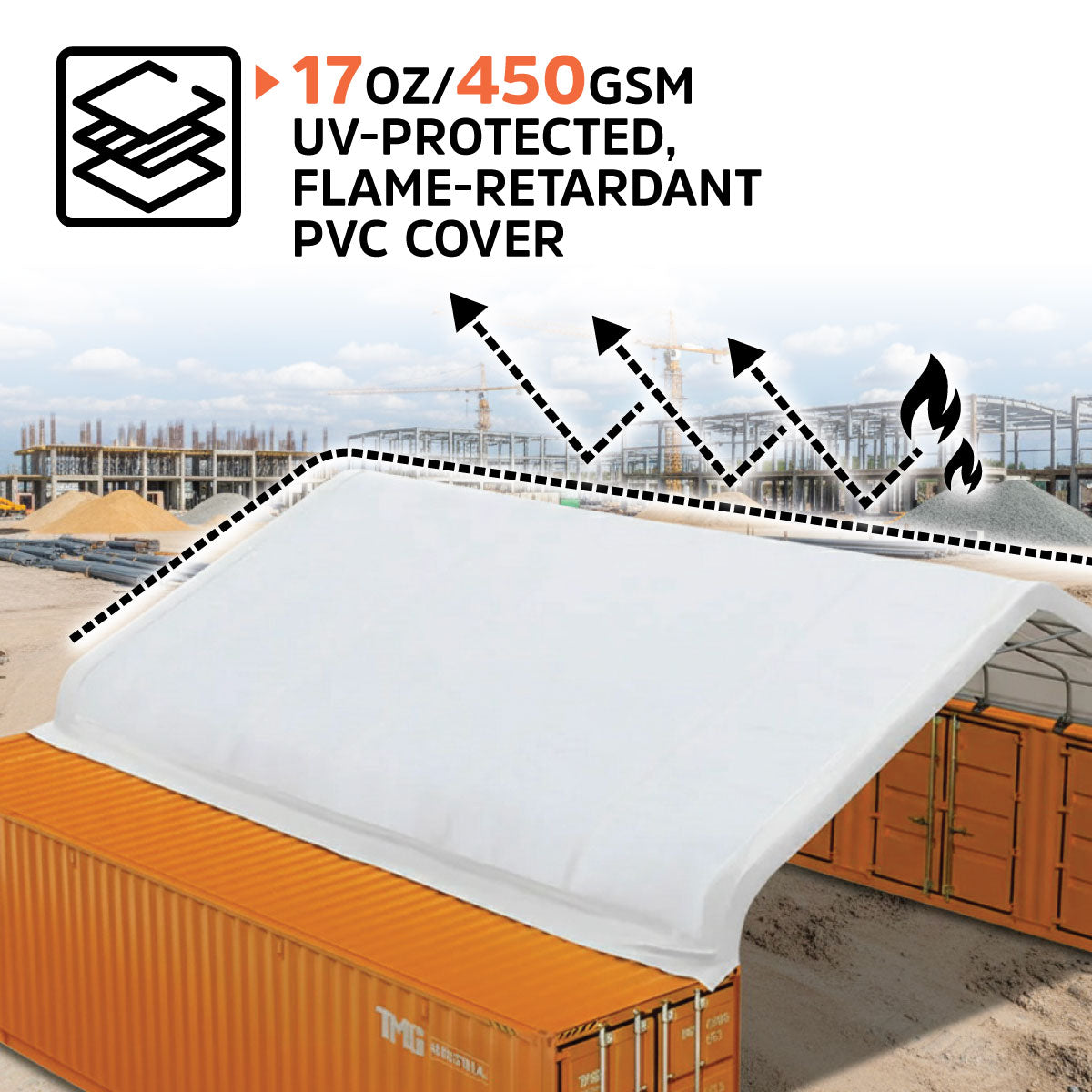

• Cover material: 17 oz (450 GSM) PVC fabric

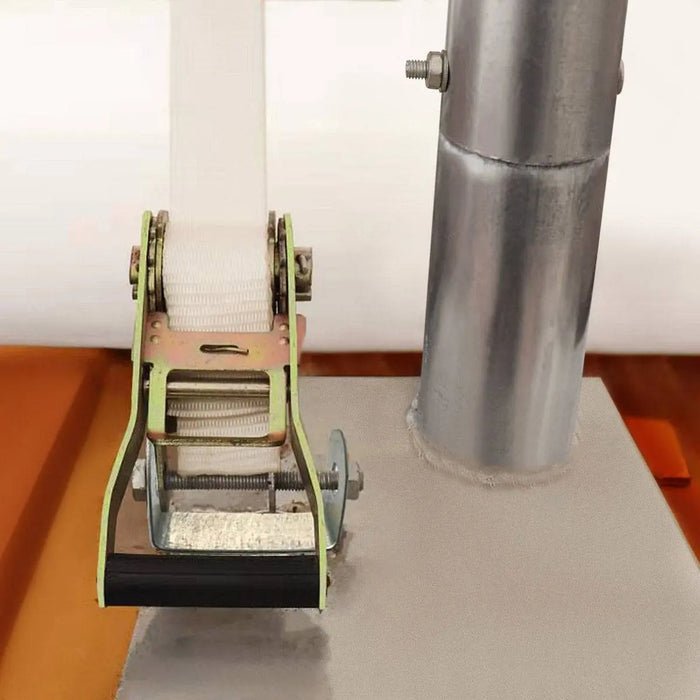

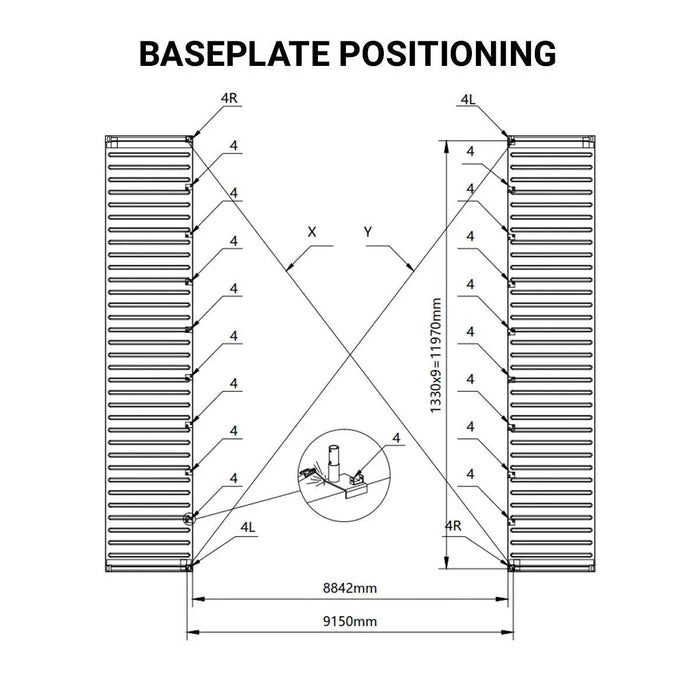

• Footplates with pre-drilled holes (anchor bolts not included)
• Welding required for all footplates
• Containers not included

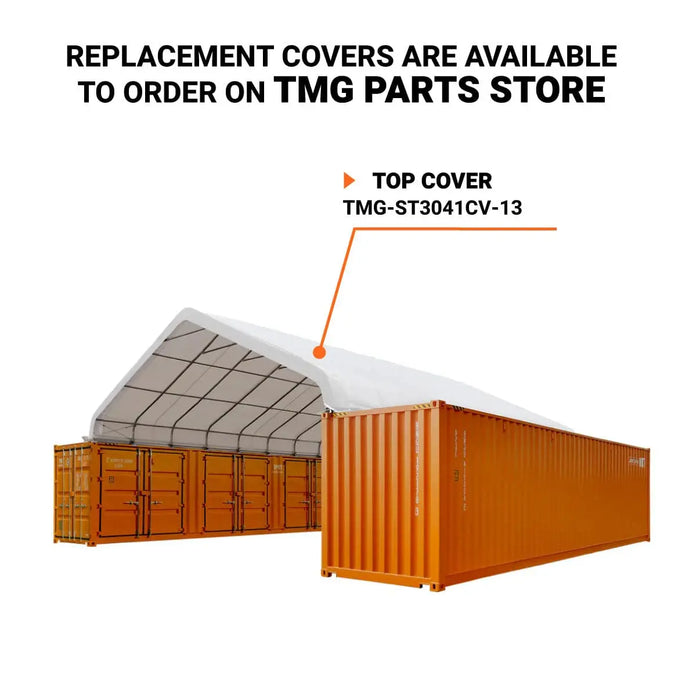

• Replacement covers available for order here TMG PARTS STORE

The order will ship from one of our warehouses in Canada. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

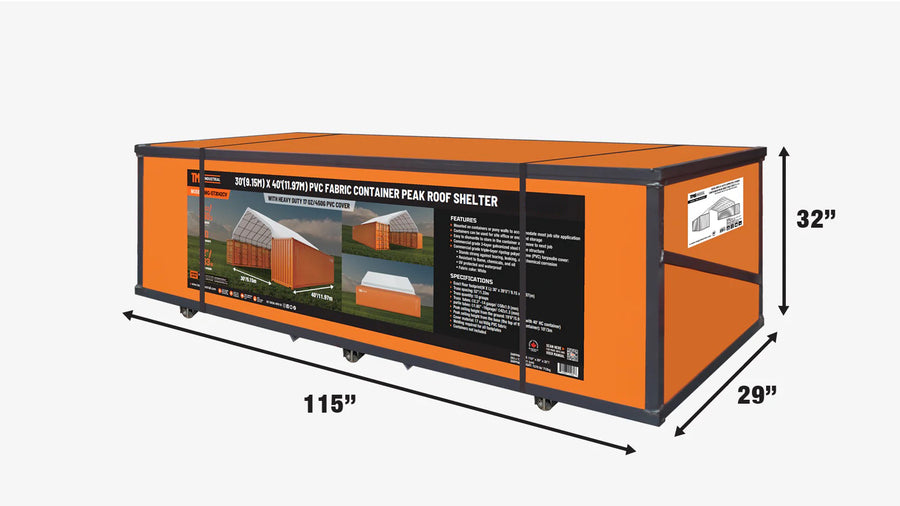

• The product is packed in a metal crate shipping box
• Shipping dimension: 115” x 29” x 32” (L x W x H) 293 x 74 x 81 cm
• Shipping weight: 1570 lb (712 kg)

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
