TMG-ST2030 20' x 30' Straight Wall Storage Building with Heavy-Duty PE Fabric Cover
SKU TMG-ST2030

TMG-ST2030 20' x 30' Straight Wall Storage Building with Heavy-Duty PE Fabric Cover

$3,750.00 - $3,750.00
$3,750.00
$3,750.00 - $3,750.00
$3,750.00
CURRENTLY IN STOCK
FREE SHIPPING IN CANADA* Learn More
1159.0 lb
87 x 29 x 32 inches
More Shipping Info
1-877-761-2819
  • Straight wall gable roof design offers ample room along both sides for more storage space
  • Commercial grade 3-layer galvanized steel frame structure
  • Additional purlins and collar beams added on end trusses to increase snow and wind stability
  • Ratchet strap system to secure the ground bars to the footplates
  • Dirt skirt on both long sides to protect against crosswinds
  • Commercial grade triple-layer ripstop polyethylene (PE) tarpaulin cover:
    • Stands strong against tearing, leaking, and chemical corrosion
    • Resistant to flame, chemicals, and oil
    • UV protected and waterproof
    • Fabric color: white with green trim
  • Footplates with pre-drilled hole (anchor bolts not included)
  • Foundation required: concrete slabs or equivalent
More Information
Product Manual
Features Specs Shipping Info Description Warranty Reviews

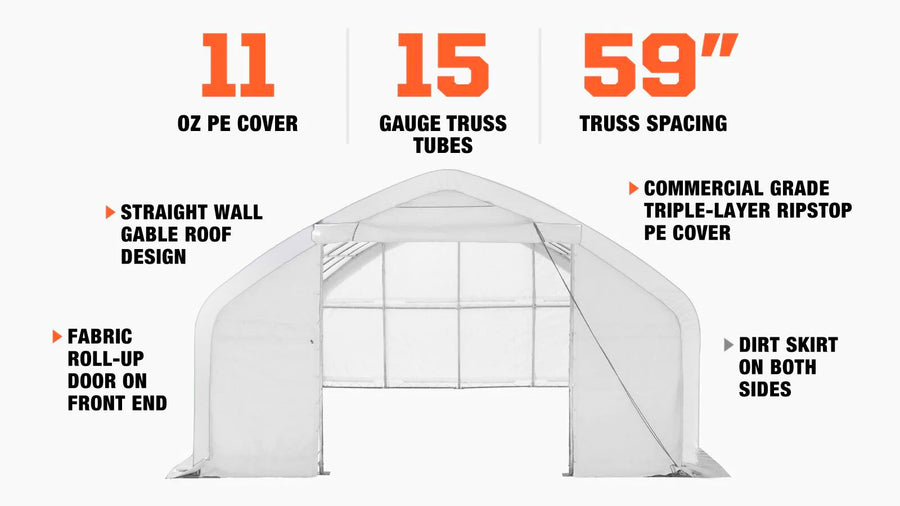

Features + Benefits

  • Straight wall gable roof design offers ample room along both sides for more storage space
  • Commercial grade 3-layer galvanized steel frame structure
  • Additional purlins and collar beams added on end trusses to increase snow and wind stability
  • Ratchet strap system to secure the ground bars to the footplates
  • Dirt skirt on both long sides to protect against crosswinds
  • Commercial grade triple-layer ripstop polyethylene (PE) tarpaulin cover:
    • Stands strong against tearing, leaking, and chemical corrosion
    • Resistant to flame, chemicals, and oil
    • UV protected and waterproof
    • Fabric color: white with green trim
  • Footplates with pre-drilled hole (anchor bolts not included)
  • Foundation required: concrete slabs or equivalent

Specifications

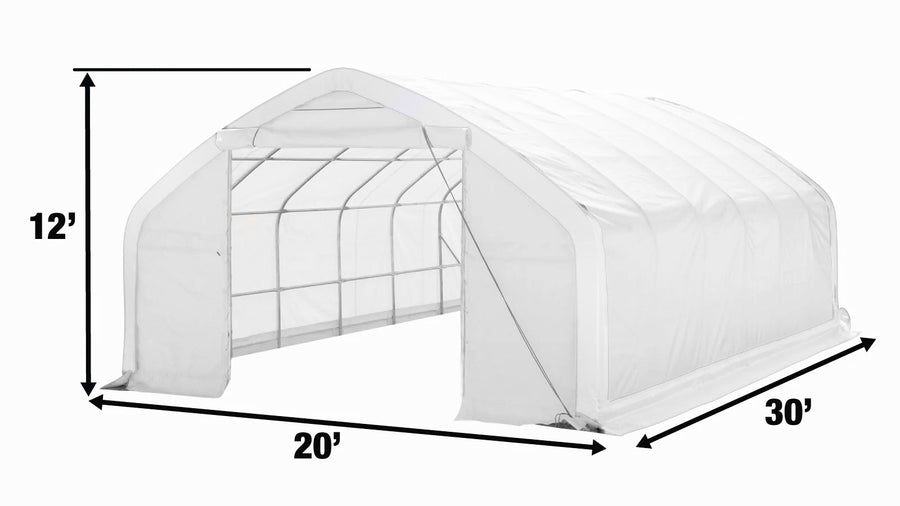

  • Exact floor footprint: 20’ (W) x 29.5’ (L)
  • Truss spacing: 59’’
  • Truss quantity: 7 groups
  • Peak ceiling height: 12'
  • Side-wall height: 80’’
  • Truss tubes:   ⌀1.9” – 15 gauge (approx.)
  • Purlin tubes:   ⌀1.65” – 17 gauge (approx.)
  • Purlins on rafter: 54 of 9 rows
  • Door clearance: 10’(W) x 10’(H)
  • Cover material: 11oz PE fabric, 14 x 14 weave, 20 Mil

Shipping Information

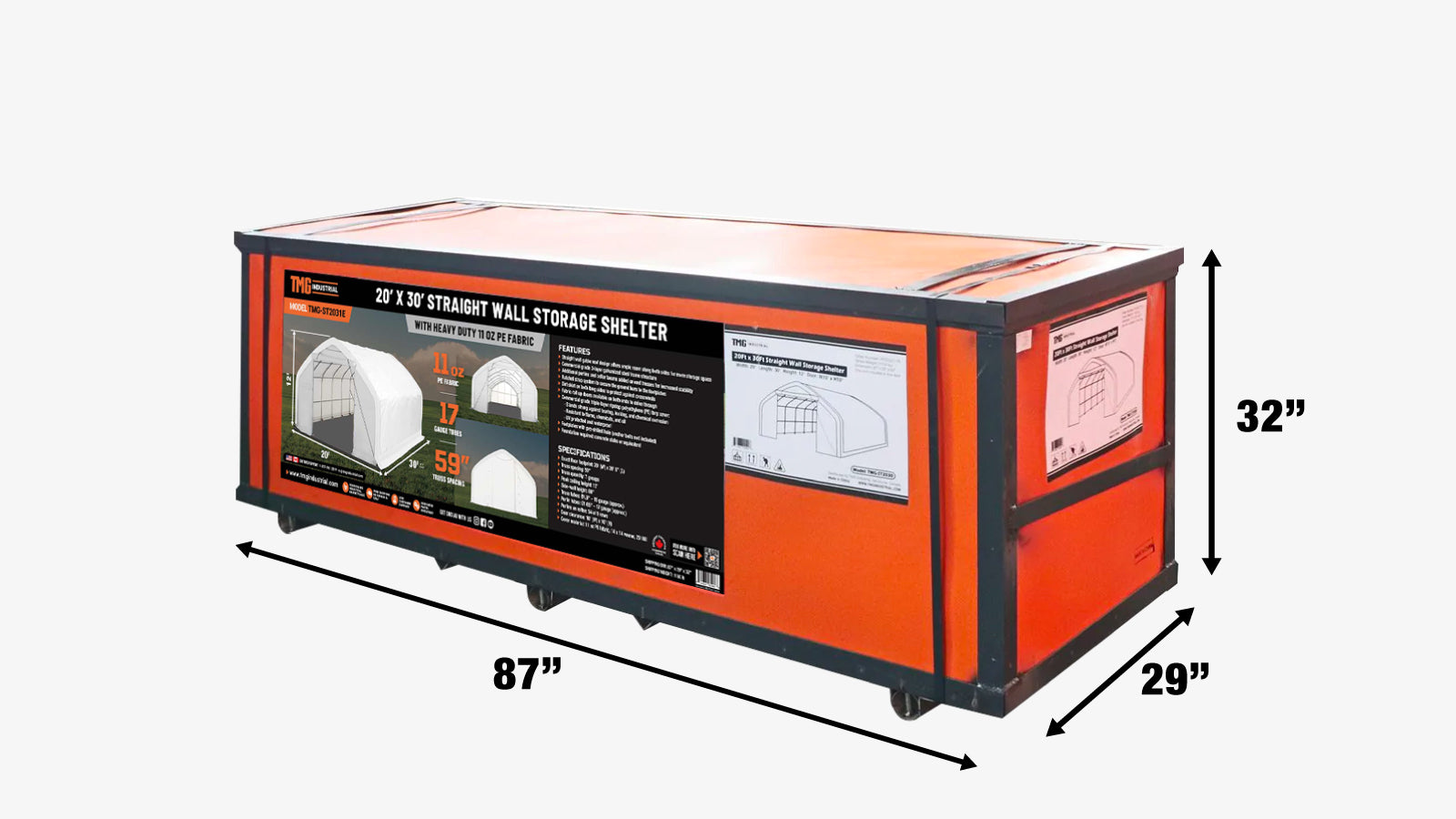

  • Packed in one metal crate shipping box
  • Shipping size: 87” x 29” x 32”
  • Shipping weight: 1159 lb
Shipping from Richmond, BC

Product Description

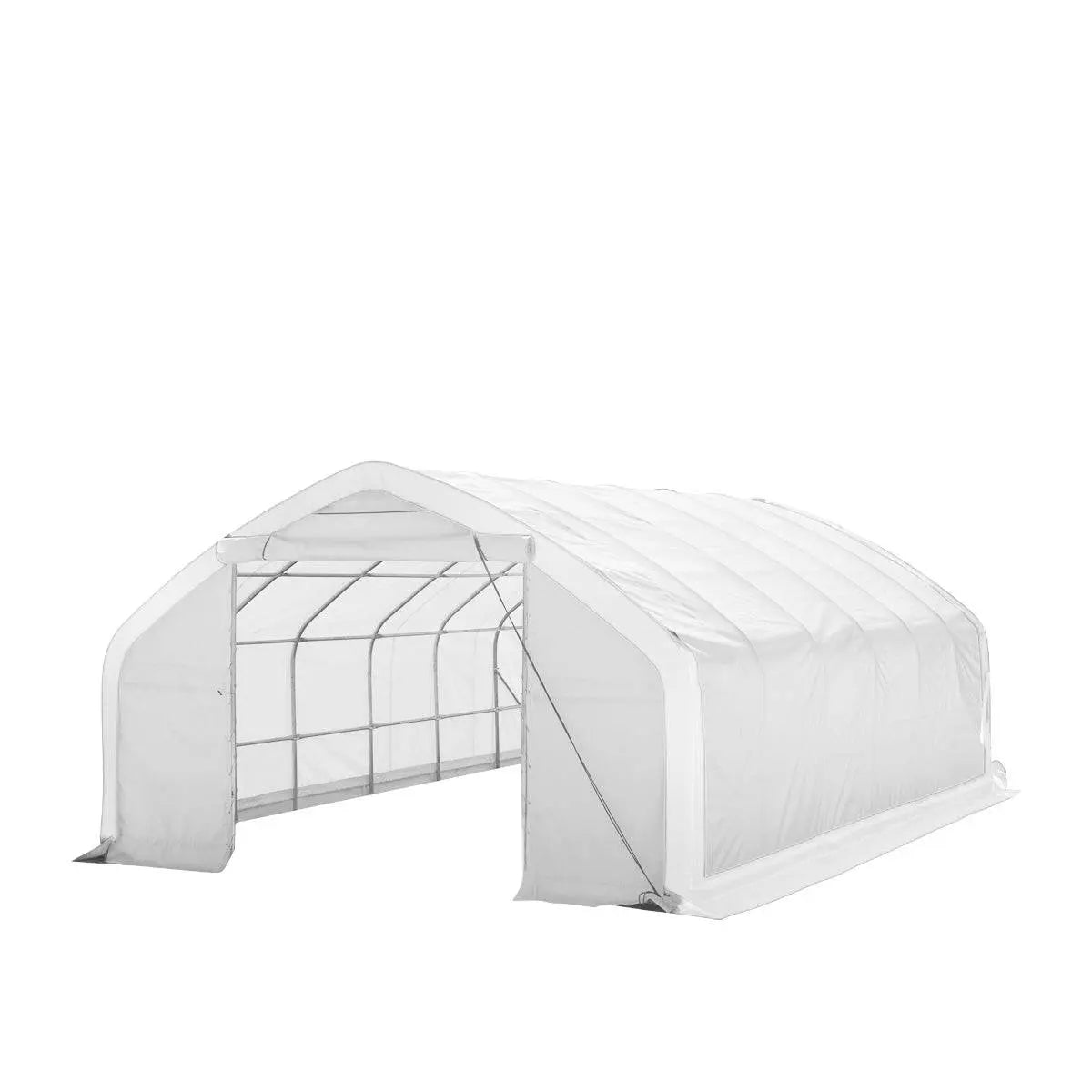

The TMG Industrial 20’ x 30’ Straight Wall Storage Building features a heavy-duty polyethylene cover that is treated to be fire retardant, UV resistant, and water-resistant. The structure is made of commercial-grade galvanized steel tubes that are designed to be long-lasting and relatively easy to assemble. A dirt skirt along both long sides helps protect against crosswinds, giving this shelter increased durability. The roll-up door has a clearance of 10’ for both height and width. This shelter is great for cars, SUVs, boats, and ATVs, as a small shop, for storing farm equipment, and much more.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
Customer Reviews
3.6 Based on 5 Reviews
5 ★
0%
0
4 ★
60%
3
3 ★
40%
2
2 ★
0%
0
1 ★
0%
0
Customer Photos
i
i
i
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
J
11/23/2021
Justin
Canada Canada

Solid shelter, Iffy assembly

The unit itself is great, strong frame, excellent tarp system, good dry shelter. However. The driling to bolt the trusses together was subpar at best. Nearly every 1 to 2 connection wasn't even close to lining up and had to be redrilled, attemting to connect some of these destroyed the threads immediately. The rope that comes with it to hold the front and the back on is just a big bundle where you have to guess the lengths and it will not hold a knot at all, i recommend buying some hose clamps and zip ties to help. The manual is by far the worst part, horrendous wording and minimal steps makes this a very frustrating task, and the pictures are tony and in black and white so it is very hard to see whats going on. You'd think for 4200 dollars after tax the manual would cost more then 8 cents.

TMG Industrial TMG-ST2030 20' x 30' Straight Wall Storage Building with Heavy-Duty PE Fabric Cover ReviewTMG Industrial TMG-ST2030 20' x 30' Straight Wall Storage Building with Heavy-Duty PE Fabric Cover Review
Share   |   Facebook  •  Twitter
Was this helpful?  4    0
11/25/2021

TMG Industrial

Thank you for taking time on the feedback. We will definitely work on the issues to get the holes in line, will add a rope spool to clean up the mess.

LM
11/19/2021
Lee M.
Canada Canada

Have you got a week?

This was not an easy thing to build. Took a lot more people and time than suggested. The instructions that came with it are not great at all, especially the suggestion on how to pull the tarp overtop from one side as it tore the canvas and is far too heavy to try and do it that way. Only success we has was to roll it it up, place it on the peak and them let it unroll down each side. A much easier way. Ratchet strap slits should be precut as I can see them tearing easily over time. The ROPE. OMG the rope. There has to be a better way! It was a brutal building experience overall. Having said all this, while I found the set up frustrating, once up, I do like the finished product.

Share   |   Facebook  •  Twitter
Was this helpful?  1    1
NB
11/17/2021
Noel B.
Canada Canada

Boat storage shelter

Overall it was good, it took 3 men to build it over 2 days. Instruction manual could be little better detailed.cutting slits for ratchet wires is a difficult should be pre cut . Only missing four bolts, but had a some in my stock. My big disappointment is the door it doesn’t roll up properly and you need a ladder every time you want to make sure it is fully open by folding it up to top.

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
AB
11/09/2021
Alex B.
Canada Canada

20x30 building

The first set of pieces to put together had a poor fit. Lots of fighting to get the top arch and braces together. After that I expected the worst but everything else lined up great. The 90000000 meters of rope is annoying. Maybe a different type of attachment would be good. TMG was great. Responsive and quick.

TMG Industrial TMG-ST2030 20' x 30' Straight Wall Storage Building with Heavy-Duty PE Fabric Cover Review
Share   |   Facebook  •  Twitter
Was this helpful?  1    1
RG
12/21/2020
Robert G.

Fabric storage buildings.

The buildings are working well We set up three as temporary structures to start development of our property.

Share   |   Facebook  •  Twitter
Was this helpful?  4    0
