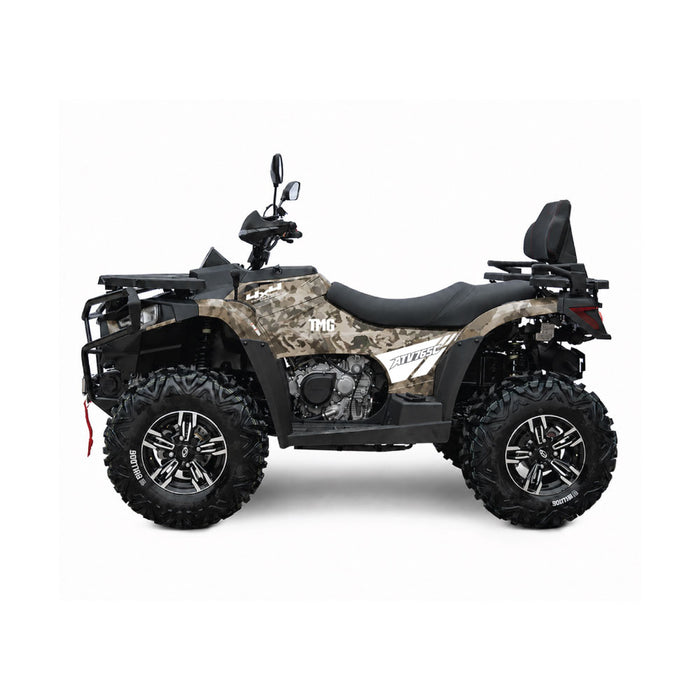

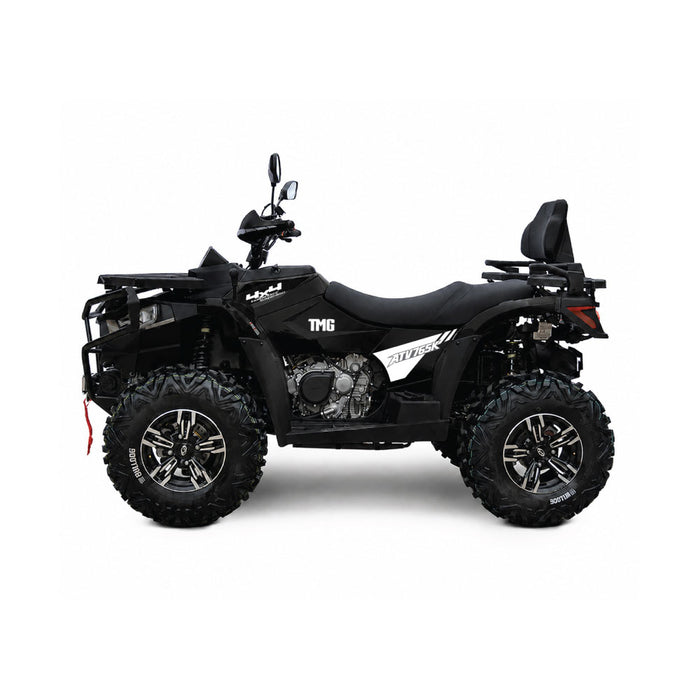

585cc ATV with On-Demand 4WD, EPS, CVTech Transmission, 2-Up Seating & Backrest, Locking Differentials, and Trailer Hitch TMG-ATV765
FREE
shipping to most locations in
Canada
Features
Features
- Powerful Big Bore Engine: Torquey power delivery from the 585cc EFI gasoline engine.
- On - Demand 4WD Drivetrain: Selectable 4WD with front and rear locking differentials help you tackle any terrain.
- High Performance Canadian CVTech Transmission Power is sent through the Canadian manufactured CVTech-IBC CVT.
- Electric Power Steering: Electric power steering helps you ride all day long without fatigue.
- High Contrast TFT Dash board Display: The TFT dash display ensures you can always read vital vehicle information.
- Standard Trailer Hitch: Standard 2" trailer hitch lets you tow trailers and equipment to get work done.
- Heavy Duty 3000 lb Winch: The heavy duty 3000 lb winch helps pull anything you need.
- Front and Rear Cargo Racks: Front and rear cargo racks allow you to tie down and transport tools and equipment.
- LED Matrix Headlights: The bright LED Matrix headlights help you see the darkest trails.
- All Terrain Tires 25" All Terrain tires on lightweight alloy wheels keep you confident in all conditions.
- Hand Guards Standard handguards keep you protected from branches and bushes.
Specifications
Specifications
| TMG-ATV325 | TMG-ATV555 | TMG-ATV575 | TMG-ATV765 | |
|---|---|---|---|---|
| Max Speed (km/h) | 60 km/h | 80 km/h | 80 km/h | 95 km/h |
| Max Speed (mph) | 37 mph | 50 mph | 50 mph | 59 mph |
| Ground Clearance (inch) | 7.2" | 10" | 10.6" | 10.6" |
| Ground Clearance (mm) | 183 mm | 253 mm | 270 mm | 270 mm |
| 4WD System | On Demand, Front Locking Differential | On Demand, Front Locking Differential | On Demand, Front Locking Differential | On Demand with Front & Rear Locking Differential |
| Transmission | CVT with L-H-N-R | CVT with L-H-N-R | CVT with L-H-N-R | CVTech-IBC CVT with L-H-N-R-P |
| Seating | Single Seat with Backrest | Single Seat with Backrest | 2-Up Seat with Backrest | 2-Up Seat with Backrest |
| Electric Power Steering (EPS) | - | - | Yes | Yes |
| Wheels | Steel | Alloy | Alloy | Alloy |
| Tires | F: AT24x8-12 R: AT24x11-10 | F: AT25x8-12 R: AT25x10-12 | F: AT25x8-12 R: AT25x10-12 | F: AT25x8-12 R: AT25x10-12 |
| Trailer Hitch with 2" Ball Mount | Yes | Yes | Yes | Yes |
| Winch Capacity (lb) | 3000 lb | 3000 lb | 3000 lb | 3000 lb |
| Winch Capacity (kg) | 1460 kg | 1460 kg | 1460 kg | 1460 kg |
| Towing Capacity (lb) | 452 lb | 441 lb | 441 lb | 459 lb |
| Towing Capacity (kg) | 205 kg | 200 kg | 200 kg | 208 kg |
| Headlights | LED | LED | Halogen | LED |
| Front & Rear Cargo Racks | Yes | Yes | Yes | Yes |
| Dry Weight (lb) | 650 lb | 783 lb | 805 lb | 871 lb |
| Dry Weight (kg) | 295 kg | 355 kg | 365 kg | 395 kg |
| Dimensions (L x W x H) (inch) | 83"x45"x50" | 83"x47"x50" | 92"x46"x50" | 94"x51"x52" |
| Dimensions (L x W x H) (mm) | 212x114x127 cm | 212x119x127 cm | 233x118x127 cm | 240x131x133 cm |
Engine Specifications:
| TMG-ATV325 | TMG-ATV555 | TMG-ATV575 | TMG-ATV765 | |
|---|---|---|---|---|
| Engine Model | LH173MN | LH188MR-A | LH188MR-A | LH191MS |
| Engine Description | Single Cylinder, 4 Stroke, Water Cooled | Single Cylinder, 4 Stroke, Water Cooled | Single Cylinder, 4 Stroke, Water Cooled | Single Cylinder, 4 Stroke, Water Cooled |
| Horsepower | 22 HP | 33 HP | 33 HP | 40 HP |
| Engine Displacement | 275 cc | 493 cc | 493 cc | 585 cc |
| Engine Certification | EPA | EPA | EPA | EPA |
| Engine Start Type | Electric Start | Electric Start | Electric Start | Electric Start |
| Fuel Tank Capacity (L) | 14 L | 12.5 L | 14.5 L | 20 L |
| Fuel Tank Capacity (gal) | 3.7 gal | 3.3 gal | 3.8 gal | 5.3 gal |
| Fuel Delivery | Delphi EFI | Delphi EFI | Delphi EFI | Delphi EFI |
Product Description
Product Description
The TMG-ATV765 is an off-road ATV (All-Terrain Vehicle) that can be used to explore, work, and play. The ATV765 is powered by a big bore 585cc gasoline engine. Power is sent through a high performance Canadian manufactured CVTech-IBC CVT transmission with Reverse, Park, High, and Low range gearing that enables capable riding all day long. The On-Demand 4WD system with front and rear locking differentials can be controlled with a single finger allowing you to explore trails you've never seen before.
The ATV765 comes with an additional seat and comfy backrest letting you take a passenger along for the adventure. The standard 2" trailer hitch and tow ball along with practical front and rear cargo racks allow you to move tools, equipment, and material around with ease. The ATV765 also features rugged all terrain tires on lightweight alloy wheels, a high contrast TFT dashboard display, and protective hand guards. The TMG-ATV765 is ready for trails, jobsites, or just ripping up dirt.
Explore the rest of the TMG ATV lineup like the TMG-ATV325, TMG-ATV555, or TMG-ATV575.
* The TMG-ATV765 is for Off Road Use Only *
Shipping Information
Shipping Information
Your order will be shipped from one of our main warehouses in Canada. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.
- This product is packaged in a metal frame with a fabric covering
- Shipping dimensions: 90" x 45" x 34" (L x W x H)
- Shipping weight: 970 lb
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
