10' U/V Angle Blade Snowplow, Metal Edges, 6 Positions, Accumulator & Solenoid Valve, 40-90 HP Tractors, TMG-SP10X

(Accessories Incl.)

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

NOTIFY ME WHEN AVAILABLE

Features Specs Description Shipping Info Warranty Reviews

Features

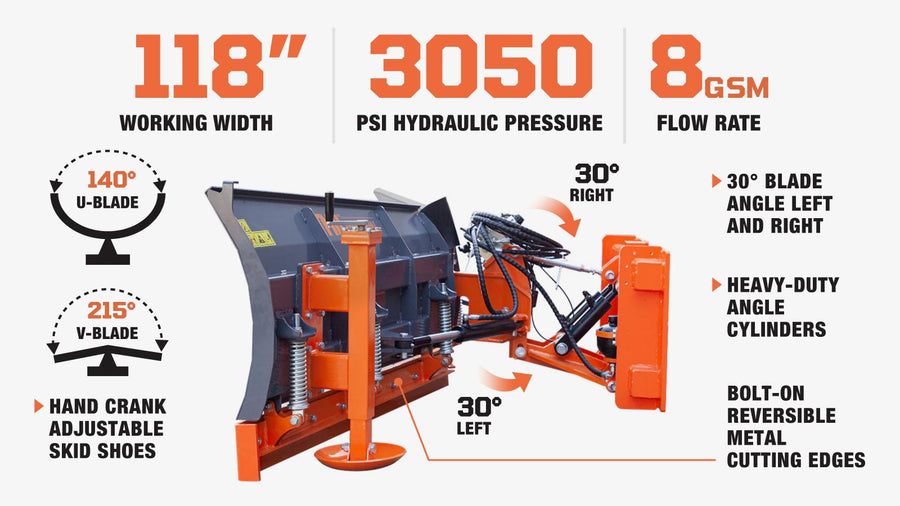

• Ideal attachment for commercial snow removal companies that need to move snow out of large parking lots, clearings, work sites and more
• 118” working width is able to move large piles of snow to make removal more efficient after light to heavy snowfalls in bigger lot areas
• Two bolt-on, high tensile steel cutting edges are resistant to wear and will make sure you scrape snow right down to the pavement for a clean, professional finish
• 140° angled U-blade and 215° angled V-blade with a 30° variance left or right provides both strong snow pushing and drift breaking capacity
• Combination system with a hydraulic accumulator, 6-port, 2-way solenoid valve and two pressure buffer relief valves integrated to manipulate all directions
• Ideal for the inventory of college campuses, shopping mall properties and professional buildings to clear sidewalks, driveways and entrances

See less ⌃

Specifications

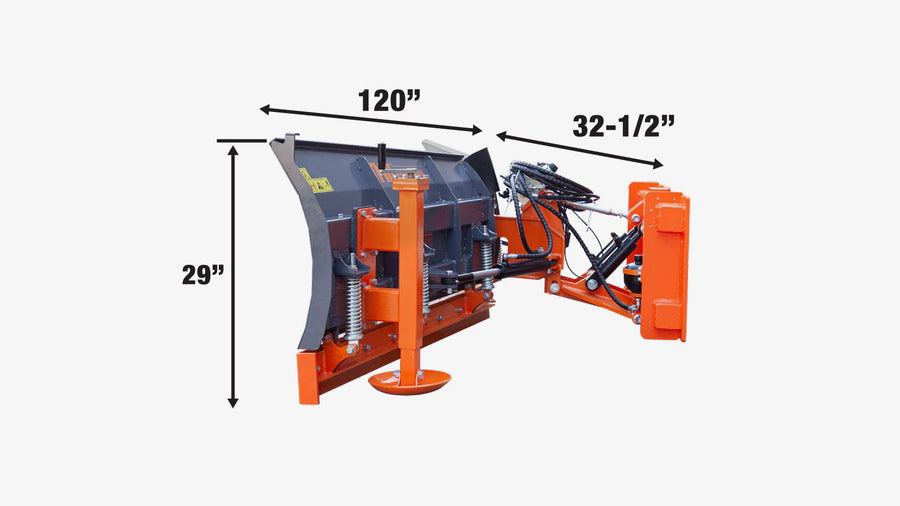

• Assembled size: 120” (L) x 32-½” (W) x 29” (H)
• Working width: 118”
• Metal cutting edges (2): 60-¼” x 5-½” x 1-¼”
• Side shoe crank range: 3-½”
• U-blade angle: 140°
• V-blade angle: 215°
• Side angle: 30°
• Quantity of cylinders: 3
• Quantity of positioning springs: 6
• Hydraulic hose: 13’ long, ½” diameter
• Hydraulic pressure: 3050 PSI
• Flow rate: 8 GSM
• Lugging spacing range: 26”-39”
• ±3° oscillation to overcome uneven roads
• Hand crank adjustable skid shoes
• Hook up ears not included. Custom modifications required to ensure compatibility with your specific machine

See less ⌃

Product Description

The TMG-SP10X U/V Angle Blade Snowplow is an ideal attachment for commercial snow removal companies who need to work on large parking lots, clearings and work sites. Its 10’ of working width and versatile moving blade makes bigger lots and diverse areas easy to clear even after heavy snowfalls due to its tough, rugged build. Could also be used on farms that have large clearings, driveways and trucking areas.

Two bolt-on, high tensile steel cutting edges are resistant to wear and provide superior, heavy-duty pushing power for a clean, professional finish that you and your customers will be proud of. 140° angled U-blade and 215° angled V-blade with a 30° variance left or right provides both strong snow pushing and drift breaking capacity.

2-way, 6-port hydraulic diverting solenoid valve integrated to manipulate in all directions. System is protected from high resistance push back due to the hydraulic accumulator that dramatically extends the lifespan of the attachment. Equipped with an adjustable quick-change lugging profile to accommodate a variety of machines.

We also carry a 8-½’ model of this snow plow: TMG-SP08X

See less ⌃

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

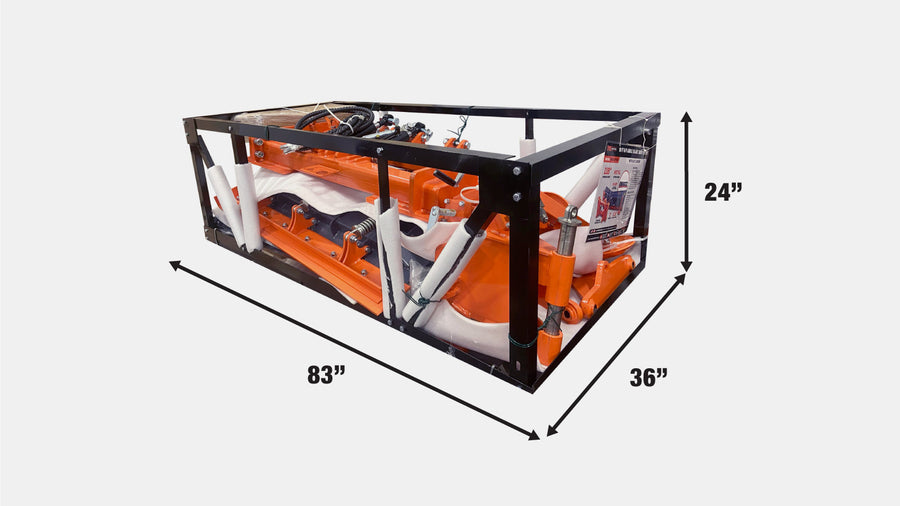

• This product is packed in a metal crate shipping box
• Shipping dimension: 83” x 36” x 24” (L x W x H)
• Shipping weight: 1340 lb

Shipping from Richmond, BC, or Mississauga, ON
