SKU TMG-MVL25P

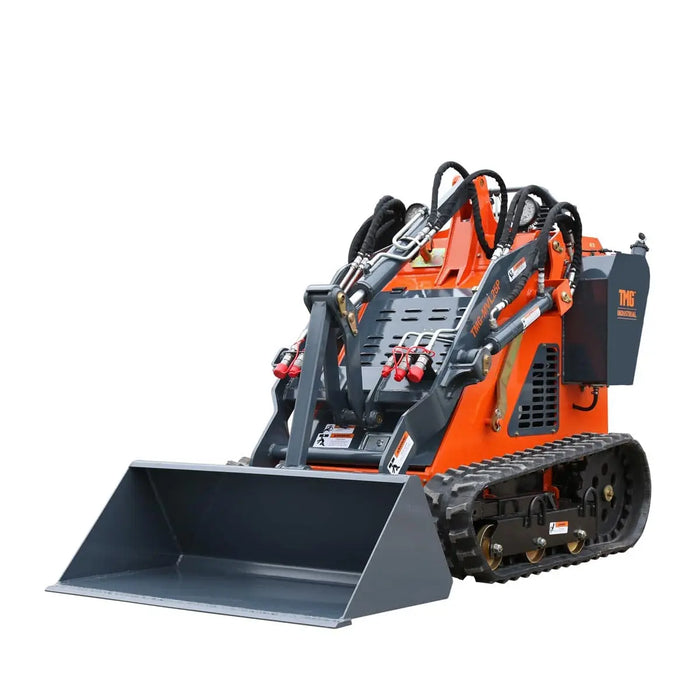

TMG-MVL25P Stand-On Mini Track Loader, 25HP Perkins Diesel Engine, EATON Motor, PERMCO Hydraulic Pump, Italian HYDRO CONTROL Valve, Smooth Bucket Included

Original price $37,500.00
Original price $37,500.00 - Original price $37,500.00
Original price $37,500.00
Current price $31,875.00
$31,875.00 - $31,875.00
Current price $31,875.00
Save $5,625.00 Save $5,625.00 CURRENTLY IN STOCK
FREE SHIPPING IN CANADA* Learn More
2535.0 lb
100 x 45 x 56 inches
More Shipping Info

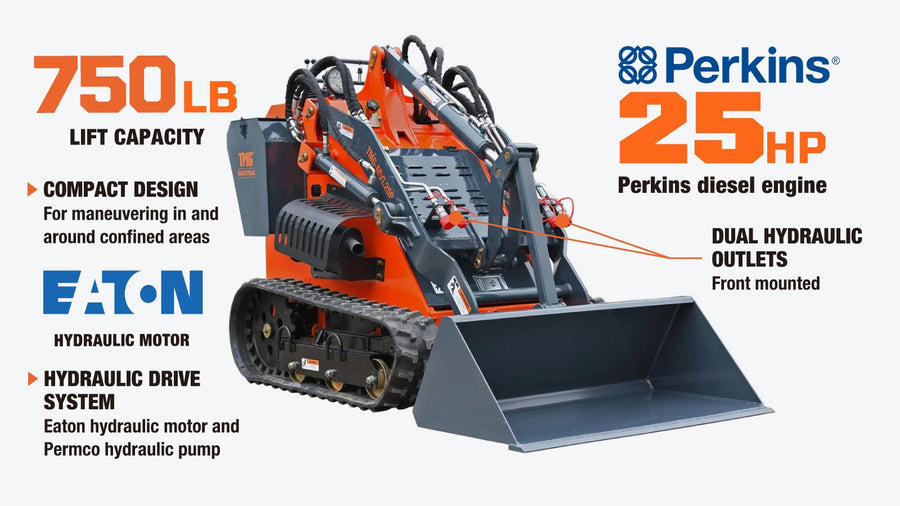

  • Compact design for maneuvering in and around confined areas
  • Powered by a 25 HP Perkins diesel engine
  • Open track-drive profile allows debris to escape track system, reducing obstructions
  • Joystick control ground drive
  • Stand-on operator platform for optimized comfort and stability
  • Front-mounted dual hydraulic outlets provide hookup options for hydraulic operated attachments
  • Hydraulic drive system provides left/right track drive and high/low flow options for versatile jobsite needs
  • Rubber tracks provide less ground pressure and increased flotation
  • Rear panel offers easy access for routine service maintenance
  • Undercarriage comes with track-mounted sprockets for better maneuverability and operation
  • American EATON hydraulic motor
  • American PERMCO hydraulic pump
  • Italian HYDRO CONTROL valve

Features

  • Compact design for maneuvering in and around confined areas
  • Powered by a 25 HP Perkins diesel engine
  • Open track-drive profile allows debris to escape track system, reducing obstructions
  • Joystick control ground drive
  • Stand-on operator platform for optimized comfort and stability
  • Front-mounted dual hydraulic outlets provide hookup options for hydraulic operated attachments
  • Hydraulic drive system provides left/right track drive and high/low flow options for versatile jobsite needs
  • Rubber tracks provide less ground pressure and increased flotation
  • Rear panel offers easy access for routine service maintenance
  • Undercarriage comes with track-mounted sprockets for better maneuverability and operation
  • American EATON hydraulic motor
  • American PERMCO hydraulic pump
  • Italian HYDRO CONTROL valve

Specifications

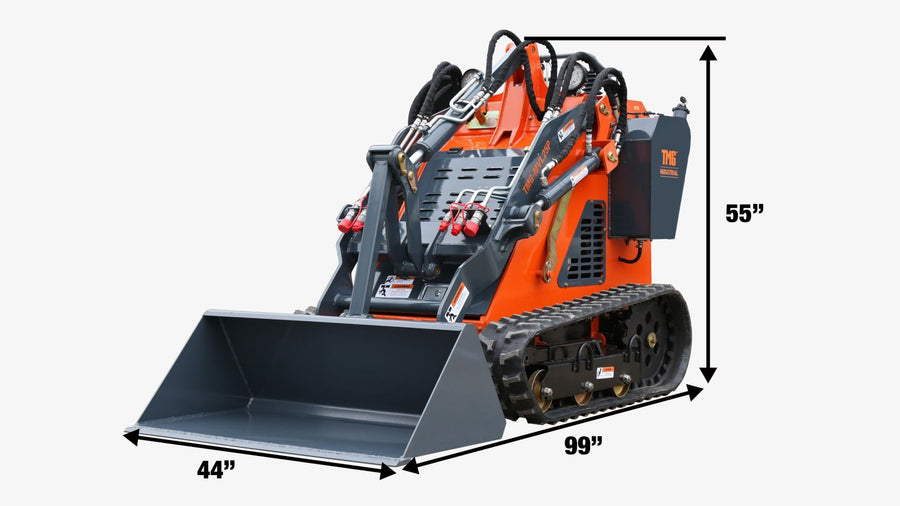

  • Overall machine dimensions: 99.2” x 43.7” x 55.3”
  • Length: 99.2’’ (w/bucket), 67.6’’ (w/o bucket)
  • Width: 43.7’’ (w/bucket), 42.7’’ (w/o bucket)
  • Machine height: 55.3’’ (bucket grounded)
  • Track mark on ground: 35’’
  • Track width: 8’’
  • Max hinge pin height: 78’’
  • Weight (with bucket, tracks, and Perkins Engine): 2530 lb
  • Ground clearance: 4.1’’
  • Operating lift capacity: 750 lb
  • Tipping capacity: 1600 lb
  • Operating weight: 2530 lb
  • Travel speed: 3.0 MPH (forward), 1.2 MPH (reverse)
  • Hydraulic system pressure: 2610 PSI
  • Hydraulic primary flow rate: 12.6 US GPM
  • Hydraulic secondary flow rate (machine driving): 5.9 US GPM
  • Hydraulic secondary flow rate (work operating): 6.7 US GPM
  • Standard bucket capacity: 5.4 cu-ft
  • Noise level: 89-103 dBA

25 HP Perkins Diesel Engine:

  • 25 HP Perkins 403J-11
  • Displacement: 67 cu-in
  • Number of cylinders: 3 inline
  • Cycle: 4-stroke
  • Aspiration: Naturally aspirated
  • Bore x Stroke: 3” x 3.2”
  • Max. speed: 2800 RPM
  • Max. Torque: 49 lb-ft at 2100 RPM
  • Cooling system: liquid
  • Fuel tank capacity: 7 gallons
  • Engine oil: 1.1 US gallon
  • Radiator: 1.14 US gallon
  • Emissions compliance: U.S. EPA Tier 4 Final

Shipping Information

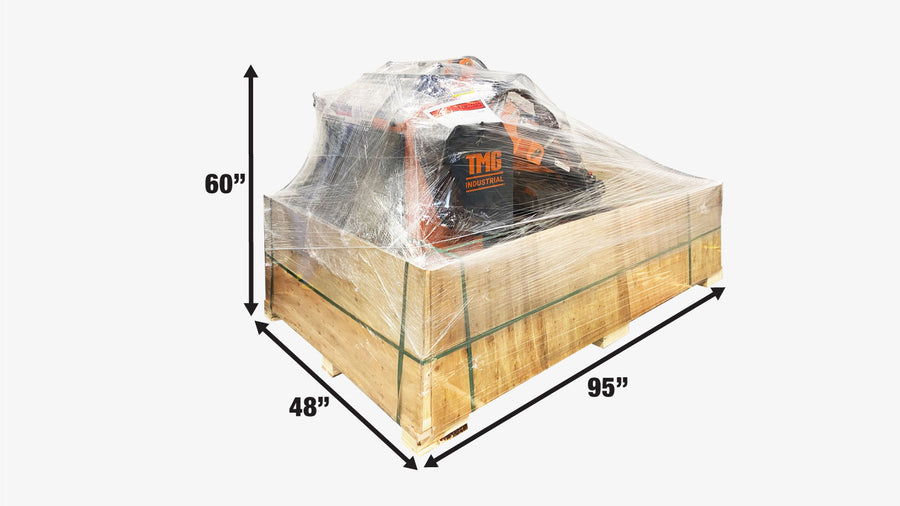

  • Packed in a shipping crate
  • Shipping dimension: 100" x 45" x 56"
  • Shipping weight: 2535.0 lb

***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.***

Watch our shipping video
Shipping from Richmond, BC

Product Description

The TMG-MVL25P Stand-On Mini Track Loader w/Smooth Bucket features a compact design and a comfortable operator platform with Joystick Drive Control that makes it easy to maneuver in and around confined areas. Powered by a 25 HP Perkins Diesel Engine, the hydraulic drive system with left/right track drive and high/low flow to the front-mounted dual hydraulic outlets for hook up of a variety of hydraulic operated attachments this machine allows a great versatility as you approach the various demands of a jobsite, it will become a reliable asset of generating your business income or getting the work done efficiently. The rubber tracks are designed with an open profile that easily allows debris to escape the track system reducing overall obstructions as you maneuver around the jobsite, while providing less ground pressure and increased flotation for a smooth ride. An easy to access rear panel allows for routine service maintenance to ensure your machine is always operating at optimal performance and ready to get the job done. This Stand-On Mini Track Loader is the perfect solution for your jobsite. Built with Components by:

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
