9-ft Tractor Swing Backhoe Attachment, 180° Boom and Bucket Rotation, 15" Bucket Included TMG-TBH90

TMG Industrial 9-ft Tractor Swing Backhoe Attachment, Category 1 & 2, 180° Boom and Bucket Rotation, 15” Bucket Included, TMG-TBH90
CURRENTLY IN STOCK
SKU TMG-TBH90
$0.00 CAD - $0.00 CAD
$0.00 CAD
$6,499.00 CAD
$6,499.00 CAD - $6,499.00 CAD
$6,499.00 CAD
$6,499.00 CAD

FREE

shipping to most locations in

Canada
Delivered in 10 to 15 business days Learn More
1-877-761-2819
Product Image 1 Product Image 2 Product Image 3
Product Manual
Find Parts

Features

Feature Image

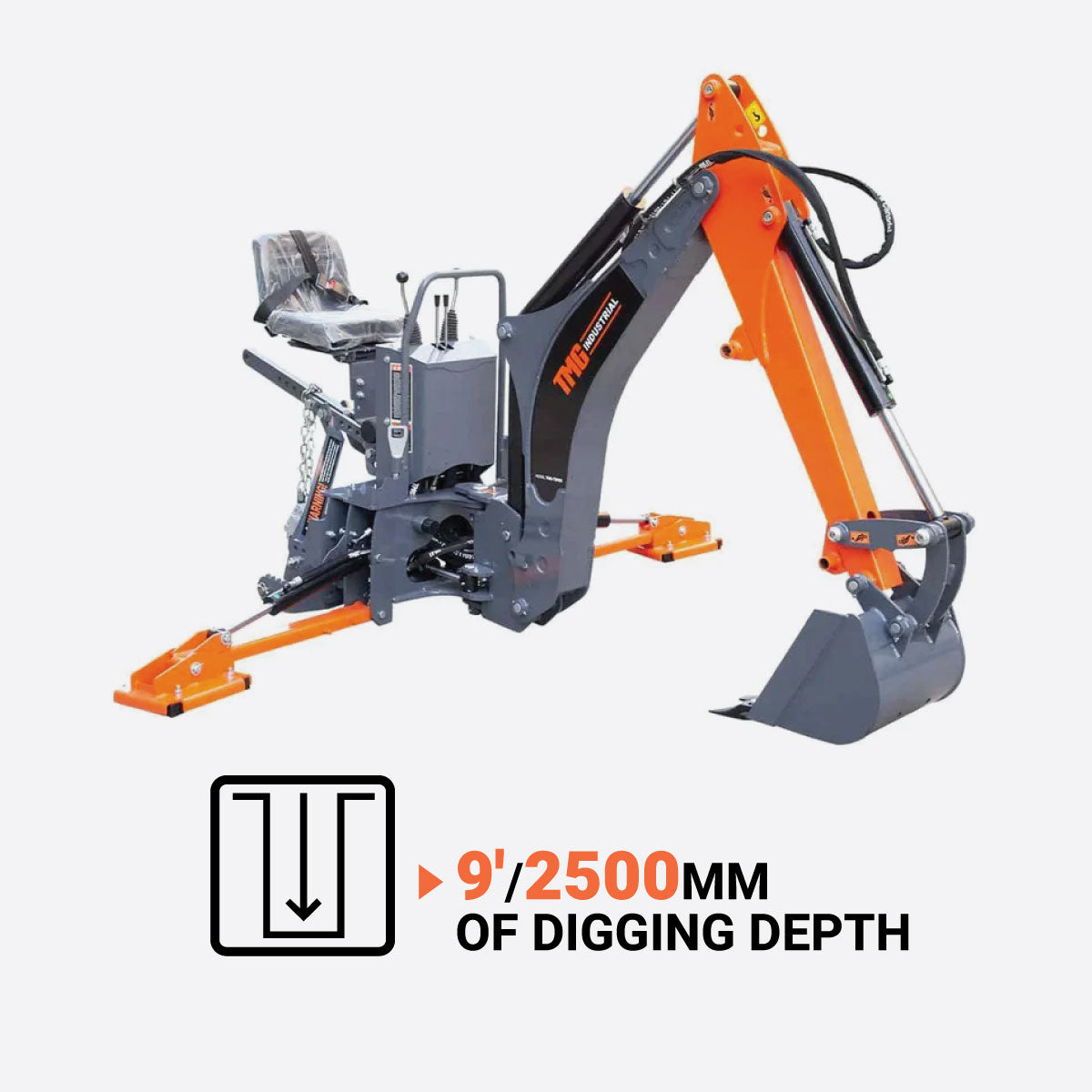

2500 mm (9') of digging depth for easy access to hard-to-reach areas
Feature Image

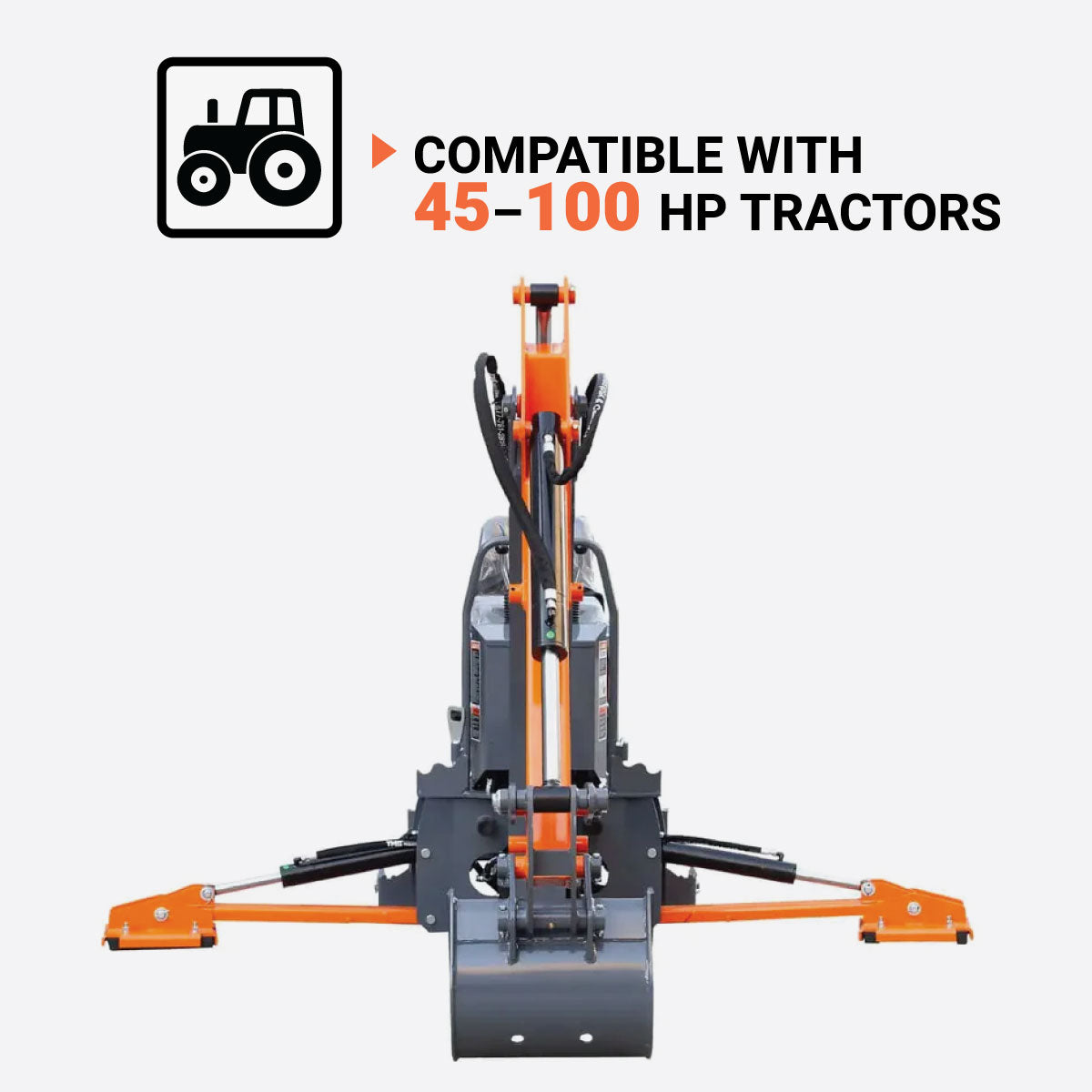

Compatible with 45 – 100 HP tractors and includes 380 mm (15") digging bucket
Feature Image

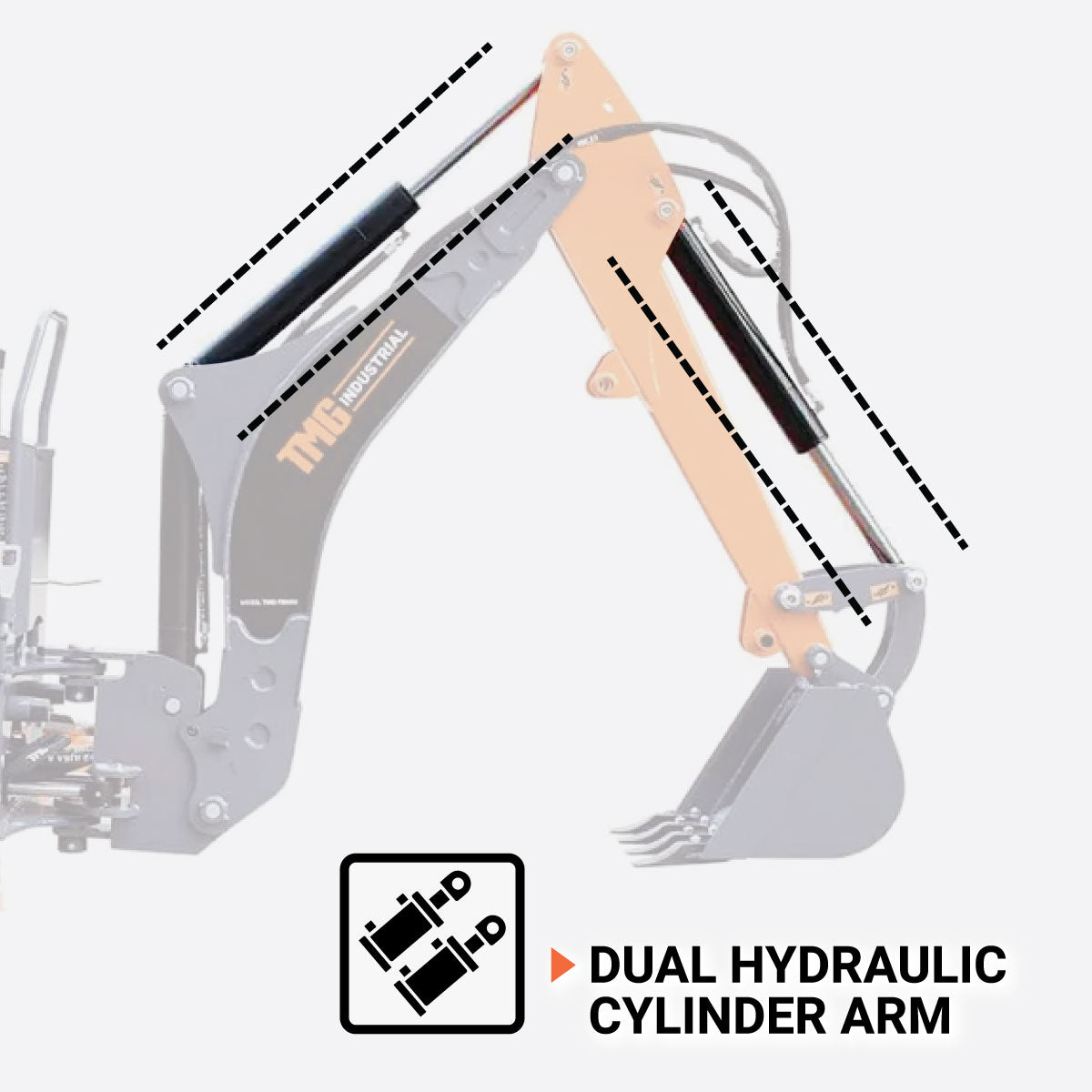

Dual hydraulic cylinder arm provides 180° bucket rotation and high force
Feature Image

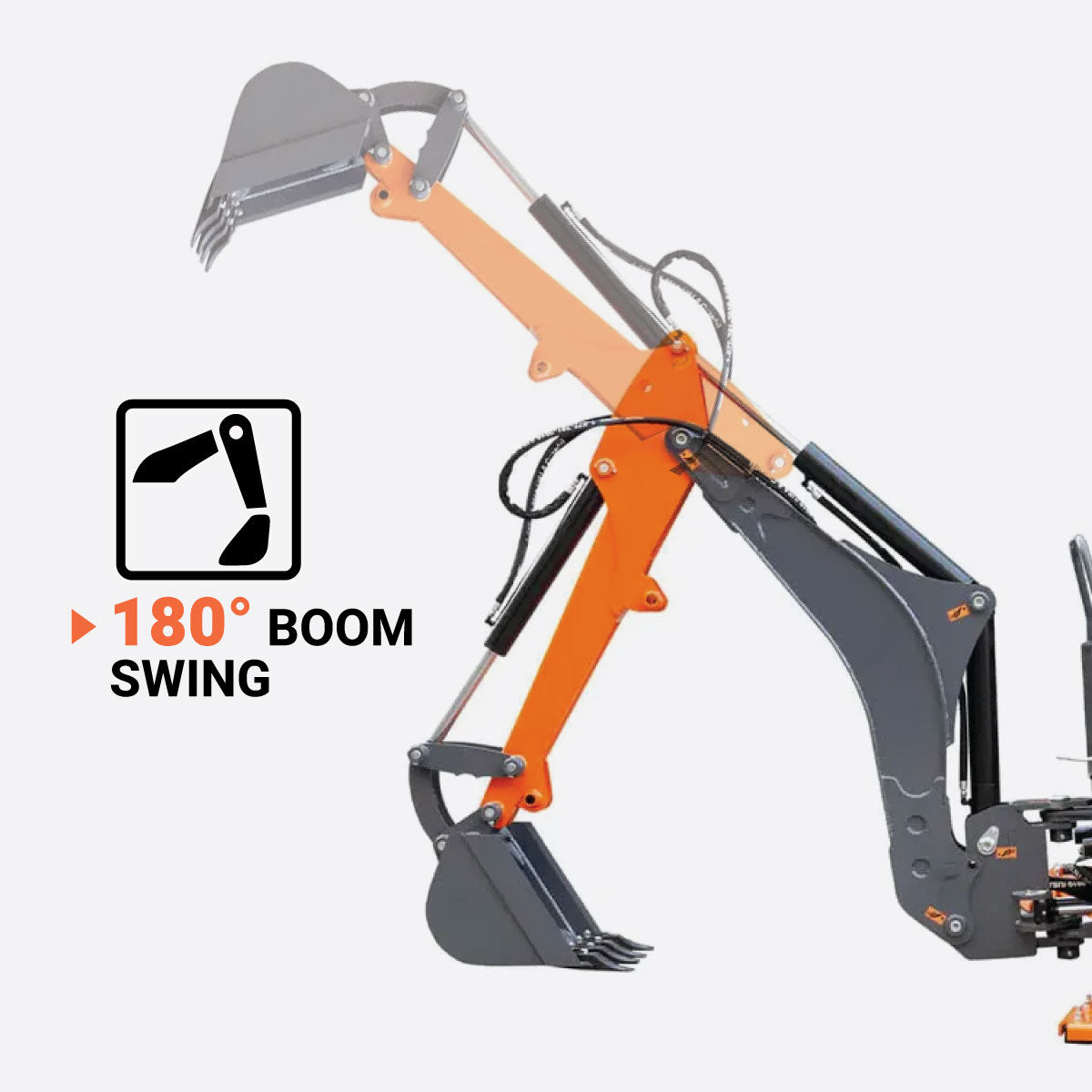

Extensive reach capacity in all directions with 180° of boom swing
Feature Image

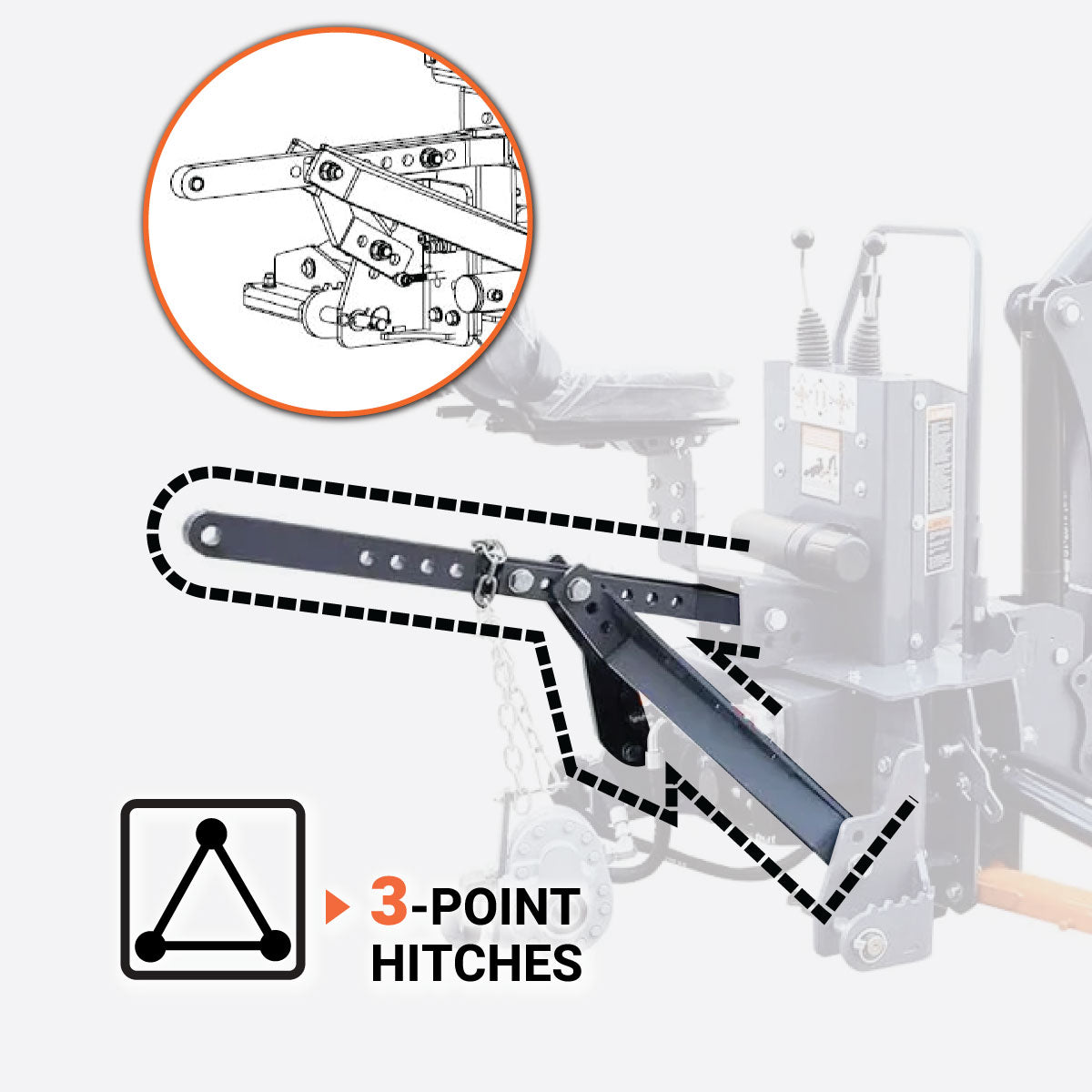

3-point hitch fits Category 1 & 2 tractors for easy attachment
Feature Image

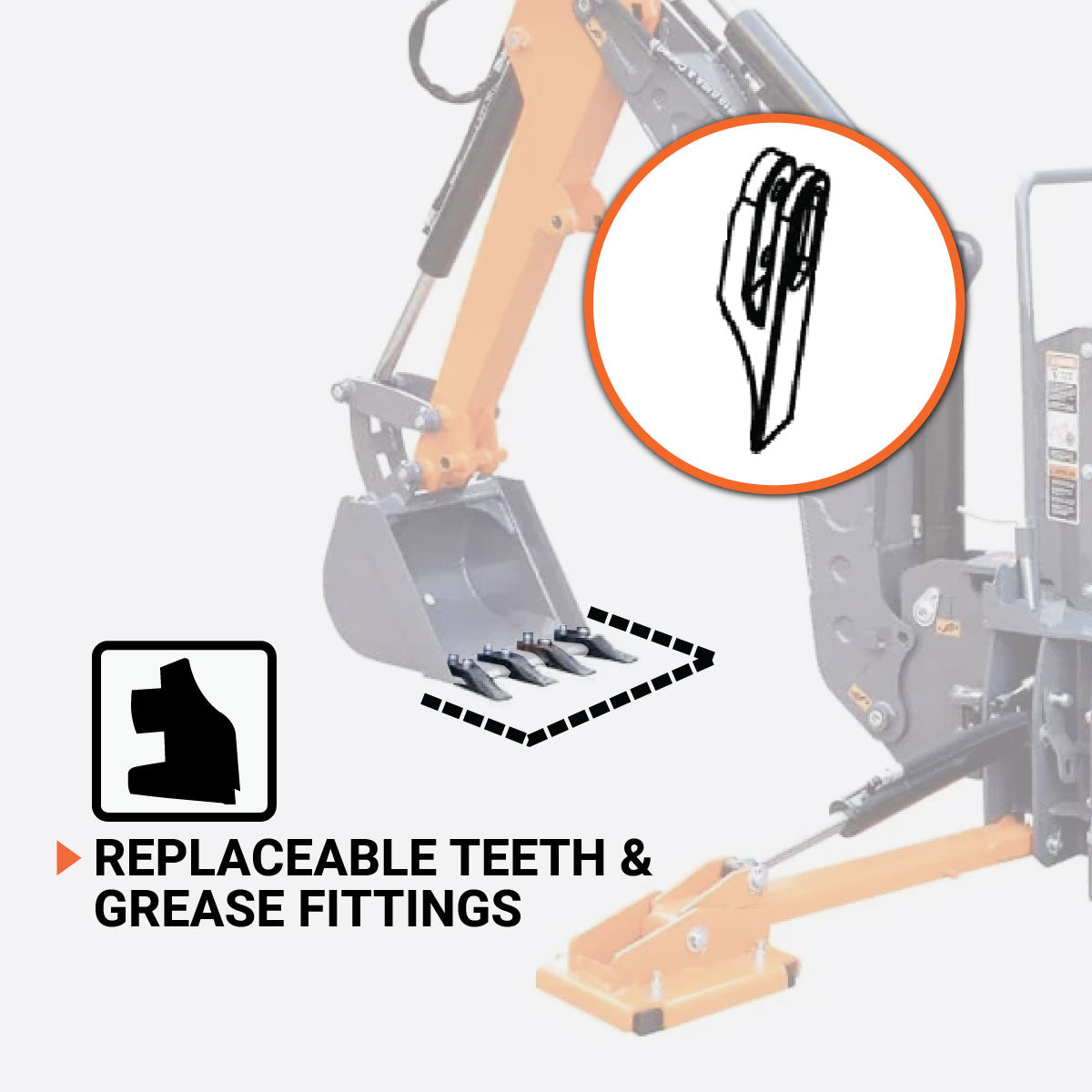

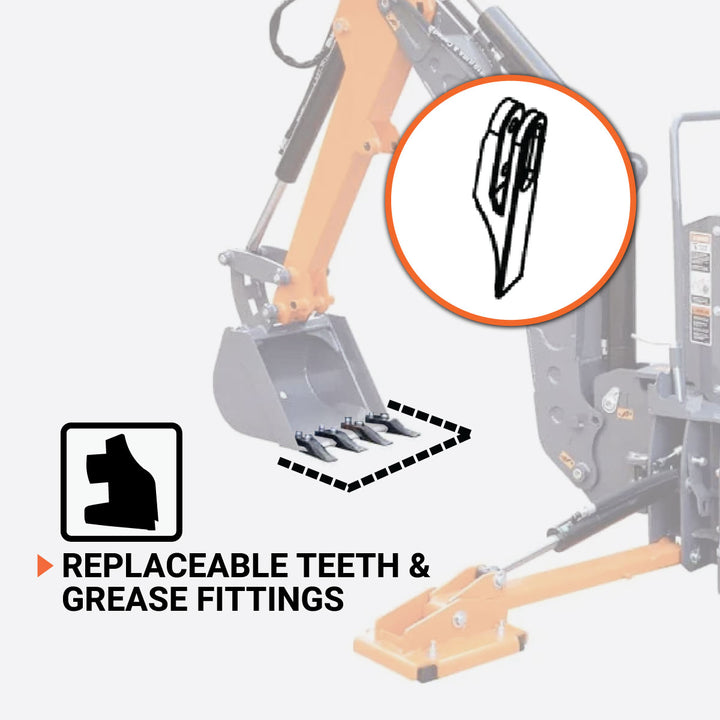

Replaceable teeth and grease fittings allow durable, low-maintenance operation

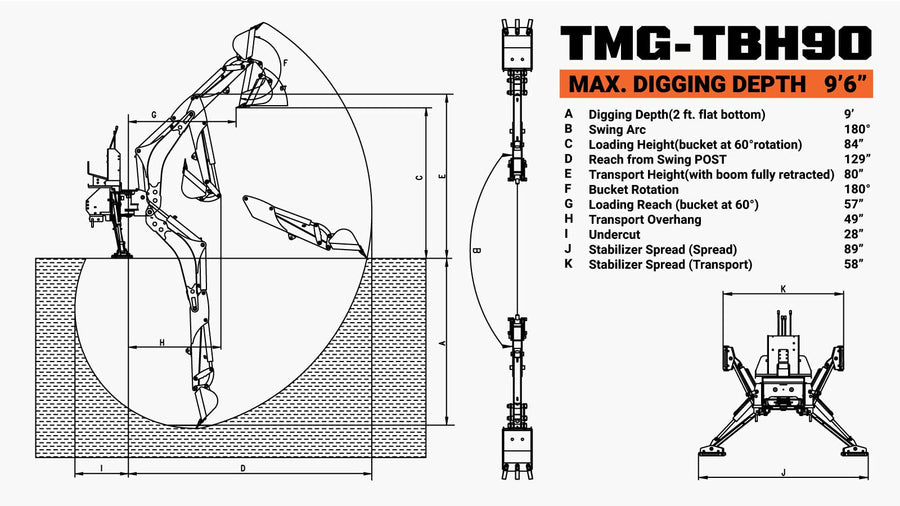

Specifications

  • Digging depth (2 ft. flat bottom): 9'6"
  • Overall operating height (fully raised): 125”
  • Reach from swing post: 129”
  • Loading height (bucket at 60° rotation): 84”
  • Dipper boom digging force: 2200 lb
  • Bucket digging force: 3300 lb
  • Transport height (with boom fully retracted): 80”
  • Transport width (with stabilizers up): 58”
  • Transport length: 72”
  • Ground clearance: 10”-12”
  • Transport weight (base unit only-no bucket or mounts): 870 lb
  • Bucket rotation: 180°
  • Swing arc: 180°
  • Stabilizer width (spread): 88”
  • Stabilizer width (transport): 58”
  • Operating pressure: 2320 PSI
  • Hydraulic volume requirements: 5-14 GPM
  • Recommended tractor requirements: 45-100 HP
  • Flow divider included: Yes
  • Bucket sizes available: 15”
  • 3-point hitch
  • Category 1 & Category 2 hookups

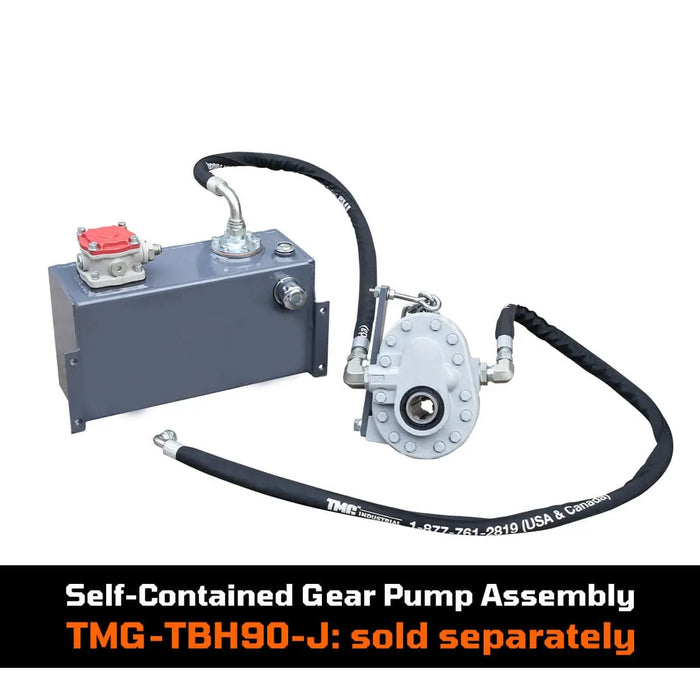

  • Self-contained gear pump (TMG-TBH90-J): sold separately
9-ft Tractor Swing Backhoe Attachment, 180° Boom and Bucket Rotation, 15

Product Description

The TMG-TBH90 9-ft Tractor Swing Backhoe Attachment offers a range of capabilities for your excavation projects. Its extensive reach and 180° boom swing allows you to access hard-to-reach areas without needing to reposition the attachment. This backhoe attachment is compatible with tractors between 30 and 100 HP and comes with a 15" digging bucket that is perfect for digging trenches, installing irrigation systems, landscaping and more.

This backhoe features Italian Hydro Control valves that optimize the distribution of hydraulic pressure for precise timing and performance. The dual hydraulic cylinder arm and bucket linkage are designed for high breakout force and burrowing power, and allow for 180° of bucket rotation. The 3-point hitch allows you to easily connect the backhoe to your tractor and eliminates the need for a separate excavating machine.

Maintenance is made easy with replaceable bushings, replaceable bolt-on cast teeth, and grease fittings on all pivot points. The stabilizer legs are designed with removable/replaceable rubber street pads to prevent damage to lawns, blacktop and concrete. For tractors not equipped with hydraulic auxiliary system, an optional external self-contained hydraulic pump is also available for efficient energy transmission and to maximize digging force (sold separately).

Shipping Information

The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

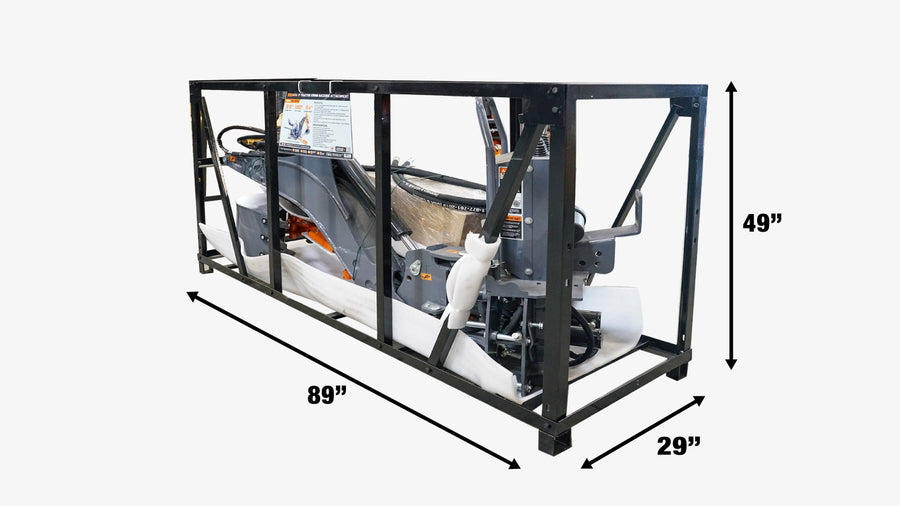

  • This product is packed in a steel shipping frame
  • Shipping dimension: 89” x 29” x 49” (L x W x H)
  • Shipping weight: 1260 lb
Shipping from Richmond, BC, or Mississauga, ON
