CURRENTLY OUT OF STOCK
TMG-GHN0910M

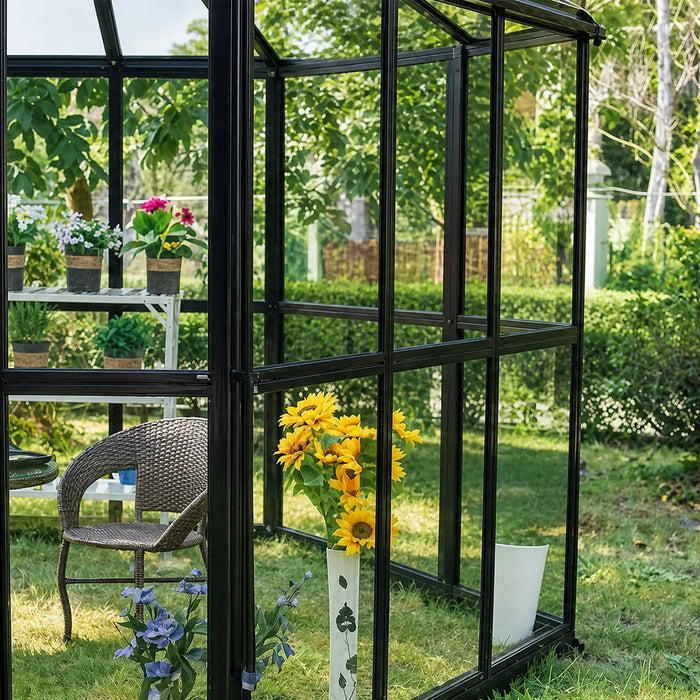

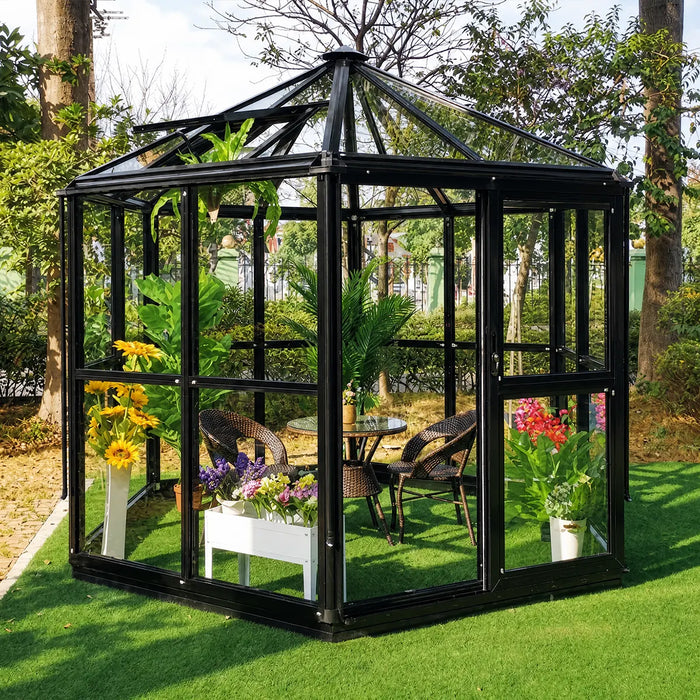

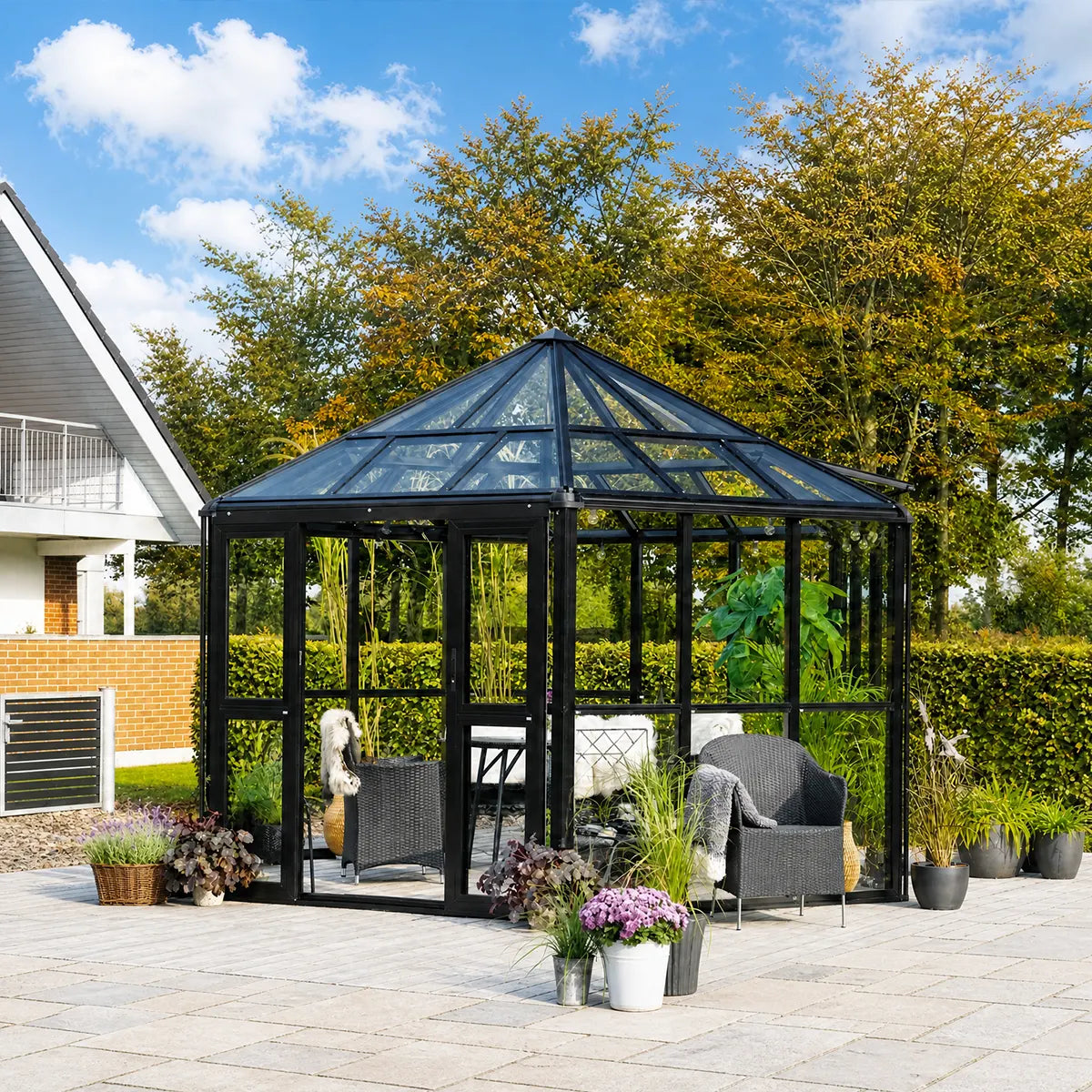

Nordic Series 9' x 10' Diamond Sunroom Greenhouse, 9' Height, Tempered Glass Walls and Polycarbonate Roof, Heavy Aluminum Frame, Slide & Lock Assembly, TMG-GHN0910M

Nordic Series 9' x 10' Diamond Sunroom Greenhouse, 9' Height, Tempered Glass Walls and Polycarbonate Roof, Heavy Aluminum Frame, Slide & Lock Assembly, TMG-GHN0910M
CURRENTLY OUT OF STOCK
SKU TMG-GHN0910M
$6,599.00 CAD - $6,599.00 CAD
$6,599.00 CAD
$6,599.00 CAD - $6,599.00 CAD
$6,599.00 CAD
$6,599.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days Learn More
1-877-761-2819
Find Parts

Features

  • Ultra Heavy-Duty Frame: Engineered with heavy-duty box aluminum profiles for incredible long-term durability and structural stability.
  • Dual Glazing System: Features light-diffusing polycarbonate roof panels alongside clear tempered glass side walls.
  • Slide & Lock Assembly: Innovative aluminum connectors allow simple setup, effectively reducing total installation time by over 50%.
  • Concealed Fasteners: All nuts and bolts are completely invisible, offering a clean, top-grade, and aesthetically seamless finish.
  • Bar-Capping System: Uses sophisticated full aluminum bar-capping to seal and retain panels without requiring messy silicon application.
  • Heavy-Duty Doors: Equipped with extra heavy-duty sliding lockable doors for smooth entry, security, and effortless daily access.
  • Automatic Opening Vents: Includes 2 roof vents and automatic openers to regulate internal temperatures seamlessly as heat shifts.
  • All-Weather Resilience: Built to withstand demanding conditions with a 120 km/h wind resistance and 120 kg/sqm snow load.

Specifications

  • Overall Dimensions (L x W x H): 10'6" x 9'3" x 9' (320 x 283 x 275 cm)
  • Total Footprint (Square Footage): 75.3 sq. ft (7.0 sq. metres)
  • Eave Height: 5'11" (180 cm)
  • Ridge Height: 9' (275 cm)
  • Door Opening Size (H x W): 5'11" x 2'7" (180 x 79 cm)
  • Window Vents: 23.6" x 26.4" (60 x 67 cm)
  • Number of Window Vents: 2
  • Aluminum Frame Box Section Profile: 65x65 mm
  • Aluminum Frame Thickness: 0.04" – 0.10" (1.0 – 2.5 mm)
  • Frame Finish: Dark Grey powder-coating

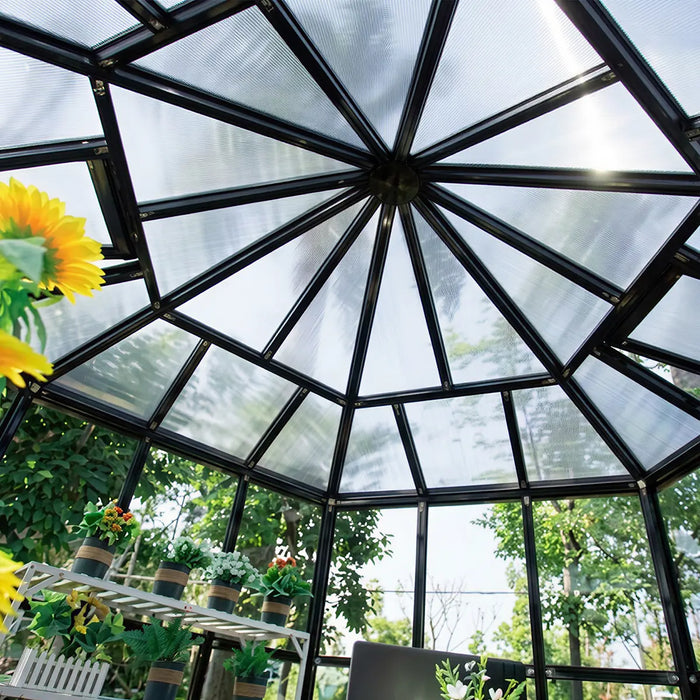

  • Roof Panels: 8 mm twin-wall polycarbonate
  • Wall Panels: 4 mm clear tempered glass
  • Design Wind Resistance: Up to 74.5 mph (120 km/h)
  • Design Snow Load: 24.6 PSF (120 kg/sq. m)

Product Description

Enhance your outdoor space with the Nordic Series Diamond-Style Greenhouse, a sophisticated and versatile solution engineered for both serious gardening and year-round leisure. Blending modern architectural design with high-performance durability, this greenhouse creates the perfect light-filled environment for cultivating delicate plants or relaxing in a serene garden retreat. Its unique diamond shape provides a clean 360-degree clear view of your surrounding landscape while serving as an elegant outdoor room when home living space is limited.

Constructed with ultra heavy-duty 65x65 mm box section aluminum profiles and 2.5 mm thick connectors, this structure is built for extreme strength and rust resistance. The frame is paired with 8 mm polycarbonate roof panels for thermal insulation alongside crystal-clear 4 mm tempered glass side walls held securely by a full aluminum bar-capping glazing system—no silicone required. Designed with fully concealed hardware, sliding lockable doors, and automatic temperature-controlled roof vent openers, it offers exceptional convenience and resilience against severe wind and winter snow.

Assembly is streamlined through a clever fast-click design utilizing super-strong aluminum connectors, cutting overall installation time by over 50%. Whether you are setting up a high-performance plant nursery or designing a luxury backyard lounge, the Nordic Series Diamond Greenhouse delivers unrivaled elegance and functionality.

TMG also carries some other dome or diamond shaped greenhouses:
TMG-GHN1008D 10' SkyDome
TMG-GHN1309D 13' SkyDome
TMG-GHN1510V 15' x 10' Oval SkyDome
TMG-GHN1813V 18' x 13.5' Oval SkyDome
TMG-GHN1112M 11' x 12' Diamond Shape

Shipping Information

Your order will be shipped from one of our main warehouses in Canada. Orders are typically processed and shipped within 2 to 3 business days under normal circumstances. Delivery usually takes 10 to 15 business days, depending on location and accessibility.

  • This product is packed in 4 carton and wood crate shipping boxes.
  • Shipping Dimensions:
    Box A (Aluminum Frame): 75" x 20" x 15"
    (185 x 48 x 31 cm)
    Box B (Aluminum Frame): 85" x 15" x 10"
    (215 x 32 x 18 cm)
    Box C (Aluminum Frame): 75" x 15" x 10"
    (183 x 35 x 25 cm)
    Box D (Glass & Polycarbonate Panels): 68" x 40" x 15"
    (166 x 95 x 30 cm)
  • Shipping Weight:
    Box A: 110 lbs (50 kg)
    Box B: 101 lbs (46 kg)
    Box C: 110 lbs (50 kg)
    Box D: 227 lbs (103 kg)
    Total shipping weight: 550 lbs (250 kg)
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
