SKU TMG-AFM48

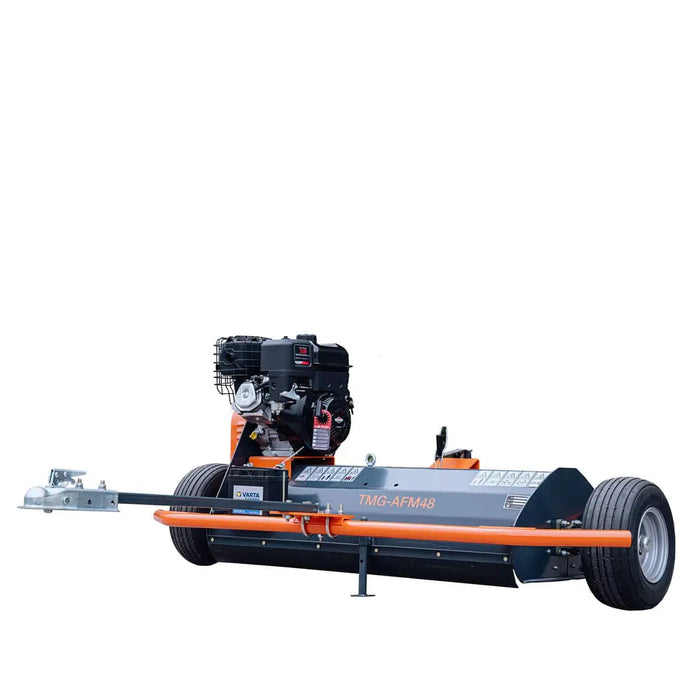

TMG-AFM48 48” ATV Tow-Behind Offset Flail Mower, Powered by Briggs and Stratton 13.5 HP Engine, Adjustable Mowing Height, 15” Cut Capacity

Original price $4,750.00 - Original price $4,750.00
Original price
$4,750.00
$4,750.00 - $4,750.00
Current price $4,750.00
CURRENTLY IN STOCK
FREE SHIPPING IN CANADA* Learn More
700.0 lb
77 x 40 x 34 inches
More Shipping Info
  • Powered by Briggs and Stratton engine made in the USA
  • Y-Shape harden blades made with 65 Mn steel for durability and efficiency
  • (4) positions of built-in crank handle for adjustable cutting height
  • Heavy rear roller guarantees smooth surface after cutting
  • (5) point offset function offers ability of driving close to walls, fences or mowing under bushes
  • Offset distance in driving direction to the right: 45’’
  • Offset distance in driving direction to the right: 50’’
  • Two-belt-drive system with clutch leads to efficient power transmission and reduces belt slippage
  • Two 16’’ terrain rubber tires
  • Storage kickstand
  • Rear discharging
  • Compatible with 2-inch ball receiver 

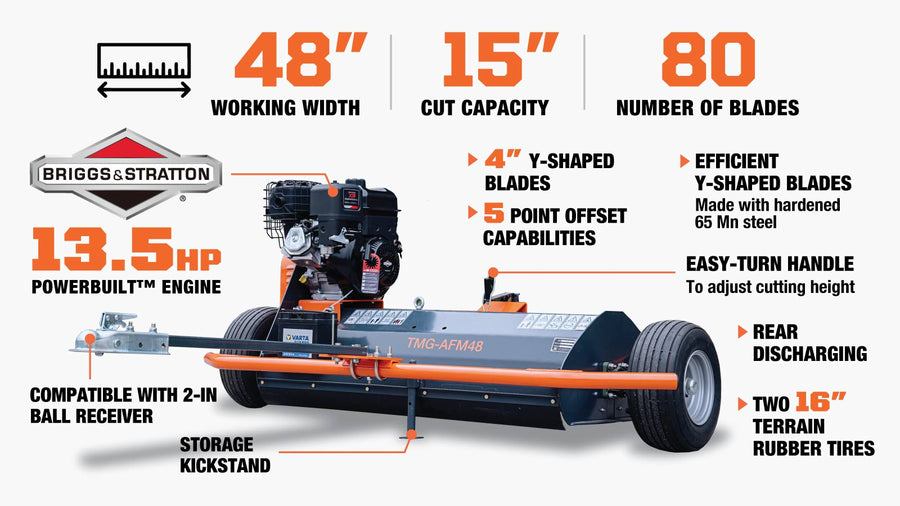

Features + Benefits

  • Powered by Briggs and Stratton engine made in the USA
  • Y-Shape harden blades made with 65 Mn steel for durability and efficiency
  • (4) positions of built-in crank handle for adjustable cutting height
  • Heavy rear roller guarantees smooth surface after cutting
  • (5) point offset function offers ability of driving close to walls, fences or mowing under bushes
  • Offset distance in driving direction to the right: 45’’
  • Offset distance in driving direction to the right: 50’’
  • Two-belt-drive system with clutch leads to efficient power transmission and reduces belt slippage
  • Two 16’’ terrain rubber tires
  • Storage kickstand
  • Rear discharging
  • Compatible with 2-inch ball receiver 

Specifications

  • Overall width: 79’’
  • Working width: 48’’
  • Cut capacity: up to 15’’ grass height
  • Adjustable mowing height: ¾’’ to 2-3/4’’
  • Blade length: 4’’
  • Number of blades: 80
  • Ground clearance: 6’’
  • Max rotor speed: 3200 RPM
  • Tire size: 16’’
  • Work efficiency: 0.6 - 0.75 acre/hour

Briggs and Stratton Engine:

  • XR Professional Series 13.5HP, 420cc
  • Dura-Bore Cast Iron Sleeve
  • Cartridge air cleaner with standard Pre-Cleaner
  • Electric start (battery included)

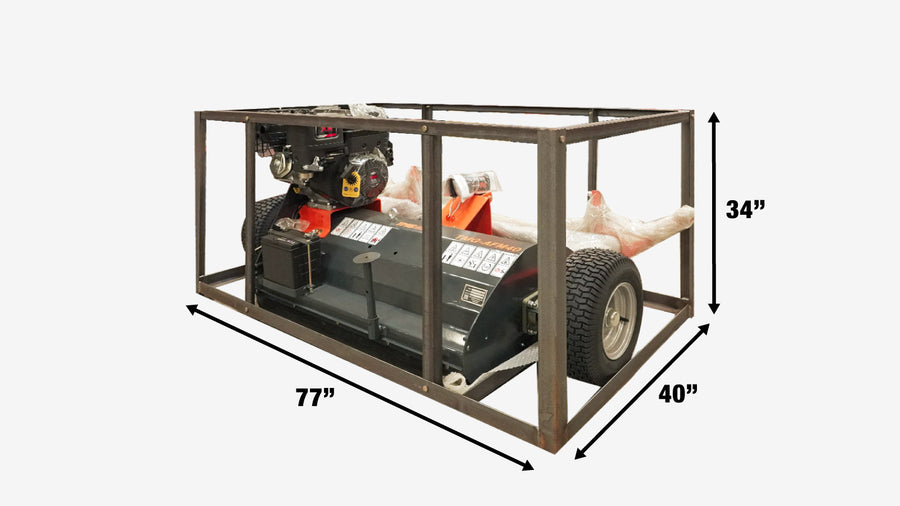

Shipping Information

  • Packed in a metal shipping box
  • Shipping dimension: 77'' x 40'' x 34''
  • Shipping weight: 700 lb
Shipping from Richmond, BC

Product Description

Have a big field or yard to mow? The TMG-AFM48 Tow-behind Flail Mower is designed to hook up to the ball receiver on any ATV or UTV so you can start mowing right away. Designed with 48” of working space and the ability to cut grass up to 15” in height, the TMG-AFM48 will make quick work of the job at hand. You can adjust your mowing height from ¾” up to 2 ¾” and anywhere in between. Using 80, 4” blades and a max rotor speed of 3200 RPM, you can cruise through over a half-acre per hour.

The TMG-AFM48 is powered by a Briggs and Stratton 420cc XR Professional Series Engine, putting out 13.5hp with an electric starter. The 420cc engine has a Dura-Bore™ cast iron sleeve and a cartridge air cleaner with a standard pre-cleaner. Just looking at the TMG-AFM48, you know it will be ready for the workday.

Durability and control are what you can expect when you use the TMG-AFM48 flail mower. The Y-shape blades made with 65Mn steel can be set in 4 different positions for cutting heigh, while the 5-point offset function allows you to get right to the edge of walls, fences, or under bushes. It has a two-belt-drive system with a clutch to give you the most efficient use of your power and reduce slippage.  This machine is supported with two 16” all-terrain rubber tires and is designed with a rear discharge for clippings. From top to bottom, the TMG-AFM48 is a reliable tool ready to be added to your team.

Built with Components by:

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
