CURRENTLY OUT OF STOCK

TMG-GHN1620

Nordic Series 16.5' x 20' Gazebo-Style Greenhouse, 10' Height, Expandable Aluminum Frame, Tempered Glass Walls and Polycarbonate Roof TMG-GHN1620

Name: Nordic Series 16.5' x 20' Gazebo-Style Greenhouse, 10' Height, Expandable Aluminum Frame, Tempered Glass Walls and Polycarbonate Roof TMG-GHN1620
Brand: TMG Industrial CA
SKU: TMG-GHN1620
Price: 8699.0 CAD
Availability: OutOfStock

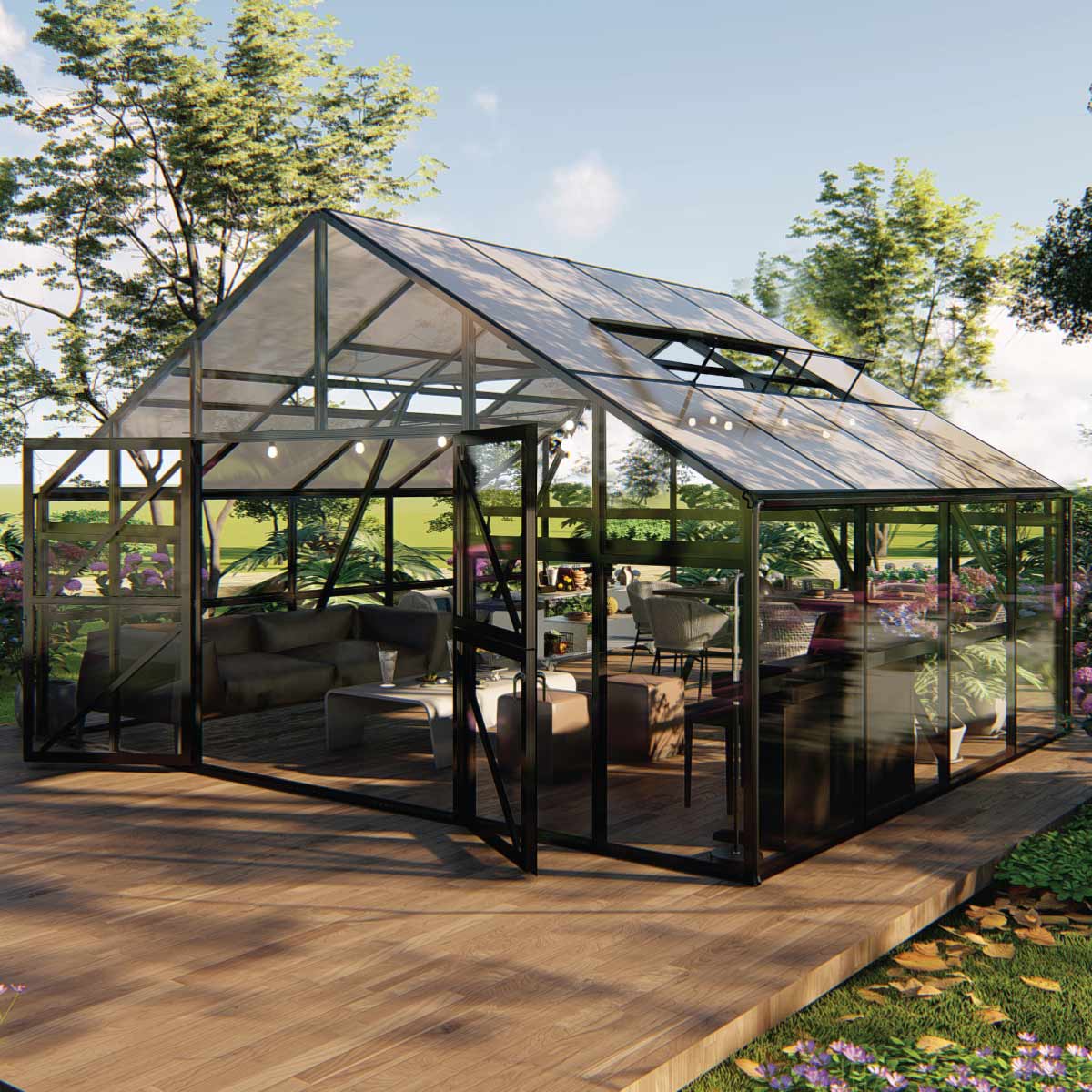

Large gazebo-style greenhouse with open doors and furnished interior.

CURRENTLY OUT OF STOCK

SKU TMG-GHN1620

$8,899.00 CAD

$8,899.00 CAD - $8,899.00 CAD

$8,899.00 CAD

$8,699.00 CAD

$8,699.00 CAD - $8,699.00 CAD

$8,699.00 CAD

$8,899.00 CAD Save $200.00 CAD

$8,699.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days

Learn More

1-877-761-2819

cs@tmgindustrial.ca

Product Manual

Find Parts

Nordic Series 16.5' x 20' Gazebo-Style Greenhouse, 10' Height, Expandable Aluminum Frame, Tempered Glass Walls and Polycarbonate Roof TMG-GHN1620

Box Section Frame: Built with exclusive ultra-heavy-duty box section aluminum profiles and an integrated 15 mm glazing channel for permanent stability.
Smart Slide-In Assembly: Utilizes high-strength aluminum connectors and a clever slide-in design, reducing total assembly time by more than 50%.

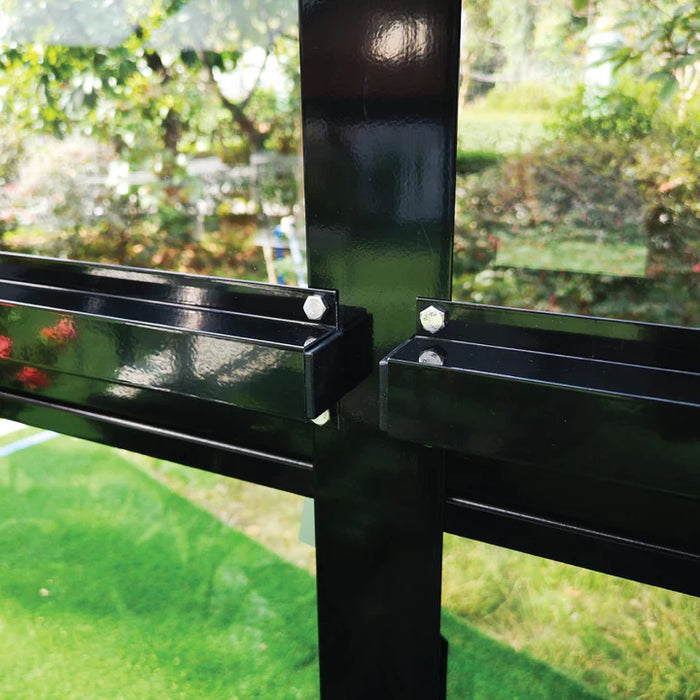

Structural Reinforcement: Includes full horizontal sidewall bracing along with robust ridge and eave bracing for superior weather protection.

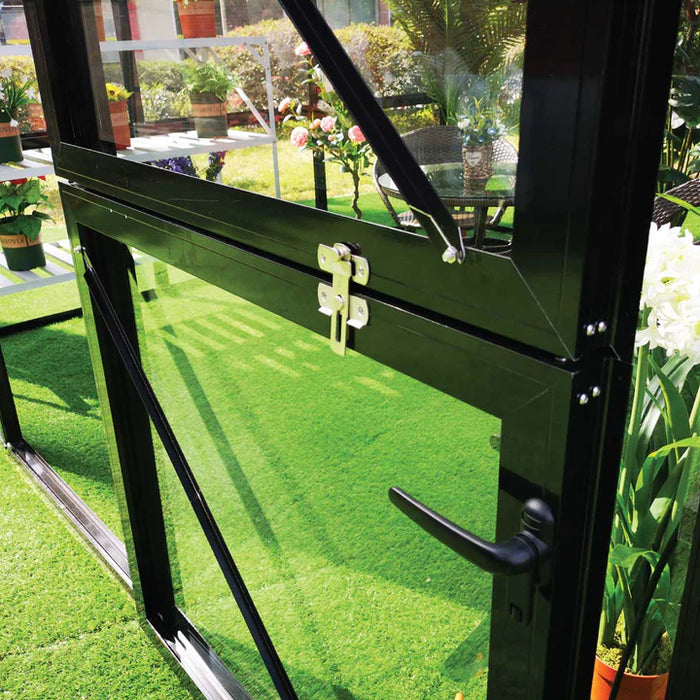

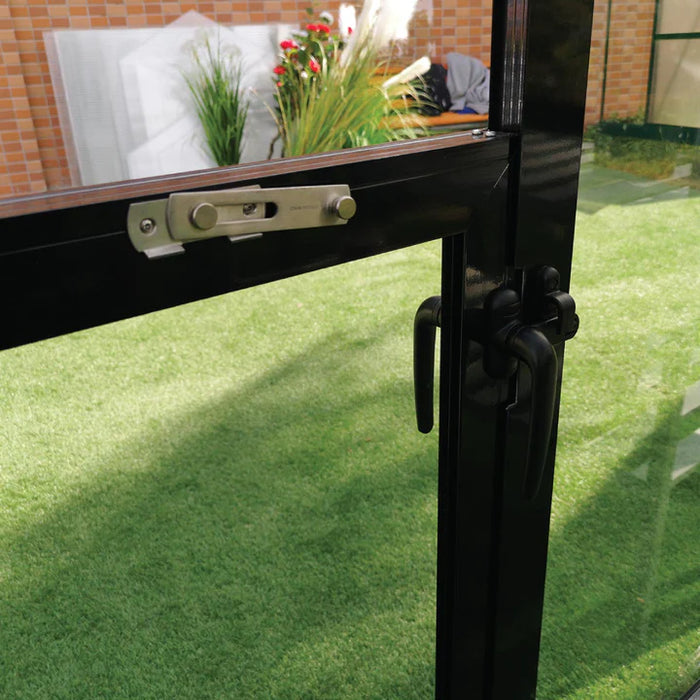

Dutch-Style Double Swing Doors: Features 2-meter double swing doors with a half-divided single-side design for enhanced entry flexibility.

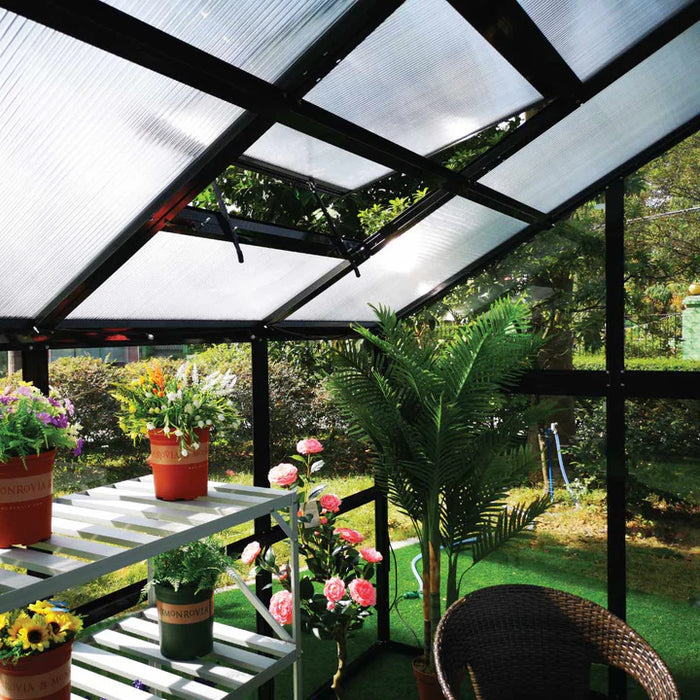

Heavy-Duty Roof Vents: Equipped with six large roof vents supported by heavy-duty dual vent arms to maintain optimal interior airflow.
Modular Expandable Framework: Engineered to grow alongside your garden, allowing seamless addition of 2-meter extension sections at any future stage.
Extreme Weather Engineering: Rated to withstand severe weather conditions with wind resistance up to 120 km/h and snow loads up to 110 kg/sqm.

Dimensions (L x W x H): 20' x 16' 7" x 9' 11" (606 x 506 x 301 cm)
Eave Height: 4' 11" (150 cm)
Ridge Height: 9' 11" (301 cm)
Door Size: 6' 6" x 6' 0" (197 x 182 cm)
Frame: Powder-coated box section aluminum (1.0 – 2.0 mm)
Roof Material: 10 mm hollow polycarbonate panels (UV resistant)
Wall Material: 4 mm clear tempered safety glass
Roof Vent Dimensions: 39" x 29" (100 x 73 cm)
Number of Roof Vents: 6
Roof Vent Structure: Heavy-duty frame with dual support arms
Anchoring: Concrete and earth anchoring options included

The TMG-GHN1620 Nordic Series Greenhouse is expertly engineered for those who demand exceptional strength, elegant styling, and structural versatility. Constructed with an extra-strong powder-coated box-section aluminum frame, this spacious 16' x 20' greenhouse provides a premium backyard environment designed to withstand harsh seasonal conditions. With certified wind resistance up to 120 km/h and a snow load capacity of 110 kg/sqm, the Nordic Series delivers outstanding stability and year-round reliability.

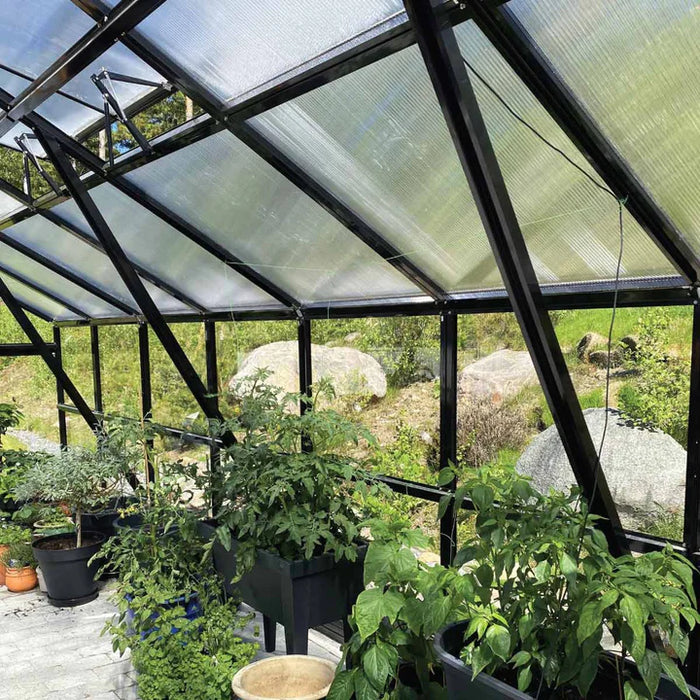

This premium model features a high-performance hybrid glazing system that maximizes both safety and plant health. The roof is fitted with 10 mm hollow polycarbonate panels, providing excellent insulation, shading, and UV protection to help prevent plants from scorching during intense summer sunlight. The side walls are constructed from 4 mm tempered safety glass, creating a clear, elegant appearance that transforms the greenhouse into a bright and luxurious garden retreat.

Designed for convenience and ease of installation, the Nordic Series eliminates many of the challenges associated with traditional greenhouse construction. Its smart slide-in assembly system and precision-engineered aluminum connectors ensure accurate alignment and significantly reduce installation time. Whether you are cultivating a productive year-round garden or creating a beautiful outdoor living space, this greenhouse offers a durable and attractive solution.

The TMG-GHN1620 is the combination of the TMG-GHN1613 greenhouse and one TMG-GHN16X Extension Kit. We also offer the TMG-GHN1626, which combines the base greenhouse with two extension kits for additional growing space.

Your order will be shipped from one of our warehouses in Canada. Orders are typically processed and shipped within 2 to 3 business days under normal circumstances. Delivery usually takes 10 to 15 business days, depending on location and accessibility.

This product is packed in 10 cartons and wood shipping crates.

Shipping Dimensions (L x W x H):

Box A (Main Unit): 119" x 14" x 8"
Box B (Main Unit): 84" x 16" x 9"
Box C (Main Unit): 63" x 17" x 10"
Box D (Main Unit): 116" x 11" x 8"
Box E (Main Unit): 84" x 12" x 9"
Box F (Main Unit): 77" x 45" x 17"
Box G (Extension Kit): 114" x 10" x 8"
Box H (Extension Kit): 82" x 11" x 9"
Box I (Extension Kit): 73" x 41" x 5"
Box J (Extension Kit): 62" x 45" x 6"

Shipping Weight:

Box A (Main Unit): 71 lbs
Box B (Main Unit): 77 lbs
Box C (Main Unit): 64 lbs
Box D (Main Unit): 44 lbs
Box E (Main Unit): 60 lbs
Box F (Main Unit): 926 lbs
Box G (Extension Kit): 47 lbs
Box H (Extension Kit): 62 lbs
Box I (Extension Kit): 50 lbs
Box J (Extension Kit): 195 lbs
Total Shipping Weight: 1,596 lbs

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Dimensions and capacity
	Nordic Series 16.5' x 20' Gazebo-Style Greenhouse, 10' Height, Expandable Aluminum Frame, Tempered Glass Walls and Polycarbonate Roof TMG-GHN1620$8,699.00 CAD	Nordic Series 16' x 26.6' Gazebo-Style Greenhouse, 10' Height, Expandable Aluminum Frame, Tempered Glass Walls and Polycarbonate Roof TMG-GHN1626$10,399.00 CAD	Nordic Series 20' x 13' Gazebo-Style Premium Greenhouse, 10' Height, Heavy Duty Aluminum Frame and Full Tempered Glass Roof and Wall Panels, TMG-GHN2013$6,999.00 CAD
Ridge Height	9'11" (3.01 m)	9'11" (3.01 m)	10'2" (3.09 m)
Door Size	6'6" x 6'0" (1,970 mm x 1,820 mm)	6'6" x 6'0" (1,970 mm x 1,820 mm)	6'0" x 6'7" (1,820 mm x 2,000 mm)
Eave Height	4'11" (1.50 m)	4'11" (1.50 m)	6'0" (1.82 m)
Dimensions (L x W x H)	20' x 16'7" x 9'11" (6.06 m x 5.06 m x 3.01 m)	26.6' x 16'7" x 9'11" (8.06 m x 5.06 m x 3.01 m)	20'2" x 13'7" x 10'2" (6.15 m x 4.15 m x 3.09 m)
Roof Vent Dimensions	39" x 29" (1,000 mm x 730 mm)	39" x 29" (1,000 mm x 730 mm)	2'0" x 3'3" (620 mm x 1,000 mm)
Construction and materials
Number of Roof Vents	6	8	3
Wall Material	0.16" (4 mm) clear tempered safety glass	0.16" (4 mm) clear tempered safety glass	0.16" (4 mm) tempered safety glass
Frame	Powder-coated box section aluminum 0.039-0.079" (1.0 mm-2.0 mm)	Powder-coated box section aluminum 0.039-0.079" (1.0 mm-2.0 mm)	Powder-coated box-section aluminum 0.039-0.079" (1.0 mm-2.0 mm)
Roof Material	0.4" (10 mm) hollow polycarbonate panels (UV resistant)	0.4" (10 mm) hollow polycarbonate panels (UV resistant)	0.16" (4 mm) tempered safety glass
Features and accessories
Snow Load	243 lb (110 kg)/sqm	243 lb (110 kg)/sqm	243 lb (110 kg)/m²
