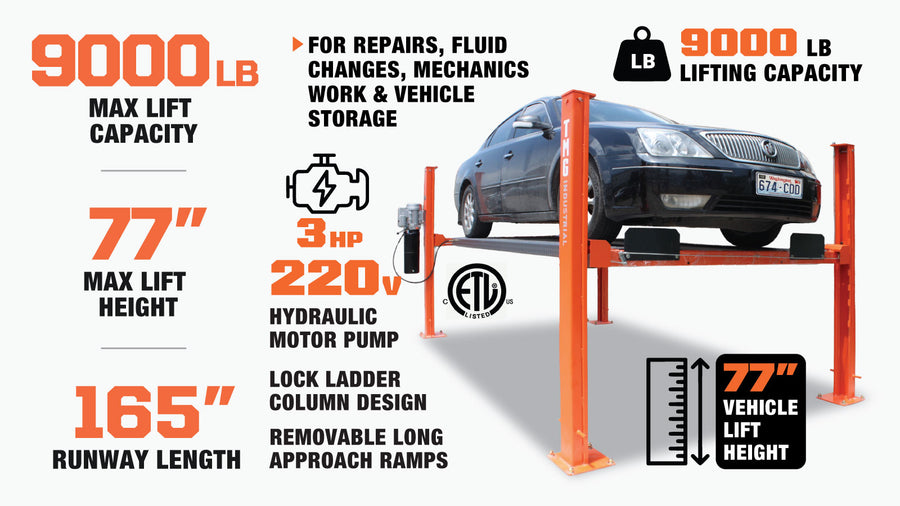

TMG-ALF90 Four-Post Auto Lift, 9,000-LB Lift Capacity, 77'' Rise, Removable Ramp | CETL Certified Power Unit

• Long approach ramps for low ground clearance vehicles
• Removable approach ramps for additional clearance height
• Single hydraulic cylinder mounted underneath runway
• Anti-sway slider blocks in each column
• Manual safety release
• Ten safety lock positions in each column
• Non-skid surface runway
• Lock ladder column design
• Mounting hardware included
• Three drip trays included

• Max. lift capacity: 9,000 lb
• Max lift height: 77"
• Max lift clearance under runways: 73”
• Overall length: 207" (with ramps), 175’’ (w/o ramps)
• Outside column width: 105"(without motor), 117" (with motor)
• Length clearance between columns: 160’’
• Width clearance between columns: 92"
• Column height: 84"
• Column frame size: 6” x 2.75”
• Column base: 12” x 12”
• Column steel thickness: 8 gauge
• Runway length: 165”
• Runway width: 18.5”
• Runway thickness: 2’’
• Runway height on the ground: 4.5"
• Width between runways(outside): 75"
• Width between runways(inside): 37.5"
• Runway thickness: ½’’
• Steel cable diameter: 3/8“

Hydraulic Pump Power Unit:

• 220VAC, 3HP, single phase
• No-load speed: 3360 RPM
• Working pressure: 2600 PSI
• Tank capacity: 2.5 US gallons
• Pump oil required: AW32/AW46
• ETL certified for Canada and the USA

• Packed in a metal shipping crate
• Shipping dimension: 167”x20”x29”
• Shipping weight: 1700 lb
