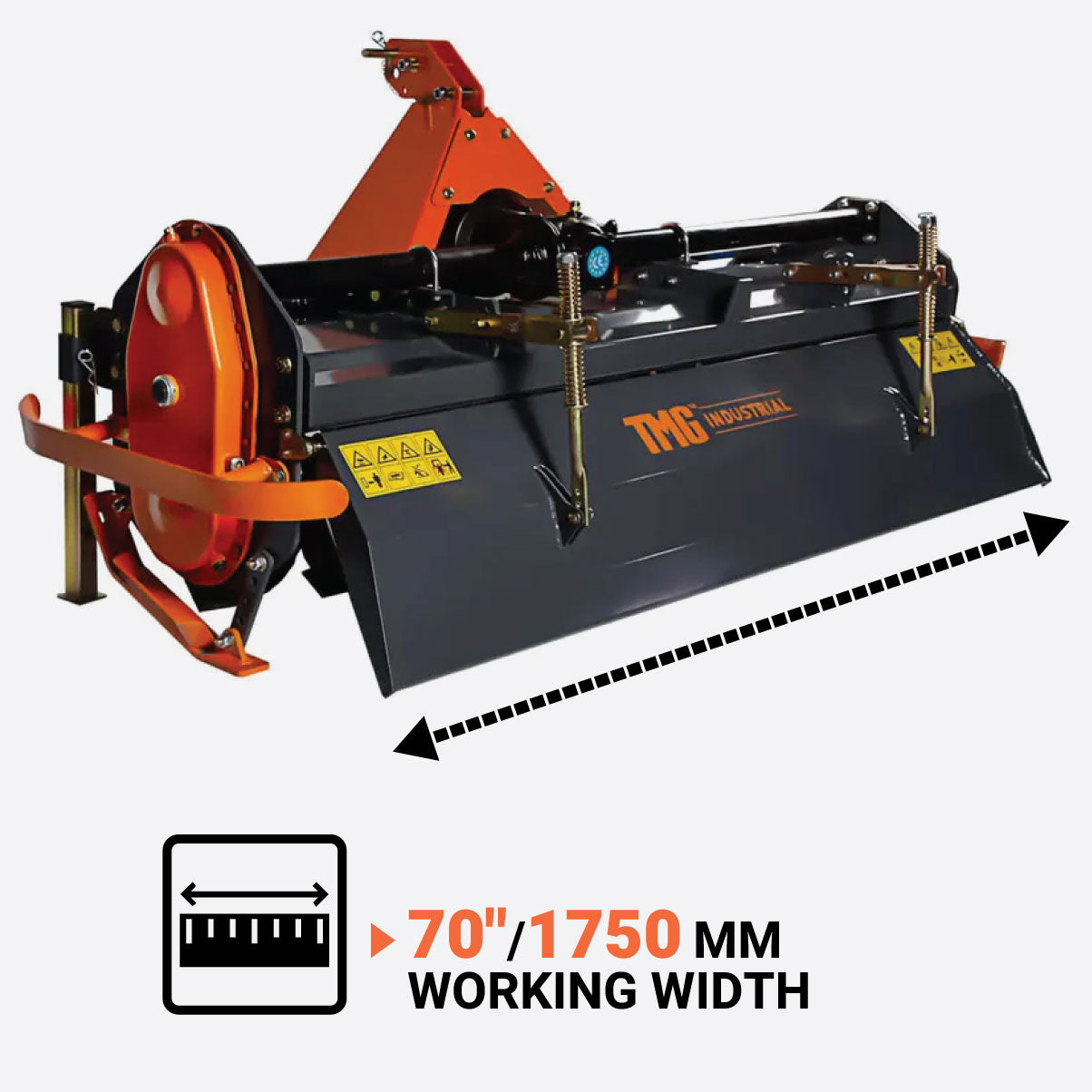

TMG-RT175 70" Working Width Rotary Tiller, 3 Point Hitch Mount, Gear Driven

TMG-RT175 Rotary Tiller tills soil for seedbed, planting preparation, and landscaping. This heavy-duty model is gear-driven and has a 70” working width. Weighing in at 870 lb, the weight of this tiller means the tines have no trouble penetrating the ground. Both the skid shoes and rear deflector are adjustable allowing for various finish results. A rotor swing diameter of 19” helps this rotary tiller dig deep, up to a depth of 6”. The TMG-RT175 has a requirement of 35-55 HP.

Features:

• Adjustable drag board with zinc-plated springs

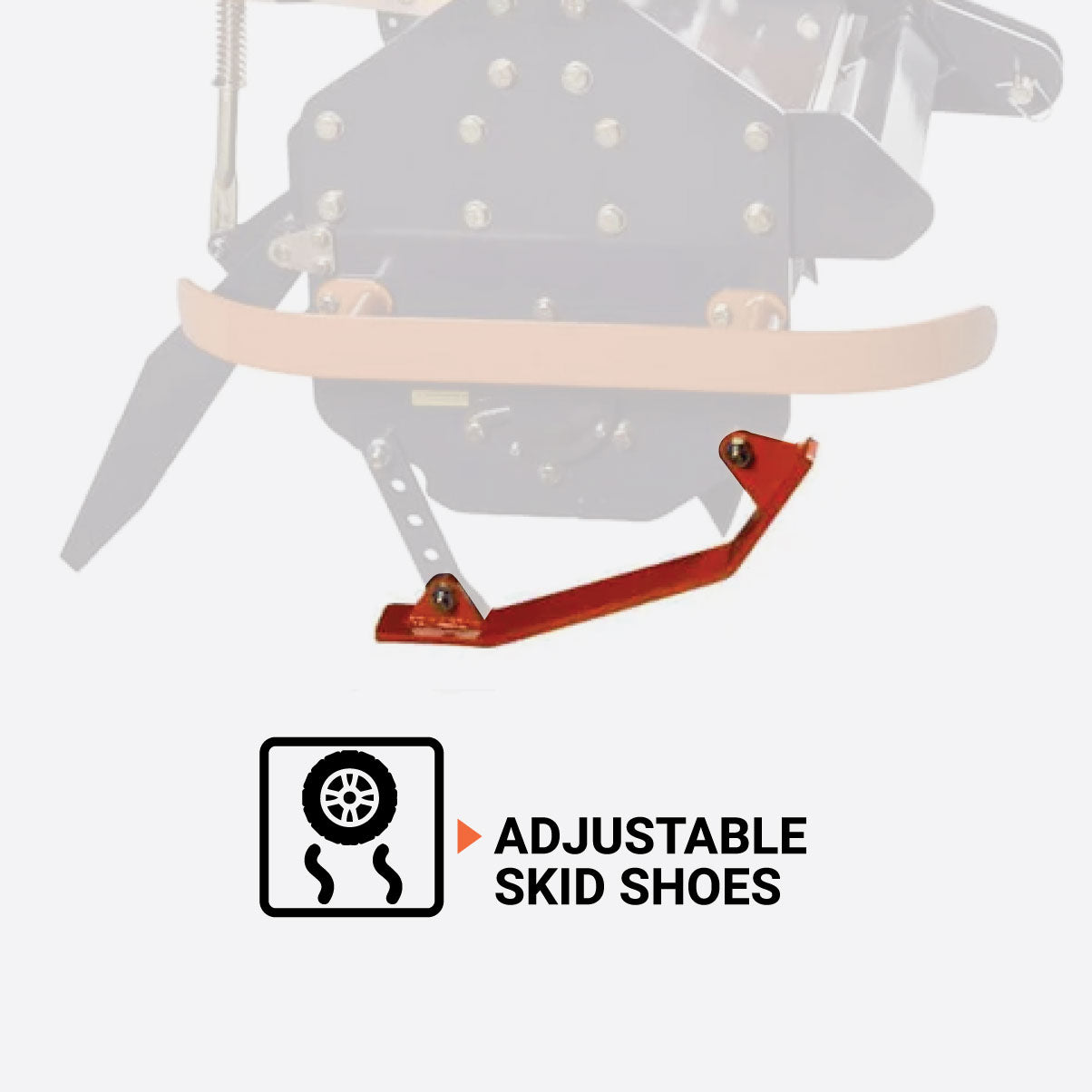

• Adjustable skid shoes for tilling depth control
• Heavy-duty cast-iron central gearbox

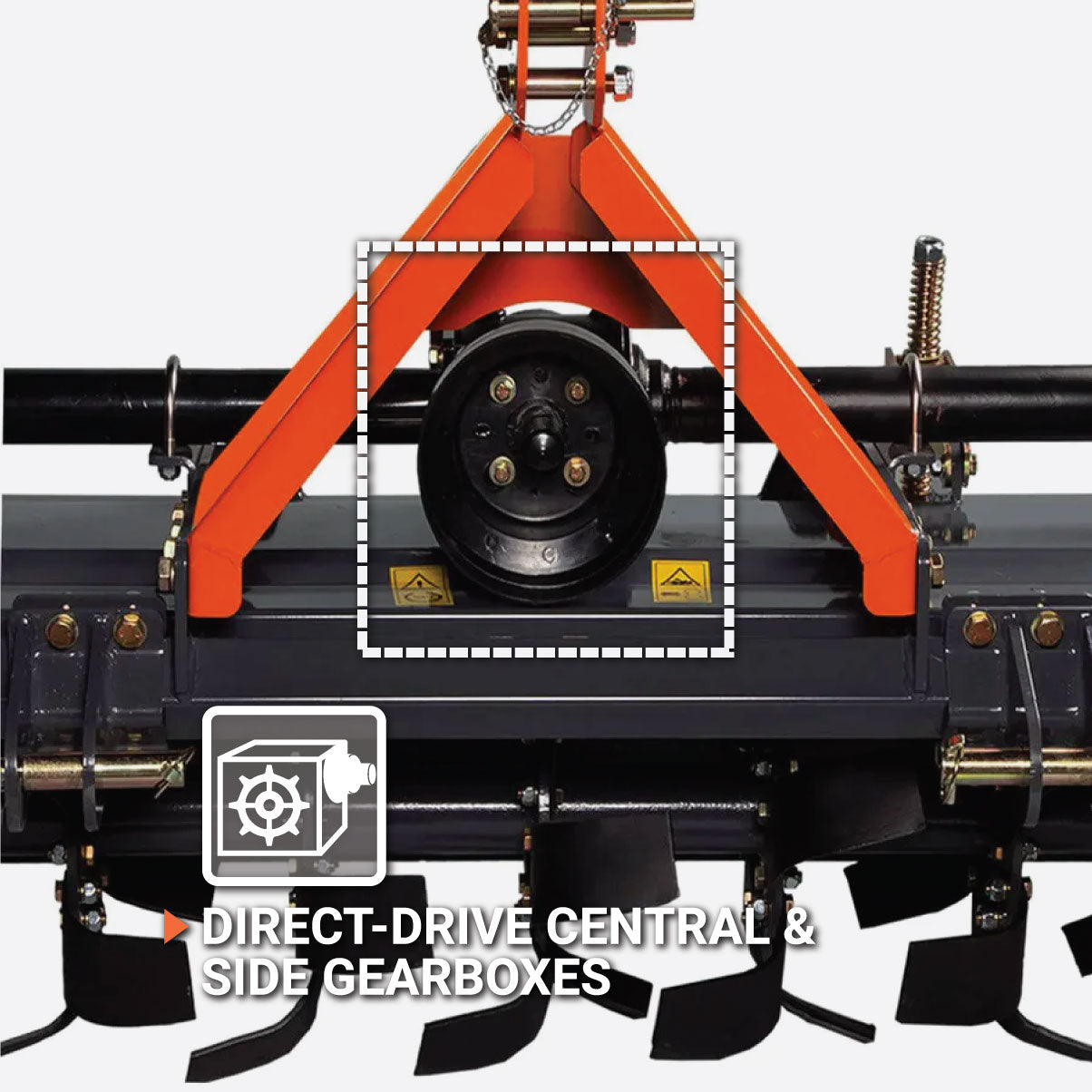

• Gear-driven central and side gearboxes
• 3-point shear pin shaft, Category 2 hookup
• Adjustable rear deflector
• Powder-coated finish

• Tractor power required: 35-55 HP

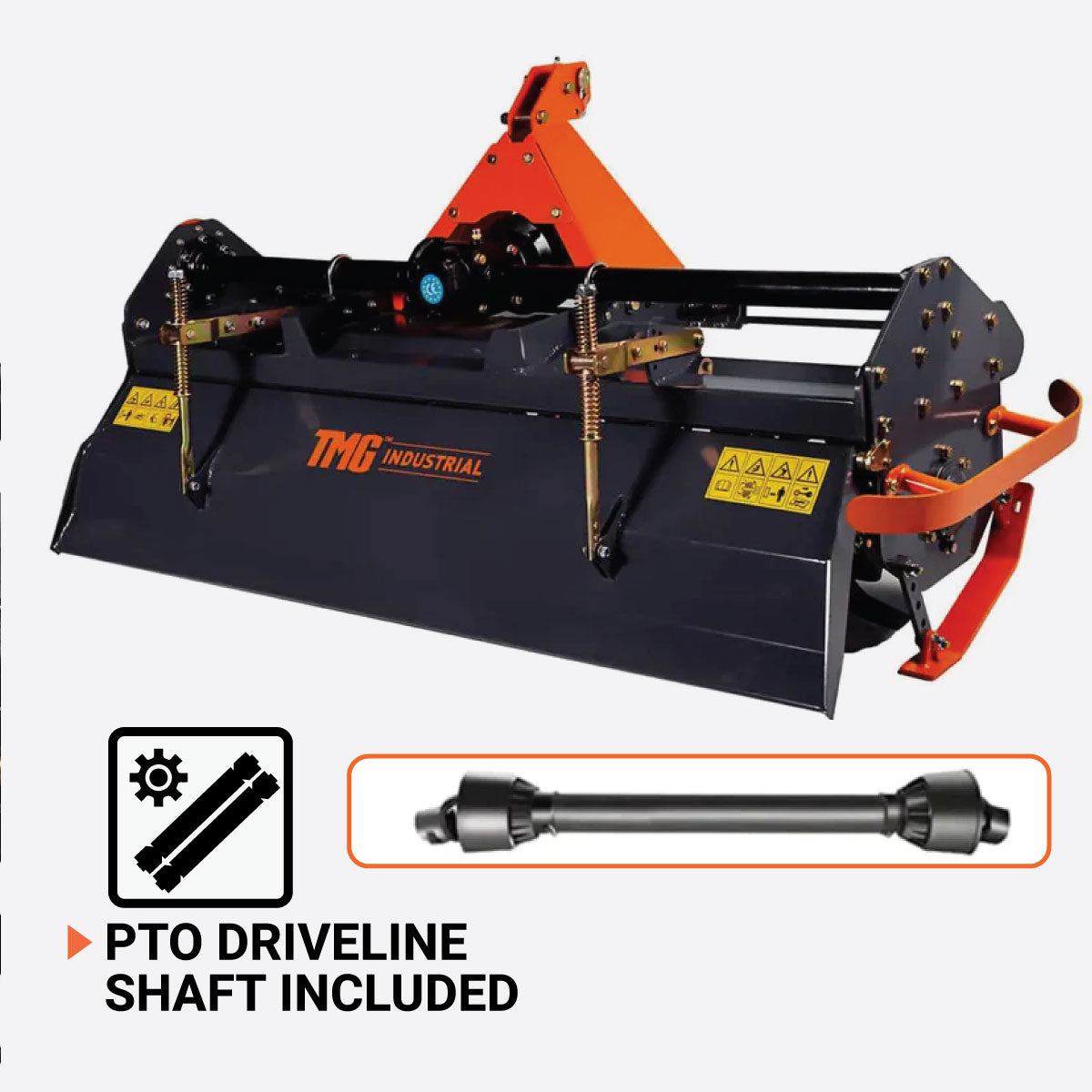

• Driveline: 3-point linkage PTO shear pin shaft category 2

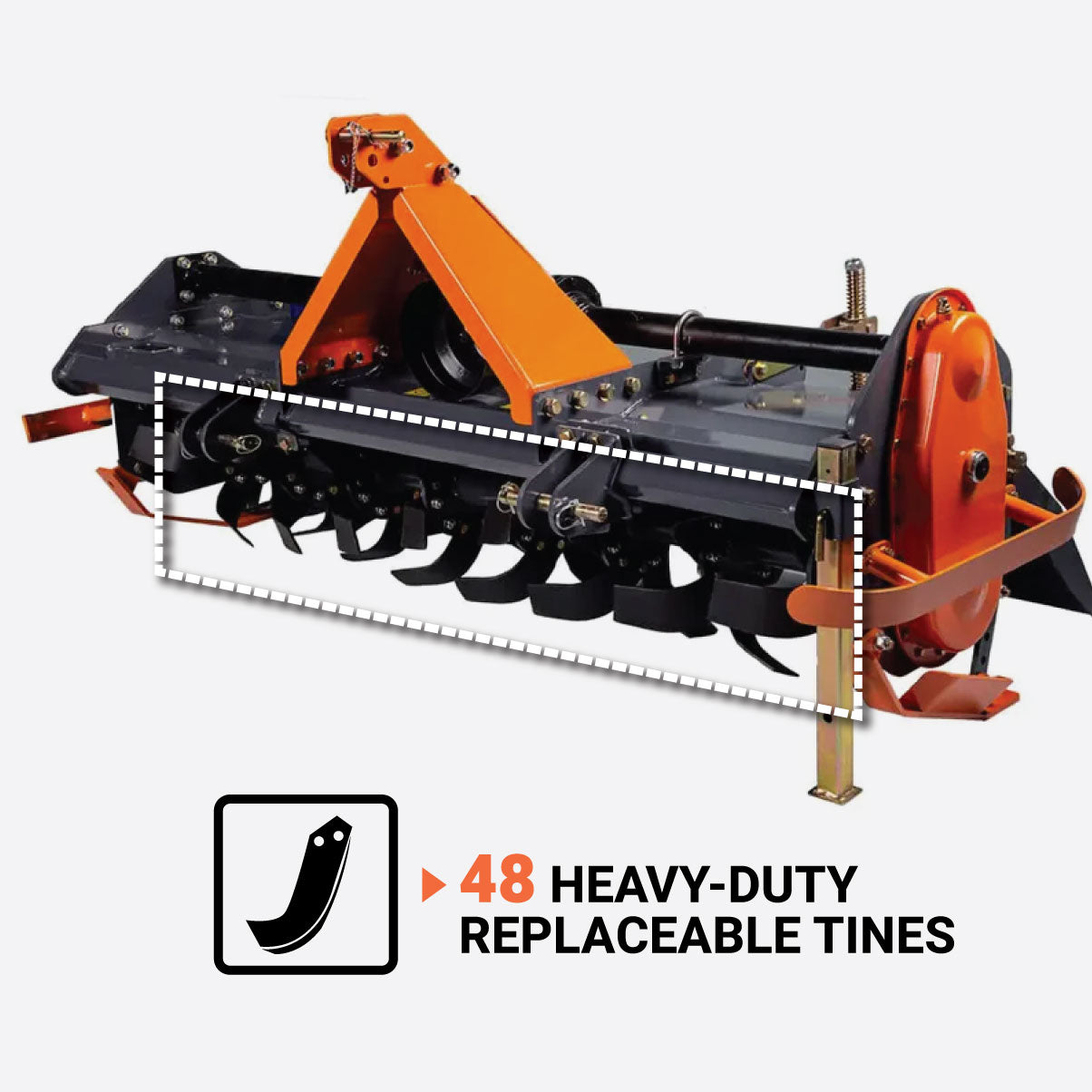

• 8 flanges with 6 blades each
• Type of drive: gear drive

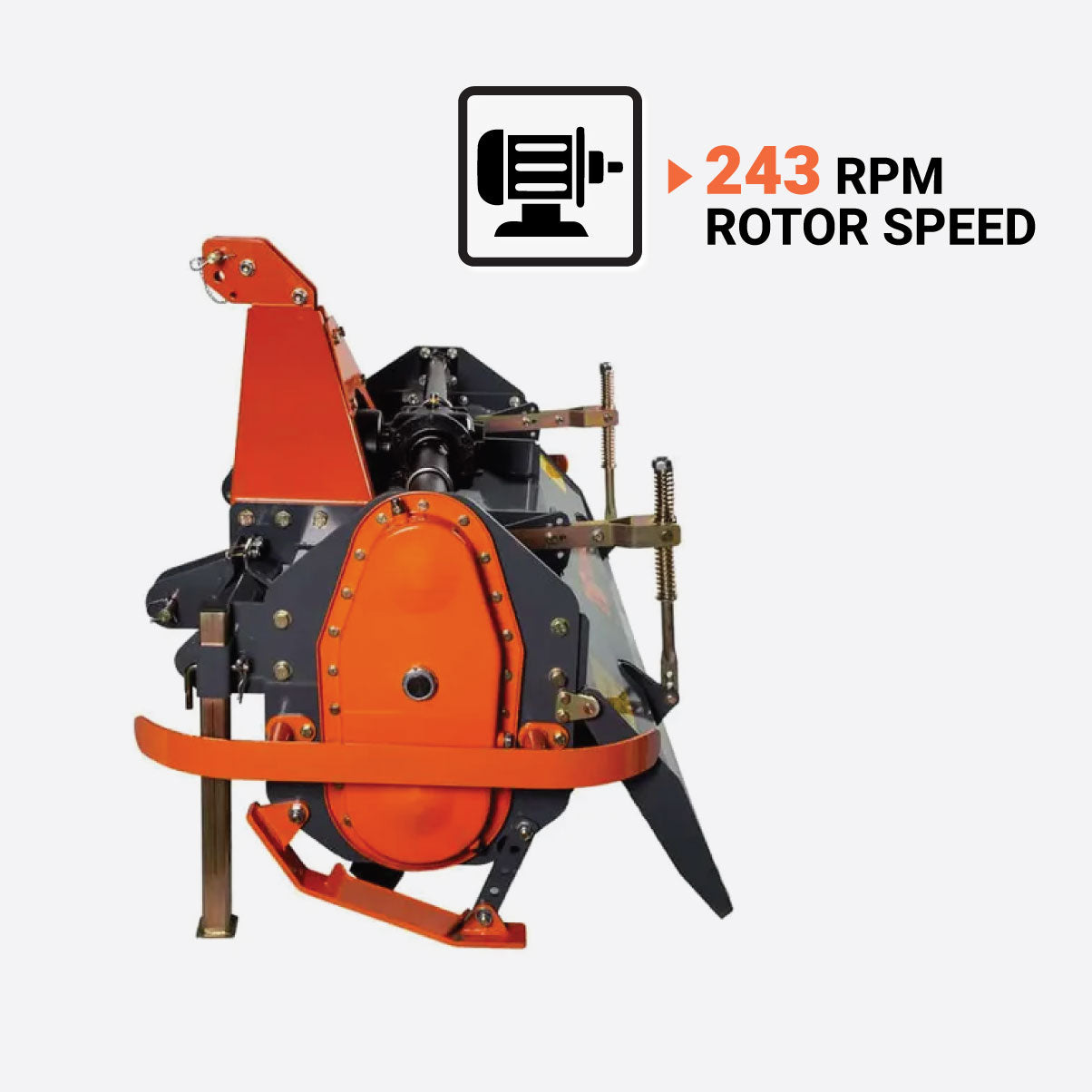

• Rotor shaft speed: 243 RPM at 540 RPM PTO
• Rotor swing diameter: 19"
• Tilling depth: 6"
• Skid shoes: Adjustable
• Rear deflector: Adjustable

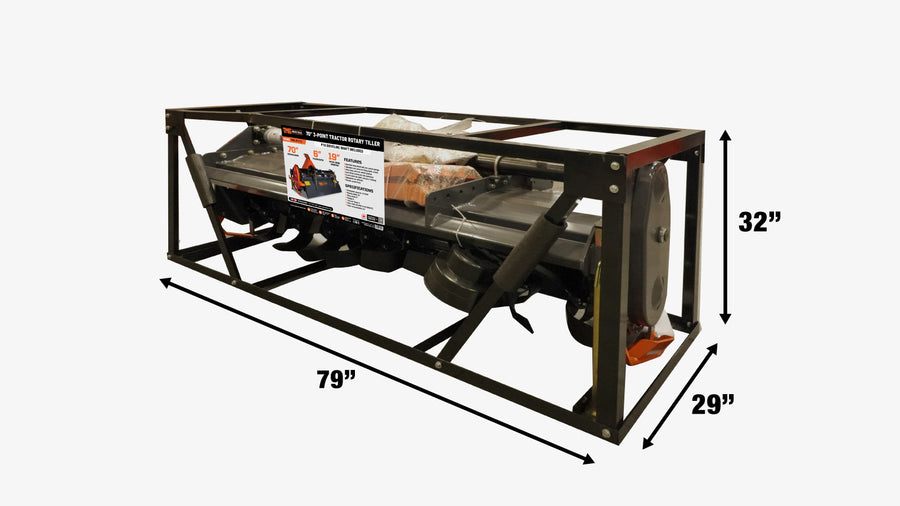

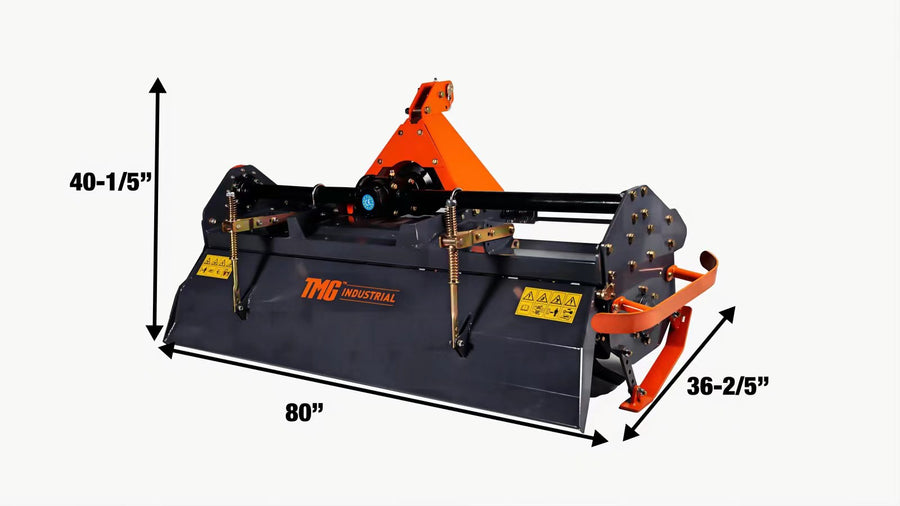

• Dimension: 85" x 28" x 30"
• Shipping weight: 870 lb

Product Manual

Download here
