TMG-PC50H

PC50H Contractor Hydraulic Reversible Plate Compactor, Honda GX390 13 HP Gas Engine, 50 kN/11,240 lbf Force

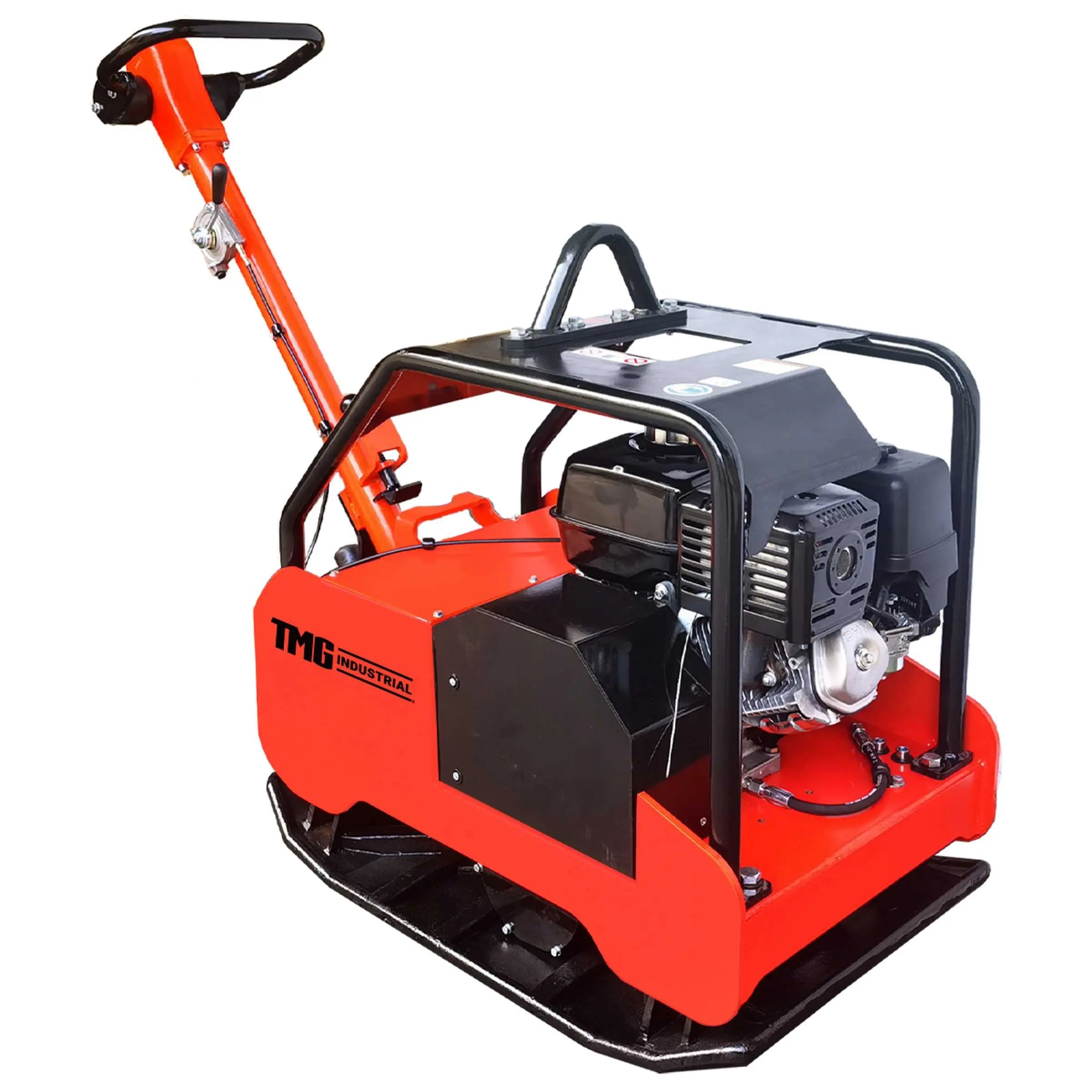

TMG-PC50H plate compactor with 50 kN (11,240 lbf) force and 13 HP Honda GX390 engine, built for heavy-duty ground compaction on soil, gravel, and asphalt.
CURRENTLY IN STOCK
SKU TMG-PC50H
$0.00 CAD - $0.00 CAD
$0.00 CAD
$7,499.00 CAD
$7,499.00 CAD - $7,499.00 CAD
$7,499.00 CAD
$7,499.00 CAD

FREE

shipping to most locations in

Canada
Delivered in 10 to 15 business days Learn More
1-877-761-2819
Product Image 1 Product Image 2 Product Image 3
Product Manual
Find Parts

Features

Feature Image

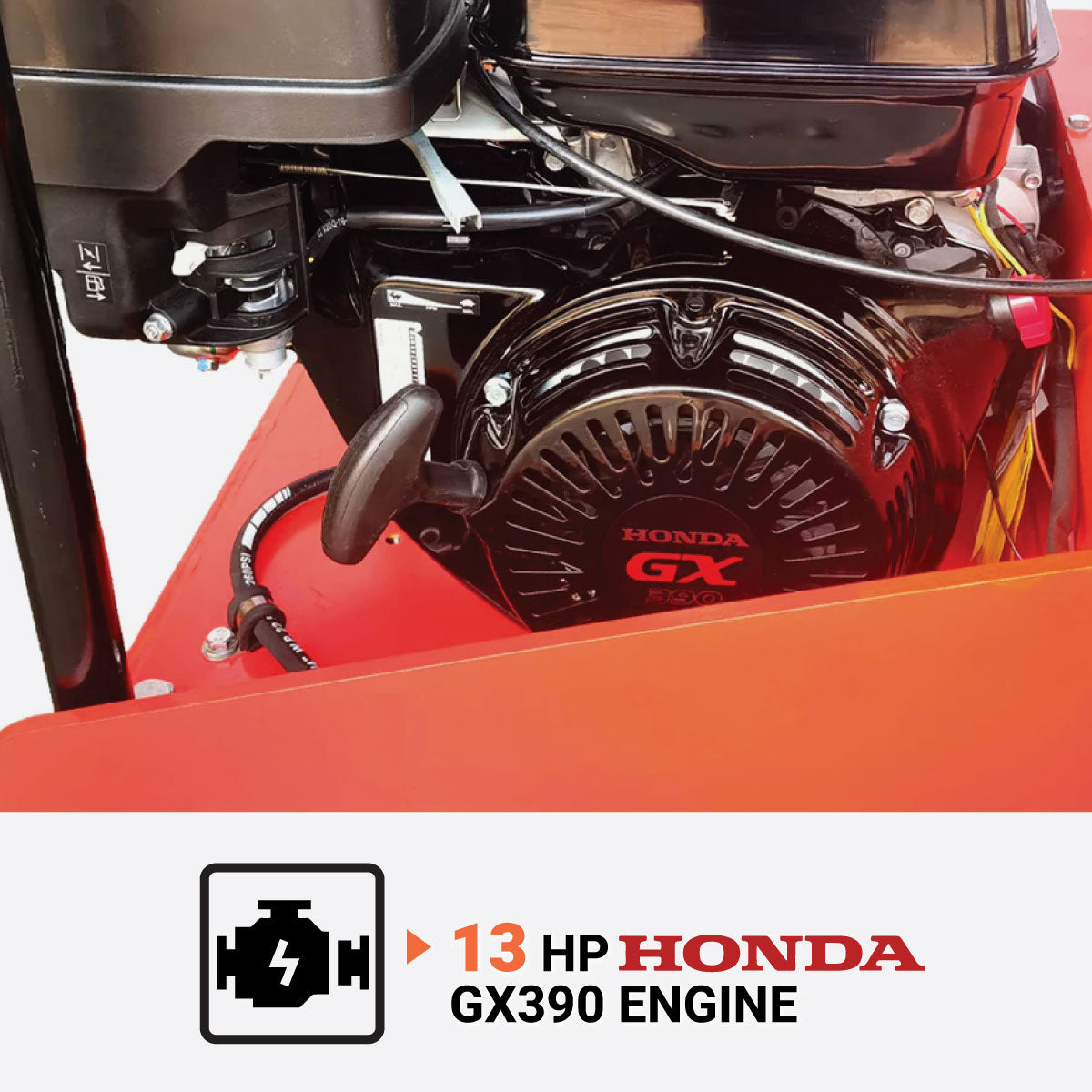

13 HP Honda GX390 four-stroke engine with 6.5 L fuel tank
Feature Image

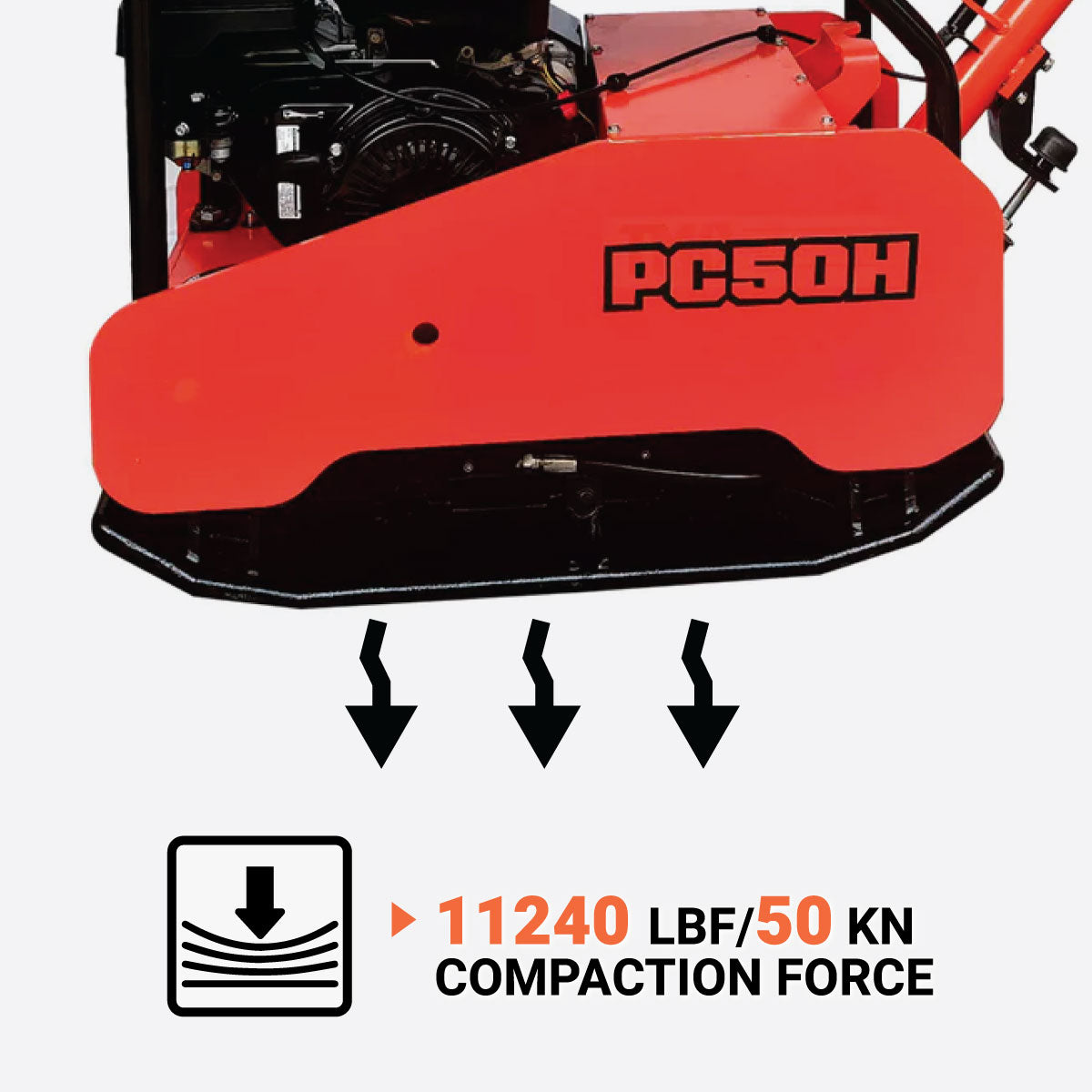

Powerful 50 kN (11,240 lbf) compaction force for heavy-duty jobs
Feature Image

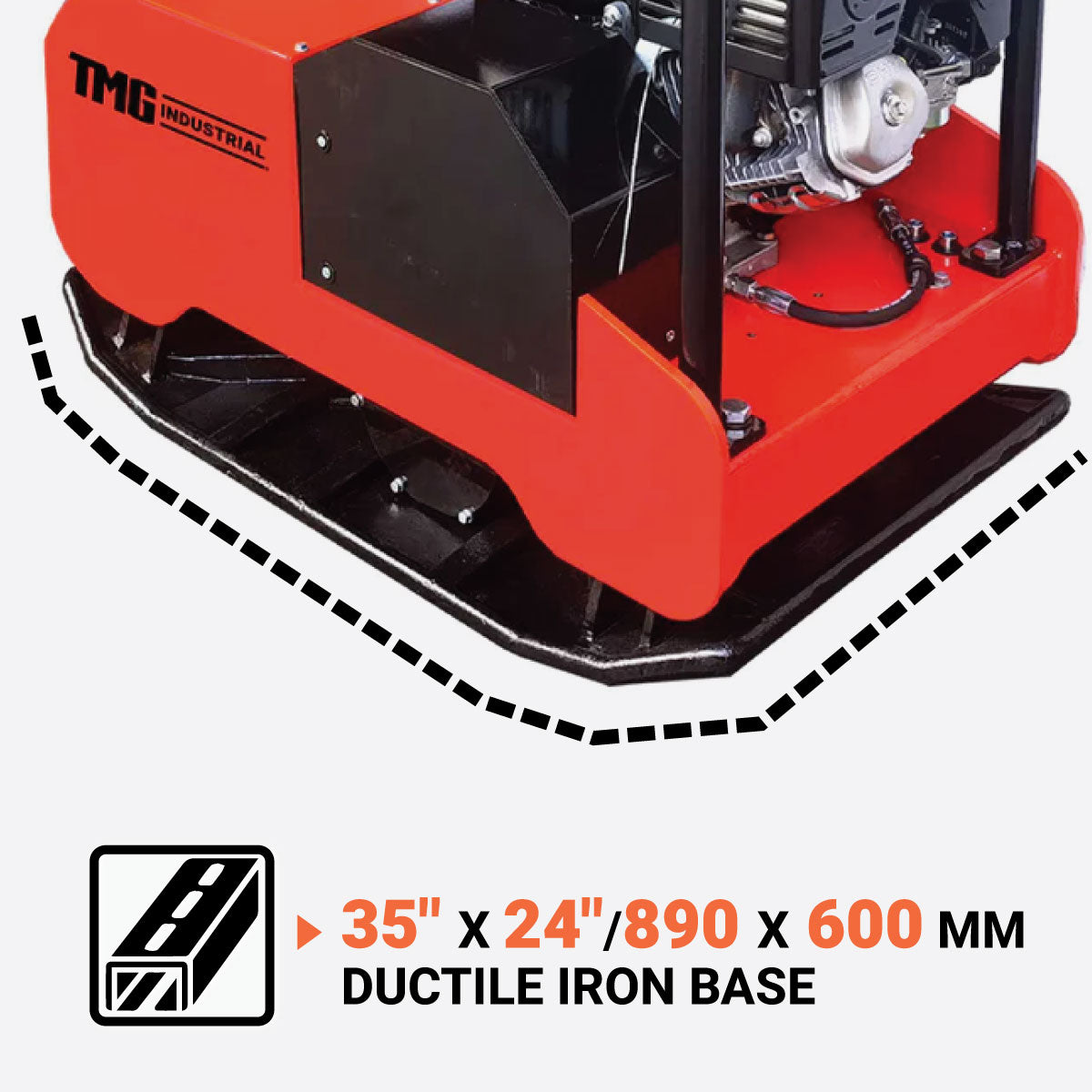

Durable 35” x 24” (890 x 600 mm) ductile iron ram plate
Feature Image

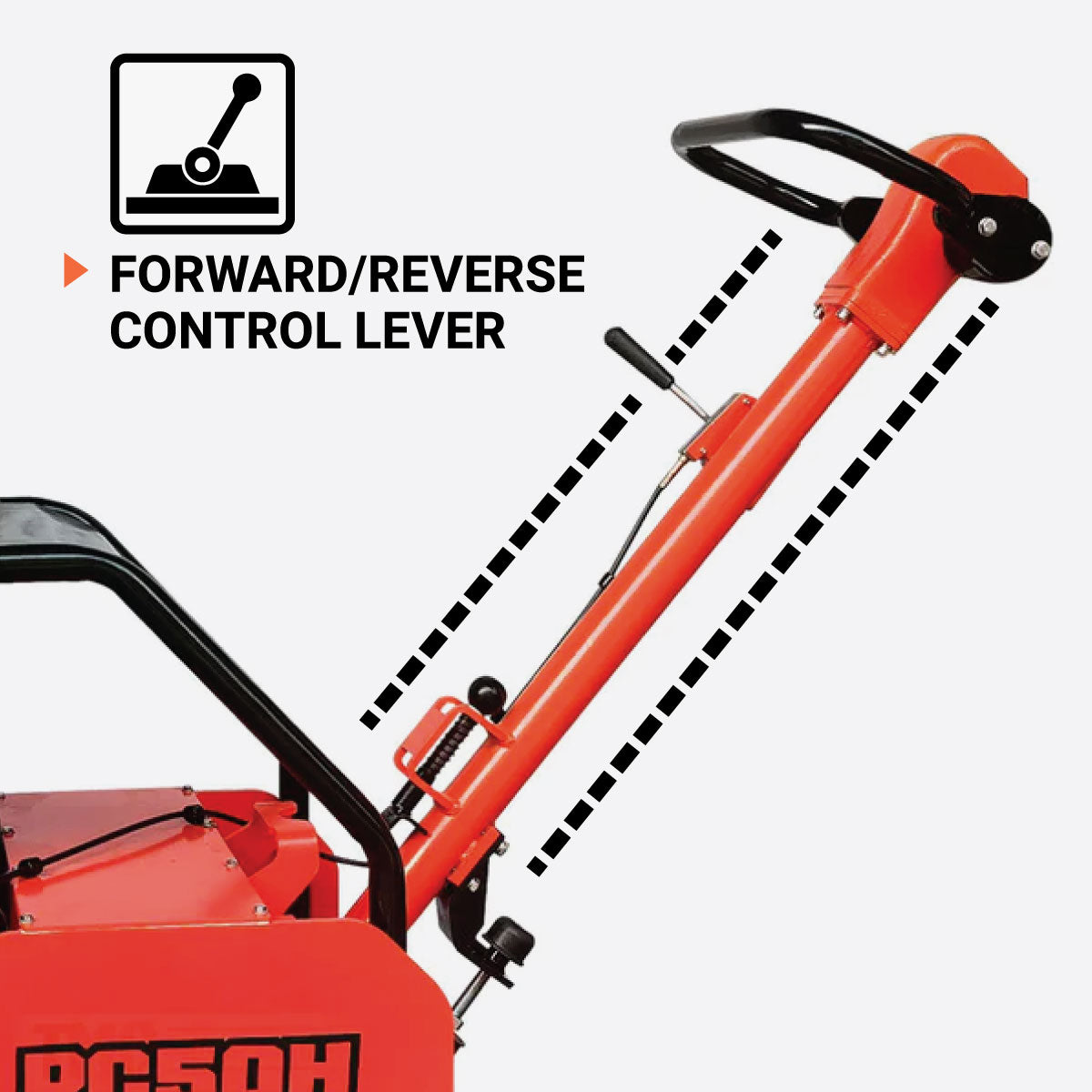

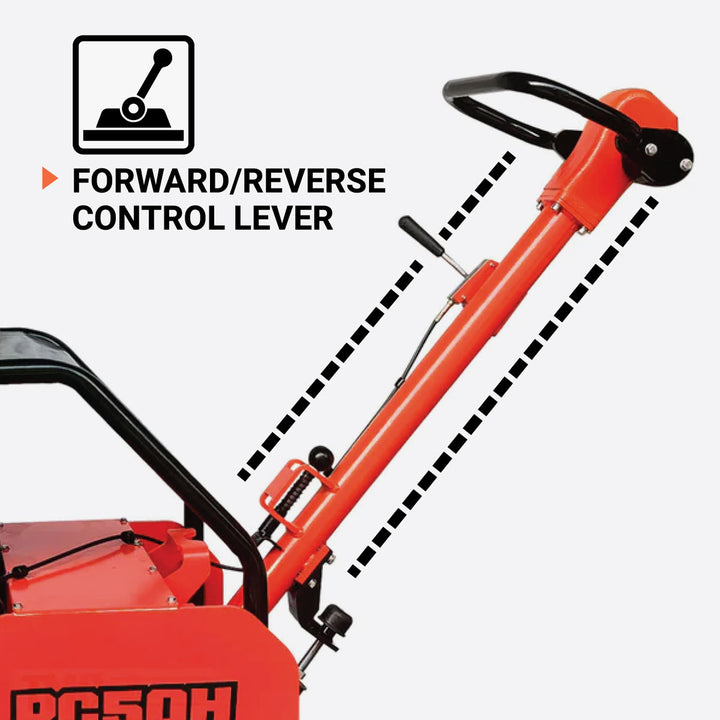

Forward/reverse lever for precision maneuverability
Feature Image

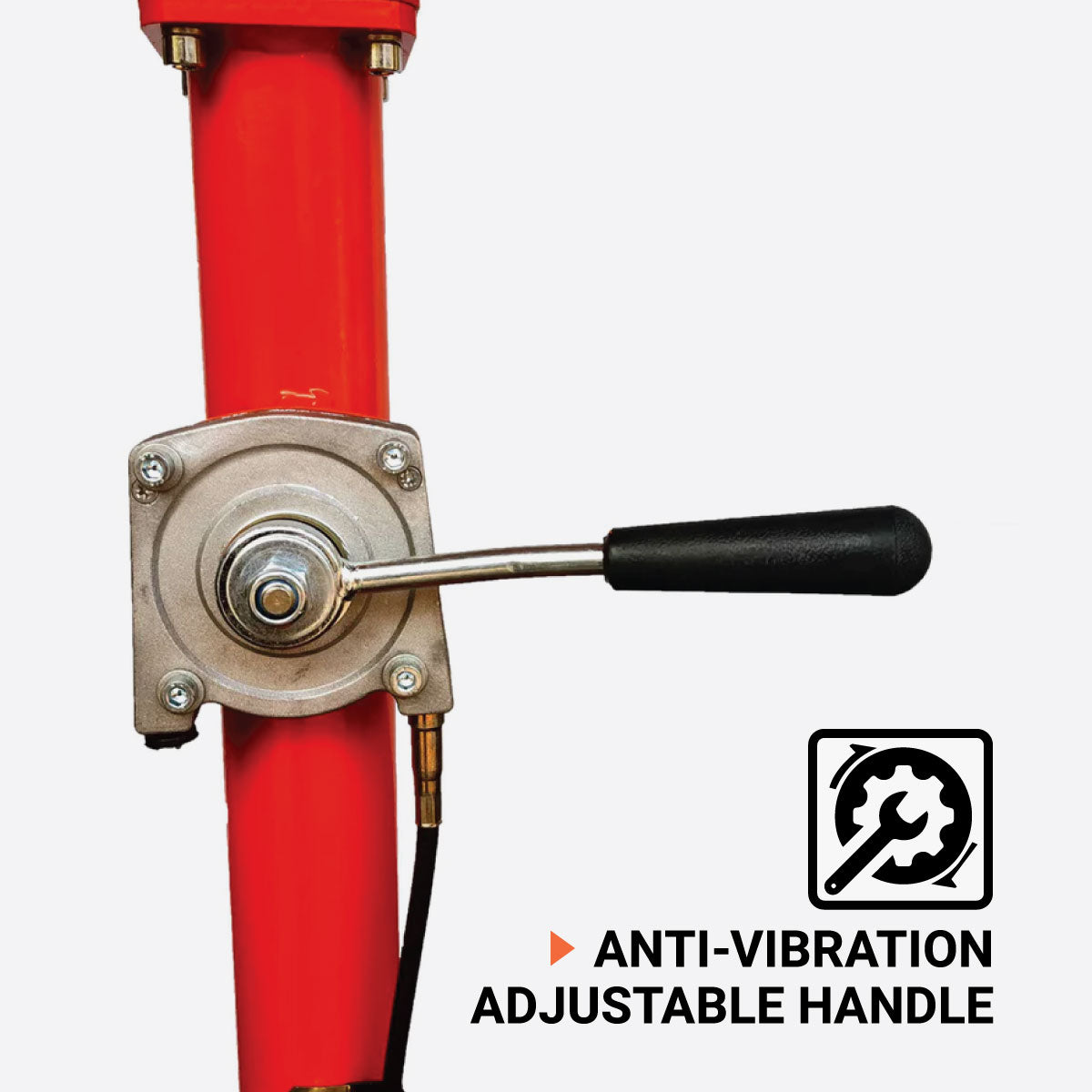

Anti-vibration adjustable handle to reduce fatigue
Feature Image

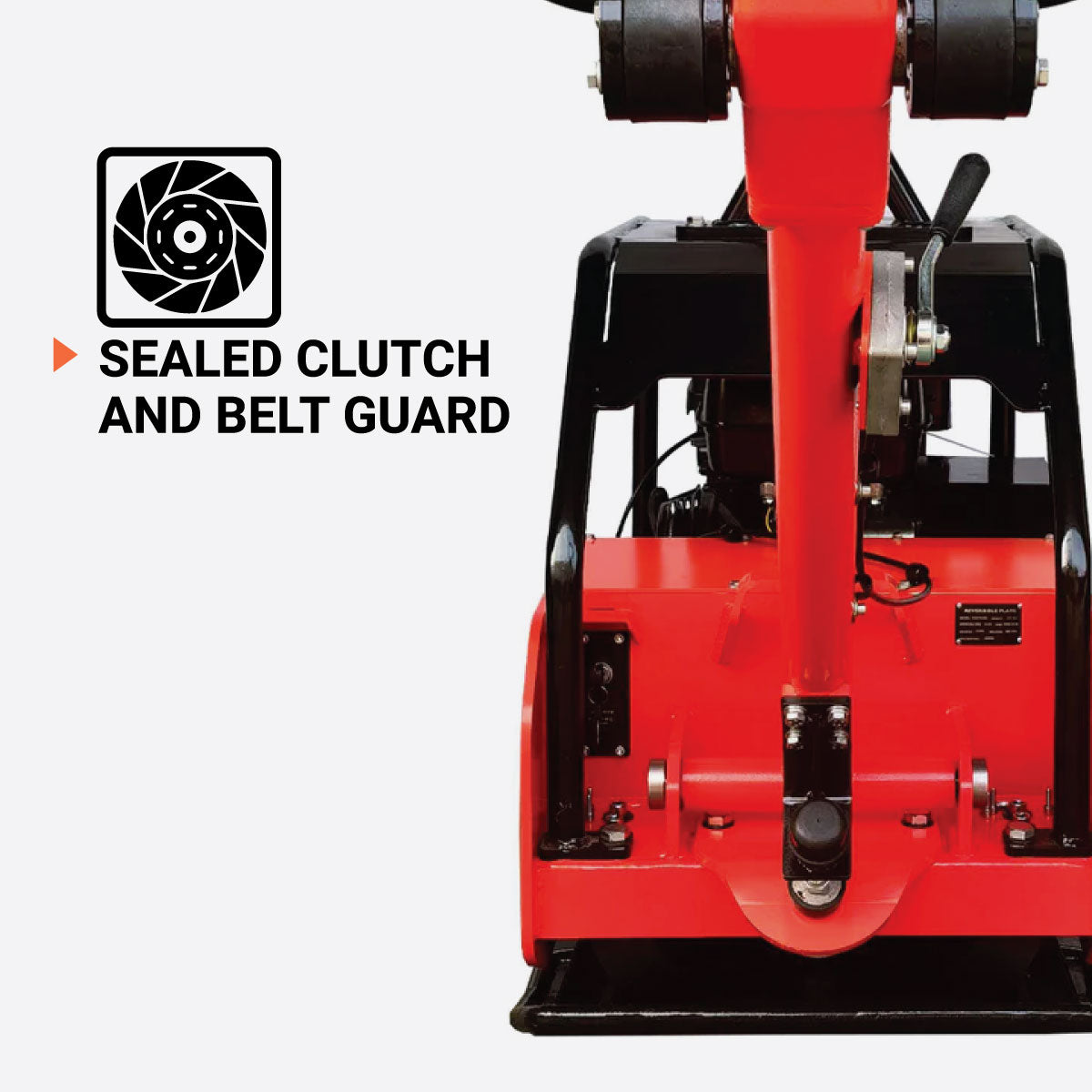

Sealed clutch & belt guard to protect internal parts

Specifications

  • Ram Plate Size: 35" × 24" (890 × 600 mm)
  • Pressing Force: 11,240 lbf (50 kN)
  • Vibration Frequency: 3840 RPM / 64 Hz
  • Forward Speed: 72' (22 m) per minute
  • Weight: 944 lb (428 kg)
  • Dimensions: 63" × 24" × 55" (1610 × 600 × 1390 mm)

Engine Specifications:

  • Model: Honda GX390
  • Type: Four-stroke, air-cooled gasoline engine
  • Max Power: 13 HP (9.6 kW) @ 3600 RPM
  • Fuel Tank: 6.5 L

Product Description

The TMG-PC50H Plate Compactor is engineered to handle the most demanding ground compaction projects. It boasts a powerful 50 kN (11,240 lbf) force, driven by a reliable 13 HP Honda GX390 four-stroke engine for top-tier performance and longevity.

Built with an anti-vibration adjustable handle, sealed clutch system, and heavy-duty ductile iron base, this compactor ensures maximum efficiency, reduced wear, and enhanced user comfort. It’s the go-to solution for contractors working on road bases, walkways, foundations, or asphalt repairs.

Its forward/reverse functionality allows for precise control and easy maneuverability, especially in confined job site areas. A compact, transport-ready design with an integrated lifting hook makes it ideal for frequent relocation between work zones.

Also available: TMG Industrial offers other plate compactors with Honda engines at various capacities, including TMG-PC35H, TMG-PC40H, and TMG-PC60H.

Shipping Information

Your order will be shipped from one of our main warehouses in Canada. Under normal circumstances, it takes 2 to 3 business days to process and ship the order. Delivery time ranges between 10 to 15 business days, depending on your location and access.

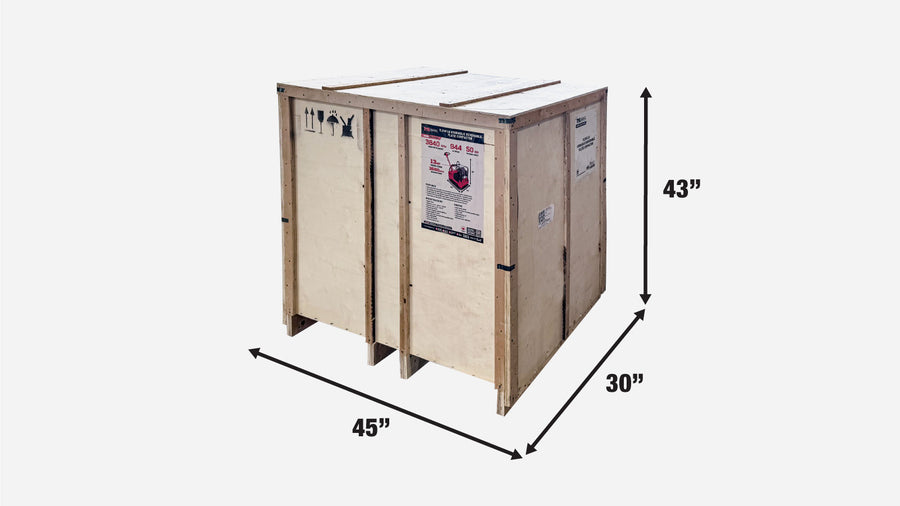

  • This product is packed in a wood crate shipping box.
  • Shipping Dimensions: 45" x 30" x 43" (L x W x H)
  • Shipping Weight: 1030 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
PC50H Contractor Hydraulic Reversible Plate Compactor, Honda GX390 13 HP Gas Engine, 50 kN/11,240 lbf Force-shipping-info-image

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
