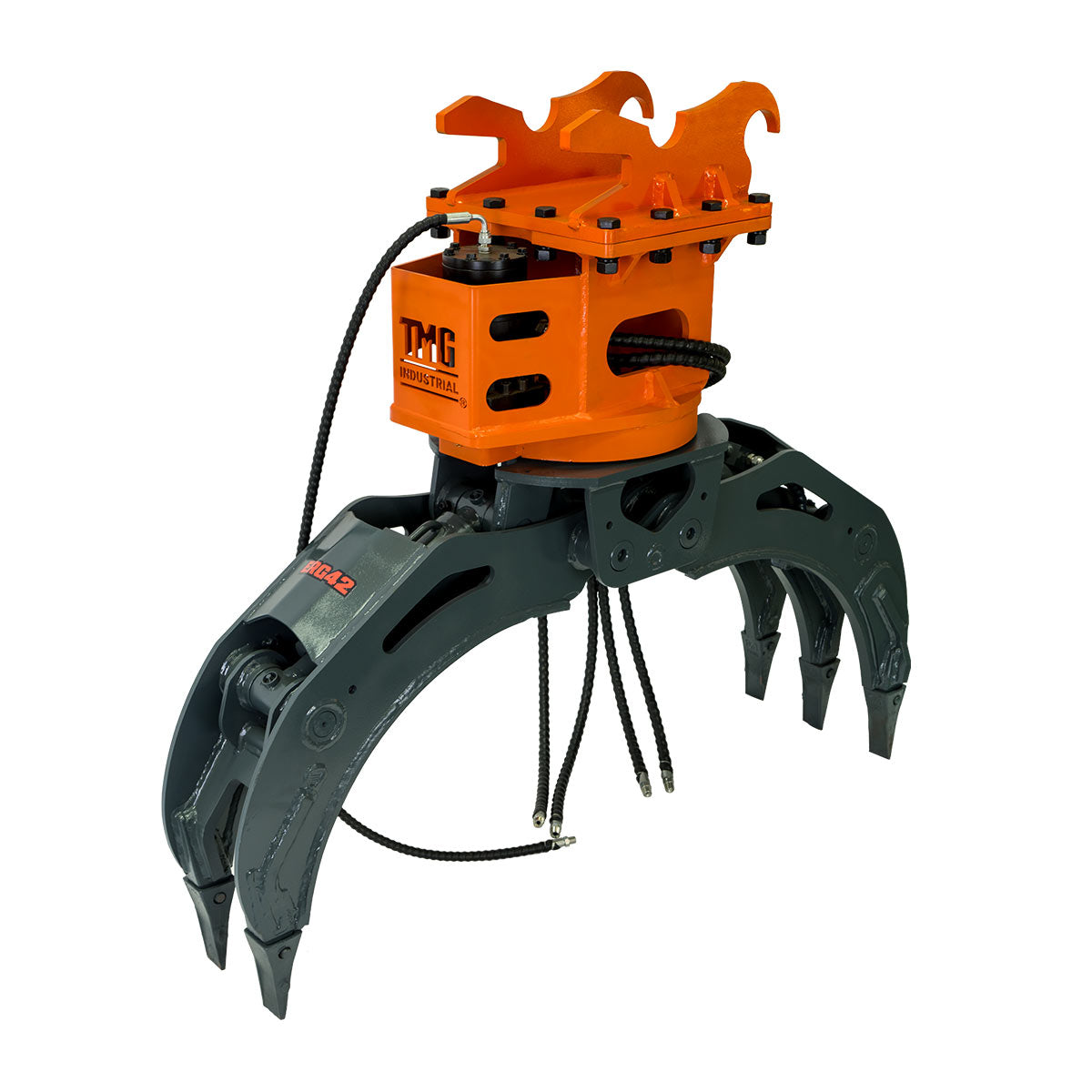

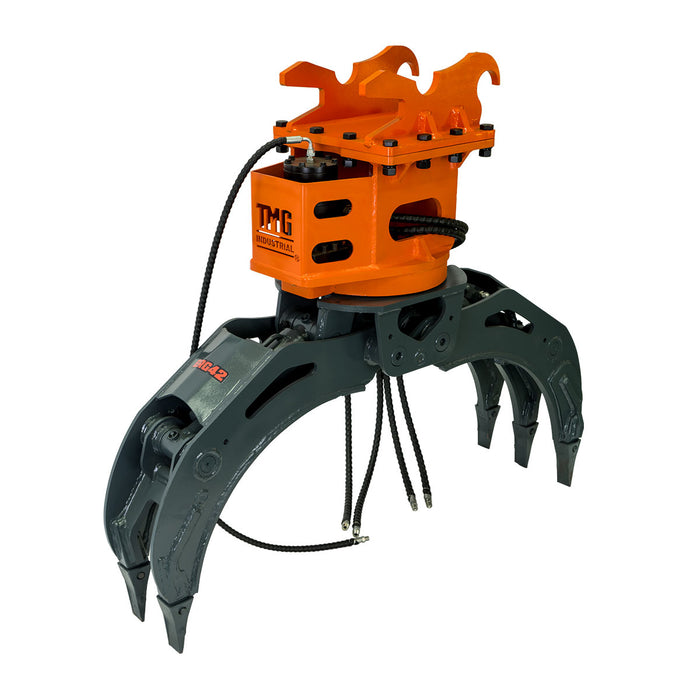

42" Hydraulic Rotating Excavator Grapple, 360 Degree Rotation, 4-8 Ton Excavators, Dual Moving Jaws, Quick Change, TMG-ERG42

Click to expand Tap to zoom

EST. 4-8 WEEKS DELIVERY

SKU TMG-ERG42

Original price $4,499.00 CAD - Original price $4,499.00 CAD

Original price

$4,499.00 CAD

$4,499.00 CAD - $4,499.00 CAD

Current price $4,499.00 CAD

| /

Save

$4,499.00 CAD

Total: $4,499.00 CAD $4,499.00 CAD

FREE

shipping to most locations in

Canada

GRAB IT SOON - ONLY 5 LEFT IN STOCK

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

PRE ORDER NOW

1-877-761-2819

cs@tmgindustrial.ca

Find Parts

42" Hydraulic Rotating Excavator Grapple, 360 Degree Rotation, 4-8 Ton Excavators, Dual Moving Jaws, Quick Change, TMG-ERG42

(Accessories Incl.)

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

PRE ORDER NOW

Features Specs Description Shipping Info Warranty Reviews

Features

• 4-8 Ton Excavator: Designed for compact and mid-size excavators requiring controlled grapple handling for demanding jobsite cleanup and material movement.
• 42" Grapple Opening: Wide jaw opening gives operators the capacity needed to grab larger material with steady, balanced clamping force.
• Dual Jaw Closing: Dual moving jaws close evenly around material, providing more secure pickup than a one-arm static grapple design.
• 360 Degree Rotation: Full rotation in both directions gives operators precise grapple positioning when loading, sorting and placing material.
• Oversized Slewing Bearings: Oversized slewing bearings generate strong rotational torque for smoother turning under regular excavation and cleanup work.

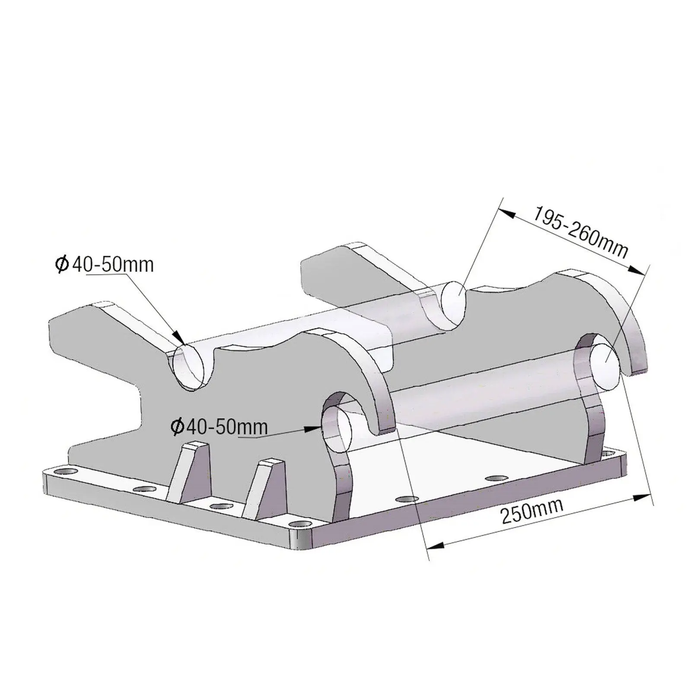

• Quick-Change Lugging: Q/C lugging design provides easier attachment and release, reducing setup time when switching excavator attachments.

See less ⌃

Specifications

• Excavator weight: 4-8 ton
• Operating weight: 940 lb (426 kg)
• Opening length: 42" (1060 mm)
• Rotation: 360 degrees in both directions
• Teeth configuration: 3-tooth front / 2-tooth rear, dual-row
• Working pressure: 1450-2000 PSI (10-14 MPa)
• Working flow: 11-21 gal/min (40-80 L/min)

See less ⌃

Product Description

The TMG-ERG42 Hydraulic Rotating Excavator Grapple is a heavy-duty attachment designed for controlled material handling, cleanup and sorting work. Built for 4-8 ton excavators, it gives operators a practical way to grab and position bulky or irregular material around active jobsites.

The 42" jaw opening provides strong grabbing capacity, while the dual moving jaws close evenly around material for a more secure hold than one-arm static grapple designs. Full 360 degree rotation in both directions gives operators flexible positioning when loading, sorting and placing material.

Oversized slewing bearings generate strong rotational torque for smoother grapple movement under regular use. With a dual-row 3-tooth front and 2-tooth rear configuration, quick-change lugging and a rugged construction, the TMG-ERG42 is built for excavator operators who need reliable gripping performance in demanding work conditions.

See less ⌃

Shipping Information

The order will ship from one of our main warehouses in Canada. Under normal circumstances, it will take 2 to 3 business days to process and ship your order. Delivery typically takes 10 to 15 business days, depending on your location and site accessibility.

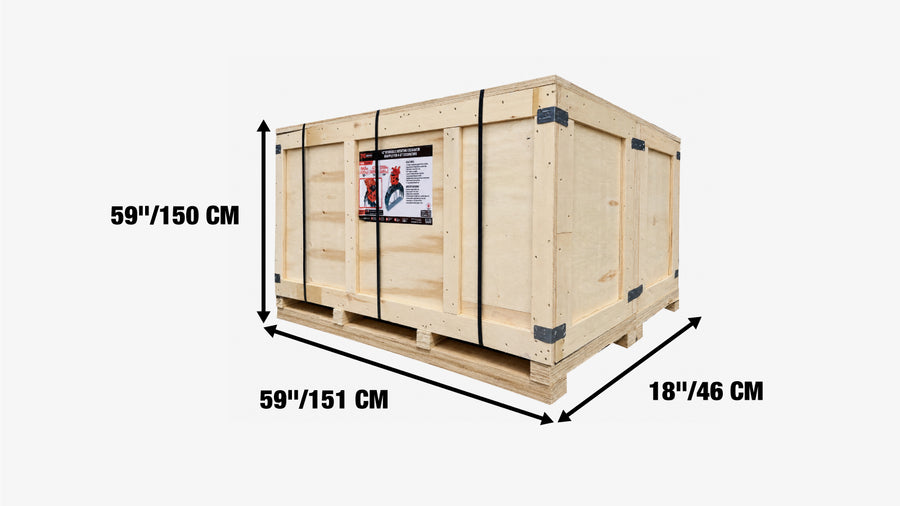

• This product is packed in a wood crate shipping box.
• Shipping dimensions: 59" x 18" x 59" (L x W x H),151x46x150cm
• Shipping weight: 1075 lb (486 kg)

Shipping from Richmond, BC, or Mississauga, ON
