CURRENTLY OUT OF STOCK
TMG-TAM32

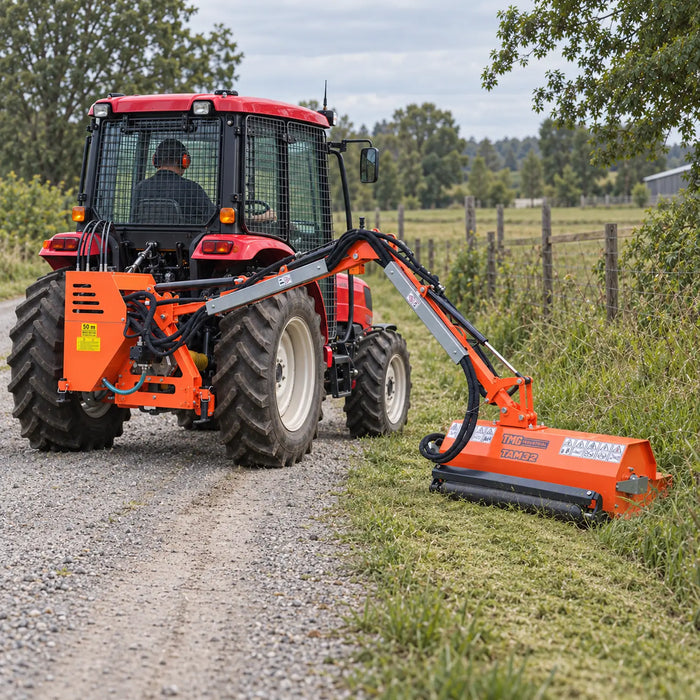

32" Side Boom Mower, Hydraulic Reach Arm, Tractor-Mounted, Cat 1, 108" Reach, TMG-TAM32

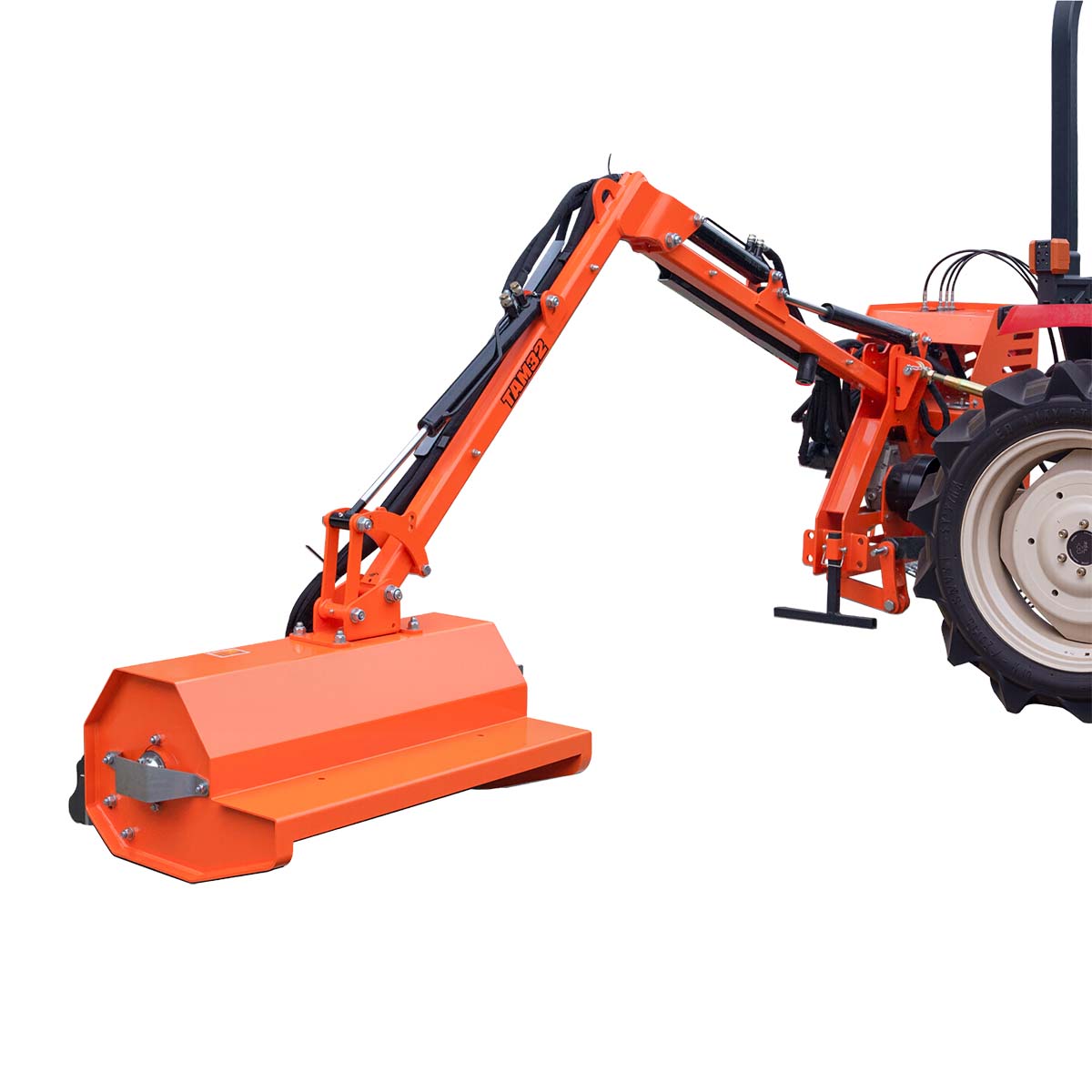

Orange boom and cutting head connected to tractor, 32" Side Boom Mower.
CURRENTLY OUT OF STOCK
SKU TMG-TAM32
$6,799.00 CAD - $6,799.00 CAD
$6,799.00 CAD
$6,799.00 CAD - $6,799.00 CAD
$6,799.00 CAD
$6,799.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days Learn More
1-877-761-2819
Product Manual
Find Parts

Features

  • 20-50 HP Tractor Range: Designed for compact and utility tractors with 540 RPM PTO operation and dependable field performance.
  • 3-Point Category 1: Fits 3-point hitch systems for secure tractor mounting, reliable hookup, and versatile field operation.
  • 32" Cutting Width: Handles grass, weeds, light brush, roadsides, ditches, field edges, and embankment maintenance.
  • 108" Maximum Reach: Cuts beyond the tractor path along banks, fences, hedges, and other hard-to-reach areas.
  • 176° Head Adjustment: Positions the mower for offset, inclined, vertical, and horizontal cutting applications with improved flexibility.
  • PTO-Driven Hydraulics: Tractor PTO powers the mower’s separate hydraulic system, operating independently from the tractor hydraulics.
  • Multi-Use Attachment Design: Can use other attachments such as mulching heads, hedge trimmers, or branch saws (not included).

Specifications

  • Recommended tractor HP: 20-50 HP
  • PTO speed: 540 RPM
  • Hitch compatibility: 3-Point Category 1
  • Working width: 32" (800 mm)
  • Minimum / maximum cutting height: 7/8" - 3"-1/8" (22 - 80 mm)
  • Maximum ground-level horizontal reach: 108" (2755 mm)
  • Maximum vertical reach: 72" (1830 mm)
  • Maximum cutting diameter: 3/8" (10 mm)
  • Head angle: 176°
  • Number of blades: 32 pieces, Y blades
  • Maximum operating pressure: 2300 PSI / 160 bar
  • Hydraulic pump rating: 13.2 GPM / 50 LPM
  • Gearbox oil: 17 gal / 65 L SAE 90 EP
  • Hydraulic system: Self-contained with oil tank and oil cooler

Product Description

The TMG-TAM32 Side Boom Mower is a compact and versatile tractor-mounted reach mower designed for roadside, ditch, field edge, embankment, hedge, and vegetation maintenance. With a 32" cutting width, 108" maximum reach, and 176° head angle adjustment, it gives operators the flexibility to cut in offset, inclined, vertical, and horizontal positions.

Built for dependable field performance, the TMG-TAM32 features a sturdy arm structure with torsion-resistant profiles and bushed, greaseable joints. Its self-contained hydraulic system includes a 17 gal oil tank and oil cooler, helping prevent hydraulic cross contamination between the mower and tractor. A dual hydraulic pump powers the cutting attachment and hydraulic cylinders separately for smoother control and consistent operation.

Equipped with 32 Y blades and designed for 3-point hitch Category 1 tractors, this mower is a practical solution for farms, acreages, municipalities, and property maintenance crews. Whether maintaining road edges, clearing banks, trimming hedges, or managing field borders, the TMG-TAM32 helps improve reach, control, and mowing efficiency.

TMG also carries a similar hydraulic arm mower: TMG-TAM40

Shipping Information

The order will ship from one of our main warehouses in Canada. Under normal circumstances, it will take 2 to 3 business days to process and ship your order. Delivery typically takes 10 to 15 business days, depending on your location and site accessibility.

  • This product is packed on a pallet for freight shipping.
  • Shipping dimensions: 51" x 30" x 91" (L x W x H), 130x75x230 cm
  • Shipping weight: 660 lb (298 kg)
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
