1630 LB Wheeled Stand-On Skid Steer, 420cc/11.5 HP Gas Engine, 30" Bucket Width, TMG-MVL16

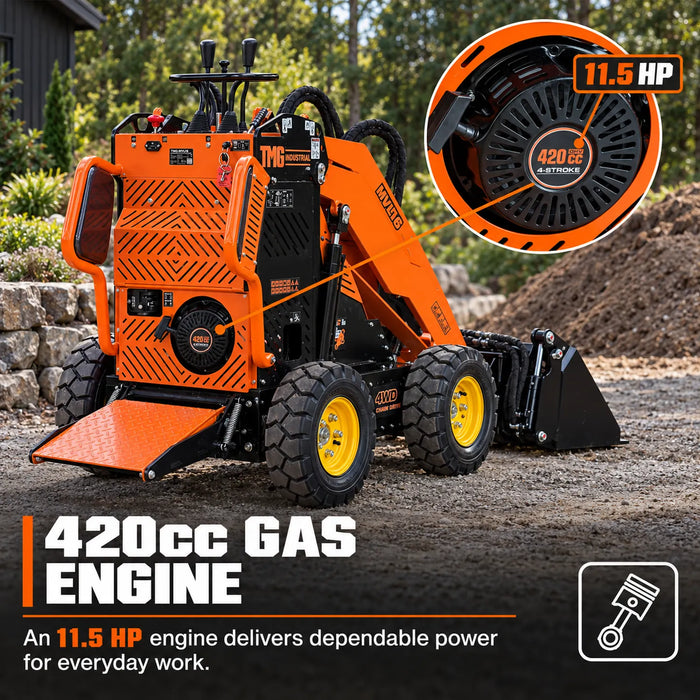

• High-Performance 420cc Engine: Delivers powerful output, fuel efficiency, and long-lasting durability.

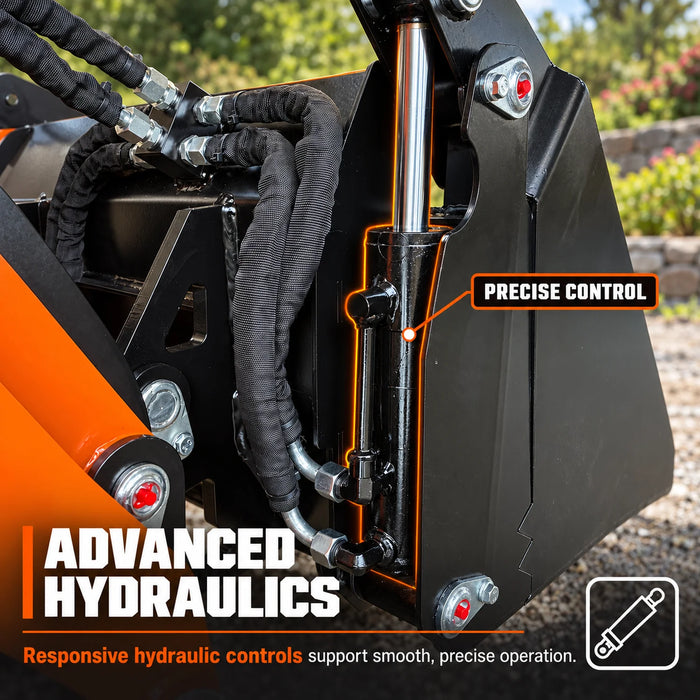

• Advanced Hydraulics: Smooth, responsive controls ensure precise and effortless operation.
• Easy Maneuverability: The wheeled skid steer loader offers excellent steering flexibility, making it easy to operate and turn in tight spaces.

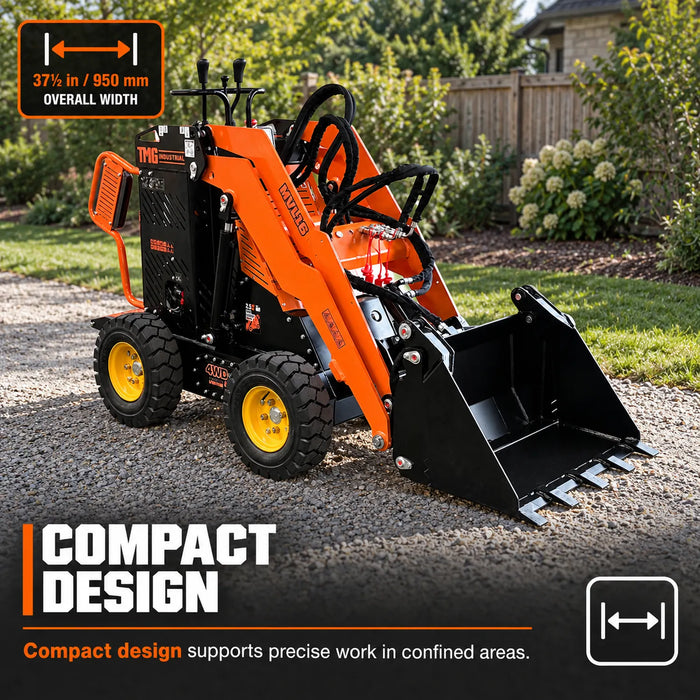

• Compact Design: The compact design is ideal for precise tasks in confined areas such as construction sites and warehouses, meeting the demands of complex working conditions.

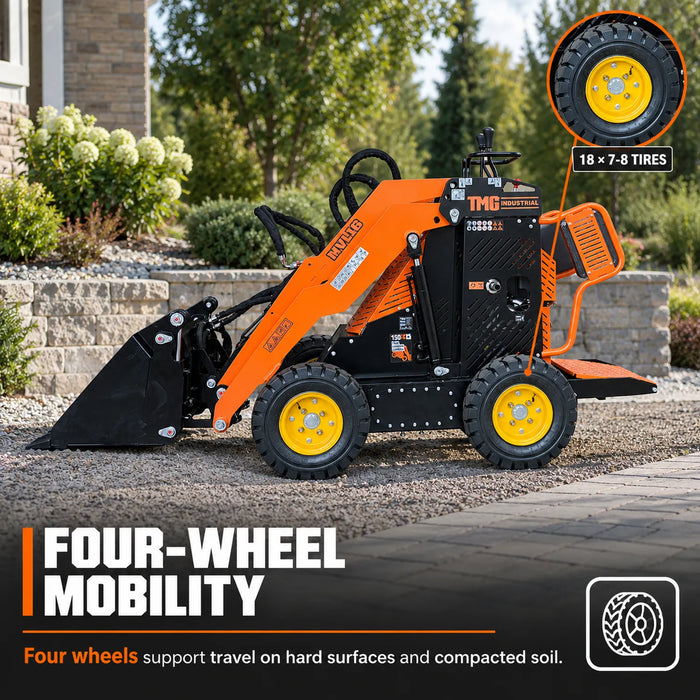

• Wheel Design: Four wheels provide faster travel speeds and improved mobility on hard surfaces such as concrete, asphalt, and compacted soil. The compact footprint and tire design also help minimize damage to lawns and landscaping.
• Multi-Function Bucket: The included 4-in-1 bucket is ideal for demanding tasks, offering digging, loading, grabbing, and leveling functions for maximum flexibility and efficiency.
• Rugged Durability: Constructed with high-quality materials to withstand tough environments and heavy-duty applications.

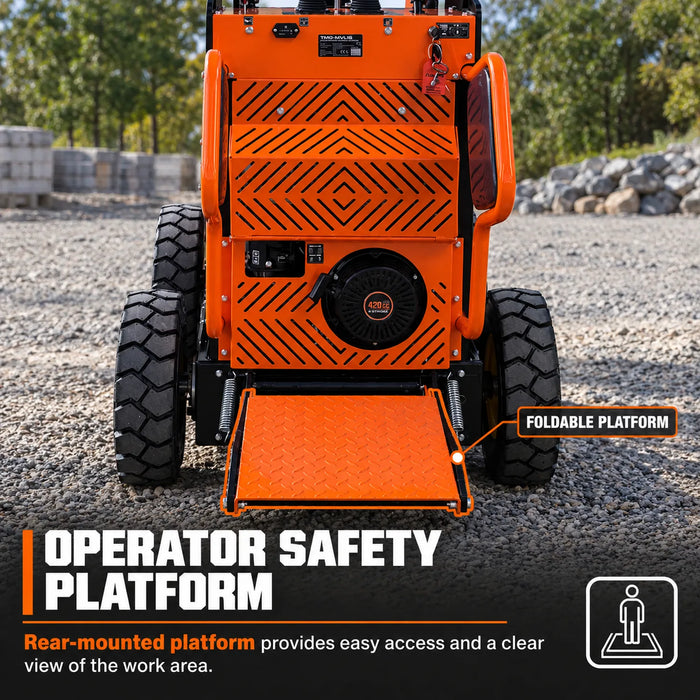

• Operator Safety Platform (OSP): The rear-mounted foldable platform provides excellent 360° visibility, easy access, and comfort during stop-and-go operation.

Specifically engineered attachments are available as options to ensure peak performance for intended applications. Below attachments all work with TMG-MVL16.

• TMG-MVL20-AU: 7 7/8" (200 mm) Post Hole Digger with Auger
• TMG-MVL20-BR: 2" (50 mm) Ball Mount Hitch Receiver
• TMG-MVL20-GRP: 13 3/8" (340 mm) Log Grapple
• TMG-MVL20-PF: 31 1/2" (800 mm) Pallet Fork
• TMG-MVL20-SB: 63" (1600 mm) Snow Blade

• Operating Height: 100-1/2" (2550 mm)
• Max Height to Bucket Hinge Pin: 78-3/4" (2000 mm)
• Ground Clearance: 5-3/4" (145 mm, center), 4-3/4" (120 mm, side)
• Travel Speeds: 3.0 km/h (forward), 2.5 km/h (reverse)
• Gradeability: 17°
• Tire Size: 18 x 7-8"
• Pump Capacity: 2 x 15 L/min
• Hydraulic Reservoir: 8 gal (30 L)
• Max Loading Capacity: 330 lb (150 kg)
• Max Motor Torque: 580 Nm
• Machine Length:
  87-3/4" (2230 mm) - Platform Folded
  92-3/8" (2345 mm) - Platform Extended
• Machine Height: 57-1/8" (1450 mm)
• Machine Width: 37-1/2" (950 mm)
• Net Weight: 1600 lb (740 kg)

Engine

• Single-cylinder, air-cooled, 4-stroke, OHV
• Displacement: 420 cc
• Max Output Power: 11.5 HP (8.5 kW) @ 3600 RPM
• Start Type: Key-type starter switch
• Fuel Tank Capacity: 5 L
• Oil Capacity: 1.2 US qt (1.1 L)
• Engine Oil Type: 10W-30
