10’ Cattle Work Chute 4500-lb Weight Scale, Side Exit, Upper/Lower Swing Openings, LCD Weight Display, TMG-CSC10
FREE
shipping to most locations in
Canada
Learn More
Product Manual
Features
Features
- Made for you to safely and efficiently work with cattle of all age and size for the nursing of calves, treatment of disease and administering of medicine

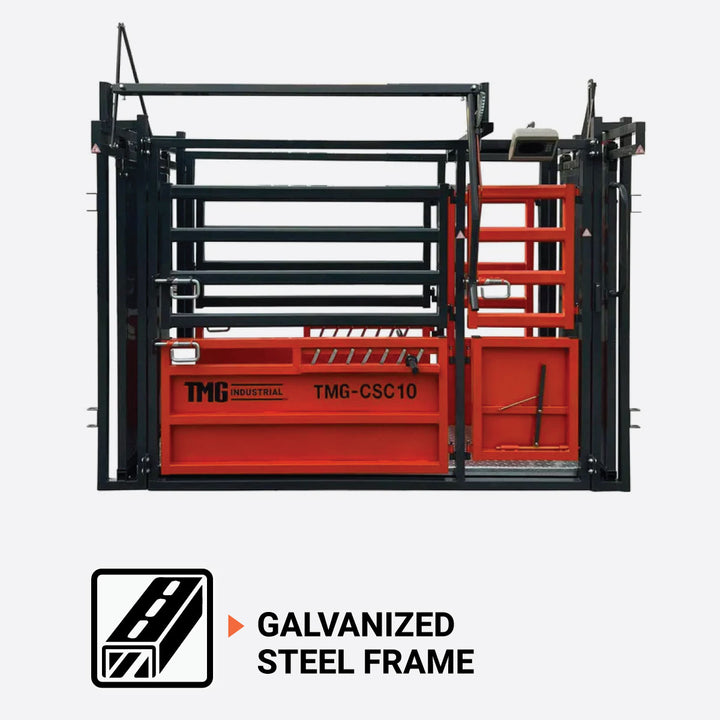

- Built out of heavy-gauge galvanized steel that is powder coated and will stand up to the elements and tough wear and tear from working with large animals

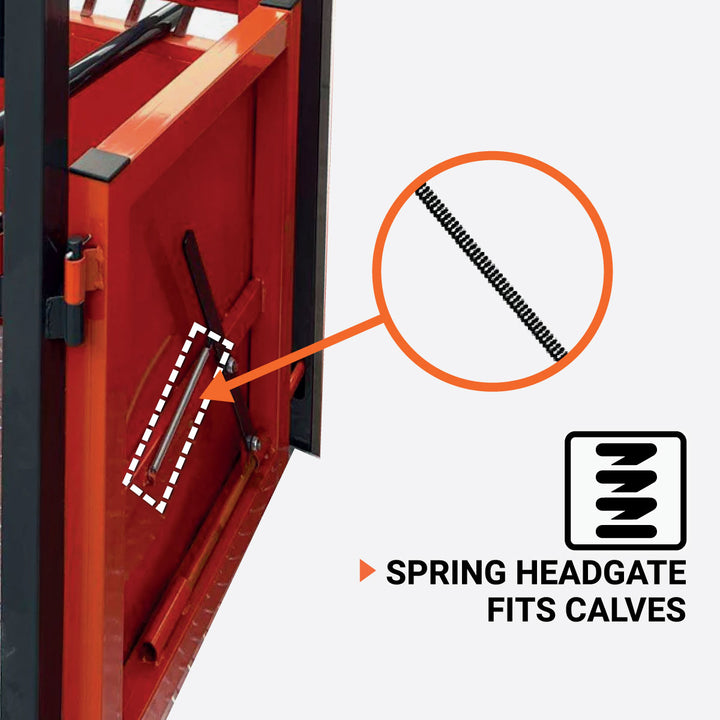

- Spring installed headgate adjusts to the animal’s size for a comfortable restraint whether it be a calf, yearling, heifer or more mature cow

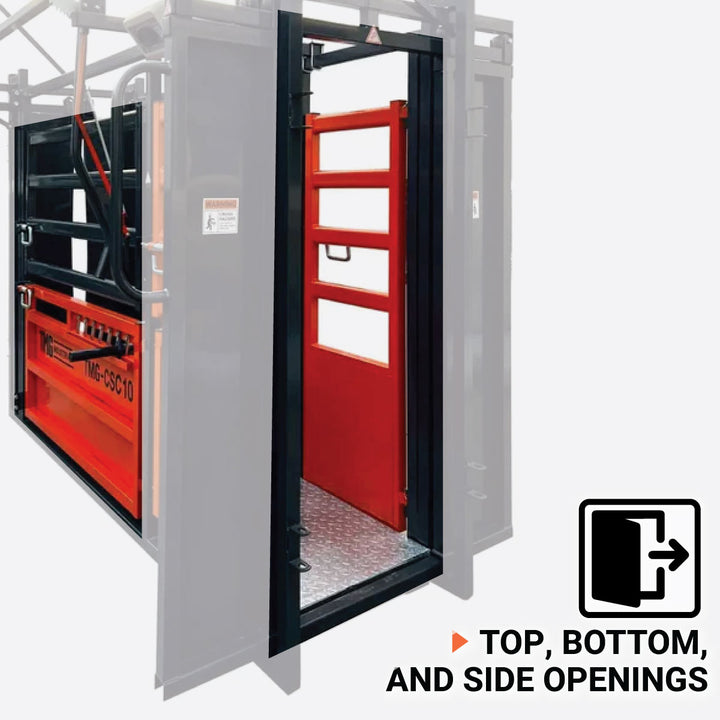

- Upper and lower side openings swing fully open to offer easy access to different parts of the cow to monitor health or give vaccines and treatment

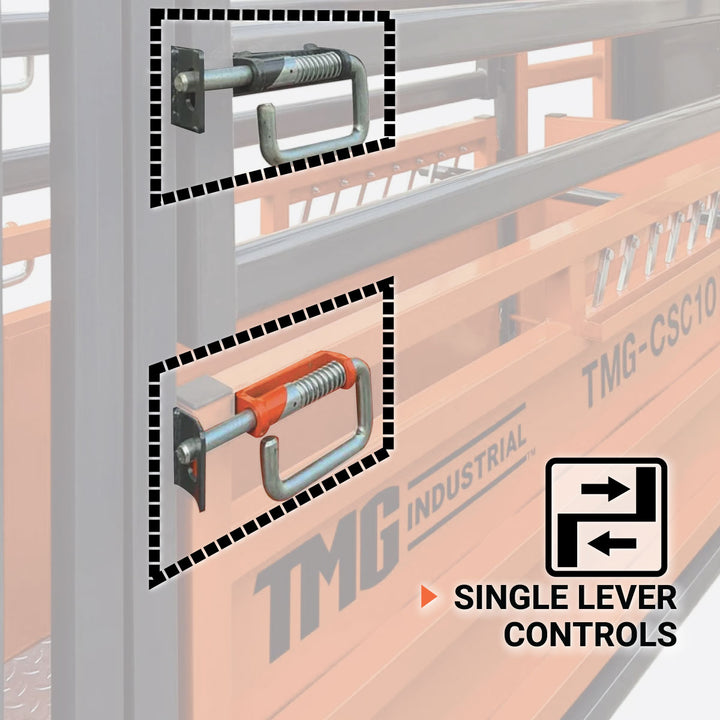

- Convenient one-man operation with a single lever to control the headgate, tailgate and side exit so you can safely manage animals all on your own
- 7-position anti-kick bar can be used to push the animal forward and a rear access room enables you to palpate the animal from behind

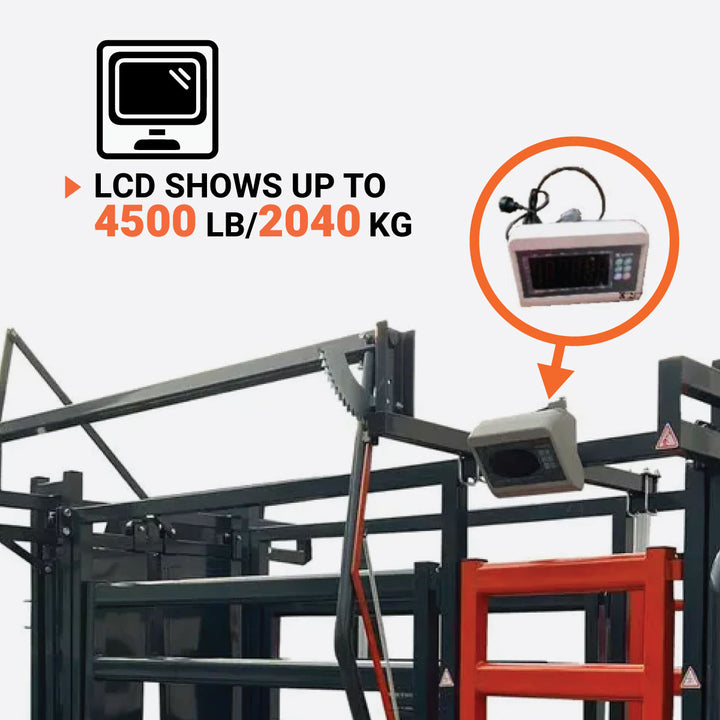

- LCD display provides an accurate weight reading on your animals and has a total weight capacity of up to 4500 lb
Specifications
Specifications

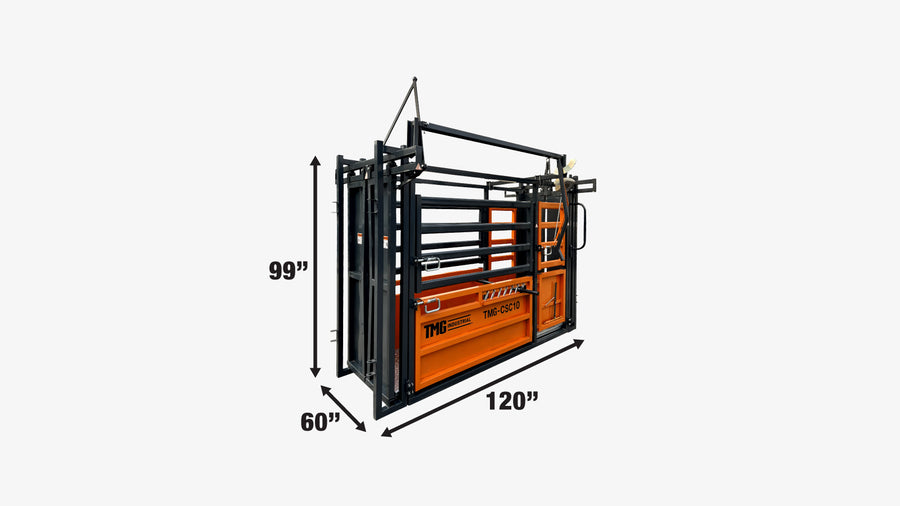

- Overall dimension: 120” (L) x 60” (W) x 99” (H)
- Alleyway width: 29”
- Alleyway length: 100”
- Alleyway height: 66”
- Scale weight capacity: 4500 lb
- Side exit w/release lever
- Full swing upper & lower openings
- Heavy gauge, galvanized & powder coated steel design
- Rear access room for palpation behind the cattle
- 7-position anti-kick bar

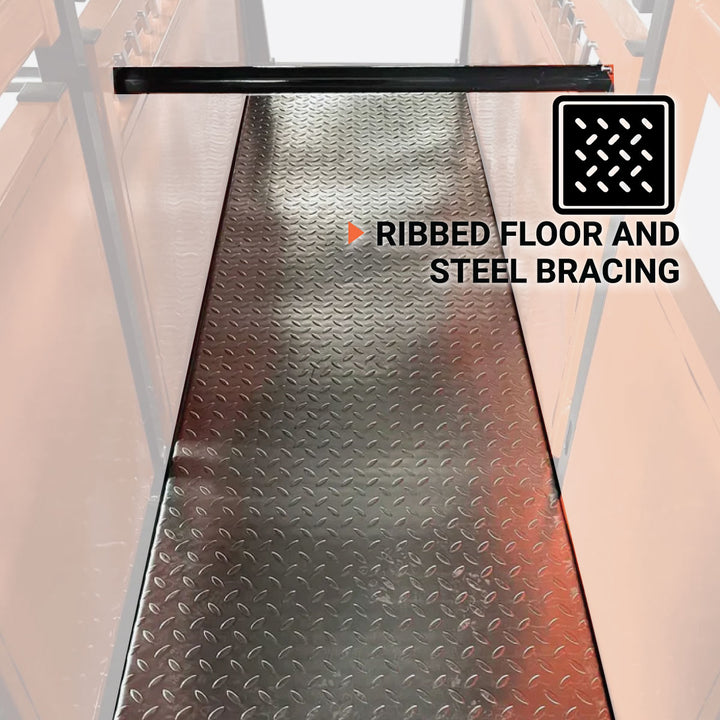

- Ribbed checker plate steel floor
- Bearing-installed sliding head and tailgate
- LCD weight display (Battery operated)
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a metal crate shipping box

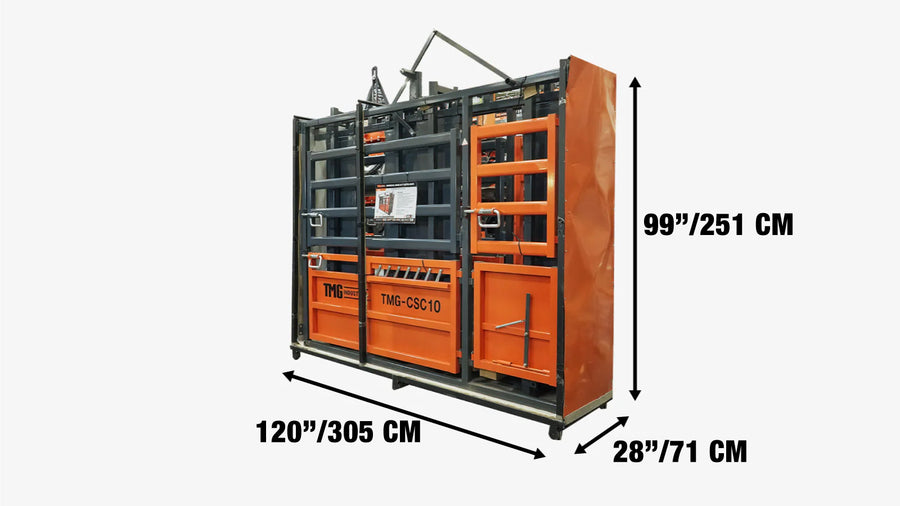

- Shipping dimension: 120” x 28” x 99” (L x W x H)
- Shipping weight: 1300 lb
Product Description
Product Description
The TMG-CSC10 Commercial Grade 10’ Cattle Work Chute Weight Scale is the perfect addition for the maintenance, health and well-being of your cattle herd. Built out of heavy-gauge, durable, galvanized steel that is powder coated to protect it from the elements and tough wear and tear from working with animals. This chute has several openings, locking mechanisms and entry/exit features to ensure the safe, efficient management of your animals on the farm.
Upper and lower side openings swing open to allow immediate access to different sizes of cattle and varying parts of the torso, neck, legs and feet. Checking for disease, treating cuts and sores, administering vaccines and other medicine can all be done safely while the cow is restrained inside.
The adjustable, curtain-style headgate and 7-position anti-kick bar allow you to work with any size of animal; calves, yearlings, heifers and cows of all ages, shape and size can be accommodated. The tailgate, headgate and side exit all operate with a single push/pull lever for convenient one-man operational capabilities. Built so you can safely work with and manage your animals for many years to come.
We also carry other cattle work chutes: TMG-CSC07, TMG-CSC11
