TMG-SDT36S 36” Skid Steer Side Shift Trencher, 6'' Trenching Width, 25.5'' Side Shift Distance, Shark/Cup Teeth

Sold out
$8,450.00
SKU TMG-SDT36S
Quantity
Free shipping in Canada
Need Help? Call Us at 1-877-761-2819
Product Description

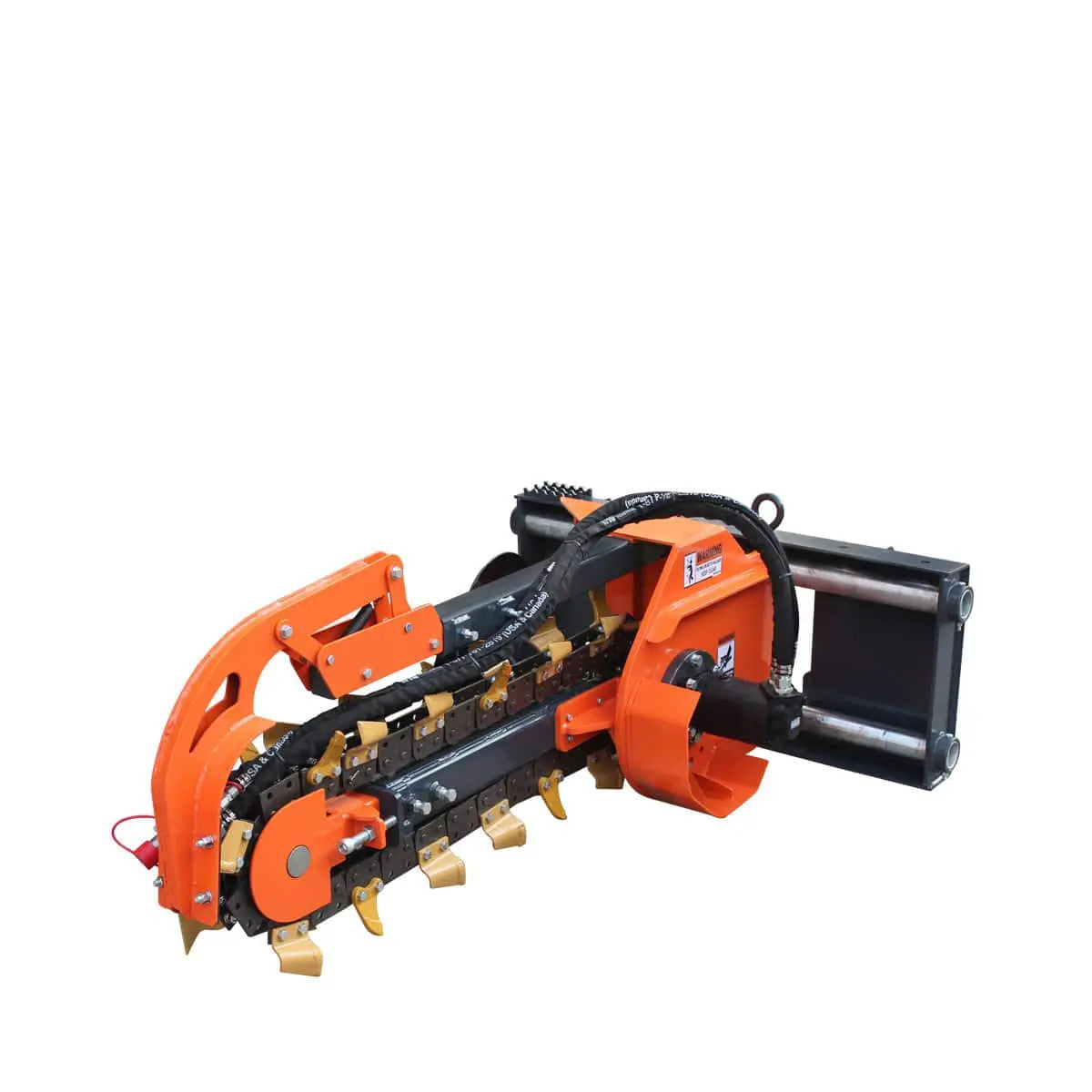

The TMG Industrial 36” Side Shift Trencher is designed to cut trenches through all soil conditions efficiently. A universal mounting plate and hydraulic flow requirement of 21-29 GPM makes this trencher compatible with most skid steers.

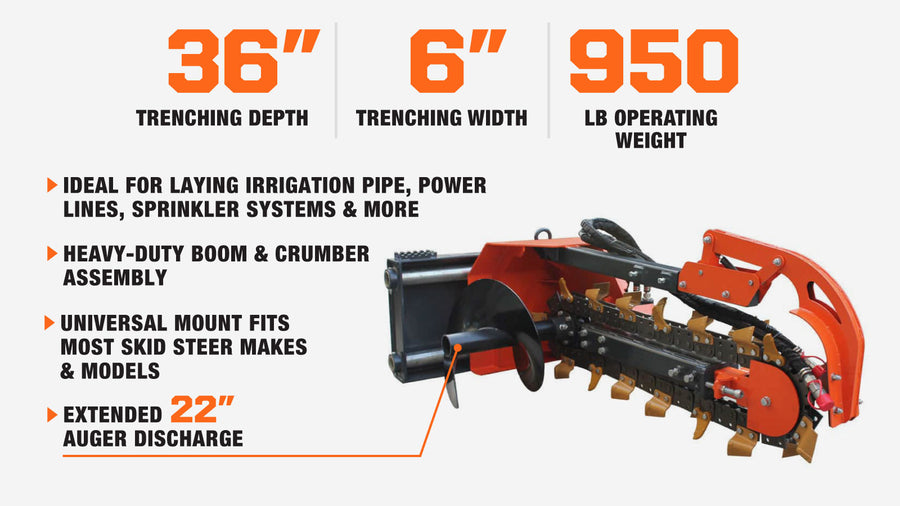

The Heavy-Duty Boom and Crumber system with an adjustable trenching depth of up to 36” make it ideal for Irrigation Pipe Laying, Underground Power Lines, Communication Lines, and Road Repairs. The Trencher features 8 Alloy Carbide Steel Shark Teeth for Rocky & Gravel trenching and 21 Cup Teeth that have an Alloy Carbide Wear Resistant Edge for general soil work trenching.

The large scraper shoe with built-in springs maintains loose soil and claws it back to the chain to discharge and keep the trenched area clean and free of debris, while the Anti-Slip Step-On Pedal prevents skipping while you step on it. The attachment comes complete and ready to use with hydraulic hoses pre-installed with 1/2” flat-faced quick connect couplers. Maximize your skid steer’s versatility with this addition to your skid steer toolbox.

This product is backed with a one-year manufacturer warranty, customer service and spare parts are supported from our headquarters located in Richmond, BC. We are proud to provide free shipping to most locations in Canada and the USA lower 48 states for the purchase of this product.

Features:

  • Heavy gauge crumber boom and chain carriage
  • Large scraper shoe with built-in springs maintains loose soil that is clawed back to the chain to discharge and keep the trenched area clean
  • Four manual side shift positions
  • Adjustable trenching depth up to 36”
  • Teeth material:
    • Shark teeth: Alloy carbide steel
    • Cup teeth: Wear-resistant edge (alloy carbide)
  • A combination of 30/70 percent teeth configuration:
    • Shark teeth (8): Rocky and gravel trenching
    • Cup teeth (21): General soil work trenching
  • Adjustable chain tension
  • Anti-slip step-on pedal to prevent skipping
  • Three hydraulic hoses
    • ½” hydraulic hoses (In and Out)
    • Case drain line (3rd hose) provided for releasing motor pressure
  • Flat-faced couplers included
  • Universal skid steer quick mount

Specifications:

  • Overall size: 79” (L) x 49” (W) x 33” (H)
  • Operating weight: 950 lb
  • Trenching depth at 65°: 36”
  • Trenching width: 6”
  • Discharge auger:
    • Total length: 21.6”
    • Working width: 15.7”
    • Diameter: 19.7”
  • Max. side shift distance: 25.5” with 8.5” interval
  • Flow rate: 21-29 GPM
  • Hydraulic pressure: 3050 PSI
  • Skid steer power recommended for performance: 50-100 HP

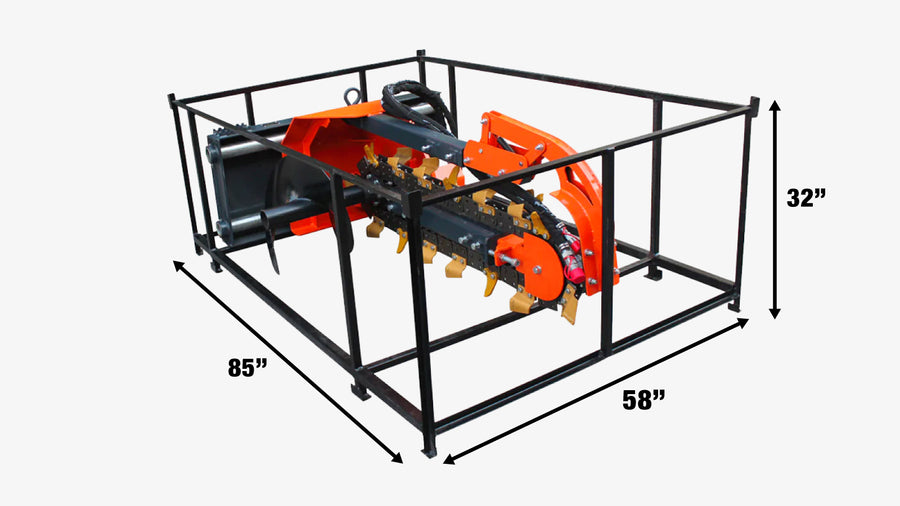

Packaging:

  • Packed in a wooden crate shipping box
  • Shipping dimension: 85” x 58” x 32”
  • Shipping weight: 1100 lb
