TMG-ST2022L

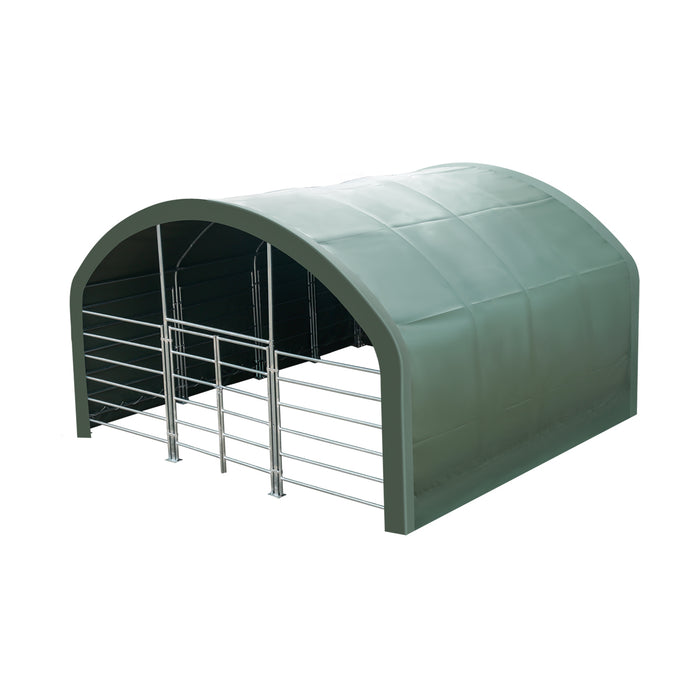

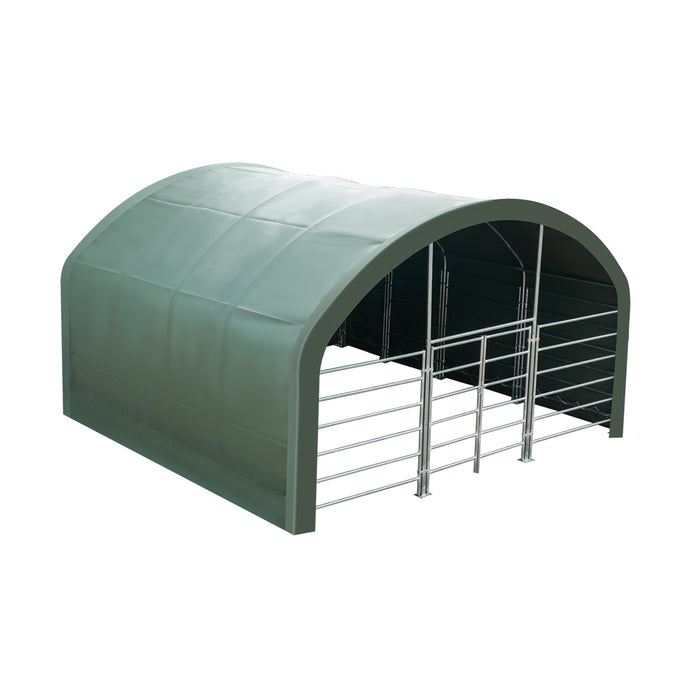

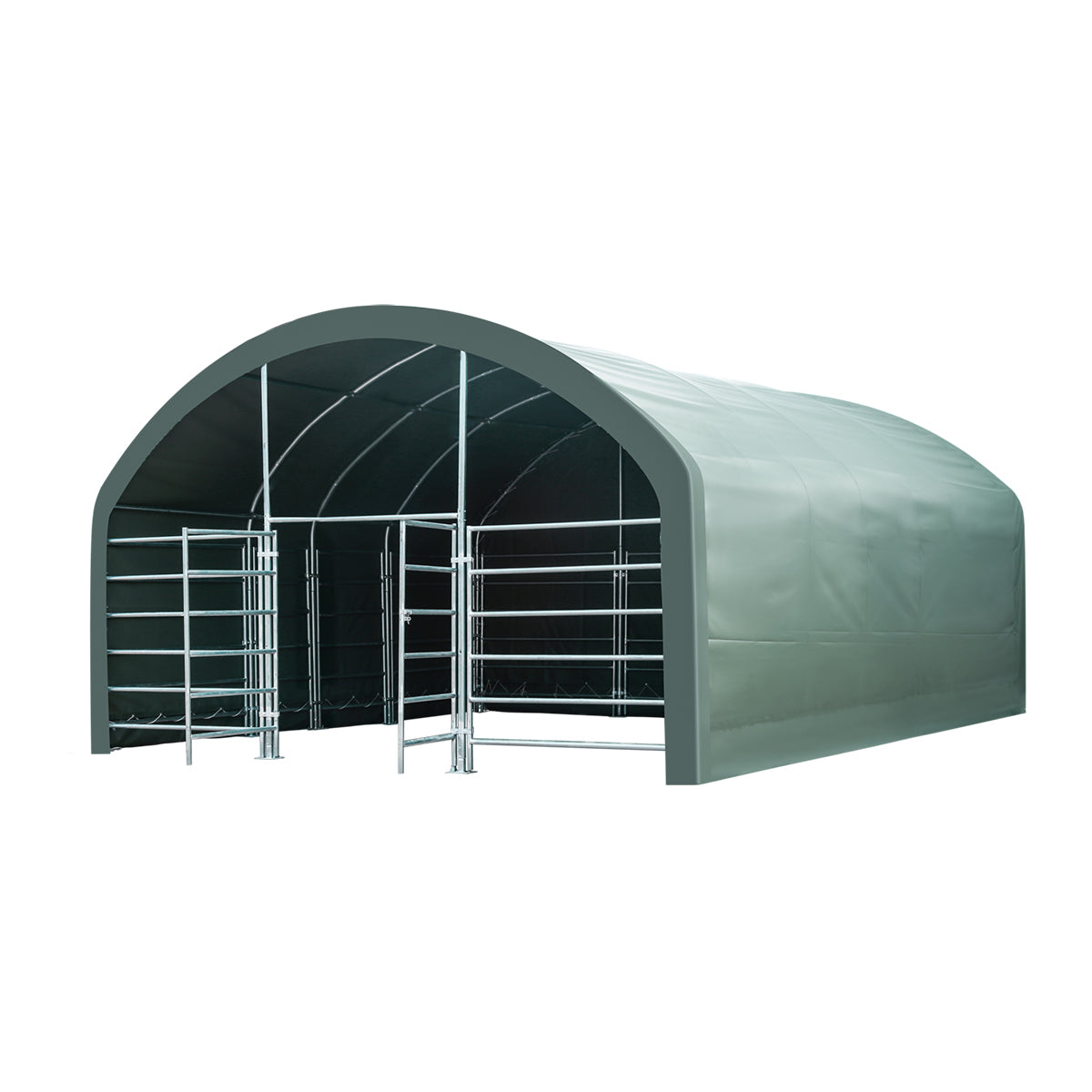

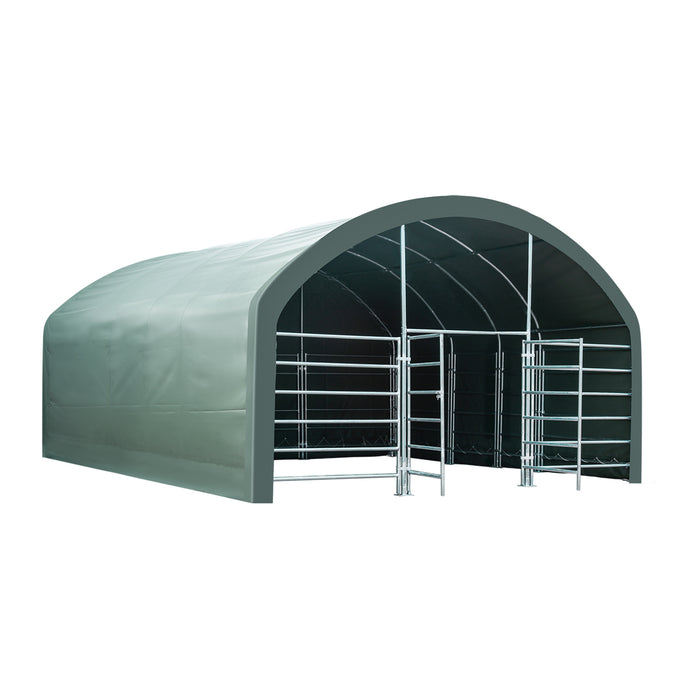

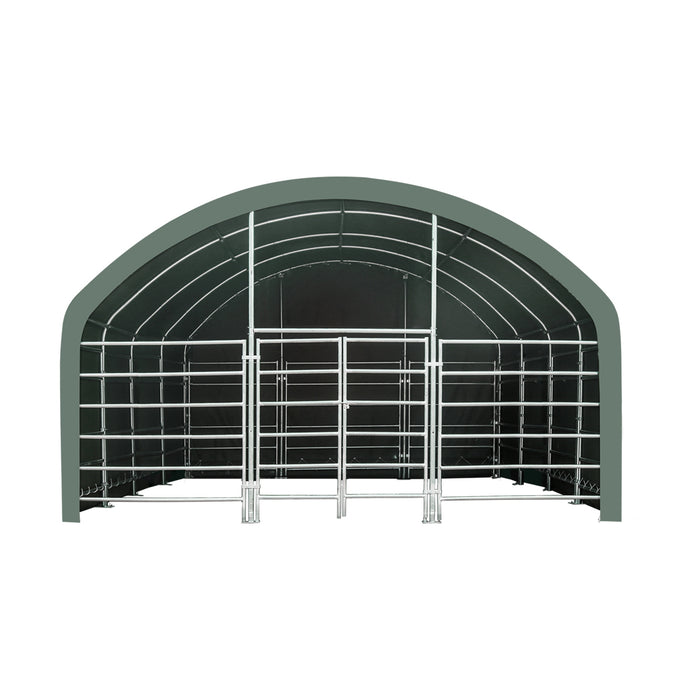

20' x 20' Livestock Corral Shelter, 12' Dome Roof, 17 oz Military Green PVC Covering, 6-Bar Corral Panels, 5' Front Swing Gate, TMG-ST2022L

Pro Series 20' x 20' livestock corral shelter with 12' dome roof, 17 oz military green PVC covering, 6-bar corral panels, and 5' front swing gate, TMG-ST2022L
CURRENTLY IN STOCK
SKU TMG-ST2022L
$5,199.00 CAD
$5,199.00 CAD - $5,199.00 CAD
$5,199.00 CAD
$4,749.00 CAD
$4,749.00 CAD - $4,749.00 CAD
$4,749.00 CAD
$5,199.00 CAD Save $450.00 CAD
$4,749.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 4 LEFT IN STOCK
NFPA 701 test report — 20' x 20' Livestock Corral Shelter, 12' Dome Roof, 17 oz Military Green PVC Covering, 6-Bar Corral Panels, 5' Front Swing Gate, TMG-ST2022L
1-877-761-2819
Product Manual
Find Parts
Product Video

Features

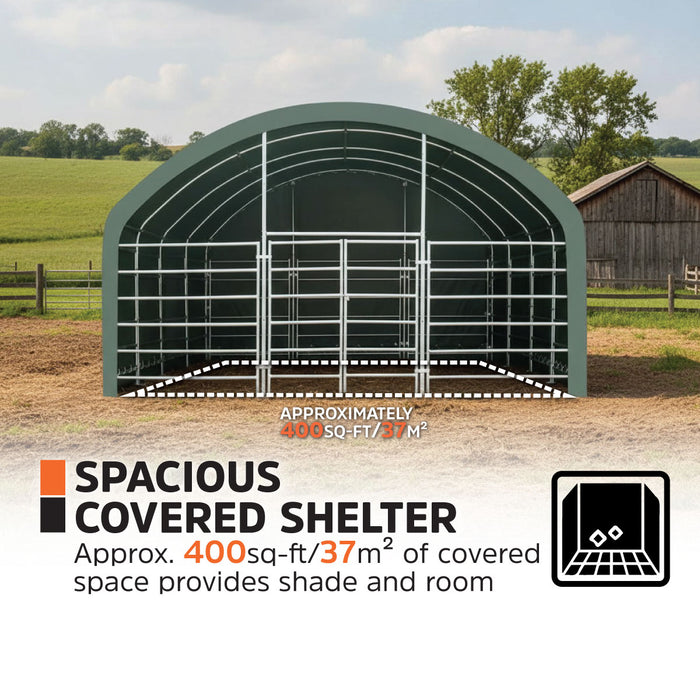

  • Approximately 400 sq-ft of covered space: Provides shade, cover, and protection for your animals, allowing plenty of room for them to move around.

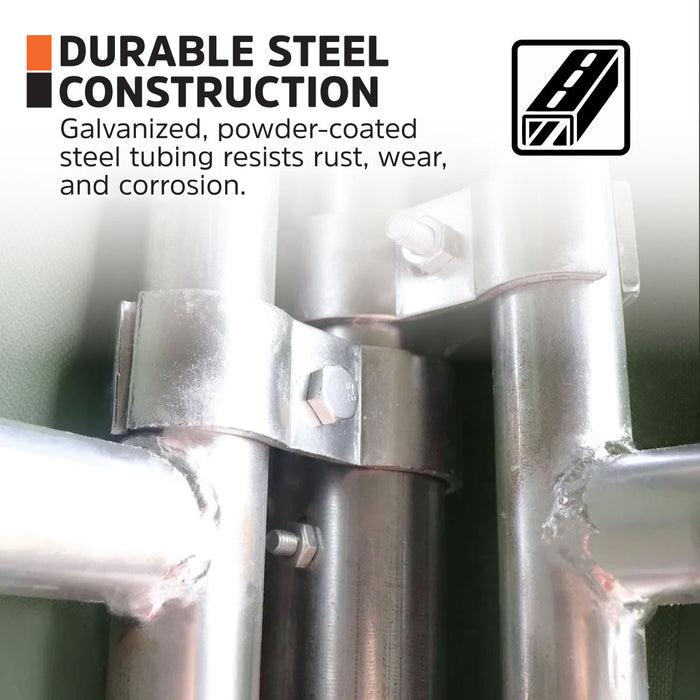

  • Built out of galvanized, powder-coated steel tubing: Resistant to rust, wear, and corrosion, standing up to the elements for long-lasting durability.
  • Multi-purpose use: Ideal for the maintenance of your herd, introducing new animals, administering medicine, storing materials/equipment, and more.

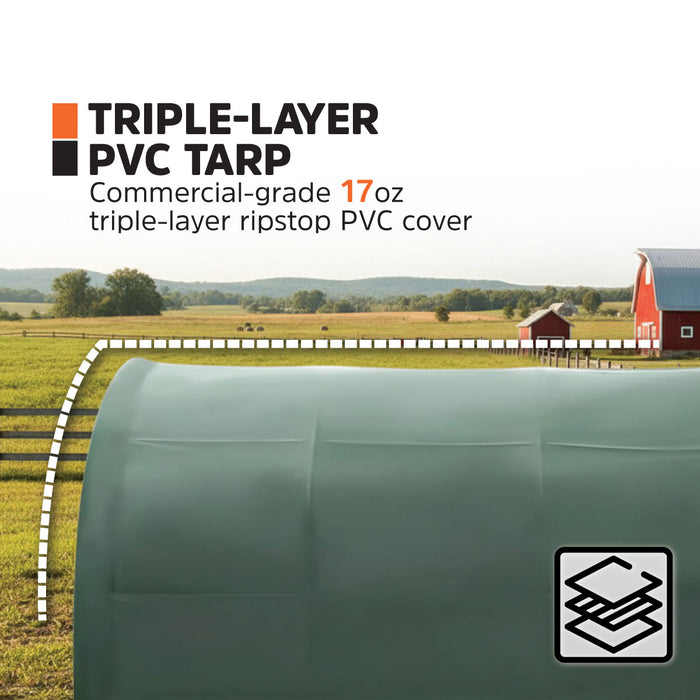

  • Commercial-grade, 17 oz, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
    • Stands strong against tearing, leaking, and chemical corrosion.
    • Natural flame retardant, resistant to chemicals and oil.
    • UV protected and waterproof.
    • Fabric colour: Military Green.

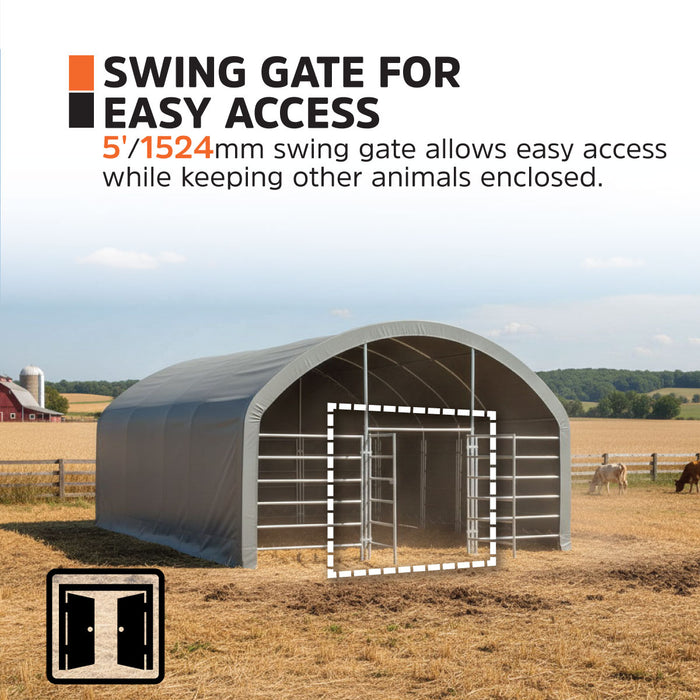

  • 5' swing gate in the front: Provides livestock and herdsmen with plenty of space to easily move in and out of the structure while keeping other animals enclosed.

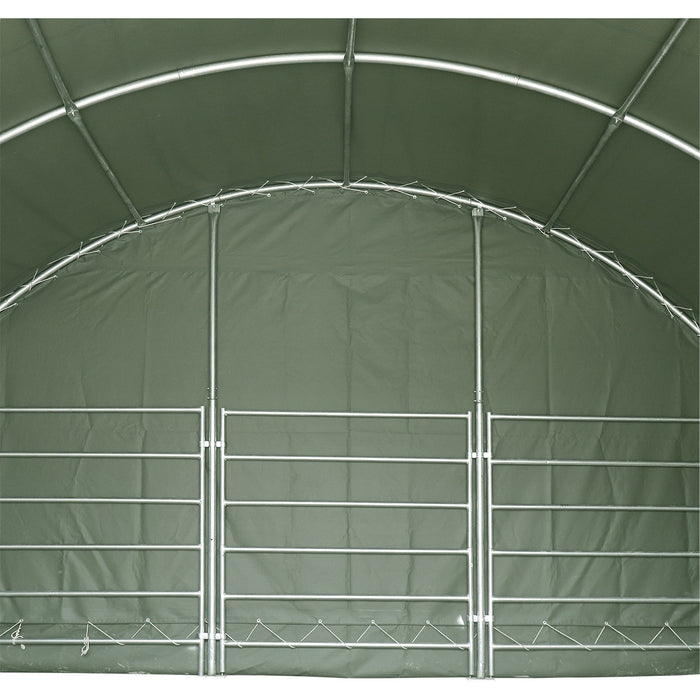

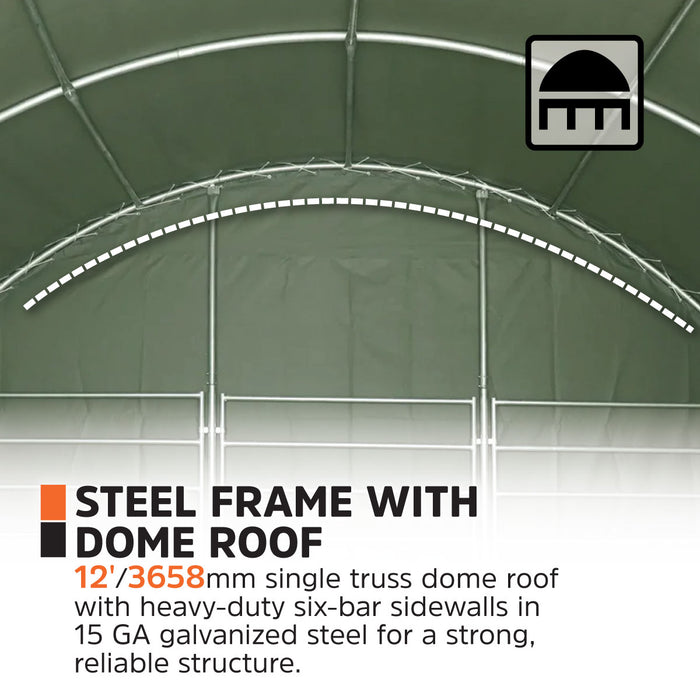

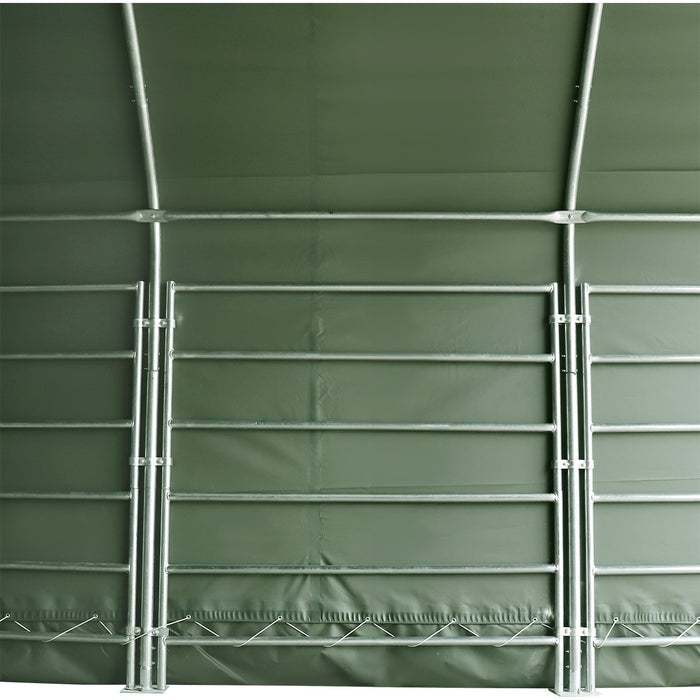

  • 12' high single truss dome roof and heavy-duty six-bar corral sidewalls: Made of 15 GA galvanized steel for a strong, reliable structure.

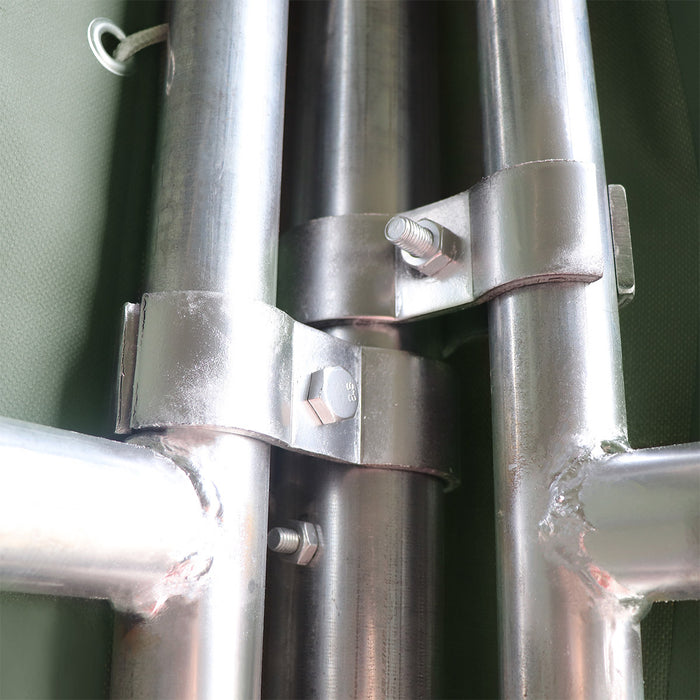

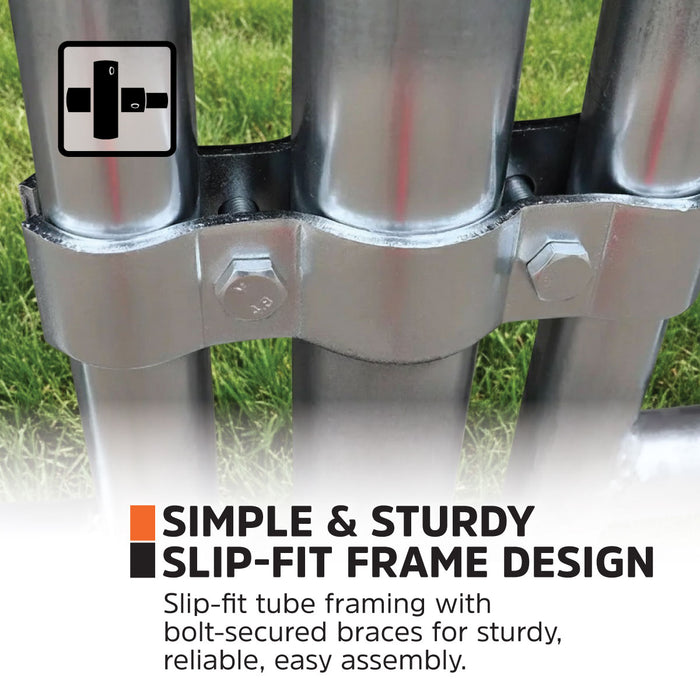

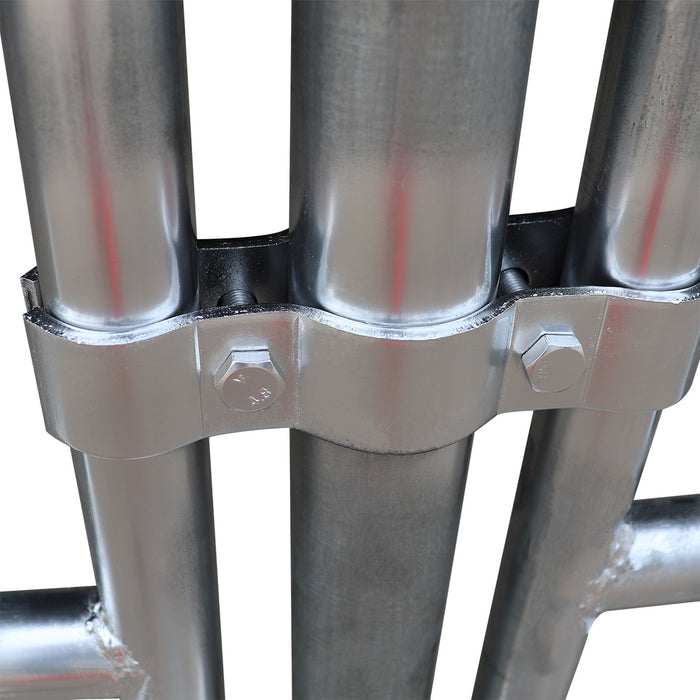

  • Simple slip-fit tube framing connection design: Bolt-secured braces make this shed sturdy, reliable, and easy to assemble.

Specifications

  • Foundation size required (L x W): 6.4m (21') x 6.4m (21')
  • Truss spacing: 59" (1.5 m)
  • Truss quantity: 5 groups
  • Peak ceiling height: 12'
  • Side-wall height: 7'
  • Corral panel height: 6-1/2'
  • Truss frame tube: 2-1/4" OD (58 mm), 15 GA
  • Purlin tube: 1-5/8" OD (42 mm), 18 GA
  • Purlins on rafter: 20 total across 5 rows
  • Front swing gate: 5'
  • Cover material: 17 oz PVC fabric, military green
  • Slip-fit frame connection & bolt-secured braces
  • Replacement covers available for order here TMG PARTS STORE

Product Description

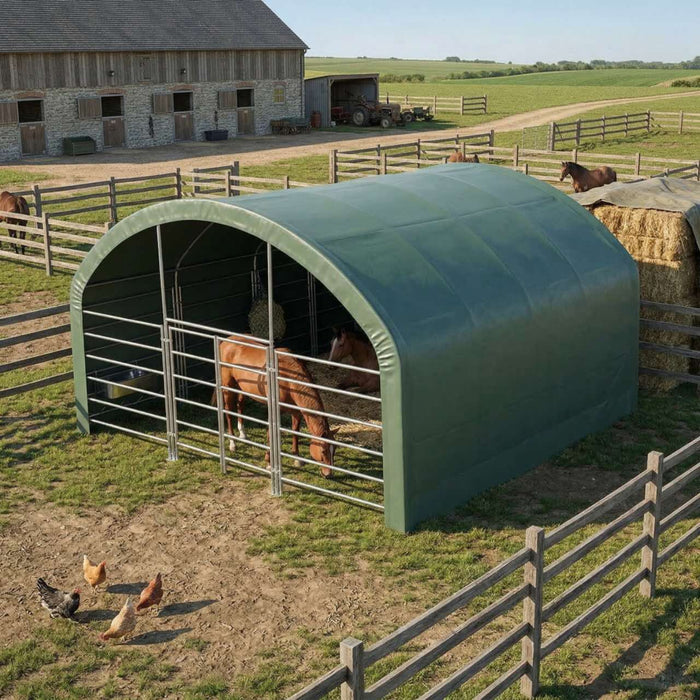

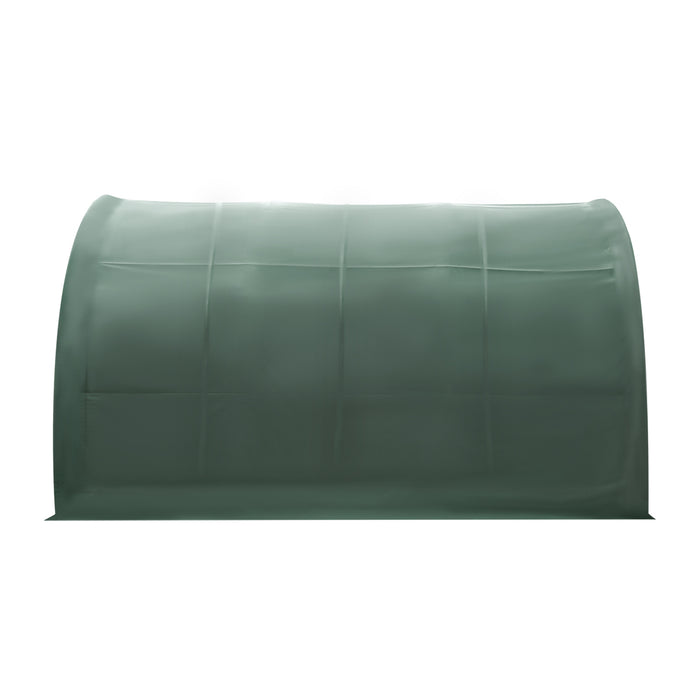

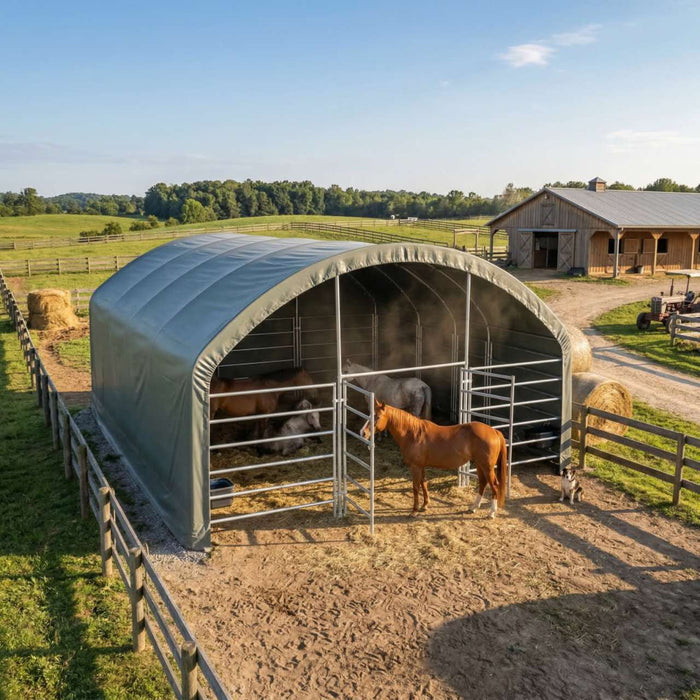

The TMG-ST2022L TMG Heavy Series™ 20' x 20' Livestock Corral Shelter simplifies and enhances the protection of your livestock. With approximately 400 sq ft of covered floor space, this shelter provides ample room for your animals to move around, sleep, eat, and socialize when they are not out in the field. Built from galvanized, powder-coated steel tubing, it stands up to the elements and resists rust, wear, and corrosion. The heavy-duty 17 oz PVC fabric covering is naturally flame-retardant, UV protected, waterproof, and triple-layered to prevent tearing. The fabric reaches the ground on three sides of the shelter, providing shade and cover for your animals, protecting them from the sun and rain. It also offers a separate space for sleeping, or can be used to contain animals if needed for any reason. This shelter is ideal for introducing new animals to a herd, keeping calves corralled with their mothers, or segregating animals for health reasons such as administering vaccines or monitoring their condition. It features a 5' swing gate at the front for easy access and 6-bar corral panels on all sides to keep your animals safe and confined.

Additional Info

Engineering drawings are not available for this model.

Please check with your local municipality bylaws to ensure compliance. It is the customer's responsibility to provide any necessary drawings to obtain any permits that may be required.

Shipping Information

The order will ship from one of our warehouses in Canada. Under normal conditions, we process orders within 2 to 3 business days. Transit time is typically 10 to 15 business days, depending on location and accessibility.

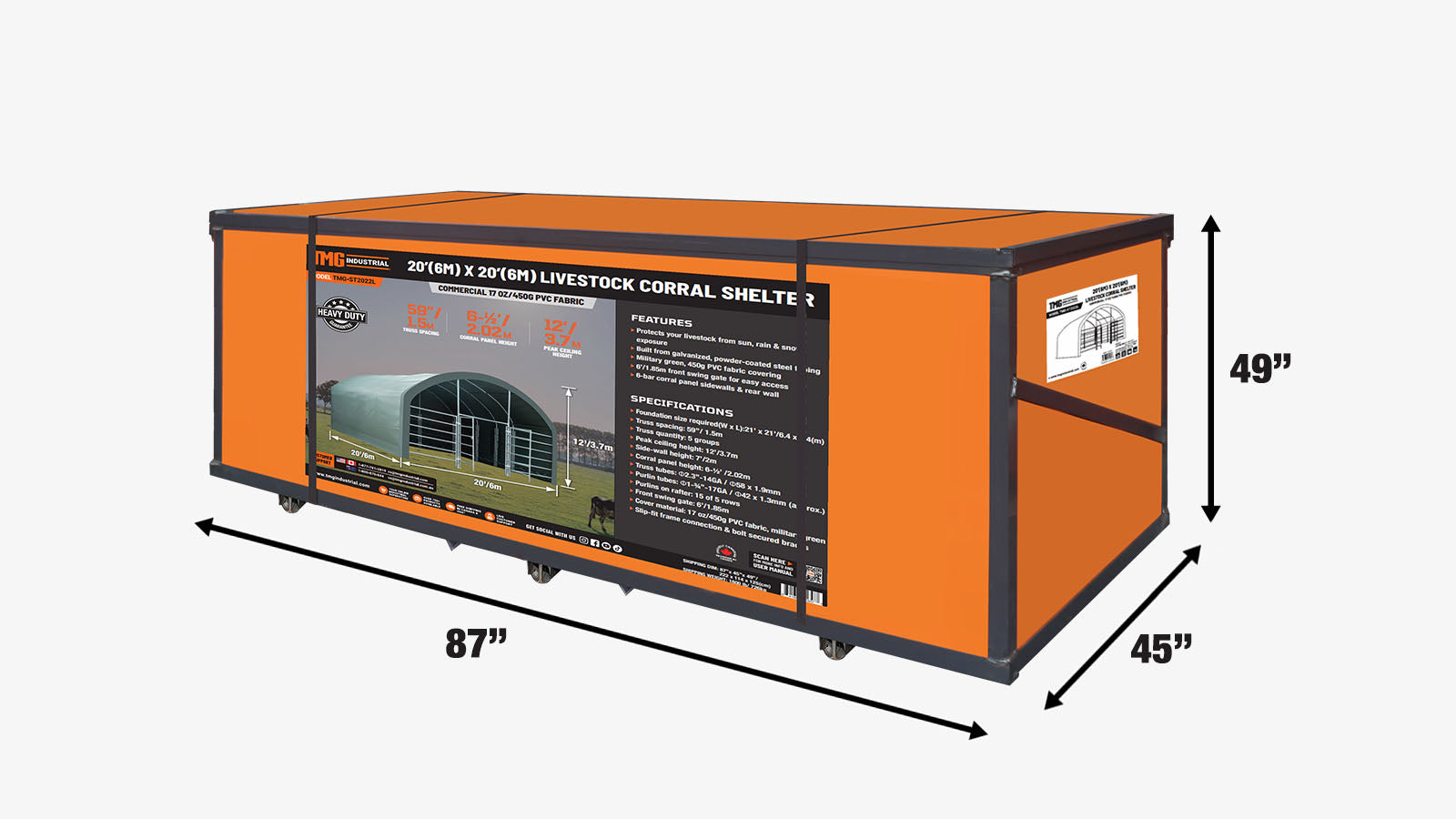

  • This product is packed in a metal crate shipping box.
  • Shipping dimensions: 87" x 45" x 49" (L x W x H)
  • Shipping weight: 1,600 lb
Shipping from Richmond, BC, or Mississauga, ON
