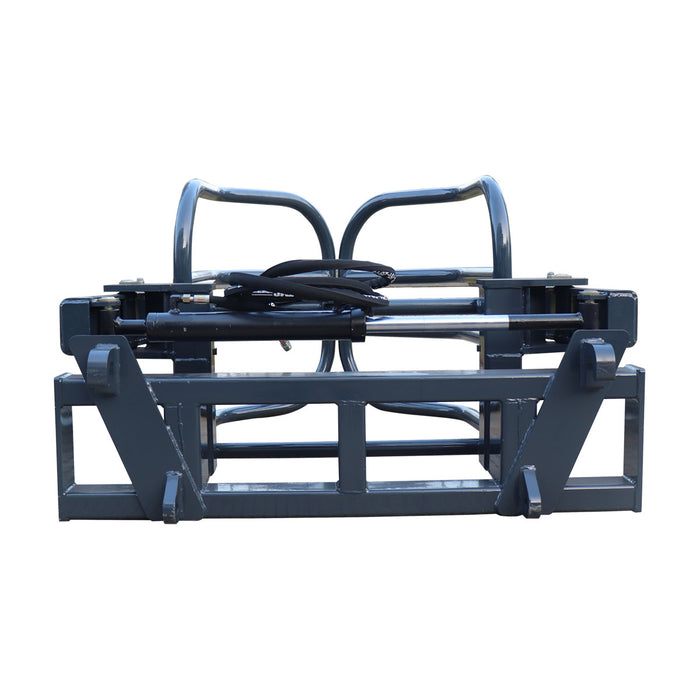

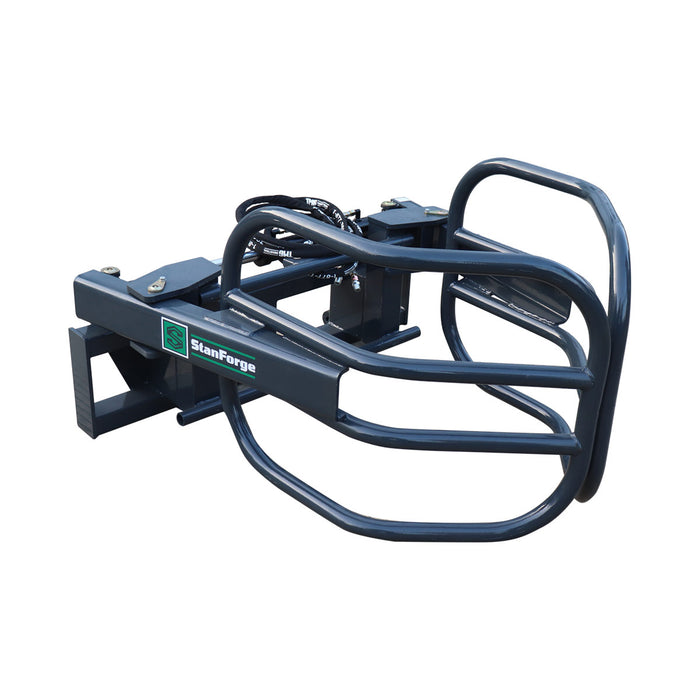

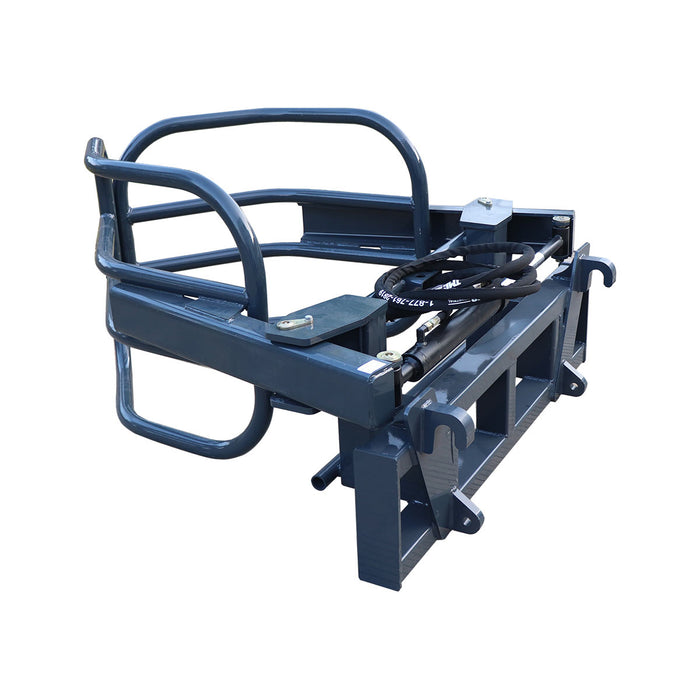

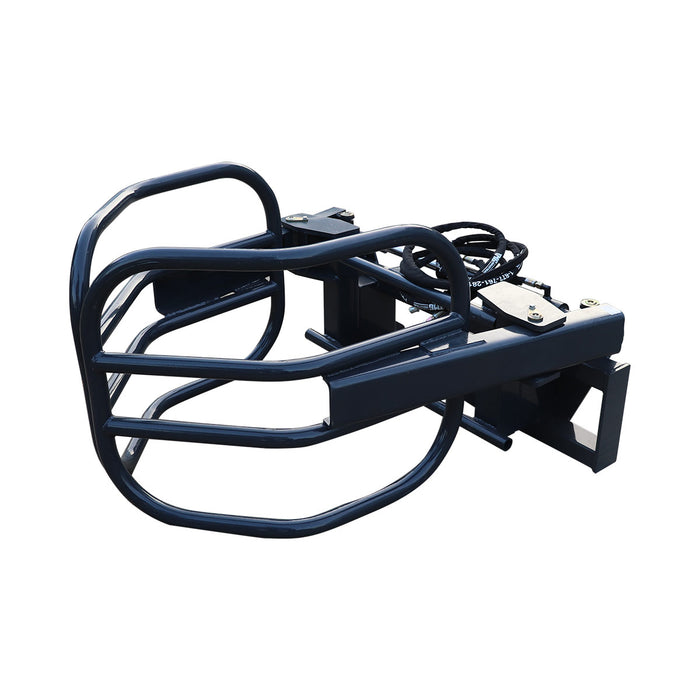

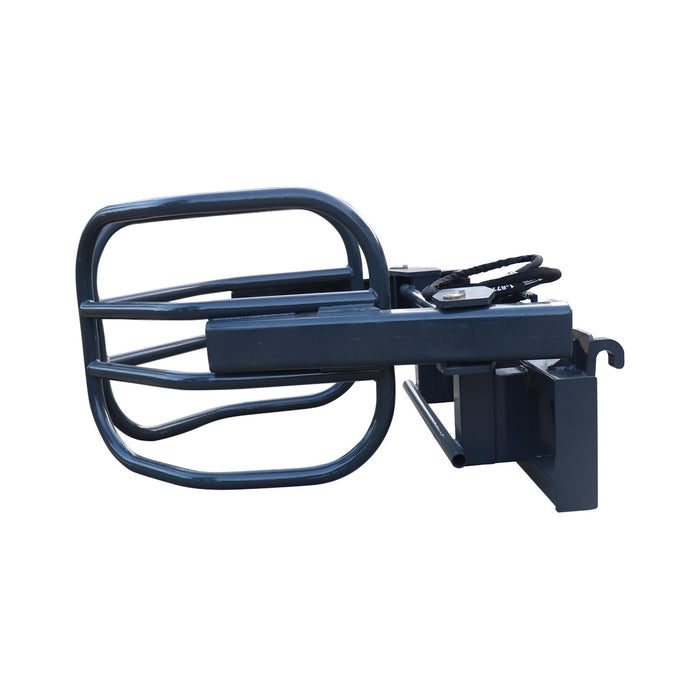

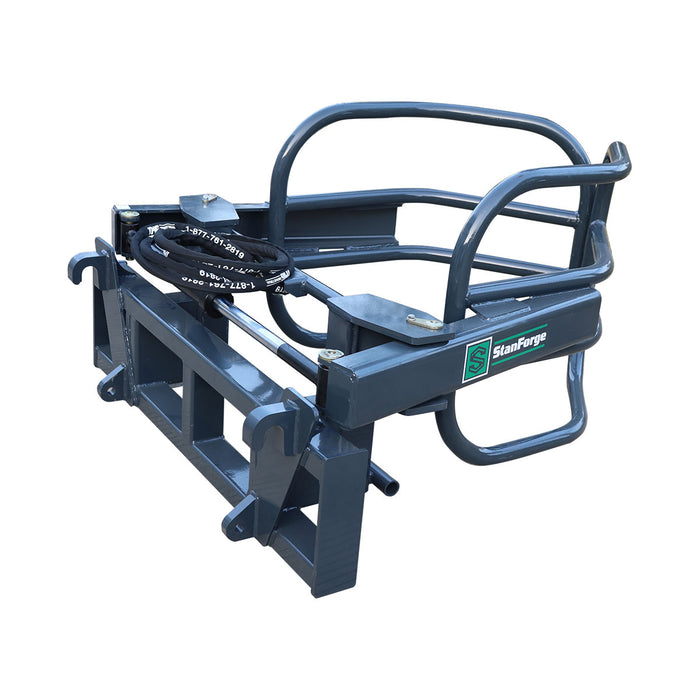

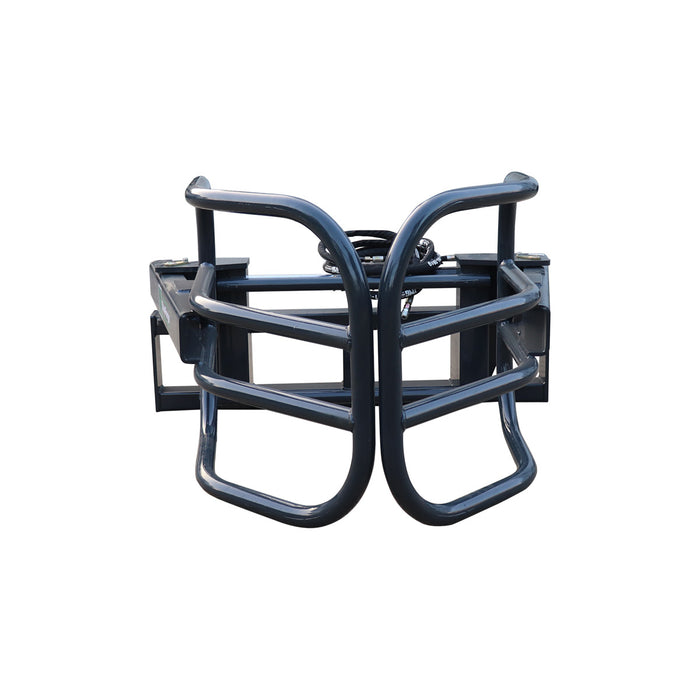

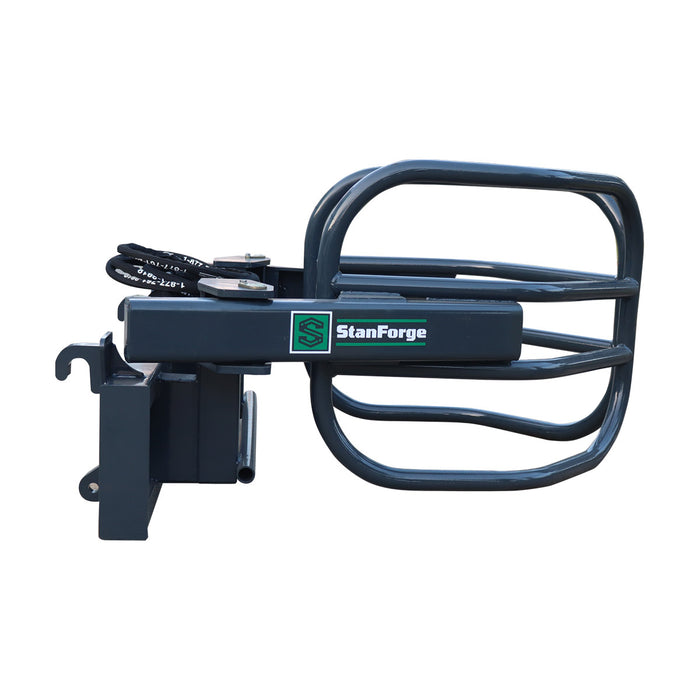

60" Round Bale Gripper/Squeeze, 2650 lb Capacity, Euro Linkage, 25-50 HP Tractor, SF-TBG60
FREE
shipping to most locations in
Canada
Learn More
Features
Features
- 25 to 50 HP Tractor Compatibility: Designed for Euro linkage tractors (25 to 50 HP) to ensure efficient bale handling and smooth field operation.
- 60" Grapple Opening: Wide 60" maximum opening designed for handling round hay bales, silage, and other large agricultural materials.
- 2650 lb Load Capacity: High-capacity grapple arms rated up to 2650 lb for secure lifting and transport.

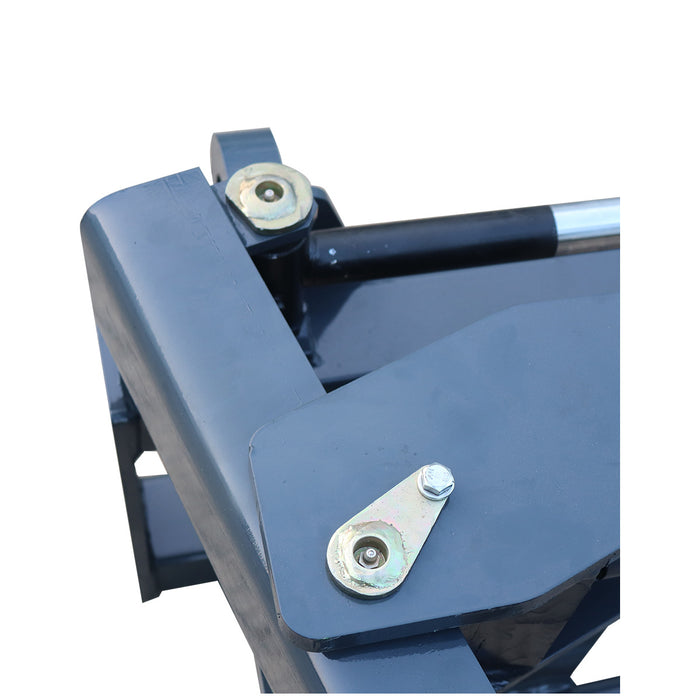

- Heavy-Duty Build: Tubular hydraulic arms constructed with reinforced steel for enhanced durability and long service life.

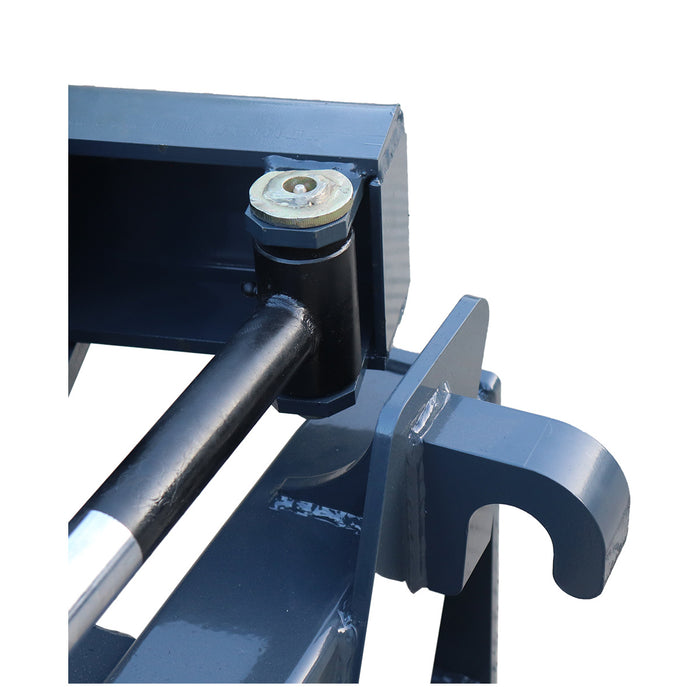

- Powerful Cylinder: Single hydraulic cylinder delivers strong and consistent clamping force under demanding workloads.

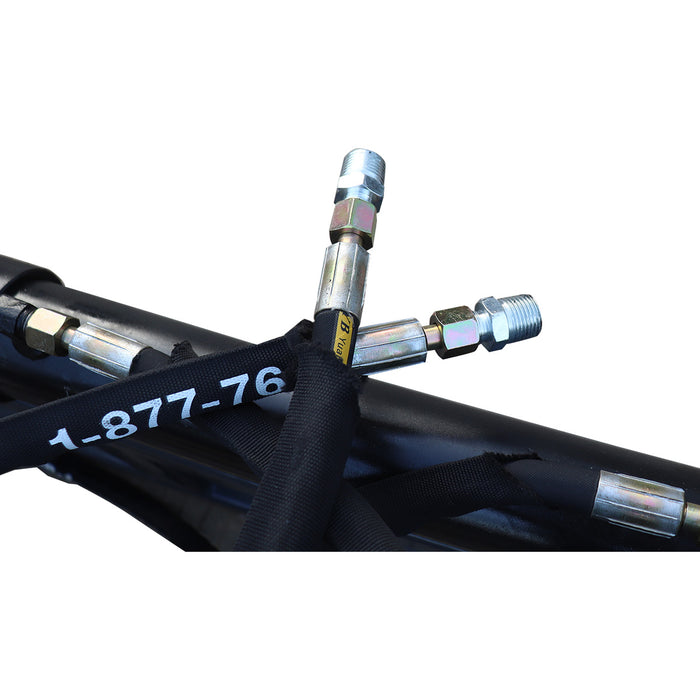

- Dual-Layer Hoses: Dual-layer high-pressure hydraulic hoses (2 pcs) ensure reliable oil flow and extended performance lifespan.
Specifications
Specifications
- Required power: 25 to 50 HP tractor
- Mount type: Euro linkage
- Maximum grapple capacity: 2650 lb (1200 kg)
- Maximum grapple opening: 60" (1530 mm)
- Working width: 64" (1626 mm)
- Working depth: 55.5" (1410 mm)
- Hydraulic arms: Ø48 x 5 mm reinforced steel
- Hydraulic cylinder: Ø50 x 312 mm
- Hydraulic flow rate: 2.5 to 8 GPM (10 to 30 L/min)
- Operating pressure: 2300 to 3600 PSI (16 to 25 MPa)
- Hydraulic hoses specification: Ø18 x 1900 mm, dual-layer
- Number of hydraulic hoses: 2

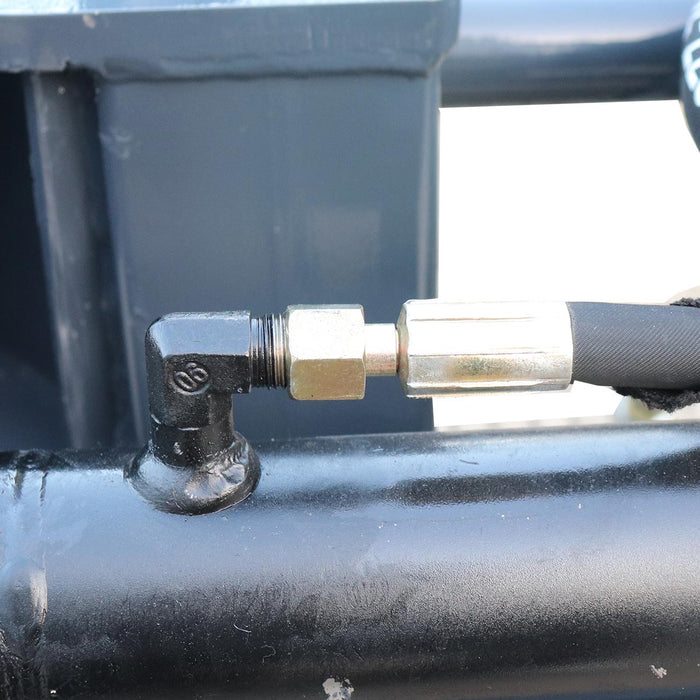

- Hydraulic fittings: M16 x 1.5 to 1/2" NPT
- Number of hydraulic fittings: 2
- Overall dimensions (L x W x H): 50" x 56" x 31" (1280 x 1410 x 790 mm)
- Net weight: 475 lb (216 kg)
Product Description
Product Description
The SF-TBG60 Round Bale Gripper/Squeeze is a reliable and efficient solution for safely handling round hay bales without causing unnecessary tearing or material loss. Unlike traditional bale spears that puncture and damage wrapped or densely packed bales, this squeeze-style grapple firmly grips from both sides to preserve bale integrity during lifting and transport.
Built with heavy-duty tubular hydraulic arms and a powerful hydraulic cylinder, this unit delivers consistent clamping force and dependable performance in demanding agricultural environments. With a maximum 60" grapple opening and a 2650 lb lifting capacity, it easily accommodates standard round bales of various sizes.
Designed specifically for Euro linkage tractors ranging from 25 to 50 HP, the SF-TBG60 connects directly to your tractor’s hydraulic system using included 1/2" NPT fittings for quick and efficient setup. Dual high-pressure hydraulic hoses ensure smooth operation, while the simplified single-cylinder design reduces unnecessary components and long-term maintenance requirements.
Whether you're stacking hay in the barn, transporting bales across fields, or feeding livestock, this bale gripper provides a cost-effective and bale-friendly solution built for durability, efficiency, and years of dependable service.
Shipping Information
Shipping Information
- This product is packed in a metal crate shipping box.
- Shipping dimensions: 59" x 33" x 32" (1500 x 850 x 820 mm)
- Shipping weight: 570 lb (260 kg)
