CURRENTLY OUT OF STOCK

TMG-LPG11

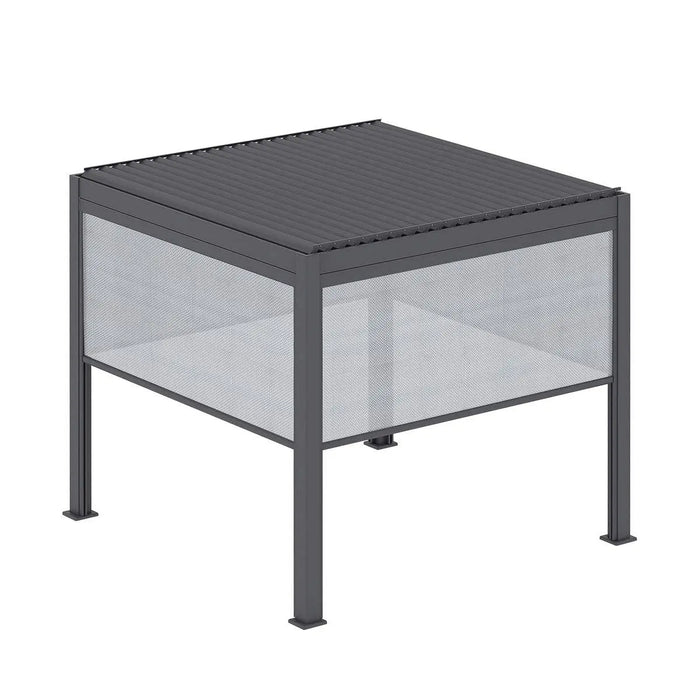

10' x 10' Aluminum Motorized Louver Roof Pergola with Side Screens (Discontinued – No Longer Available) TMG-LPG11

Click to expand Tap to zoom

CURRENTLY OUT OF STOCK

SKU TMG-LPG11

Original price $7,999.00 CAD - Original price $7,999.00 CAD

Original price

$7,999.00 CAD

$7,999.00 CAD - $7,999.00 CAD

Current price $7,999.00 CAD

| /

Total: $7,999.00 CAD $7,999.00 CAD

+ SHIPPING FEE

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

1-877-761-2819

cs@tmgindustrial.ca

Product Manual

Find Parts

10' x 10' Aluminum Motorized Louver Roof Pergola with Side Screens (Discontinued – No Longer Available) TMG-LPG11

(Accessories Incl.)

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

NOTIFY ME WHEN AVAILABLE

Features Specs Description Shipping Info Warranty Reviews

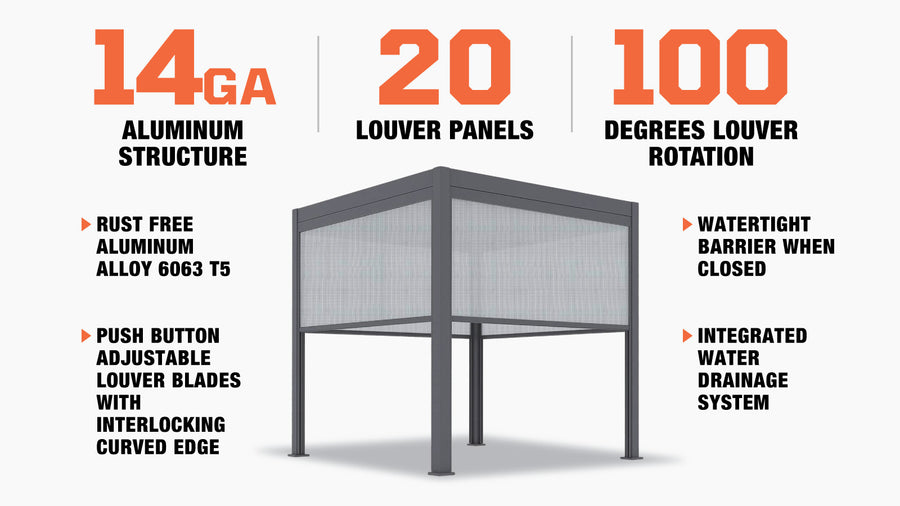

Features

• Free-standing, heavy gauge, low maintenance square aluminum frame weighing over 750 lbs offers sturdy, durable construction for any environment and conditions
• Structure material: Aluminum alloy 6063 T5 that is corrosion free, rust free, and guaranteed to last you a long time
• Stainless steel hardware that is resilient, easy to install and dependable
• Remote control louvre slats with interlocking flat edge design:when closed, the flat edge create an interlocking, water tight barrier to keep area comfortable and dry
• Louver blades can rotate to up to 100 degrees for optimal lighting, air circulation and heat dispersion ensuring a comfortable and tailored experience for every type of guest and weather
• Louver blade material: Powder coated aluminum rigid plane which is waterproof, wind resistant and offers strong snow support
• Retractable side screens:
  • 4 total screens, one on every side to help protect against, wind, rain and insects
  • Screen size: 108” (L) x 93” (H)
  • Material: Eco friendly PVC
  • Light transmittance: 5%
  • Wind resistance: Grade 5
  • Screen color: Beige
• Integrated water drainage system through supports and rain gutters on all sides so any moisture is effectively diverted away from covered areas
• Electric motor is onto the roof frame, covered by a box
• Low-noise cylinder with mechanical limit stop makes the transition from open to closed seamless, peaceful and efficient
• Snow load: Up to 30 PSF (reference only)
• Wind resistance: 75 MPH (reference only)
• Color: Charcoal Grey
• Able to install on concrete, pavement, wood or equivalent

See less ⌃

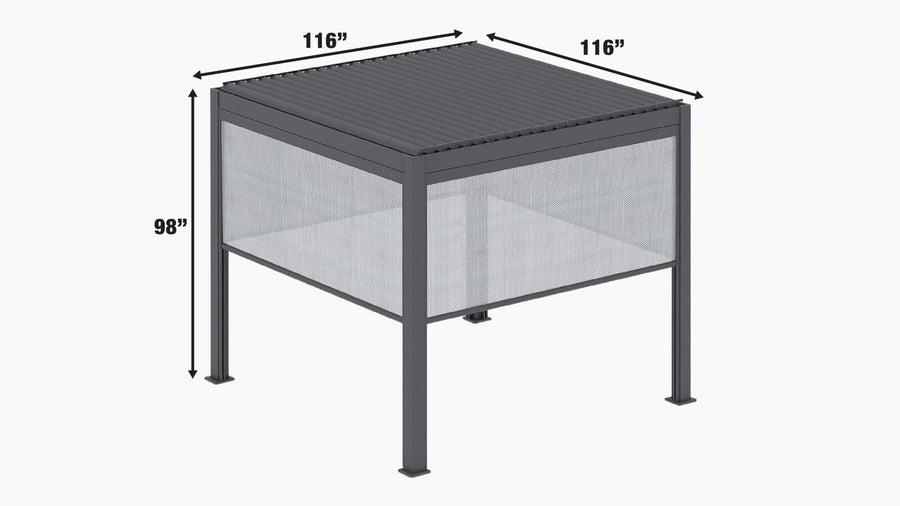

Specifications

• Motor power required: 24 VAC, 60 Hz
• Under crossbeam height: 93"
• Above crossbeam height: 98"
• Corner column (square profile): 4.3" x 4.3", 14 GA
• Crossbeam (rectangular profile): 5.9" x 3.2", 14 GA
• Louver blades (S shape): 6" x 1.65", 16 GA
• Product weight: 660 lb

See less ⌃

Product Description

The TMG LIVING Aluminum Motorized Louver Roof Pergola is the ultimate all-year backyard, patio and courtyard solution for any type of event, gathering or weather possibility. Motor adjustable louver slats and side screens transform this pergola from wide open to fully enclosed in a matter of seconds, providing you and your family privacy and protection at the press of a button. This opens up a whole new dimension when it comes to outdoor recreation and relaxation among guests of all sorts; loved ones, friends and business partners alike.

Built-in slatted rooftop blinds create tremendous versatility and opportunities for outdoor fun. Let in the sunshine on hot summer days, or take advantage of the interlocking, watertight barrier that is formed whenever the blinds are fully closed. The motorized louver blades can rotate up to 100 degrees which means you can tailor your environment with complete control over airflow, sunlight exposure and lighting. Let the fully automated screens on all four sides protect you from wind, bugs and moisture while you focus on unwinding, taking a deep breath and focusing on you.

The electric motor is hidden within the heavy gauge, low maintenance square aluminum alloy frame to shelter it from the elements. This makes the whole structure rust and corrosion free, ensuring a solid long-lasting construction. The louver blades have a powder coated aluminum rigid plane which offers strong support in the case of build up during snowy winter seasons. These blades are waterproof and heavily resistant to high winds making the TMG-LPG11 your most reliable addition when designing your dream yard or outdoor professional setting.

For bigger areas we also carry a larger version of this product, the TMG-LPG21 10 x 20 ft Aluminum Motorized Louver Pergola with Side Screens. Between the LPG11 and LPG21 we have diverse options depending on where it will be installed.

See less ⌃

Shipping Information

The order will ship from one of our warehouses in Canada or the United States Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

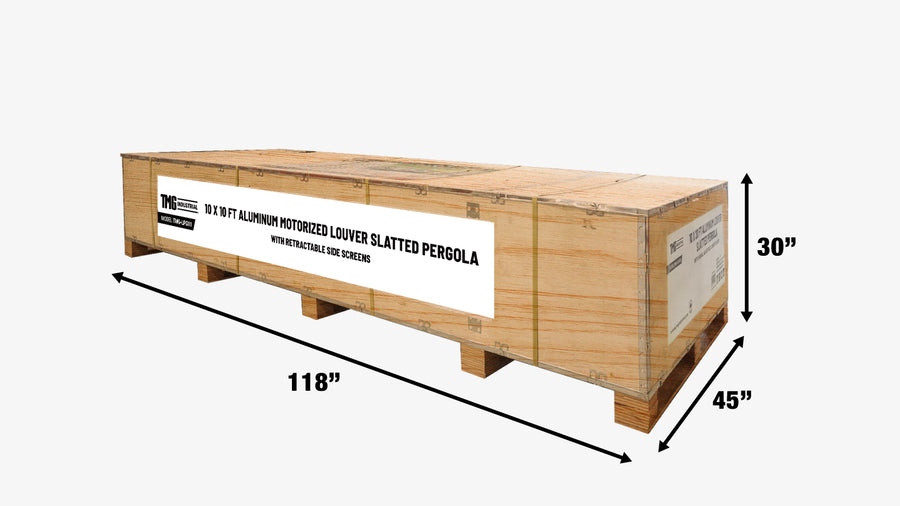

• The product is packed in a wood crate shipping box
• Shipping dimension: 118” x 45” x 30”
• Shipping weight: 930 lb

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

See less ⌃

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
