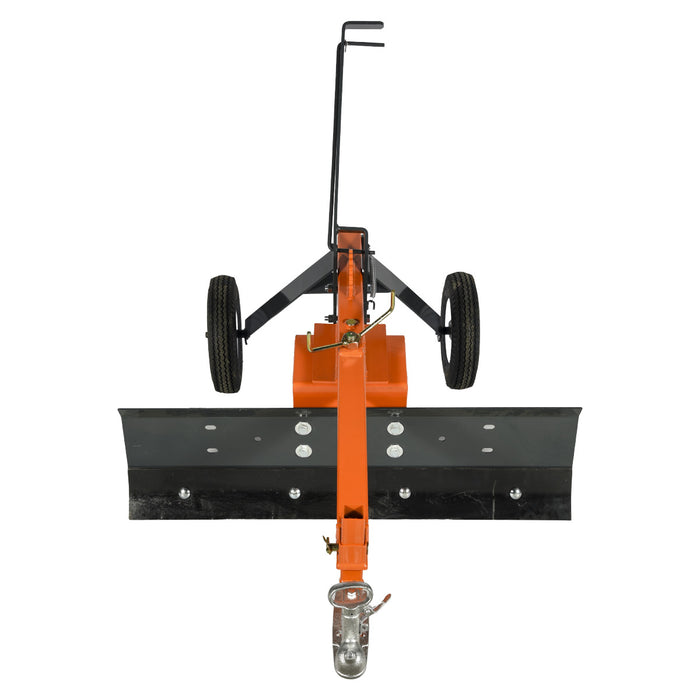

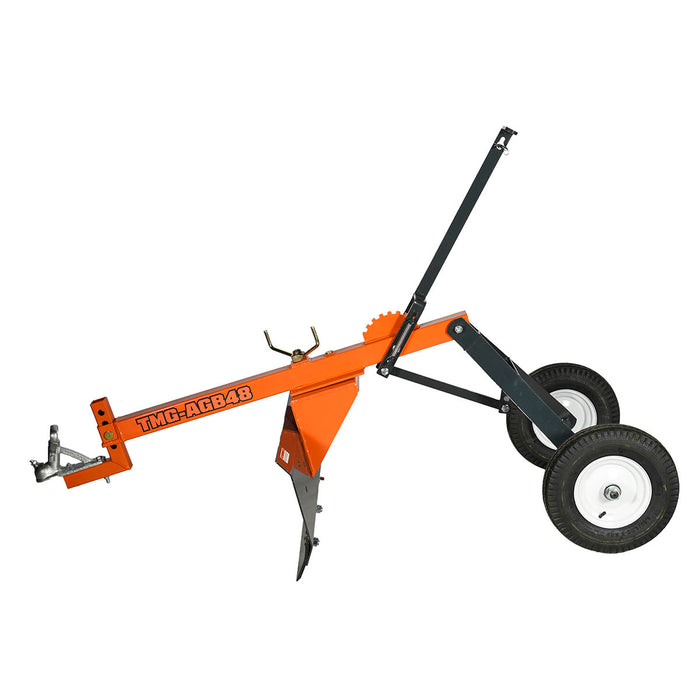

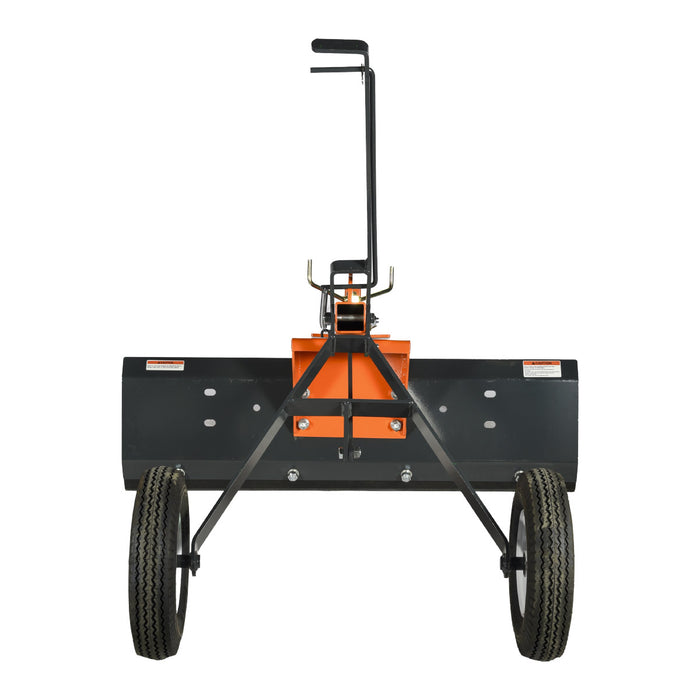

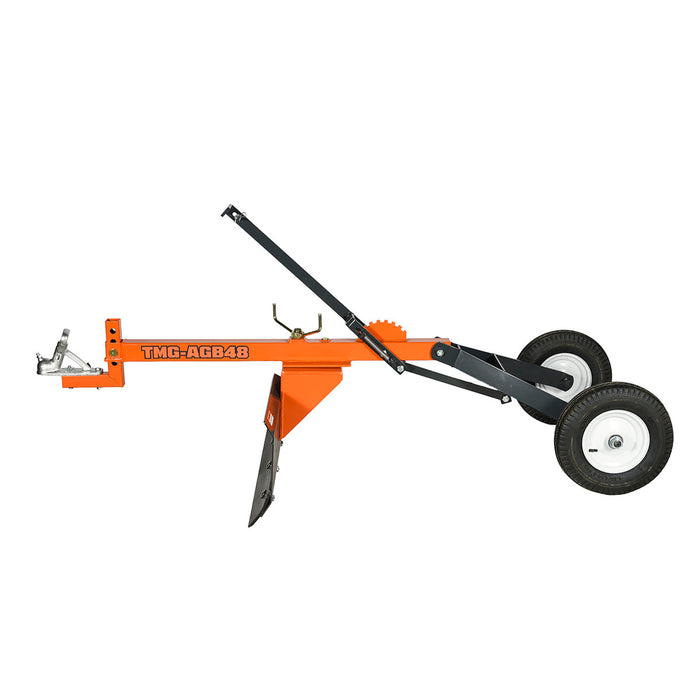

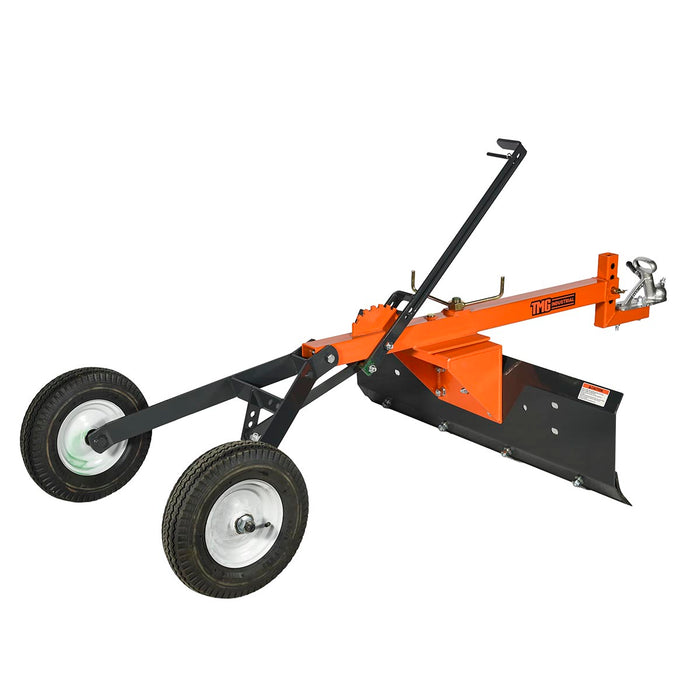

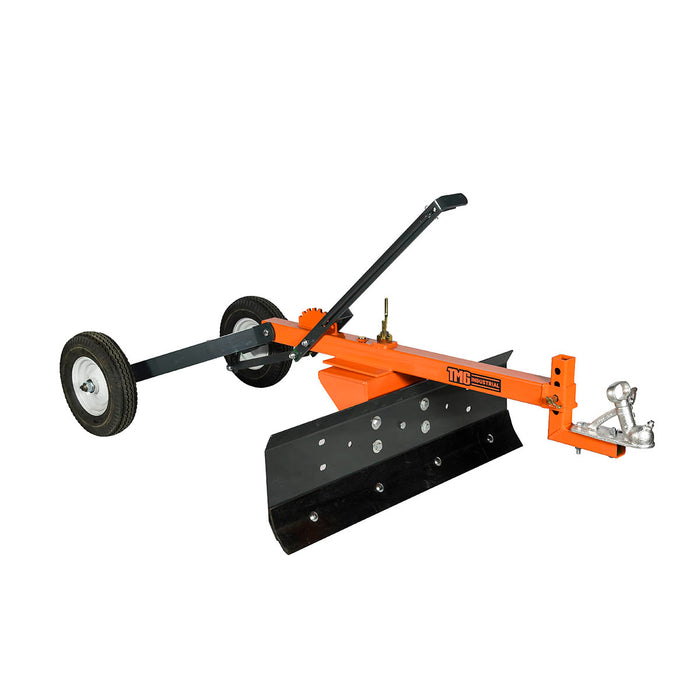

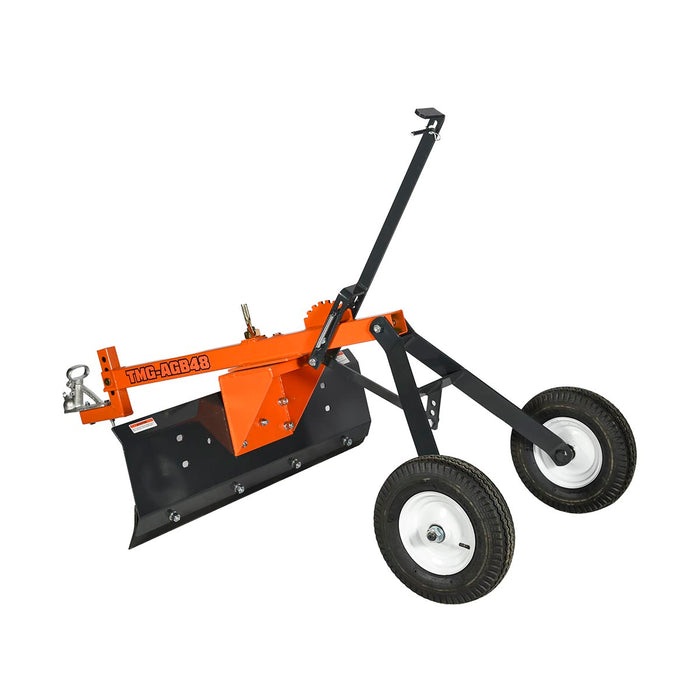

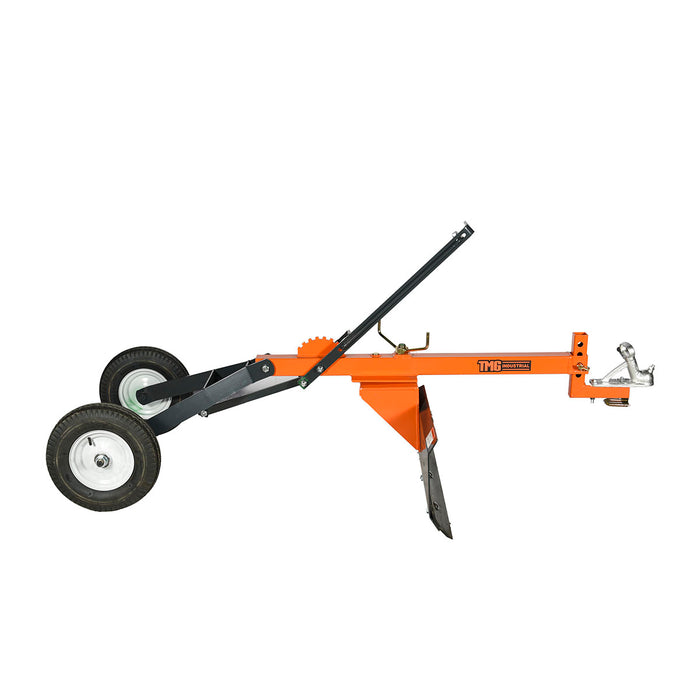

48" ATV Tow-Behind Grader Blade, 5 Blade Angles, 7 Height Positions, 2" Ball Hitch, 16" Tires, TMG-AGB48

Click to expand Tap to zoom

CURRENTLY OUT OF STOCK

SKU TMG-AGB48

Original price $799.00 CAD - Original price $799.00 CAD

Original price

$799.00 CAD

$799.00 CAD - $799.00 CAD

Current price $799.00 CAD

| /

Save

$799.00 CAD

Total: $799.00 CAD $799.00 CAD

FREE

shipping to most locations in

Canada

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

1-877-761-2819

cs@tmgindustrial.ca

Find Parts

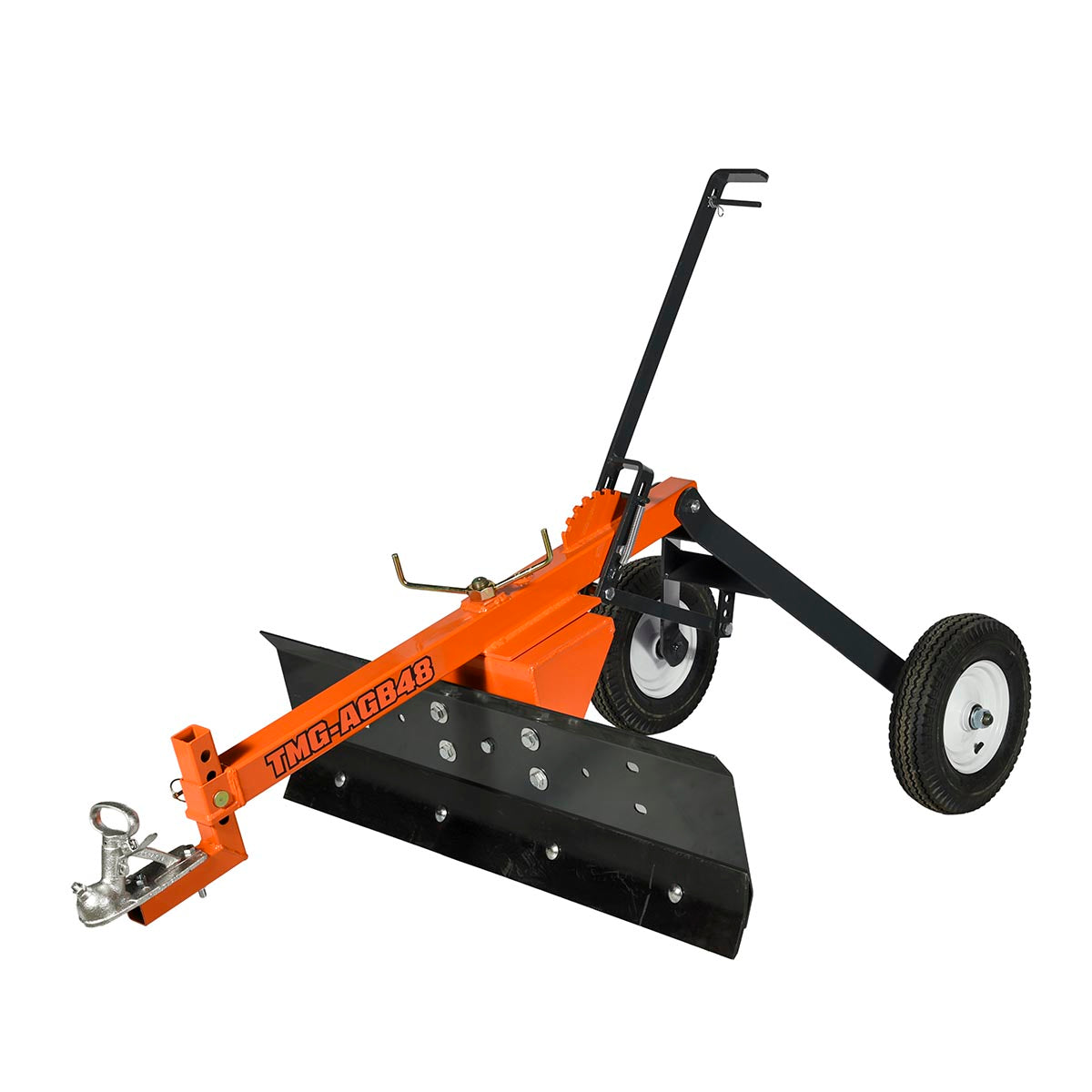

48" ATV Tow-Behind Grader Blade, 5 Blade Angles, 7 Height Positions, 2" Ball Hitch, 16" Tires, TMG-AGB48

(Accessories Incl.)

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

NOTIFY ME WHEN AVAILABLE

Features Specs Description Shipping Info Warranty Reviews

Features

• 48" Grading Width: Covers driveways, gravel lanes, pathways, and yards efficiently while remaining maneuverable for routine property maintenance.
• 7 Grading Depth Option: Turnbuckle adjustment fine-tunes blade depth, while 7 lever positions provide flexible height control for different grading conditions.
• 5 Blade Angling: Five adjustable blade positions let you control grading direction and redistribute gravel, soil, and other loose surface materials.
• 4-Height Hitch Settings: Four hitch positions accommodate different towing heights and provide compatibility with most ATVs and UTVs.
• 16" Pneumatic Tires: Large-size tires provide stable support, smoother travel, and easier maneuverability across gravel, dirt, and uneven terrain.
• Heavy-Duty Design: Durable steel blade and tow frame provide reliable performance for driveway maintenance, surface leveling, and general property upkeep.

See less ⌃

Specifications

• Working width: 48" (1200 mm)
• Blade height: 15" (380 mm)
• Cutting edge: 48" x 6" x 3/8" (1200 x 150 x 10 mm)
• Cutting edge material: Hardened alloy steel
• Tow frame length: 50" (1250 mm)
• Tow ball size: 2" hitch
• Hand lever adjustable positions: 7
• Blade anglings: 0°, +/-23°, +/-45° (5 angles)
• Hitch height settings: 4
• Tires: 4.80/4.00-8

See less ⌃

Product Description

The TMG-AGB48 48" ATV Tow-Behind Grader Blade is designed for maintaining gravel driveways, lanes, pathways, yards, and other loose surfaces with an ATV or UTV. Its 48" working width provides efficient coverage while remaining easy to maneuver around farms, acreages, worksites, and residential properties.

Multiple adjustment options provide greater control over grading performance. The turnbuckle allows precise depth adjustments, while the hand lever offers 7 height positions. Five blade angle settings (max. 45° left and right) let you change the direction of material movement, making it easier to level uneven areas, redistribute gravel, and maintain consistent surface conditions.

16" pneumatic tires help keep the blade stable and moving smoothly across rough or uneven ground. Four hitch height settings and the 2" tow ball connection accommodate most ATV and UTV towing setups, while the durable steel blade and tow frame support routine driveway maintenance, grading, and general property upkeep.

See less ⌃

Shipping Information

The order will ship from one of our main warehouses in Canada. Under normal circumstances, it takes 2 to 3 business days to process and ship your order. Delivery typically takes 10 to 15 business days depending on your location and accessibility.

• This product is packed in steel frame packaging
• Shipping Dimensions: 49" x 28" x 9" (L x W x H)
  125 x 70 x 23 cm
• Shipping Weight: 175 lb (80 kg)

Shipping from Richmond, BC, or Mississauga, ON
