TMG Industrial 80 ton Weighbridge Truck Scale, -35℃ to +70℃, 10' x 60' (W x L), acier de haute qualité, conception de poutre en forme de U, surcharge de 120 %, TMG-FST80

Original price $0.00 CAD - Original price $0.00 CAD
Original price $0.00 CAD
$39,999.00 CAD
$39,999.00 CAD - $39,999.00 CAD
Current price $39,999.00 CAD

Other financial option:

17600.0 lb
59 x 225 x 12 inches
More Shipping Info
  • 80 ton weighing capacity w/120% safe overload limit

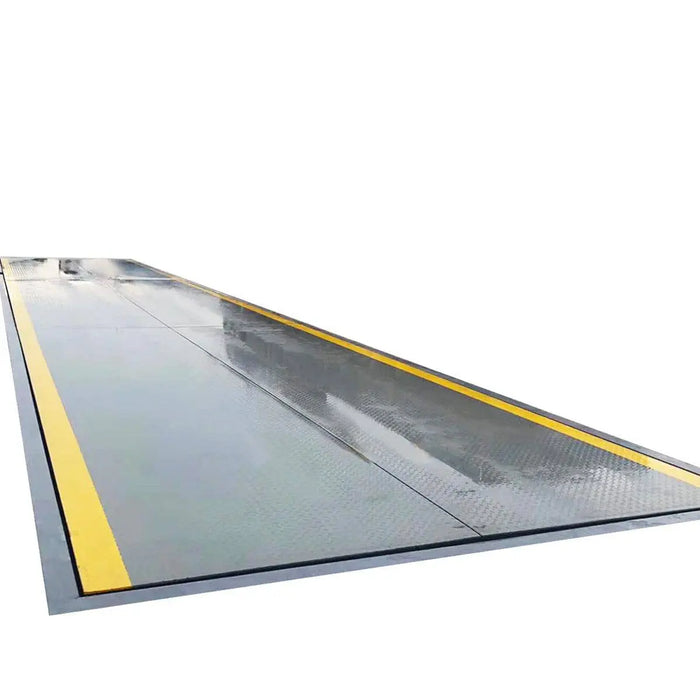

  • Top plate is checker plated for slip resistance & safety
  • Can be used in temperatures ranging from -35℃ to +70℃
  • Anti-rust & anti-corrosion coating for long term use
  • Heavy-duty industrial load cells & sound alert weight indicator


  • Built with high-quality steel in a standard U-shape beam and modular design, making it easy to assemble/disassemble, durable, and long-lasting
  • Anti-rust and anti-corrosion coating on the scale ensures that it will not rust or corrode over time, even with regular and prolonged use in varying weather
  • The scale's top plate is checker plated, which makes it slip-resistant, ensuring that vehicles will stay in place during weighing for safety and accuracy
  • This scale can be used in temperatures ranging from -35℃ to +70℃, making it suitable for use in various weather, seasons, and locations
  • Included industrial load cells are designed for heavy-duty use and the digital indicator ensures a reliable and accurate real-time data reading
  • The weighing indicator has a sound alert when the weight limit is exceeded, ensuring that users are aware when the scale is overloaded; 120% safe overload limit
  • Weighing records can be stored, checked, and deleted, and are secured through power-off protection, providing users with a convenient way to track their data over time

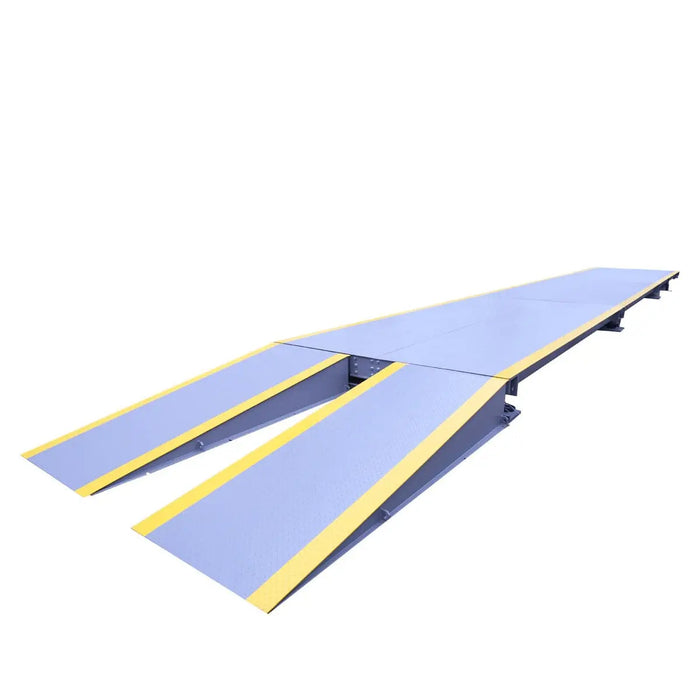

  • Above ground ramps are optional (sold separately)
  • Optional accessories to order on parts store:

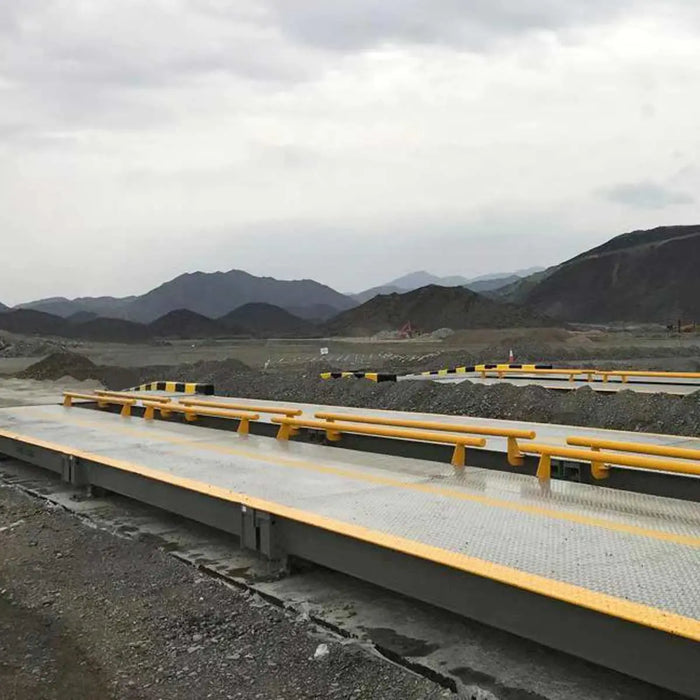

    • Guard rails (3 sections for both sides, 18m)

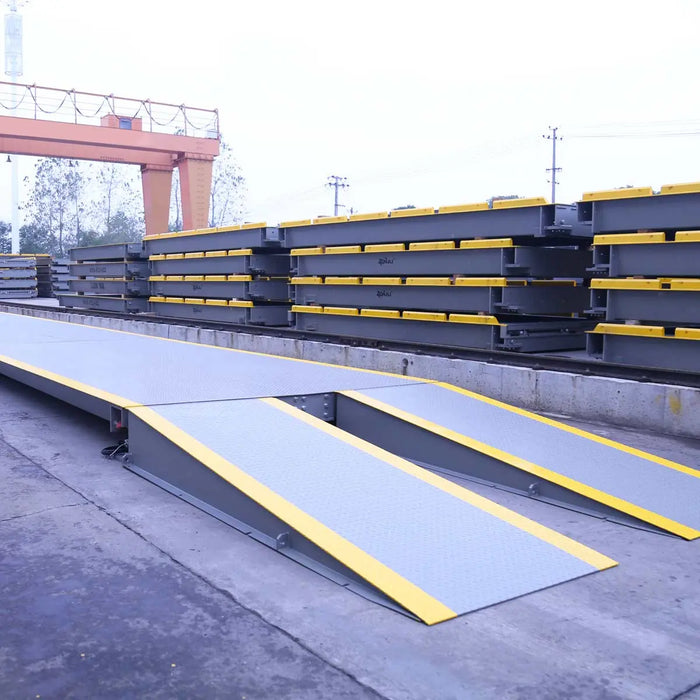

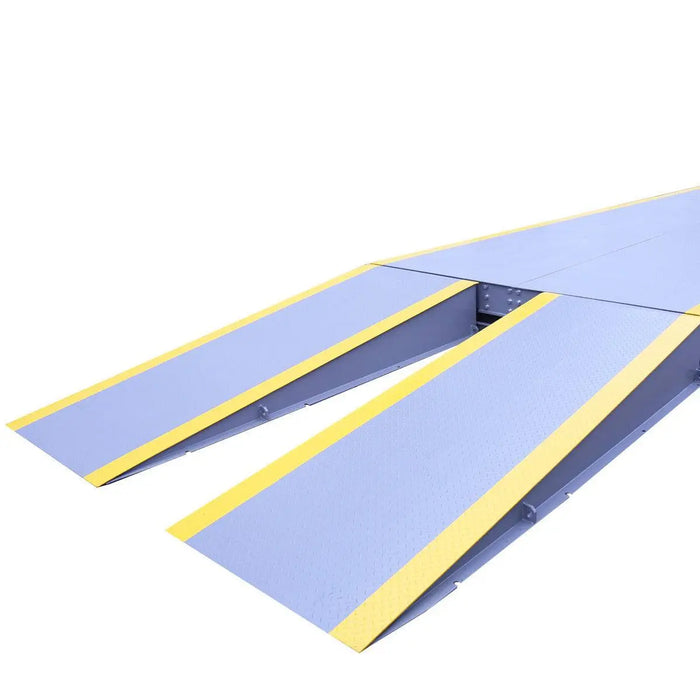

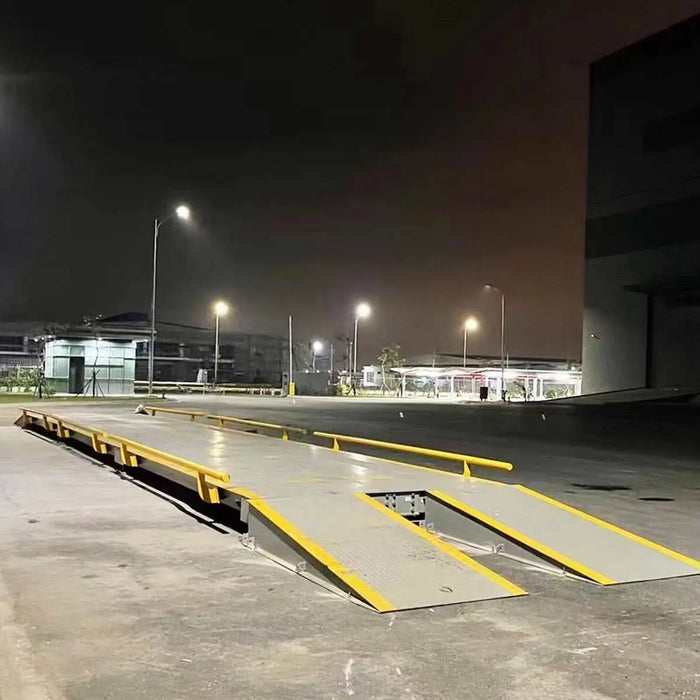

    • Above ground ramps for both ends (4 pieces, 1.2 x 2.8m)
    • External wall mounted LED display


  • Capacity: 80 ton
  • Scale platform width (exact): 118” (9.84’)
  • Scale platform exact length (exact): 675” (56’)
  • Structure: U-shaped beam (6)
  • Steel: High-quality steel
  • Painting: Anti-rust & anti-corrosion painting

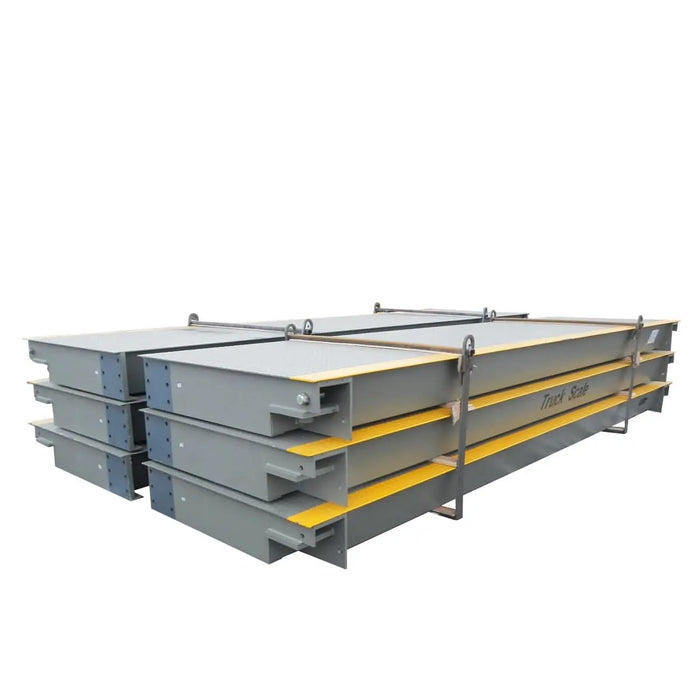

  • Truck scale consists of 6 modular pieces (59” x 225”)
  • Top plate: 8 mm checker plate
  • Accuracy: OIML III
  • Working temperature: -35℃-+70℃
  • Relative humidity: <95%
  • Safe overloading: 120%
  • Anti-cheating technology to eliminate electronic interference
  • Can be connected to external devices such as printers, computers & large monitor displays

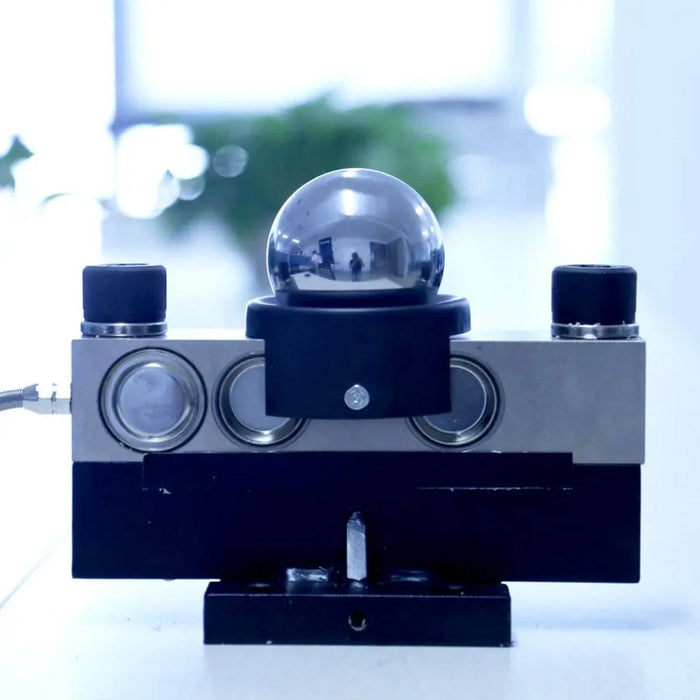

  • Load Cell

  • Working temperature range: -35℃-+70℃
  • Safe Overload: 150% (full scale)
  • Ultimate overload: 300% (full scale)
  • Hermetically sealed
  • Protection class: IP68

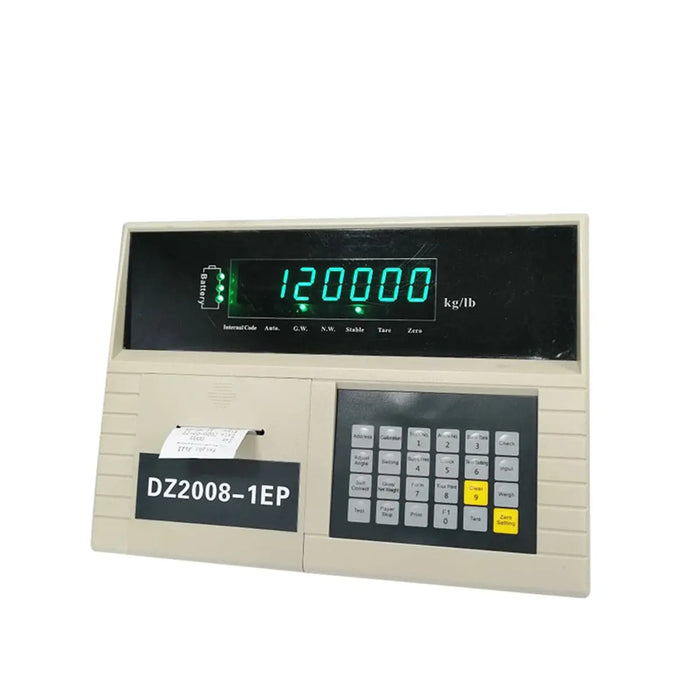

  • Weight Indicator

  • Operating temperature: 0℃~40℃
  • Relative humidity: ≤85%RH
  • Power supply: 220V/60Hz or 110V/60Hz
  • Transmission mode: RS232/RS422/485 (optional)
  • Baud rate: 600/1200/2400/4800/9600 (optional)
  • Weighing record storage/check/delete/power-off protection
  • Sound alert when over weight limit
  • Stainless Steel Junction Box

  • Waterproof seal joints
  • Resistance protection device
  • Stainless steel cover

P.S. The scale is not certified for legal trade business.

Shipping Information

This product is available for Pre-Sale order process only. The order will ship FREE from our main warehouse in Richmond, BC. Under normal circumstances it will take 8 to 12 weeks to process the production and get ready to ship from the warehouse. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • The scale will be shipped in an enclosed container or a flat deck truck
  • Shipping dimension: 59” x 225” x 12” (per modular x 6) (L x W x H)
  • Shipping weight: 17,600 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?

Product Description

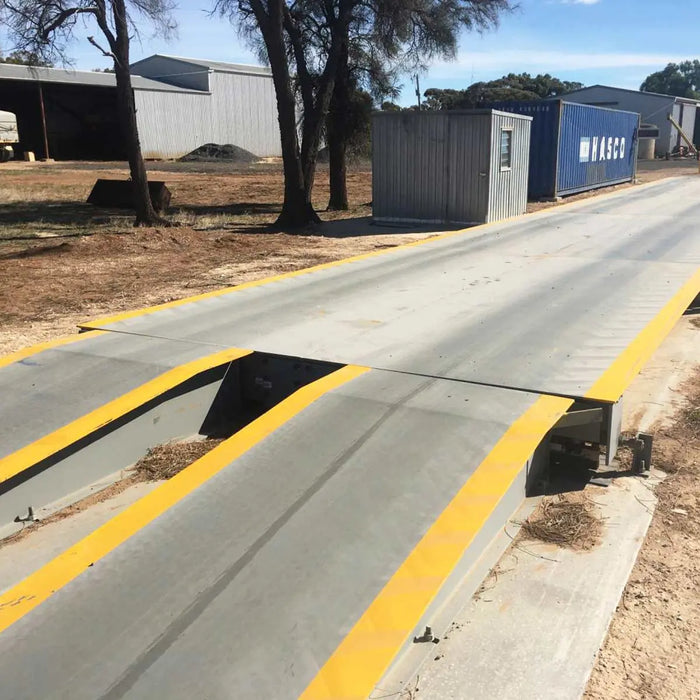

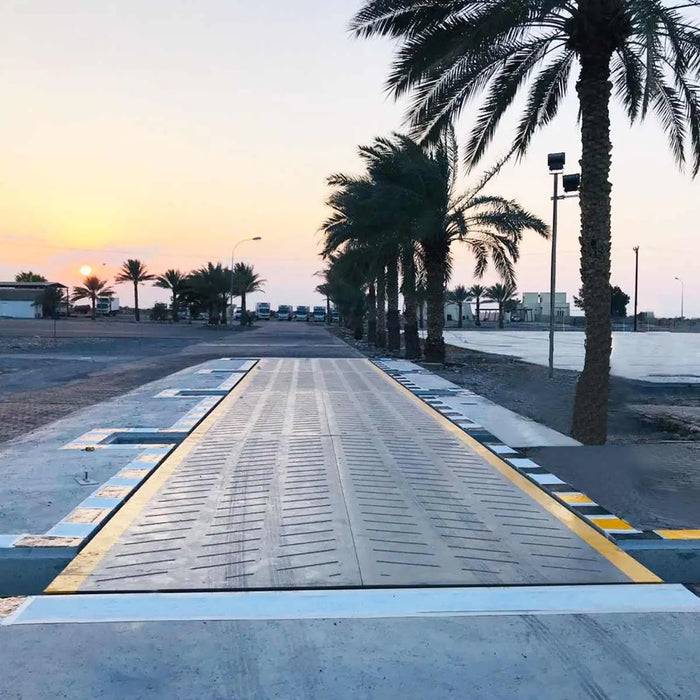

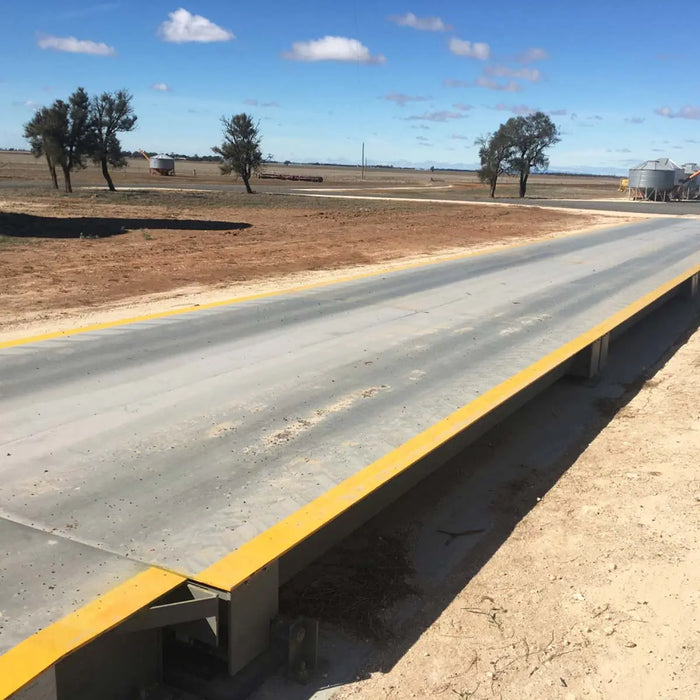

Le pont-bascule TMG-FST80 de 80 tonnes a une capacité de mesure de 80 tonnes. Cette balance à camion peut être installée dans le sol ou hors sol avec des rampes, et son plateau en acier de qualité industrielle mesure 10' de large et 60' de long. Les cellules de charge industrielles et l'indicateur numérique de la balance sont inclus dans l'emballage et peuvent peser à des températures allant de -35℃ à +70℃. Il s'agit d'une solution de pesage fiable et précise largement utilisée dans des secteurs tels que la logistique, le camionnage, le transport, l'agriculture, la gestion des déchets, la foresterie, l'armée et les agences gouvernementales.

Construit avec de l'acier de haute qualité dans une conception de poutre en forme de U standard avec six pièces de poutres en U incluses. La plaque supérieure est plaquée en damier et peinte avec un revêtement antirouille et anticorrosion pour une utilisation durable. L'indicateur de pesage est livré avec une alerte sonore lorsque la limite de poids est dépassée et la balance a une capacité de surcharge sûre de 120 %. L'enregistrement de pesée peut également être stocké, vérifié et supprimé, et est sécurisé par une protection contre la mise hors tension.

Une boîte de jonction en acier inoxydable résistante à l'eau et à d'autres éléments est également incluse. Il est équipé d'un dispositif de protection contre la résistance et utilise des joints d'étanchéité étanches pour connecter la boîte de jonction et l'indicateur séparément.


We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
