12’ Portable Cattle Loading Ramp (Discontinued – No Longer Available) Aller au contenu
CURRENTLY OUT OF STOCK
TMG-CSR12

TMG Industrial Rampe de chargement portable pour bovins de 12 pi, capacité de châssis de 2 600 lb, capacité d'attelage de 10 000 lb, plancher à carreaux côtelés, TMG-CSR12

TMG Industrial 12’ Portable Cattle Loading Ramp, 2600-lb Chassis Capacity, 10,000 lb Hitch Capacity, Rib-Checkered Floor, TMG-CSR12
CURRENTLY OUT OF STOCK
SKU TMG-CSR12
$0.00 CAD - $0.00 CAD
$0.00 CAD
$6,999.00 CAD
$6,999.00 CAD - $6,999.00 CAD
$6,999.00 CAD
$6,999.00 CAD

FREE

shipping to most locations in

Canada
Delivered in 10 to 15 business days Learn More
1-877-761-2819
Find Parts

Features

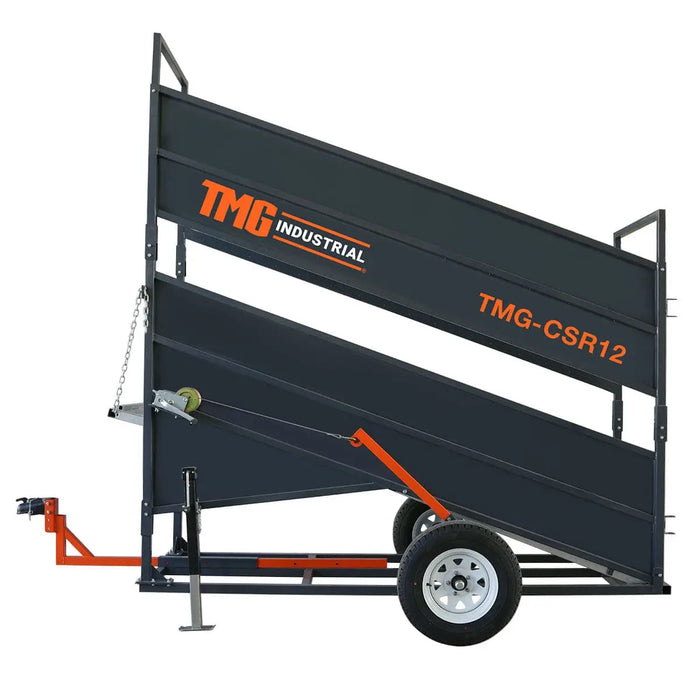

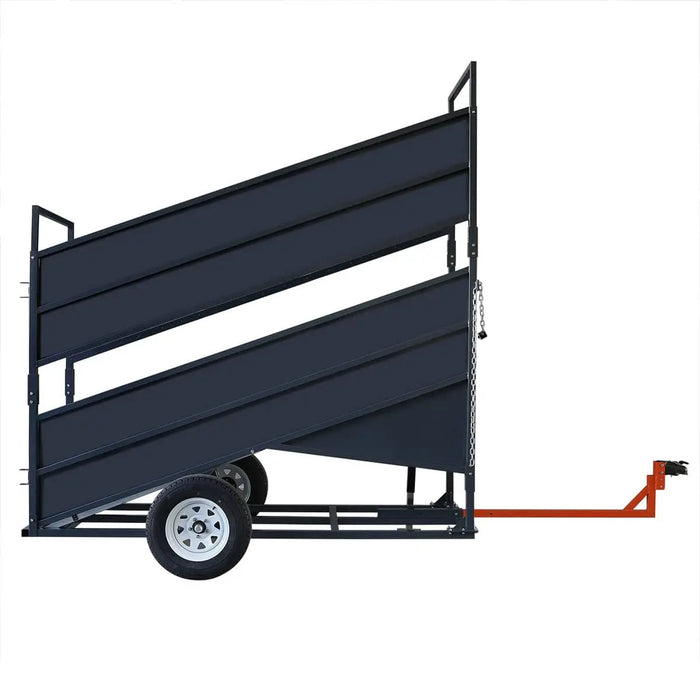

  • 12’ ramp length is designed to make your cattle handling operations more efficient by allowing you to set up in a variety of locations
  • Adjustable ramp height of 24” to 58” to accommodate varying trailer sizes and platforms so your cattle can transition smoothly out of the ramp

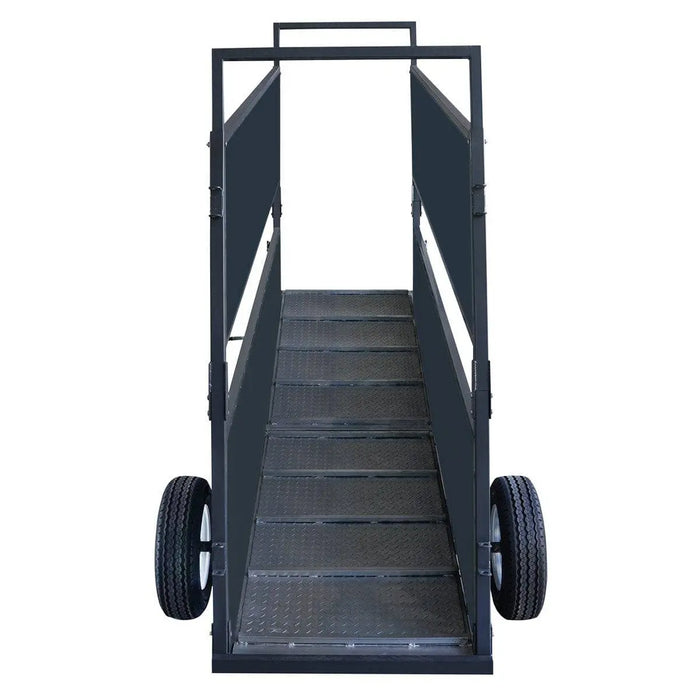

  • Rib-checkered steel flooring features a 3 mm pattern board and anti skid tube to help with traction provide a stable footing for your animals
  • Ramp surface has been treated with a hot-dip galvanization process and the whole frame is powder coated making it more durable and resistant against rust

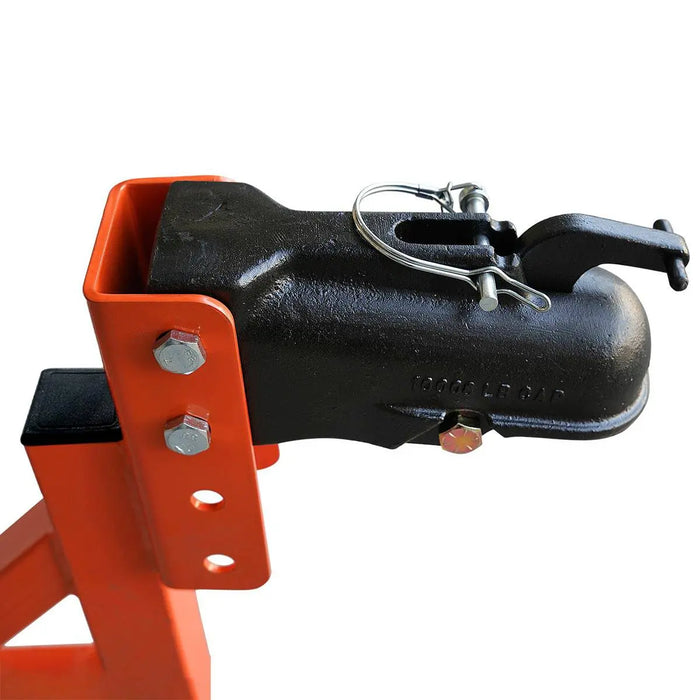

  • 2” ball hitch has a 10,000 lb heavy-duty towing capacity allowing you to hook up and transport this ramp with confidence
  • 11” vision slot allows you to easily monitor your cattle and guide them through the loading process to keep them comfortable and calm

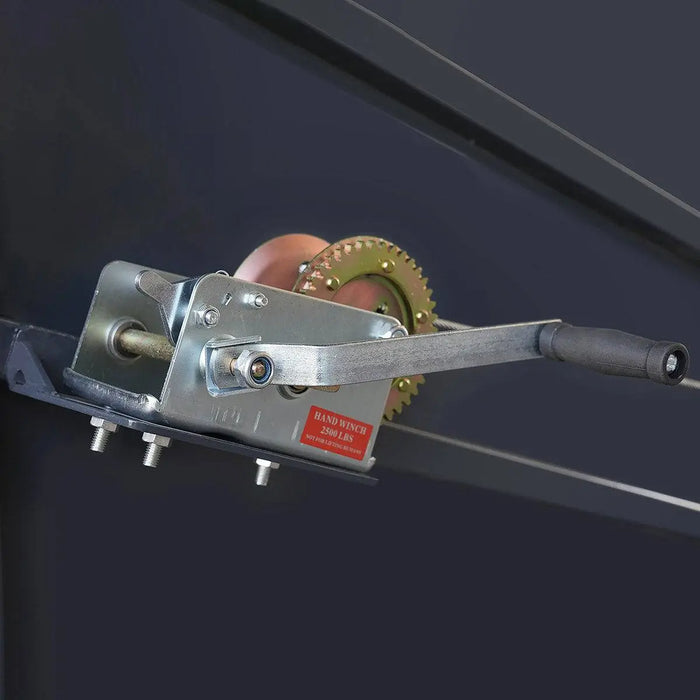

  • Chassis has a maximum load-bearing capacity of 2600 lb with a winch tension of 2500 lb so you can accommodate your unique working environment(s)
TMG Industrial Rampe de chargement portable pour bovins de 12 pi, capacité de châssis de 2 600 lb, capacité d'attelage de 10 000 lb, plancher à carreaux côtelés, TMG-CSR12-description-image

Specifications

  • Overall dimension: 180” (L) x 55” (W) x 124” (H)
  • Ramp length inside: 114”
  • Ramps width Inside: 32-½”
  • Ramps height of sides: 80”
  • Ramp height Settings: 24”-58”
  • Hitch: 2” ball
  • Capacity: 10,000 lb
  • Maximum load-bearing of chassis: 2600 lb
  • Winch tension: 2500 lb

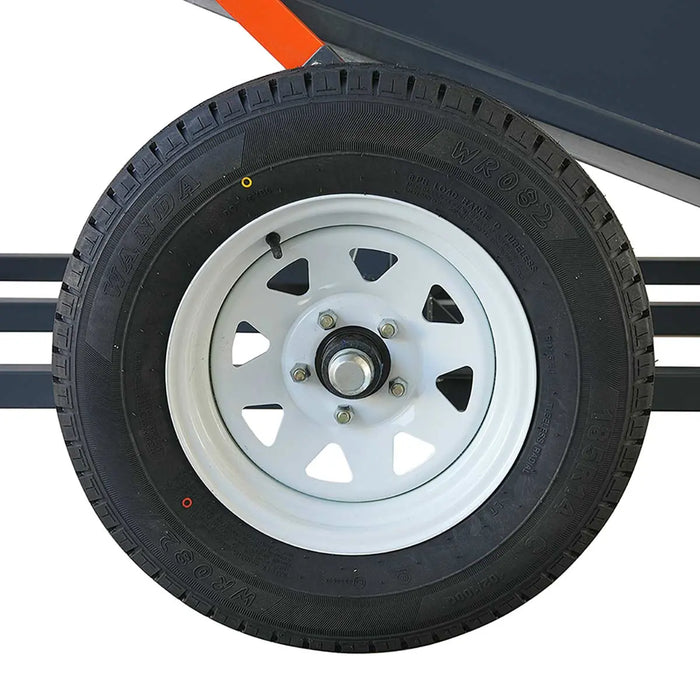

  • Tire: 185R14C
TMG Industrial Rampe de chargement portable pour bovins de 12 pi, capacité de châssis de 2 600 lb, capacité d'attelage de 10 000 lb, plancher à carreaux côtelés, TMG-CSR12-specifications-image

Product Description

La rampe pour bétail portable TMG-CSR12 offre une flexibilité inégalée dans la configuration de votre manipulation du bétail. Conçu pour rendre vos opérations et votre transport de bétail plus efficaces avec une rampe de 12 pieds qui vous permet de vous installer dans une variété d'endroits. Un plancher en acier à carreaux nervurés, doté d'une planche à motif de 3 mm et d'un tube antidérapant, crée un voyage sécurisé pour vos animaux tout en offrant une traction pour les maintenir en mouvement avec assurance dans la goulotte de chargement.

La capacité de remorquage robuste de l'attelage à boule de 10 000 lb vous permet de déplacer votre bétail en toute confiance. La charge maximale du châssis lui-même est de 2600 lb avec une tension de treuil de 2500 lb. La hauteur de la rampe peut être ajustée entre 24" et 58" pour accueillir votre remorque. Une fente de vision de 11 pouces vous permet également de surveiller facilement votre bétail et de le guider tout au long du processus de chargement.

Nos goulottes de chargement sont construites avec un cadre enduit de poudre, conçu pour les protéger de l'humidité excessive, des produits chimiques, des rayons UV et d'autres conditions météorologiques extrêmes. Construit pour durer, offrant une résistance à la rouille, à l'usure et à la corrosion au fil du temps.

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a wood crate shipping box
  • Shipping dimension: 118” x 28” x 85” (L x W x H)
  • Shipping weight: 1150 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
TMG Industrial Rampe de chargement portable pour bovins de 12 pi, capacité de châssis de 2 600 lb, capacité d'attelage de 10 000 lb, plancher à carreaux côtelés, TMG-CSR12-shipping-info-image

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
