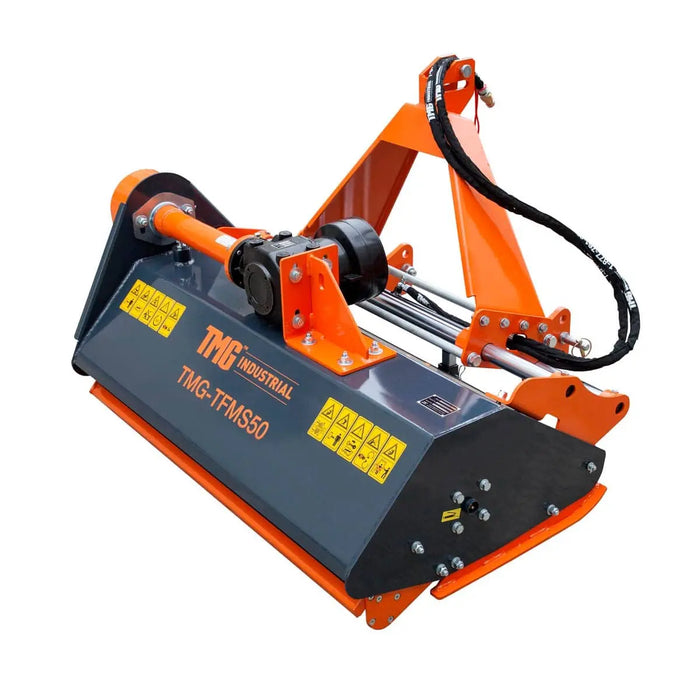

50" Side Shift Offset Flail Mower, 3-Point Hitch, 30-60 HP Tractor, PTO Drive Shaft, TMG-TFMS50
FREE
shipping to most locations in
Canada
FREE
shipping to most locations in
Canada
Have a question? We’re here to help! Feel free to call us, or send us a message using the form.
*Please include the product SKU in the message.
Hours: Mon–Fri, 7:30 AM – 5:00 PM PST
Toll Free: 1-877-761-2819
Phone Number: 604-998-7541
Have a question? We’re here to help! Feel free to call us, or send us a message using the form.
*Please include the product SKU in the message.
Hours: Mon–Fri, 7:30 AM – 5:00 PM PST
Toll Free: 1-877-761-2819
Phone Number: 604-998-7541
The TMG-TFMS50 Side Shift Flail Mower makes the cutting of uneven, overgrown and sloped terrain efficient and easy to do. Tough, matted grass and weeds are no match for this mower's heavy-duty 660 lb frame and forged flail hammers that chew up anything in their path. A hydraulically controlled side shifting offset can move approximately 14" to trim under low, overhanging tree branches or bushes and maintain hard-to-reach areas of all kinds.
Compatible with 30-60 HP tractors and Category 1 three-point hitch for the ultimate attachment needed at your home, farm or commercial property. The 49" of working width makes the reclaiming or maintenance of a large yard enjoyable, dynamic and cost-effective. Forget the hassle of traditional rotary mowers that constantly jam and clog on unconventional ground. This flail mower chews up wild growth and turns it into a nicely sized mulch that gets distributed evenly out the back with no need for extra, unnecessary cleanup.
Treat yourself and visitors to an always fresh and presentable welcome with this mower's effortless maneuverability around difficult contours and angled lineaments. The three-point hitch system has been designed for front-to-back flotation that produces a consistent, clean cut that looks groomed and professional. Blade rotor shaft is driven with three drive belts and protective guards give the owner of this mower a safe and powerful operating experience. This is an ideal product for the restoration and upkeep of roadways, building sites, pitched grounds, farm, ranch and residential lands.

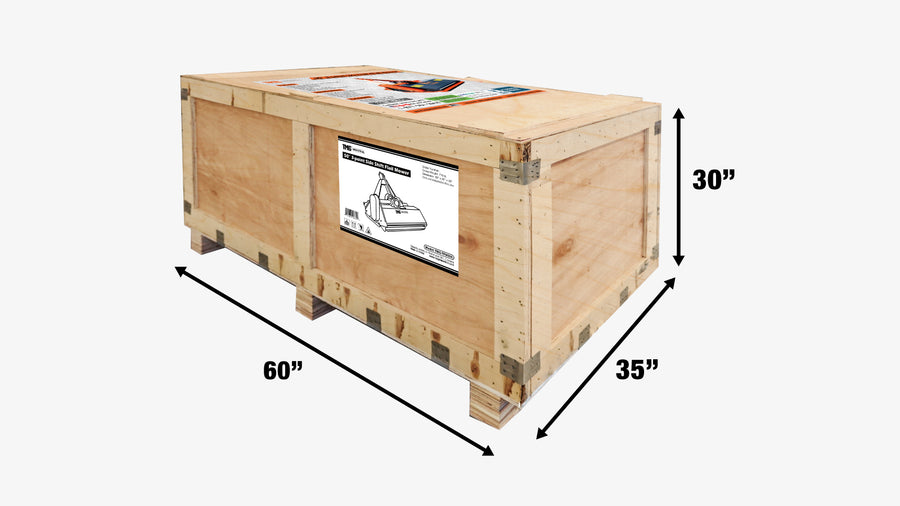

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
50" Side Shift Offset Flail Mower, 3-Point Hitch, 30-60 HP Tractor, PTO Drive Shaft, TMG-TFMS50$3,299.00 CAD View details
(45)
| 60" Side Shift Offset Flail Mower, 3-Point Hitch, 30-60 HP Tractor, PTO Drive Shaft, TMG-TFMS60$3,599.00 CAD View details
(45)
| 72" Side Shift Offset Flail Mower, 3-Point Hitch, 30-60 HP Tractor, PTO Drive Shaft, TMG-TFMS72$4,499.00 CAD View details
(45)
| |
|---|---|---|---|
| Side Shift Offset Flail Mower | |||

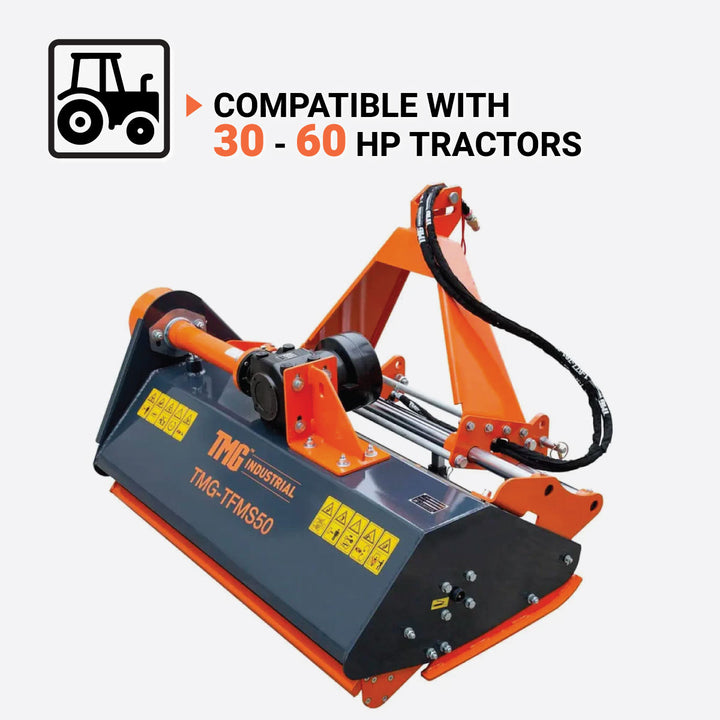

Tractor Power required |
30 - 60 HP
|
30 - 60 HP
|
30 - 60 HP
|

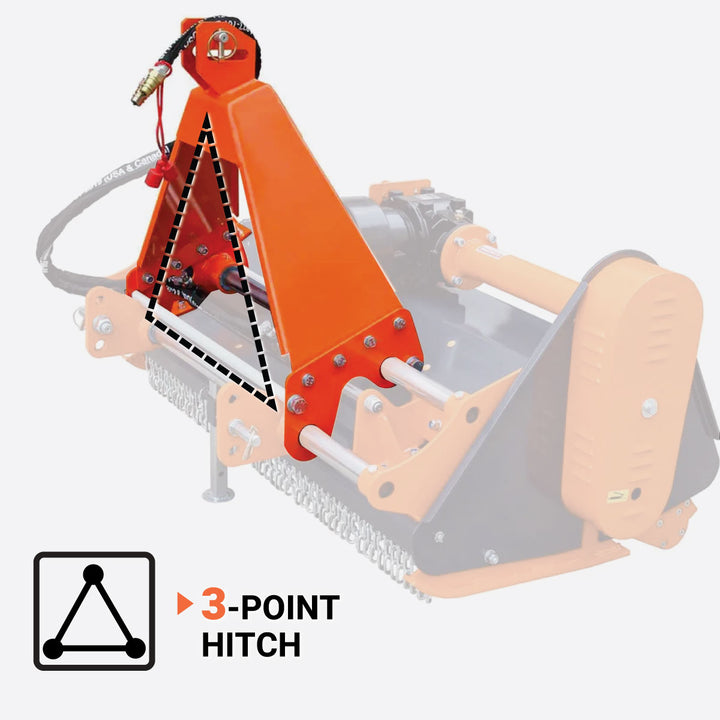

Mounting Type |
3 Point Hitch Category 1
|
3 Point Hitch Category 1
|
3 Point Hitch Category 1
|
Hydraulic Pressure |
16 MPa
|
16 MPa
|
16 MPa
|
Number Of Hydraulic Flat Face Couplers |
2
|
2
|
2
|
Hydraulic flat Face Couplers Size |
G 1/2" Pioneer Coupler
|
G 1/2" Pioneer Coupler
|
G 1/2" Pioneer Coupler
|
Number of Hydraulic Hoses |
2
|
2
|
2
|
PTO Shaft Included |
✓
|
✓
|
✓
|
Overrun Protection |
Shear Pin
|
Shear Pin
|
Shear Pin
|

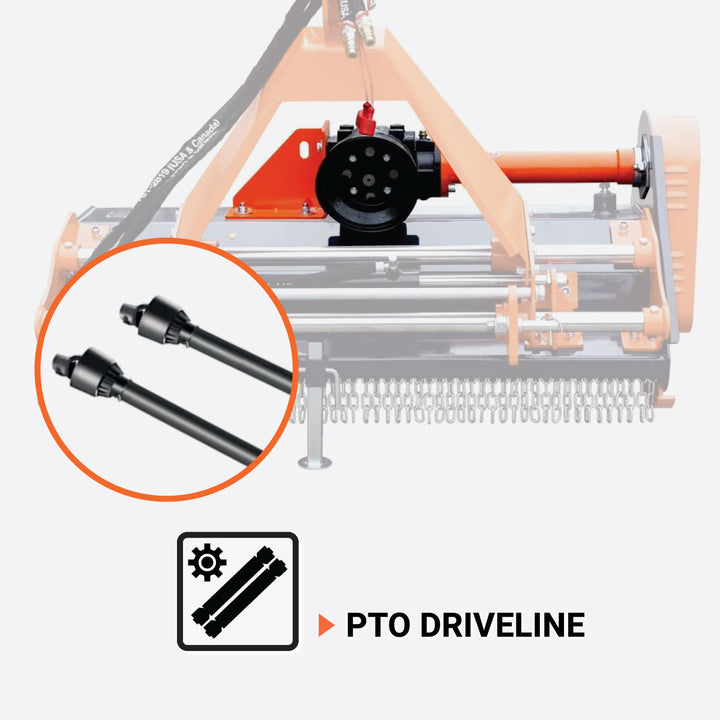

PTO Shaft |
540 RPM
|
540 RPM
|
540 RPM
|
PTO Shaft Model |
04B-LF-900
|
04B-LF-900
|
04B-LF-900
|
PTO Shaft Length |
2' 11"
|
2' 11"
|
2' 11"
|

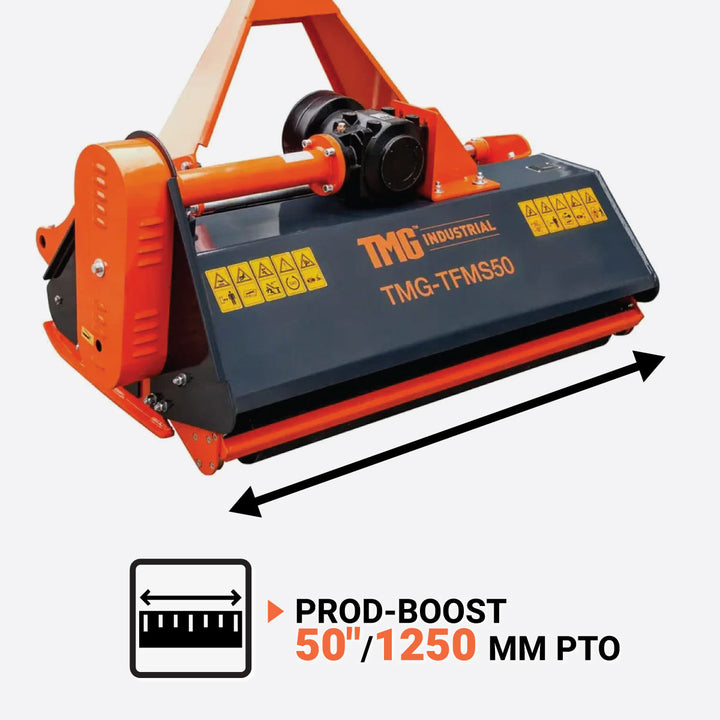

Working Width |
49"
|
61"
|
73"
|
Adjustable Tensioner |
✓
|
✓
|
✓
|
Cutting Capacity |
1.5"
|
1.5"
|
1.5"
|

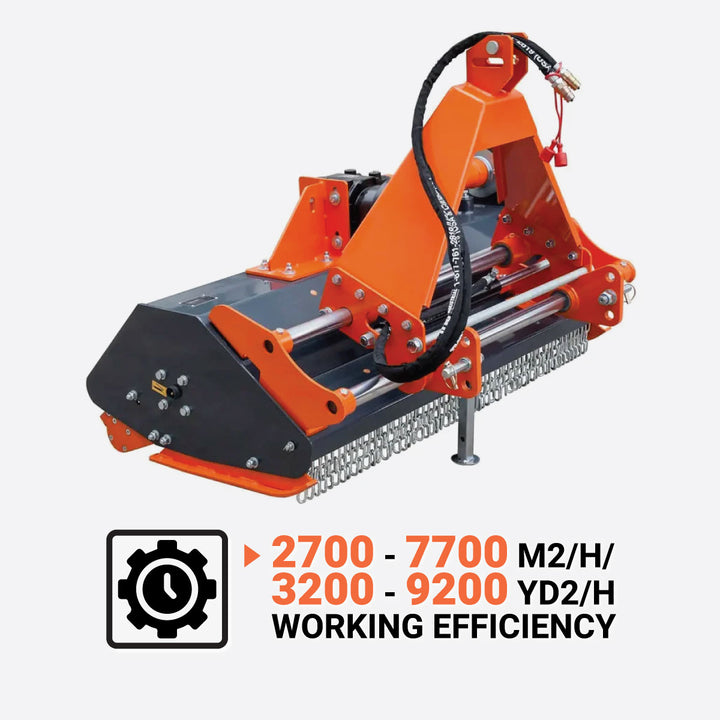

Work Efficiency |
29,100 – 82,900 ft²/h
|
36,100 – 95,800 ft²/h
|
43,100 – 105,500 ft²/h
|
Rotor Shaft Speed |
2160 RPM
|
2160 RPM
|
2160 RPM
|
Rotor Diameter |
4.25"
|
4.25"
|
4.25"
|
Rotor Thickness |
0.31"
|
0.31"
|
0.31"
|
Max. Offset Distance |
14"
|
14"
|
14"
|
Number of Blades |
20
|
24
|
32
|
Blade Type |
Hammer (Y Blades Sold Separately)
|
Hammer (Y Blades Sold Separately)
|
Hammer (Y Blades Sold Separately)
|
Blade Material |
Forged Steel
|
Forged Steel
|
Forged Steel
|
Blade Ground Clearance |
0.3"-2.4"
|
0.3"-2.4"
|
0.3"-2.4"
|
Blade Swing Diameter |
13.7"
|
13.7"
|
13.7"
|

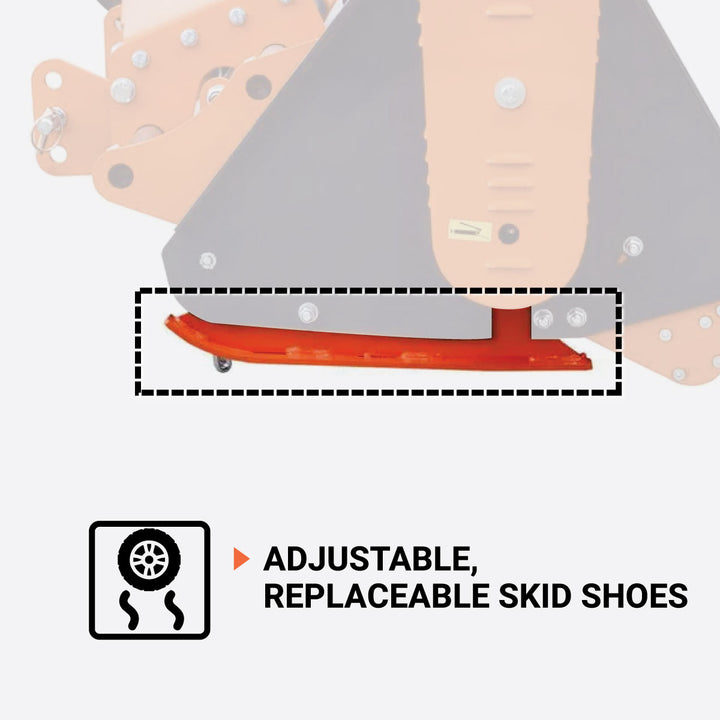

Adjustable & Replaceable Skid Shoes |
✓
|
✓
|
✓
|
Drive Type |
Belt
|
Belt
|
Belt
|
Number of Belts |
3
|
3
|
4
|
Belt Model & Size |
B991Li
|
B991Li
|
B991Li
|
Gearbox Oil Type |
SAE 90
|
SAE 90
|
SAE 90
|
Deck Thickness |
0.16"
|
0.16"
|
0.16"
|
Side Skid Thickness |
0.31"
|
0.31"
|
0.31"
|
Two Storage Kickstands |
✓
|
✓
|
✓
|
Finish |
Powder Coating
|
Powder Coating
|
Powder Coating
|

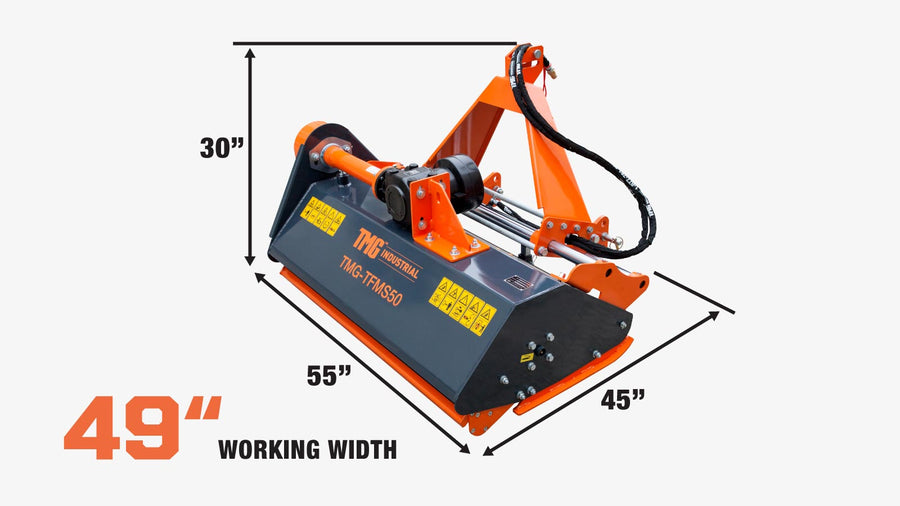

Overall Dimensions |
4' 7" × 3' 2" × 3' 1"
|
5' 7" × 3' 2" × 3' 1"
|
6' 7" × 3' 2" × 3' 1"
|
Net Weight |
683 lb
|
728 lb
|
816 lb
|
